Ubiquiti UniFi · Accessories

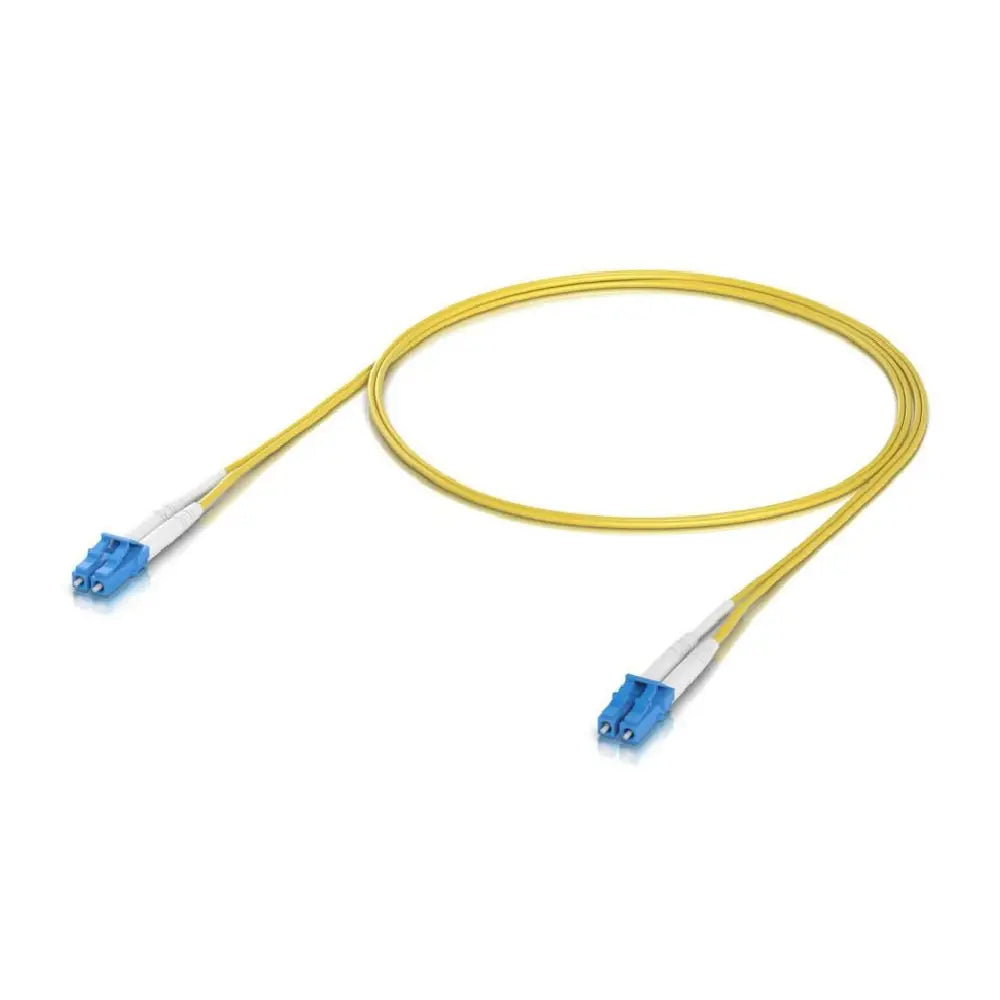

High-Performance UACC-OFC-S2-LULU OS2 Fiber Connectivity
Engineered for high-density enterprise switching, data centers, and core routing environments, the Ubiquiti UACC-OFC-S2-LULU delivers exceptional optical signal integrity. This lightweight OS2 single-mode fiber patch cable supports high-speed data transmission up to 100G connections, making it an indispensable asset for modern high-bandwidth commercial infrastructures requiring reliable, long-distance signal routing with minimal attenuation.
Fiber Mode
OS2 Single-Mode
Bandwidth Rating
Up to 100G Support
Jacket Material
Low Smoke Zero Halogen
Advanced Optical Engineering & Low Insertion Loss
The UACC-OFC-S2-LULU utilizes precision 9/125-micron single-mode fibers terminated with factory-polished UPC connectors to ensure optimal core alignment. Featuring exceptional return loss metrics and minimal insertion attenuation, this cable prevents signal degradation across expansive rack layouts. Encased in a flexible, flame-retardant Low Smoke Zero Halogen (LSZH) yellow jacket, it complies with strict indoor safety mandates while maintaining tight bend radiuses for clean server room cable management.
LSZH Fire-Safe Jacket
Built with a 2mm Low Smoke Zero Halogen outer sheath that emits restricted smoke and zero toxic halogens when exposed to extreme heat, safeguarding sensitive enterprise hardware spaces.
Superior Insertion Performance
Precision UPC polishing achieves exceptionally low insertion loss and high return loss characteristics, ensuring flawless packet transmission rates across multi-gigabit core infrastructures.
Technical Specification Matrix
| Model |
UACC-OFC-S2-LULU |
| Fiber Mode |
OS2 Single-Mode (9/125 μm) |
| Connector Type |
Duplex LC to LC (UPC Polish) |
| Supported Speeds |
Up to 100 Gbps Connections |
| Supported Wavelengths |
1310 / 1550 nm |
| Jacket Material |
Low Smoke Zero Halogen (LSZH) |
| Cable Outer Diameter |
2.0 mm |
| Operating Temperature |
-40 to 75° C (-40 to 167° F) |
What active network hardware is compatible with this fiber patch cable?
The UACC-OFC-S2-LULU is engineered to seamlessly interconnect active enterprise hardware including UniFi switches, aggregation routers, enterprise servers, and optical transceivers utilizing standard duplex LC interfaces.
Is the LSZH cable jacket safe for enterprise server room plenum spaces?
Yes, the Low Smoke Zero Halogen compound significantly reduces toxic and corrosive gases emitted during combustion, meeting stringent indoor building safety codes for IT racks and data centers.
What is the primary operational difference between OS2 and OM4 fiber types?
OS2 is a single-mode fiber optimized for long-distance, high-bandwidth data transmission with virtually unlimited modal bandwidth capabilities, whereas multi-mode OM4 is traditionally restricted to shorter campus or intra-rack runs.
Are different length options available for customized rack configurations?
Yes, this cable series is manufactured in multiple deployment lengths ranging from short 0.5-meter patch drops up to 30-meter runs, accommodating diverse server rack and distribution panel setups.
