Ubiquiti Accessories · Commercial Grade
High-Speed Fiber Connectivity for Enterprise Core Networks

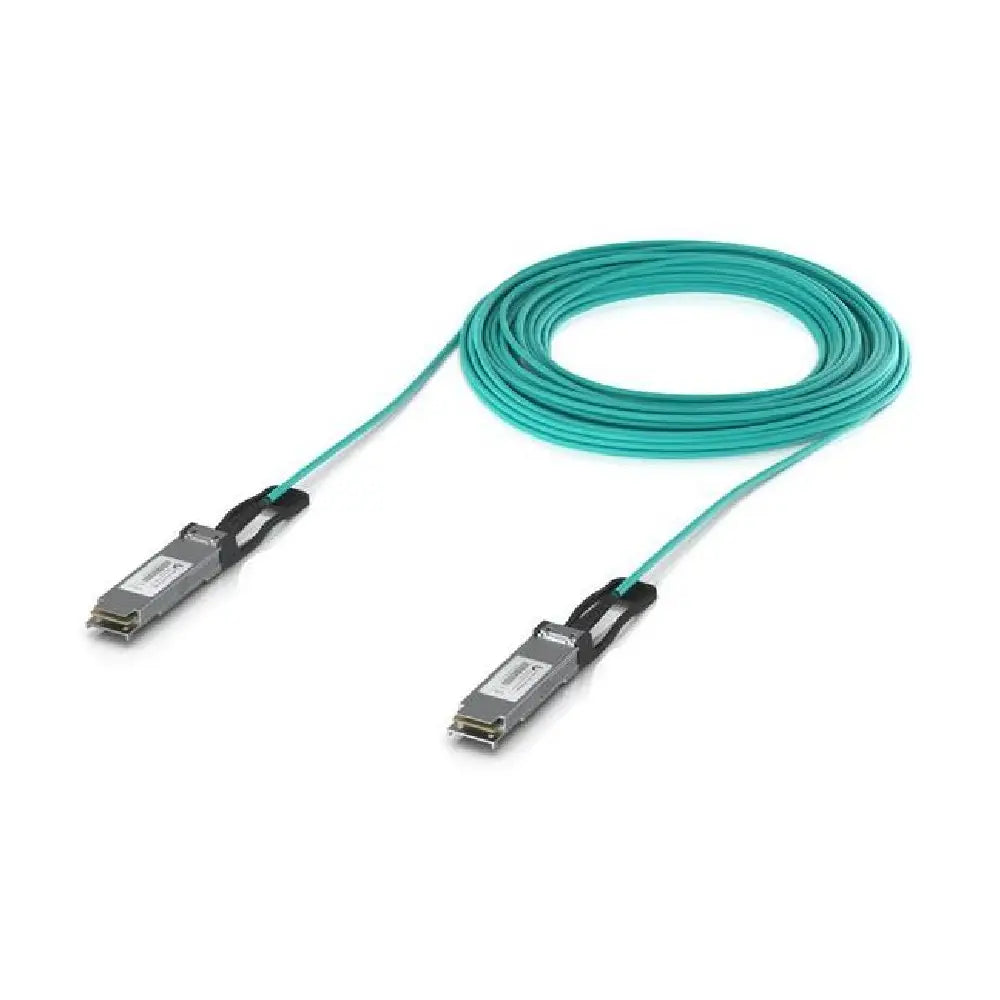

The Ubiquiti UACC-AOC-QSFP28 is an advanced long-range active optical direct attach cable engineered to support blistering data rates up to 100 Gbps. Built for high-density data centers, enterprise core switching, and server interconnects, this solution delivers reliable, low-latency performance across multi-mode fiber infrastructure without requiring separate optical transceivers.
Connector Type
QSFP28 to QSFP28
Fiber Standard
OM3 Multi-Mode
Cable Lengths
Up to 30 Meters
Seamless Interoperability and Advanced Signal Integrity
Designed for optimal flexibility in enterprise environments, the UACC-AOC-QSFP28 seamlessly bridges high-speed QSFP28 and 40 Gbps QSFP+ legacy ports. Utilizing OM3 fiber optic strands running at an 850 nm wavelength, this active optical cable minimizes power consumption (max 3.5W) while maximizing thermal efficiency and data throughput across complex rack topologies.
Robust Build & Tight Bend Radius
Encased in a flexible aqua PVC jacket with an outer diameter of 3.0 mm, the assembly supports a minimum bend radius of 30 mm, allowing clean cable management in high-density server racks.
Plug-and-Play Deployment
Eliminate field termination complexity. Active optical data transport ensures instant link synchronization with zero configuration overhead across compatible UniFi network hardware.
Technical Specification Matrix
| Model |
UACC-AOC-QSFP28 |
| Supported Data Rates |
100 Gbps / 40 Gbps |
| Connector Type |
QSFP28 to QSFP28 |
| Cable Standard |
OM3 Fiber |
| Jacket Material / Color |
PVC, Aqua |
| Jacket Outer Diameter |
3.0 mm (0.12") |
| Wavelength |
850 nm |
| Operating Temperature |
0 to 70° C (32 to 158° F) |
Is this cable compatible with legacy 40G QSFP+ ports?
Yes, the UACC-AOC-QSFP28 supports backward compatibility with both QSFP28 and QSFP+ interface specifications.
What lengths are available for this direct attach cable?
This active optical cable is offered in multiple standardized lengths including 5m, 10m, 20m, and 30m variations to accommodate diverse rack layouts.
Does this cable require external optical transceivers?
No, active optical cables (AOC) come with transceivers permanently attached to each end, providing an integrated, all-in-one fiber solution.
What is the maximum power consumption?
The cable operates with a maximum power consumption of only 3.5W, optimizing energy efficiency across enterprise setups.
