Ubiquiti UniFi Switch · NDAA COMPLIANT
High-Density Switching Redefined with USW-Pro-XG-48-PoE
Engineered for mission-critical enterprise environments and high-density network deployments, the Ubiquiti USW-Pro-XG-48-PoE is an advanced Layer 3 managed switch. It combines massive switching capacity with high-power PoE+++ delivery, making it the ultimate backbone solution for modern data centers, high-performance security deployments, and large-scale commercial infrastructures.
Port Density

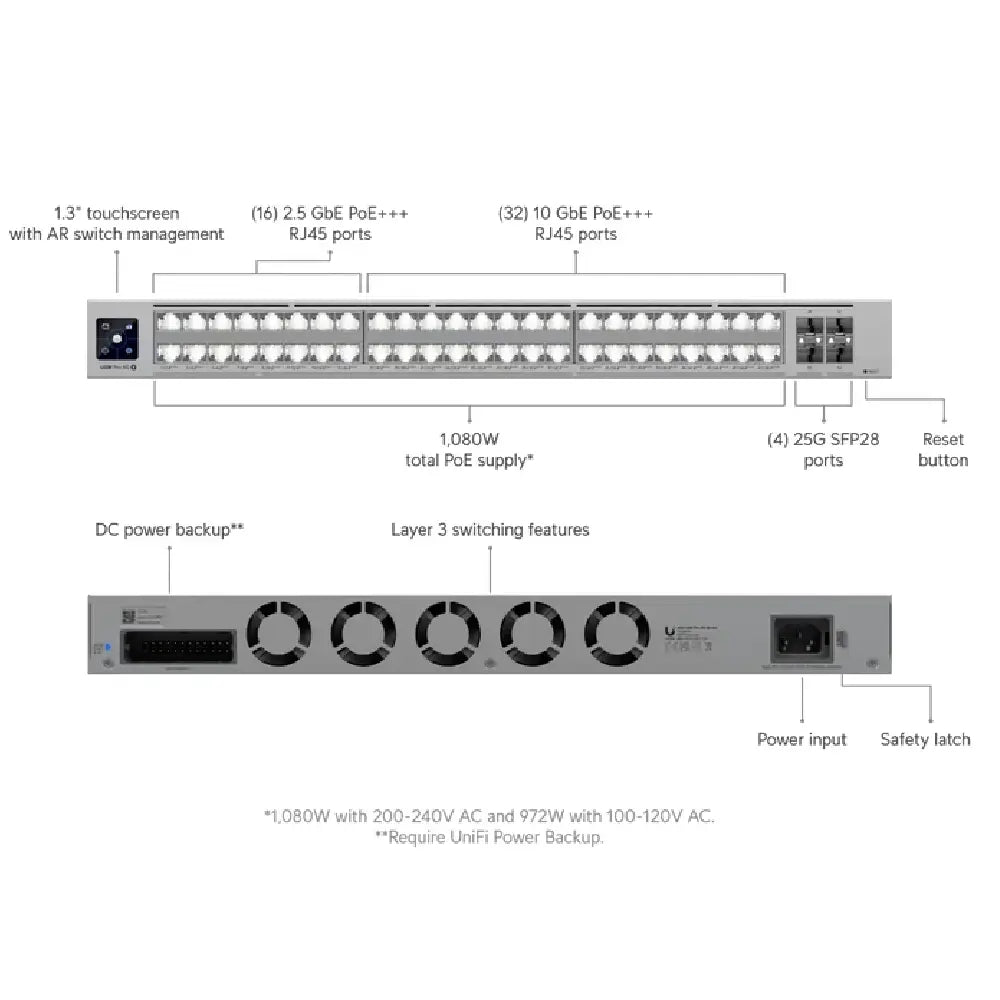

32x 10G & 16x 2.5G RJ45
Power Budget
1080W Total PoE+++
Uplink Capacity
4x 25G SFP28 Slots
Architecture
Layer 3 Managed Switch
Advanced Enterprise Routing & Etherlighting Technology
The USW-Pro-XG-48-PoE features innovative Etherlighting ports that dynamically illuminate to indicate port location, speed/link status, and native VLAN designation. Driven by robust Layer 3 capabilities including inter-VLAN routing, static routing, and DHCP server features, it streamlines administrative control. Comprehensive security measures—such as DHCP snooping, isolated port configurations, and advanced ACLs—protect core corporate workflows seamlessly.
Ultra-High PoE+++ Power Allocation
Delivers up to 90W per port across 32 ten-gigabit and 16 multi-gigabit ports, effortlessly energizing power-hungry PTZ security cameras, access points, and digital signage displays without external power injectors.
Enterprise-Grade Resiliency & Throughput
Boasts a non-blocking throughput of 460 Gbps and total switching capacity of 920 Gbps, coupled with RPS DC input fallback options to guarantee absolute uptime in mission-critical environments.
Technical Specification Matrix
| Model |
USW-Pro-XG-48-PoE |
| Switching Capacity |
920 Gbps |
| Total Non-Blocking Throughput |
460 Gbps |
| Networking Interfaces |
(32) 10G RJ45 (PoE+++), (16) 2.5G RJ45 (PoE+++), (4) 25G SFP28 |
| Total PoE Availability |
1080W (200-240V AC) / 972W (100-120V AC) |
| Layer 3 Features |
Inter-VLAN routing, Static routing, DHCP server |
| Enclosure Material |
SGCC Steel with 1.3" Touchscreen Display |
| Compliance Status |
NDAA Compliant |
Is the USW-Pro-XG-48-PoE NDAA compliant?
Yes, this switch is fully NDAA compliant, satisfying government and enterprise supply chain security requirements.
What is the maximum PoE output per port?
The switch supports PoE+++ configuration, providing up to 90W of power delivery per individual port across all RJ45 interfaces.
Does it support redundant power supplies?
Yes, it includes a dedicated USP RPS DC input connector for seamless connection to redundant power supply systems.
What management platforms control this switch?
It is centrally managed via the UniFi Network application, offering real-time analytics, remote topology tracking, and streamlined configuration updates.
