Ubiquiti UniFi Storage · NDAA COMPLIANT
High-Density 8-Bay Enterprise Network Attached Storage
Engineered for mission-critical backup, high-speed data archive, and centralized enterprise storage management, the Ubiquiti UNAS-Pro-8 is a high-performance 8-bay rackmount network attached storage solution. Built to integrate seamlessly into the UniFi OS ecosystem, this powerful storage array delivers high-throughput 10G optical uplinks, robust data protection configurations, and high-density drive support for modern enterprise operations.
Drive Capacity
8x 2.5"/3.5" Drive Bays
High-Speed Uplink
10G SFP+ Networking
Power Redundancy
USP-RPS DC Backup
Compliance
NDAA Compliant
Multi-Gigabit Connectivity & High-Availability Redundancy

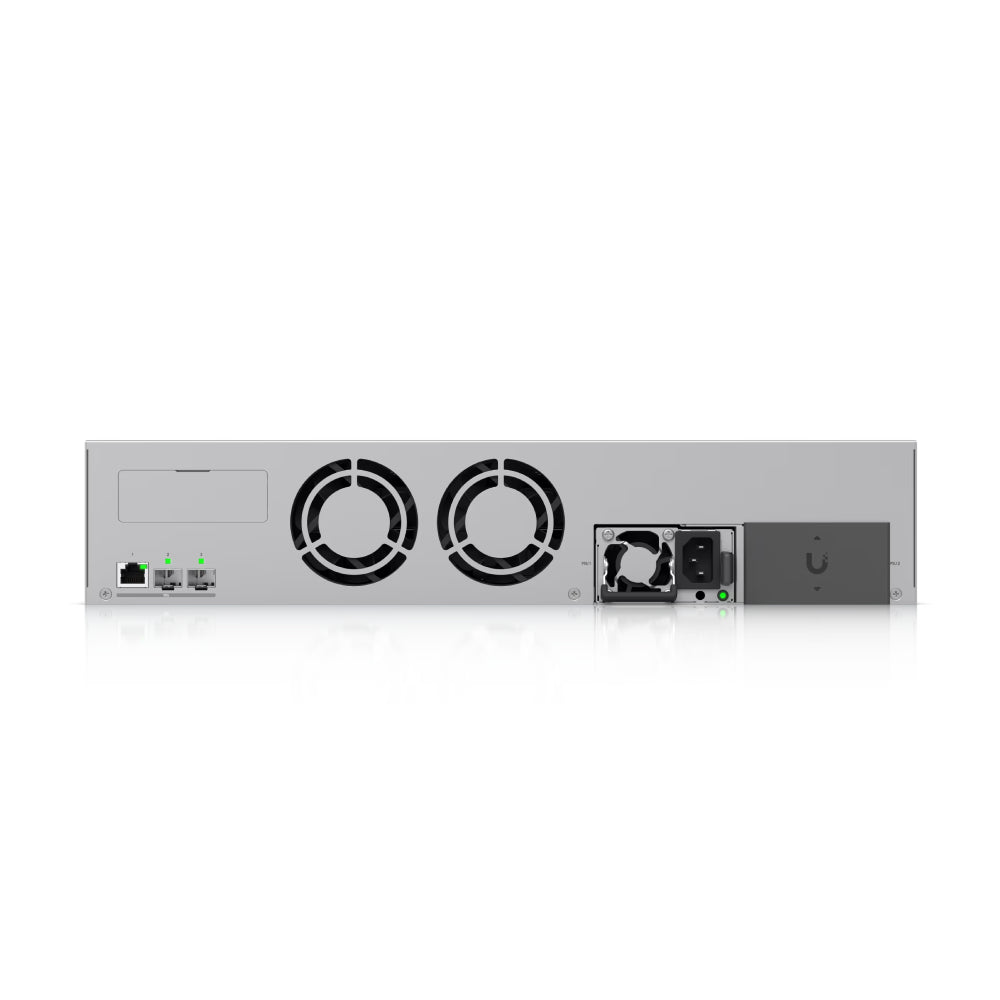

The UNAS-Pro-8 features eight toolless hot-swappable HDD/SSD drive bays supporting both 2.5-inch and 3.5-inch storage media for customizable storage volumes. Armed with a 10G SFP+ port for ultra-fast data transfers and a secondary 1GbE/2.5GbE RJ45 interface for management redundancy, it guards against data loss and hardware downtime. The system includes USP-RPS power redundancy input, ensuring uninterrupted storage uptime during primary power fluctuations.

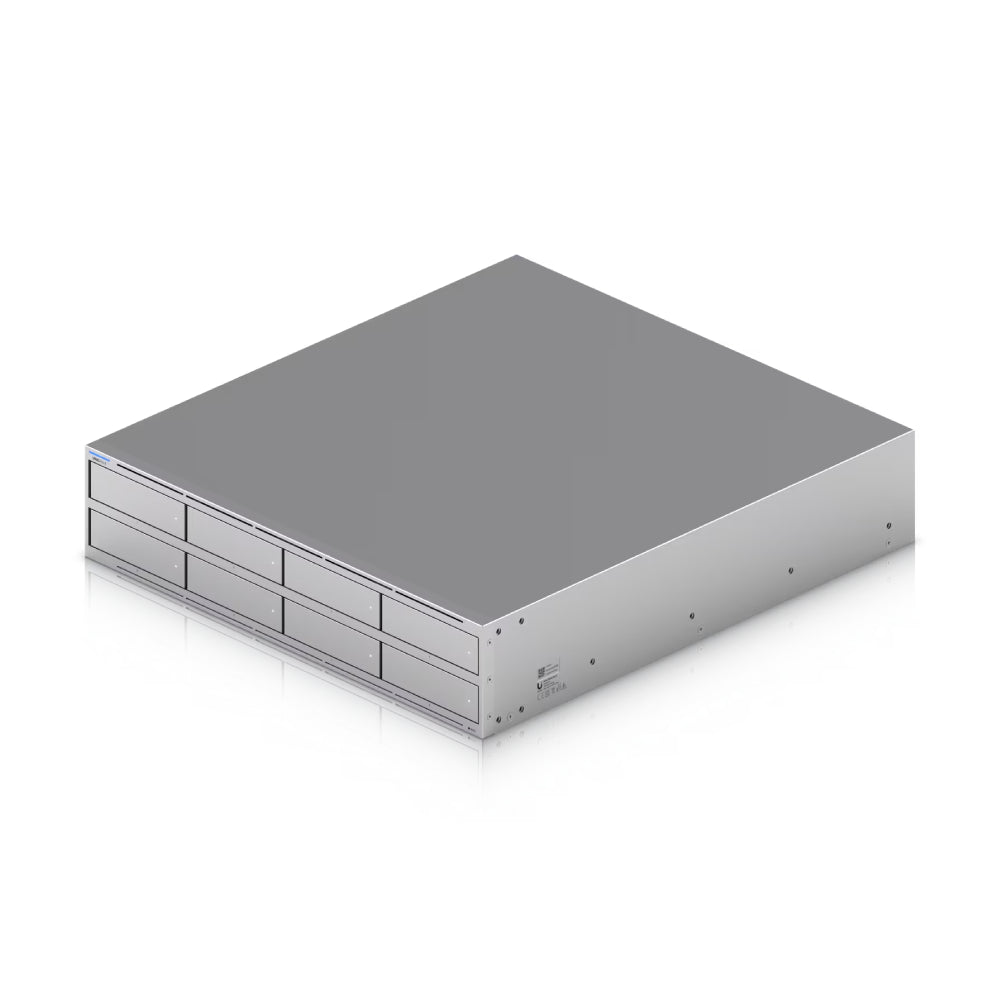

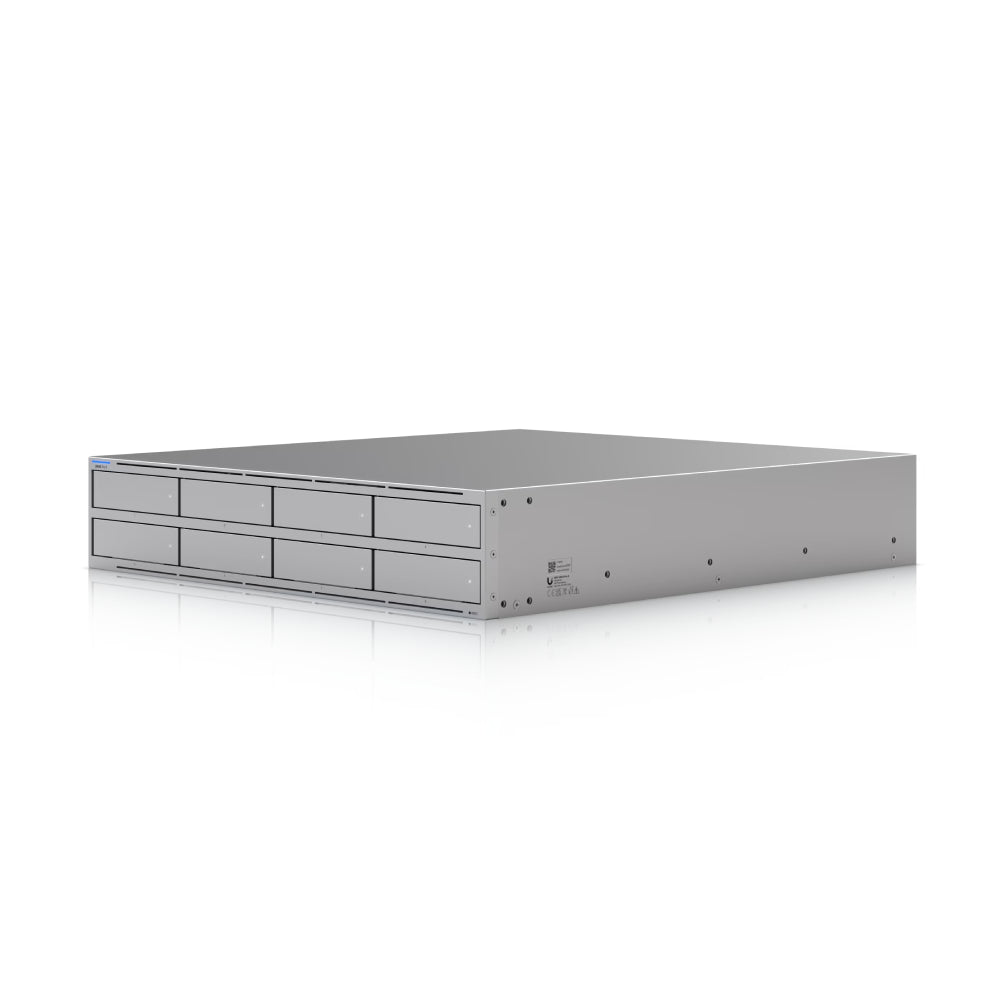

Hot-Swappable 8-Bay Drive Architecture
Supports fast replacement and expansion of 3.5" HDDs or 2.5" SSDs without shutting down storage services or interrupting active user connections.
Seamless UniFi Ecosystem Integration
Easily managed via standard UniFi management software with automated backup jobs, volume health tracking, and intuitive user access control permissions.
Technical Specification Matrix
| Model |
UNAS-Pro-8 |
| Drive Bays |
(8) 2.5" / 3.5" Hot-Swappable SATA Bays |
| Networking Uplink |
(1) 10G SFP+ Optical Port, (1) Gigabit Ethernet Port |
| Power Supply |
AC Input Universal Inlet / USP-RPS DC Backup Input |
| Display & Status |
LCM Status Display Screen / Individual Bay LEDs |
| Form Factor |
2U Rackmountable (Rackmount Bracket Assembly Included) |
| Management Software |
UniFi Drive / UniFi OS Application Suite |
| Compliance |
NDAA Compliant |
Does the UNAS-Pro-8 support both 2.5" SSDs and 3.5" HDDs?
Yes, all eight hot-swappable drive caddies are designed to accommodate standard 3.5-inch hard drives as well as high-speed 2.5-inch solid-state drives.
Can I use redundant power supplies with this storage array?
Yes, the UNAS-Pro-8 includes a UniFi Smart Power RPS (USP-RPS) port for failover power backup in case the primary internal AC power fails.
Is the Ubiquiti UNAS-Pro-8 NDAA compliant?
Yes, the UNAS-Pro-8 is fully NDAA compliant, making it suitable for corporate, enterprise, and public sector deployment.
How do I connect the UNAS-Pro-8 to my high-speed network?
The unit features a dedicated 10G SFP+ optical uplink port for high-bandwidth server connections alongside an RJ45 Ethernet port for network access.
