Ubiquiti UISP · NDAA COMPLIANT

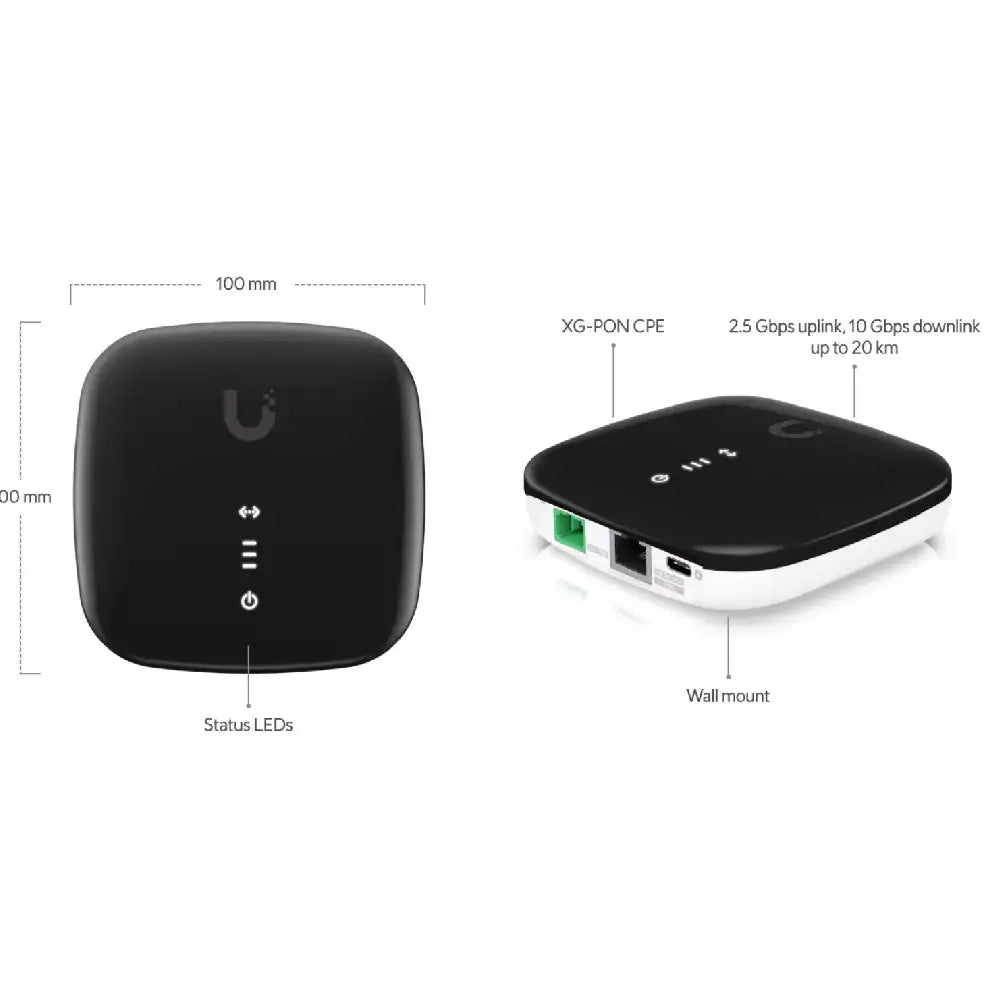

High-Density Fiber Access with the UISP-FIBER-XG
Engineered for next-generation enterprise networks, backbone architectures, and high-capacity service provider deployments, the Ubiquiti UISP-FIBER-XG delivers blazing-fast 10G symmetrical performance. Built to integrate smoothly into advanced fiber topologies, this optical network unit guarantees robust scaling, low latency, and uncompromising reliability for demanding commercial environments.
Line Rate Spec
10G Down / 2.4G Up
Optics Interface
SC/APC XGPON WAN
LAN Connectivity
2.5 GbE RJ45 Port
Housing & Protection
UV-Stabilized Poly
Carrier-Grade Management and Performance Protocols

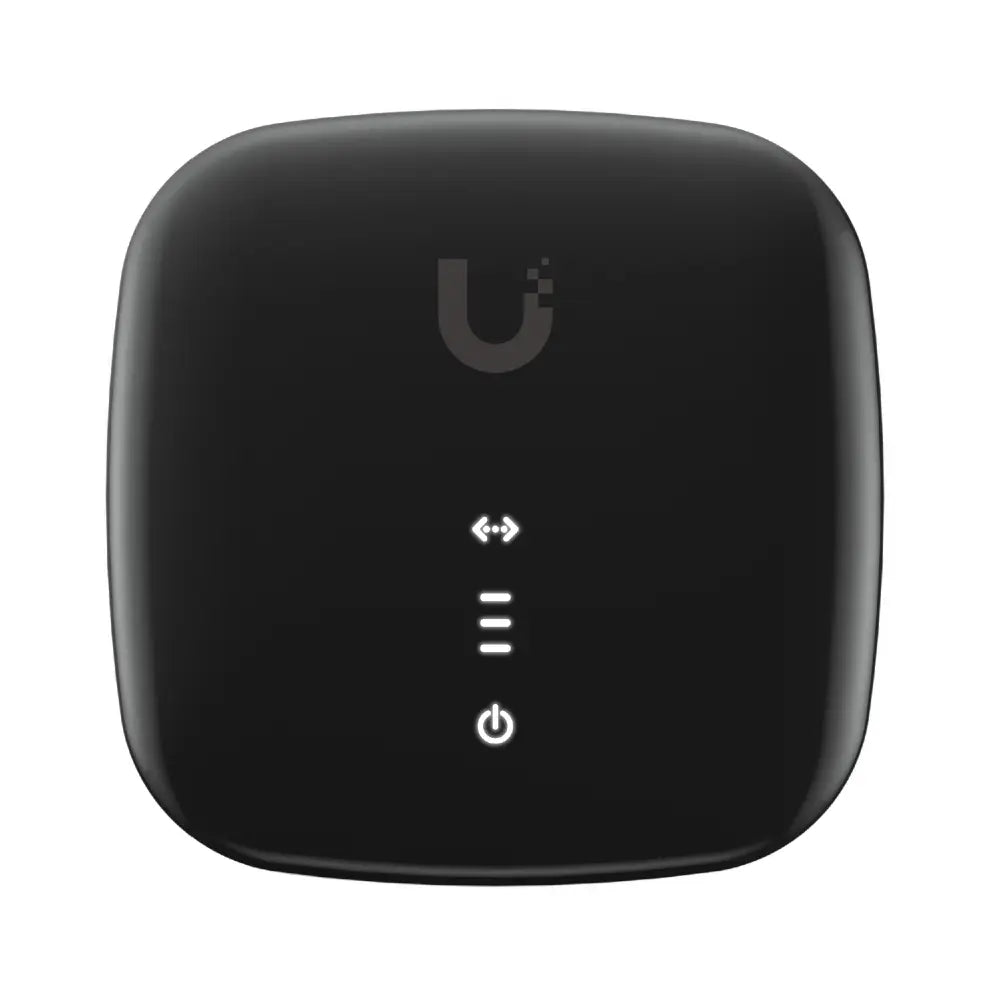

The UISP-FIBER-XG operates seamlessly within the comprehensive UISP ecosystem, offering in-band Ethernet management and precise signal tracking through intuitive LED status arrays. Featuring flexible power options including USB-C and 24V passive PoE, it adapts easily to diverse installation scenarios while maintaining strict compliance frameworks for secure enterprise integration.
High-Capacity XG-PON Technology
Supports massive non-blocking line rates up to 9.95 Gbps downstream and 2.44 Gbps upstream, ensuring peak performance for bandwidth-heavy business operations.
Resilient Environmental Build
Encased in a durable, UV-stabilized polycarbonate shell designed to withstand rigorous operational conditions from -15 to 45° C.
Technical Specification Matrix
| Model |
UISP-FIBER-XG |
| Networking Interface |
(1) SC/APC XGPON WAN, (1) 2.5 GbE RJ45 LAN |
| Total Line Rate |
Downstream: 9.95 Gbit/s | Upstream: 2.44 Gbit/s |
| Power Method |
USB-C (5V DC, 3A) / 24V DC Passive PoE |
| Max. Power Consumption |
6W |
| Enclosure Material |
UV-stabilized polycarbonate |
| Operating Temperature |
-15 to 45° C (5 to 113° F) |
| Compliance Status |
NDAA Compliant |
Is the UISP-FIBER-XG compatible with third-party OLT systems?
No, this device is specifically engineered for direct integration with the Fiber XGS OLT and operates natively inside the UISP ecosystem.
What power supply options are supported?
The unit supports dual power provisioning via a USB-C adapter (5V DC, 3A) or 24V DC passive PoE configurations.
What is the maximum physical reach of the fiber connection?
The optical module supports dependable transmission lengths up to 20 km over single-mode fiber infrastructure.
Does this device comply with government procurement standards?
Yes, the UISP-FIBER-XG is fully NDAA compliant, satisfying strict regulatory mandates for public and enterprise networks.
