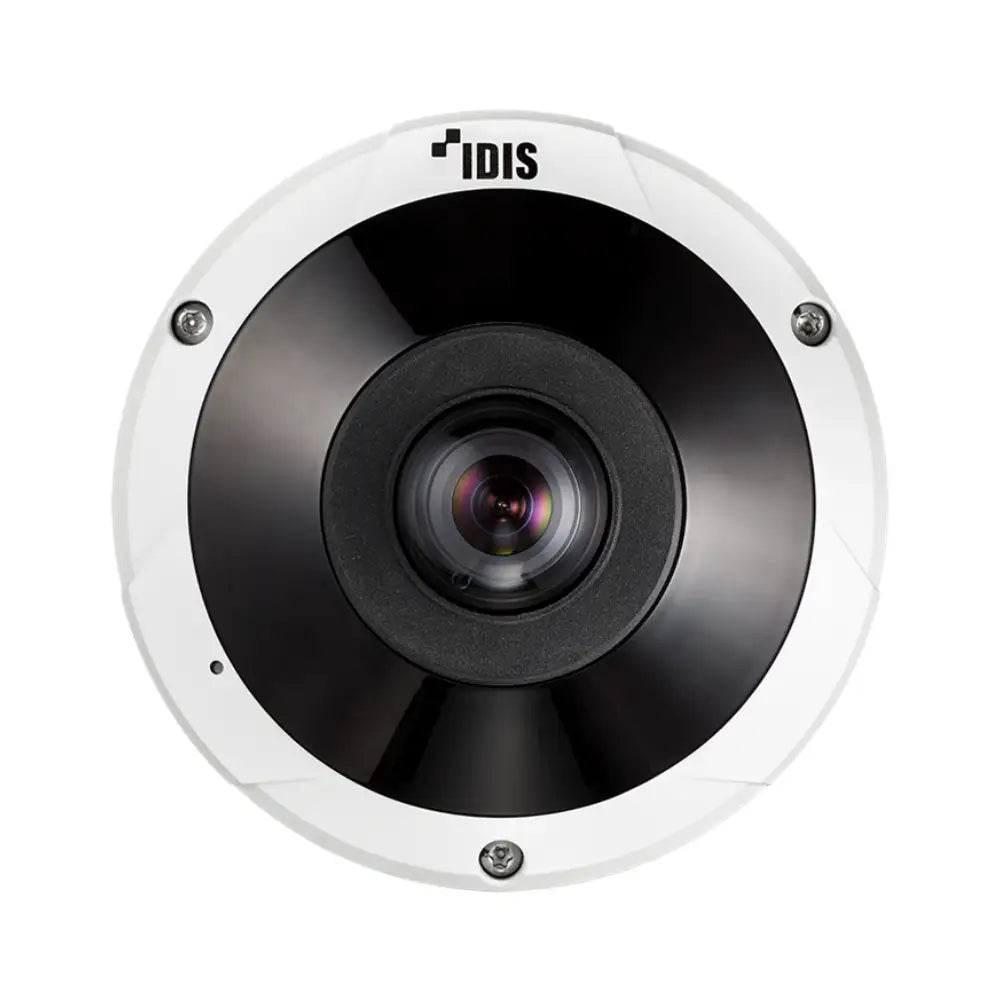

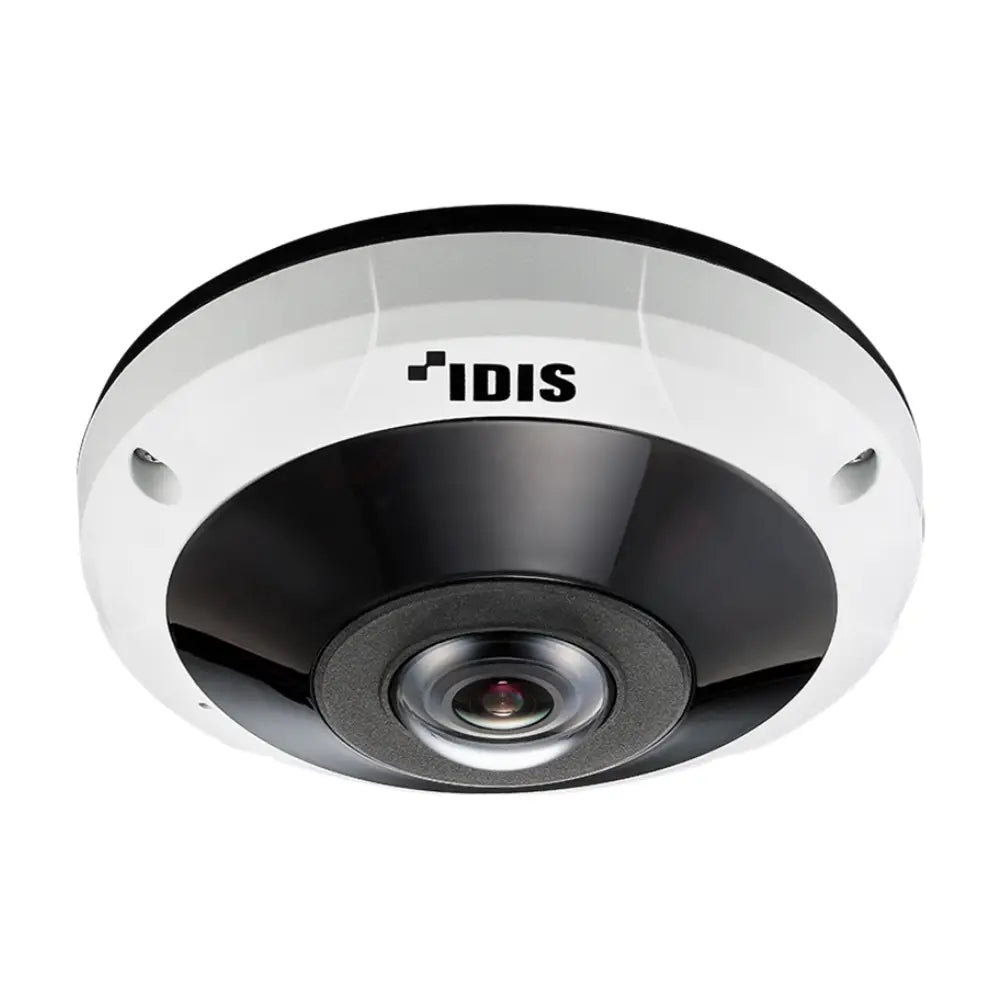

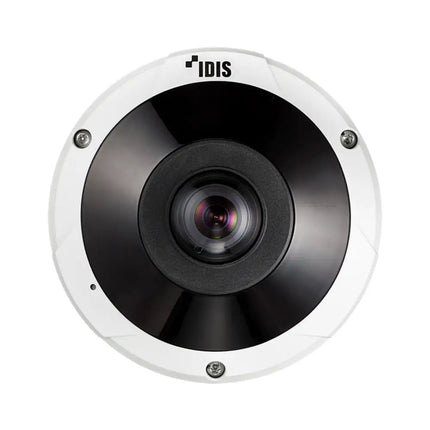

IDIS DC-Y6C16WRX 12MP Vandal-Resistant IR Fisheye Camera

Description

IDIS Y-SERIES · NDAA & TAA COMPLIANT

Complete 360-Degree Situational Awareness Without Blind Spots

The IDIS DC-Y6C16WRX is an enterprise-grade 12MP vandal-resistant panoramic fisheye network camera engineered to deliver flawless 360° situational coverage from a single architectural location. Designed to maximize operational density while reducing infrastructure expenditures, this professional-tier surveillance solution is perfect for high-traffic environments, retail spaces, logistics hubs, and critical public infrastructure. Powered by an advanced 12MP sensor delivering a pristine native 2944 x 2944 (8.6MP dewarped) resolution, it guarantees forensic-level detailing over expansive operational perimeters.

Resolution
12MP Sensor (2944x2944)
Optics
1.6mm Panoramic Lens
Night Vision
15m Intelligent IR Matrix
Protection
IP67 Weather / IK10 Vandal

Advanced Hardware Dewarping & Intelligent Architecture

The advanced internal processing of the IDIS DC-Y6C16WRX allows for direct, real-time edge dewarping across 6 versatile viewing compositions (including 1O, 1P, 1P2R, 2P, 4R, and 1O7R configurations). This feature eliminates distorted fish-eye visuals at the platform level, streamlining integration across enterprise VMS platforms and reducing processing strain on network servers. Built for mission-critical deployments, it utilizes DirectIP 2.0 protocol for immediate plug-and-play installation, provides robust cybersecurity defense via encrypted SSL communication, and features onboard Smart Failover edge storage to ensure complete recording redundancy even during network anomalies.

True 120dB Wide Dynamic Range (WDR)

Equipped with professional-tier, multi-exposure True WDR hardware, this fisheye camera accurately balances complex multi-source illumination. It isolates dark foreground elements from overexposed architectural backgrounds, perfect for glass vestibules, open warehouse bays, and large retail storefronts.

Onboard Intelligent Video Analytics

Go beyond passive monitoring with integrated deep learning edge data. The camera natively supports real-time Video Motion Detection, Active Tampering Alarms, customizable Trip Zones, and dedicated operational Heatmaps to track flow density and optimize physical layout mechanics.

Technical Specification Matrix
Camera Model DC-Y6C16WRX
Image Sensor / Max Resolution 1/2.3" Progressive Scan CMOS | 2944 x 2944 (8.6 Megapixel Active)
Lens & Field of View f=1.6mm Fixed-Focal (F2.0) | 180° Horizontal / 180° Vertical / 180° Diagonal
Minimum Illumination Color: 0.3 Lux @ F2.0 | B/W: 0 Lux (Integrated High-Intensity IR LEDs On)
Video Compression / Frame Rate H.265, H.264 (Main Profile), M-JPEG | Up to 30ips @ 2944 x 2944 (15ips under WDR)
Audio & Alarm Integration Two-Way Audio Support (Built-In MIC + 1 Line Out) | 1 Alarm Input / 1 Alarm Output
Network Protocol Support DirectIP 2.0, ONVIF Profile S & T, IPv4/IPv6, RTP/RTSP, HTTPS, IEEE 802.1x
Edge Redundancy Storage Micro SD/SDHC/SDXC Slot with Smart Failover Technology (Up to 512GB)
Environmental & Mechanical IP67 Weather-Proof / IK10 Vandal-Resistant Housing | Ø135mm x 56.9mm | 0.67kg
Electrical Specifications PoE (IEEE 802.3af Class 3) 10.6W max or 12V DC (0.94A, 11.3W max)
Is the IDIS DC-Y6C16WRX fully compliant with government procurement mandates?

Yes. The IDIS DC-Y6C16WRX is 100% NDAA (National Defense Authorization Act) and TAA compliant. It does not use any blacklisted components or chipsets from restricted manufacturing partners, making it fully approved for federal installations and corporate networks.

What are the dewarping configuration modes available on this camera?

The camera supports 6 distinct viewing layouts on-board and via VMS: Panorama (1P), Double Panorama (2P), Quad Grid (4R), Original Fisheye Oval (1O), and blended situational layouts such as 1O7R and 1P2R for customized spatial visibility.

How does Smart Failover prevent data loss during network outages?

If network connection to the DirectIP NVR is lost, the camera immediately records data directly to its internal Micro SD card (up to 512GB). Once connection is safely restored, the missing data automatically updates to the NVR database seamlessly.

Can this camera withstand extreme outdoor weather and vandalism?

Absolutely. It features an IP67 weather-proof sub-enclosure rating for full water submersion and dust protection, alongside an IK10-rated structural impact dome shell to survive severe physical tampering attempts.

Technical Datasheet Quick Start Guide
Operation Manual Installation Manual
Official IDIS Stock
NDAA & TAA Certified
Aust-Wide Delivery

IDIS DC-Y6C16WRX 12MP Vandal-Resistant IR Fisheye Camera

Product form

SKU: DC-Y6C16WRX

IDIS Y-SERIES · NDAA & TAA COMPLIANT Complete 360-Degree Situational Awareness Without Blind Spots The IDIS DC-Y6C16WRX is an enterprise-grade... Read more

$1,219.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Warranty: 36 months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support

    Description

    IDIS Y-SERIES · NDAA & TAA COMPLIANT

    Complete 360-Degree Situational Awareness Without Blind Spots

    The IDIS DC-Y6C16WRX is an enterprise-grade 12MP vandal-resistant panoramic fisheye network camera engineered to deliver flawless 360° situational coverage from a single architectural location. Designed to maximize operational density while reducing infrastructure expenditures, this professional-tier surveillance solution is perfect for high-traffic environments, retail spaces, logistics hubs, and critical public infrastructure. Powered by an advanced 12MP sensor delivering a pristine native 2944 x 2944 (8.6MP dewarped) resolution, it guarantees forensic-level detailing over expansive operational perimeters.

    Resolution
    12MP Sensor (2944x2944)
    Optics
    1.6mm Panoramic Lens
    Night Vision
    15m Intelligent IR Matrix
    Protection
    IP67 Weather / IK10 Vandal

    Advanced Hardware Dewarping & Intelligent Architecture

    The advanced internal processing of the IDIS DC-Y6C16WRX allows for direct, real-time edge dewarping across 6 versatile viewing compositions (including 1O, 1P, 1P2R, 2P, 4R, and 1O7R configurations). This feature eliminates distorted fish-eye visuals at the platform level, streamlining integration across enterprise VMS platforms and reducing processing strain on network servers. Built for mission-critical deployments, it utilizes DirectIP 2.0 protocol for immediate plug-and-play installation, provides robust cybersecurity defense via encrypted SSL communication, and features onboard Smart Failover edge storage to ensure complete recording redundancy even during network anomalies.

    True 120dB Wide Dynamic Range (WDR)

    Equipped with professional-tier, multi-exposure True WDR hardware, this fisheye camera accurately balances complex multi-source illumination. It isolates dark foreground elements from overexposed architectural backgrounds, perfect for glass vestibules, open warehouse bays, and large retail storefronts.

    Onboard Intelligent Video Analytics

    Go beyond passive monitoring with integrated deep learning edge data. The camera natively supports real-time Video Motion Detection, Active Tampering Alarms, customizable Trip Zones, and dedicated operational Heatmaps to track flow density and optimize physical layout mechanics.

    Technical Specification Matrix
    Camera Model DC-Y6C16WRX
    Image Sensor / Max Resolution 1/2.3" Progressive Scan CMOS | 2944 x 2944 (8.6 Megapixel Active)
    Lens & Field of View f=1.6mm Fixed-Focal (F2.0) | 180° Horizontal / 180° Vertical / 180° Diagonal
    Minimum Illumination Color: 0.3 Lux @ F2.0 | B/W: 0 Lux (Integrated High-Intensity IR LEDs On)
    Video Compression / Frame Rate H.265, H.264 (Main Profile), M-JPEG | Up to 30ips @ 2944 x 2944 (15ips under WDR)
    Audio & Alarm Integration Two-Way Audio Support (Built-In MIC + 1 Line Out) | 1 Alarm Input / 1 Alarm Output
    Network Protocol Support DirectIP 2.0, ONVIF Profile S & T, IPv4/IPv6, RTP/RTSP, HTTPS, IEEE 802.1x
    Edge Redundancy Storage Micro SD/SDHC/SDXC Slot with Smart Failover Technology (Up to 512GB)
    Environmental & Mechanical IP67 Weather-Proof / IK10 Vandal-Resistant Housing | Ø135mm x 56.9mm | 0.67kg
    Electrical Specifications PoE (IEEE 802.3af Class 3) 10.6W max or 12V DC (0.94A, 11.3W max)
    Is the IDIS DC-Y6C16WRX fully compliant with government procurement mandates?

    Yes. The IDIS DC-Y6C16WRX is 100% NDAA (National Defense Authorization Act) and TAA compliant. It does not use any blacklisted components or chipsets from restricted manufacturing partners, making it fully approved for federal installations and corporate networks.

    What are the dewarping configuration modes available on this camera?

    The camera supports 6 distinct viewing layouts on-board and via VMS: Panorama (1P), Double Panorama (2P), Quad Grid (4R), Original Fisheye Oval (1O), and blended situational layouts such as 1O7R and 1P2R for customized spatial visibility.

    How does Smart Failover prevent data loss during network outages?

    If network connection to the DirectIP NVR is lost, the camera immediately records data directly to its internal Micro SD card (up to 512GB). Once connection is safely restored, the missing data automatically updates to the NVR database seamlessly.

    Can this camera withstand extreme outdoor weather and vandalism?

    Absolutely. It features an IP67 weather-proof sub-enclosure rating for full water submersion and dust protection, alongside an IK10-rated structural impact dome shell to survive severe physical tampering attempts.

    Technical Datasheet Quick Start Guide
    Operation Manual Installation Manual
    Official IDIS Stock
    NDAA & TAA Certified
    Aust-Wide Delivery
