6MP · Smart Hybrid Light · Human & Vehicle AI · 8-Channel PoE
6MP · 4-Camera Kit
HiLook 4× 6MP Smart Hybrid Light Turret CCTV Kit — Australian Stock & 3-Year Warranty

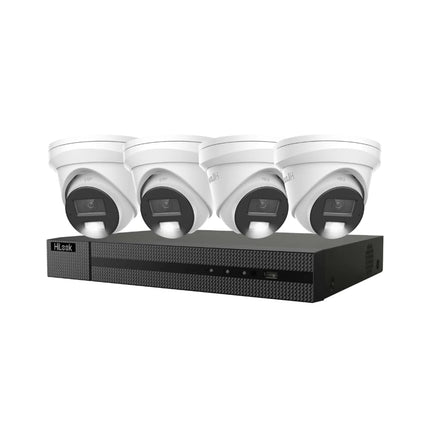

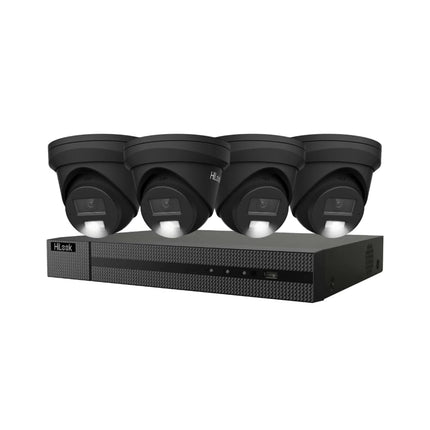

This HiLook (by Hikvision) kit pairs four IPC-T363H-MU 6 MP fixed turret cameras with an 8-channel NVR-108MH-C/8P(D) PoE network video recorder, giving you a complete plug-and-play surveillance system for a typical home or small business. Each camera shoots crisp 6 MP (3200 × 1800) footage, sees in full colour at night with Smart Hybrid Light up to 30 m, and uses on-board Human & Vehicle detection to cut false alerts from animals, rain and headlights. The recorder powers every camera over a single network cable, decodes 4K to your screen and streams to your phone — all backed by genuine Australian stock and a 3-year warranty.
Resolution
6 MP · 3200 × 1800
Night Vision
Smart Hybrid Light 30 m
Recorder
8-Channel PoE NVR
Storage
Up to 8 TB (HDD optional)
Sharp 6 MP Detail
Every camera captures 6 MP (3200 × 1800) at up to 20 fps with 120 dB WDR — enough resolution to read faces, clothing and number plates across a driveway or yard, even against bright backlight.
Smart Hybrid Light
Stays in discreet infrared for everyday monitoring, then switches to bright white light up to 30 m when a person or vehicle appears — so you get 24/7 cover and full-colour evidence exactly when it matters.
Human & Vehicle AI
On-board intelligent detection classifies people and vehicles, filtering out cats, branches and weather to slash nuisance alerts and make searching recorded footage far faster.
One Cable Per Camera
The NVR's eight built-in PoE ports power and connect each camera over a single Cat cable — no power adapters at the camera, no electrician, and four free channels to expand later.
What's Included
Kit Contents
| Cameras |
4 × HiLook IPC-T363H-MU — 6 MP fixed turret, Smart Hybrid Light, Human & Vehicle detection, IP67 |
| Recorder |
1 × HiLook NVR-108MH-C/8P(D) — 8-channel PoE NVR, 80 Mbps, 4K HDMI, 1 × HDD bay |
| Storage |
Surveillance HDD up to 8 TB — optional add-on; supplied but not pre-installed, ready to fit (white & black colour options available) |
| In the Box |
Mounting hardware, PoE drop cables per camera and quick start guides |
Best For
Family Homes
Cover the front, back and both sides of a typical house with one tidy 4-camera system.
Driveways & Entries
6 MP detail reads faces and number plates at the gate, day or night.
Small Business
Shops, offices and warehouses needing reliable, clear evidence-grade footage.
Night Coverage
Full-colour imaging on events keeps key areas lit and identifiable after dark.
Fewer False Alarms
Human & Vehicle AI keeps notifications focused on what actually matters.
Room to Grow
Eight channels mean four spare ports to add more HiLook cameras later.
Camera Specifications
IPC-T363H-MU — 6 MP Fixed Turret (×4)
| Image Sensor |
1/2.4" Progressive Scan CMOS |
| Max. Resolution |
6 MP — 3200 × 1800 @ 20 fps |
| Lens |
2.8 mm (119.6°) or 4 mm (96.8°) fixed |
| Min. Illumination |
Colour 0.001 Lux @ F1.2 (AGC ON); 0 Lux with IR |
| DORI (2.8 mm) |
Detect 76 m · Observe 30 m · Recognise 15 m · Identify 7 m |
| Supplement Light |
Smart Hybrid Light (IR + White Light) up to 30 m |
| Smart Detection |
Human & Vehicle detection, line crossing, intrusion |
| Audio |
Built-in microphone (mono) |
| WDR / DNR |
120 dB WDR, 3D DNR, BLC/HLC |
| Compression |
H.265+/H.265/H.264+/H.264 |
| Power |
PoE (IEEE 802.3af) or 12 VDC |
| Weather Rating |
IP67 metal housing, −30 °C to 60 °C |
| Dimensions / Weight |
Ø 127.3 × 95.9 mm · approx. 600 g |
Recorder Specifications
NVR-108MH-C/8P(D) — 8-Channel PoE NVR
| IP Channels |
8-ch IP inputs with 8 × built-in PoE ports (IEEE 802.3 af/at) |
| Bandwidth |
80 Mbps in / 80 Mbps out |
| Recording |
H.265+/H.265/H.264+/H.264 |
| Decoding |
1-ch @ 8 MP · 3-ch @ 4 MP · 6-ch @ 1080p (30 fps) |
| Video Output |
4K HDMI + VGA simultaneous outputs |
| Smart Features |
Motion Detection 2.0 with Human/Vehicle (4-ch), smart search / smart playback |
| Audio |
Audio in/out (RCA), two-way audio |
| Storage |
1 × SATA up to 8 TB |
| PoE Budget |
≤ 75 W |
| USB |
2 × USB 2.0 |
| Remote Access |
HiLookVision / Hik-Connect app; iVMS-4200 |
How Much Footage Can It Hold?
| HDD Size |
Continuous (all 4 cameras) |
Motion / Event Only |
| 2 TB |
≈ 14 days |
≈ 29 days |
| 4 TB |
≈ 29 days |
≈ 57 days |
| 6 TB |
≈ 43 days |
≈ 86 days |
| 8 TB |
≈ 57 days |
≈ 115 days |
Estimates assume four 6 MP cameras at roughly 3 Mbps each, H.265+, 24/7 recording and about 93% usable disk space. Motion/event recording typically doubles retention. Actual figures vary with scene activity, bitrate and settings.
Installation Notes
- Mount cameras 2.5–3 m high, angled slightly down, with subjects 5–10 m away for the best Human/Vehicle detection.
- Each camera runs on one Cat5e/Cat6 cable to a PoE port on the NVR — keep runs under 100 m.
- The HDD is supplied but not pre-installed; fit the drive into the single SATA bay before first power-up, then initialise it in the menu.
Downloads & Resources
Frequently Asked Questions
How many cameras and what recorder are included?
Four HiLook IPC-T363H-MU 6 MP fixed turret cameras and one 8-channel NVR-108MH-C/8P(D) PoE recorder.
Is a hard drive included?
The surveillance HDD is an optional add-on of up to 8 TB. When supplied it is not pre-installed — it ships ready to fit into the NVR's single bay.
Does it record in colour at night?
Yes. Smart Hybrid Light keeps watch in discreet infrared and switches to white light up to 30 m on a person or vehicle event for full-colour footage.
Will it ignore my pets and trees?
On-board Human & Vehicle detection classifies people and vehicles, filtering out most animals, foliage and weather to cut false alarms.
Do I need separate power supplies?
No. Each camera runs on a single network cable from the NVR's built-in PoE ports — power and video in one run.
Can I add more cameras later?
Yes. It's an 8-channel recorder, so four PoE ports remain free for additional HiLook cameras.
What lens options do the cameras have?
The IPC-T363H-MU is available with a 2.8 mm (119.6°) wide or 4 mm (96.8°) lens depending on your coverage needs.
How far can it identify people?
With the 2.8 mm lens, DORI is Detect 76 m, Observe 30 m, Recognise 15 m and Identify 7 m.
Can I view it on my phone?
Yes — the free HiLookVision / Hik-Connect app gives live view, playback and push alerts on iOS and Android.
Is it built for Australian conditions?
All four cameras are IP67-rated and operate from −30 °C to 60 °C, suited to sun, dust and heavy rain.
