Hikvision 5-Camera PTZ Auto-Tracking CCTV Kit — 1 PTZ + 4 AcuSense Turrets + 8CH NVR

Description

Hikvision · 1 PTZ Auto-Tracking + 4 × 8MP AcuSense Turrets · 8CH 8K PoE NVR 5-Camera Hikvision PTZ Kit

Hikvision 5-Camera PTZ Auto-Tracking CCTV Kit — 1 PTZ + 4 × 8MP AcuSense Turrets with 8-Channel 8K NVR

The Hikvision PTZ Auto-Tracking Kit is built for large open areas where one fixed camera can never see everything. A DS-2DE7A425IW-AEB 4MP AcuSense PTZ with 25× optical zoom sits at the centre — it auto-tracks moving people and vehicles across the whole scene, zooming in to capture detail as a target moves. Around it, four DS-2CD2386G2-IU 8MP 4K AcuSense turrets lock down the entries, gates and fixed detail points so nothing slips past while the PTZ is tracking elsewhere. Everything records to a DS-7608NI-M2/8P 8-channel 8K NVR with Hik-Connect remote access. Ideal for yards, car parks, acreage, building sites and other wide open coverage.

Cameras
1 PTZ + 4 × 8MP
PTZ Zoom
25× Optical · 200m IR
Auto-Tracking
Follows People & Vehicles
Recorder
8CH 8K NVR · 8 PoE
Smart AI
AcuSense Human/Vehicle
Storage
Dual SATA · Add HDD

PTZ Auto-Tracking

The DS-2DE7A425IW-AEB locks onto a moving person or vehicle and pans, tilts and zooms to follow it across the whole scene — turning one camera into active wide-area coverage with detailed close-ups as the target moves.

Fixed Detail Where It Matters

Four 8MP 4K AcuSense turrets cover the gates, entries and choke points 24/7 so the critical spots are always recorded — even while the PTZ is tracking something at the far end of the site.

25× Zoom + 200 m Night Vision

The PTZ reaches across large yards and car parks with 25× optical zoom and DarkFighter low-light, and an IR range up to 200 m for clear images across big open areas after dark.

AcuSense on Every Camera

On-camera deep learning classifies events as human or vehicle and filters out foliage, rain and headlight false alarms — fewer nuisance alerts across all five cameras.

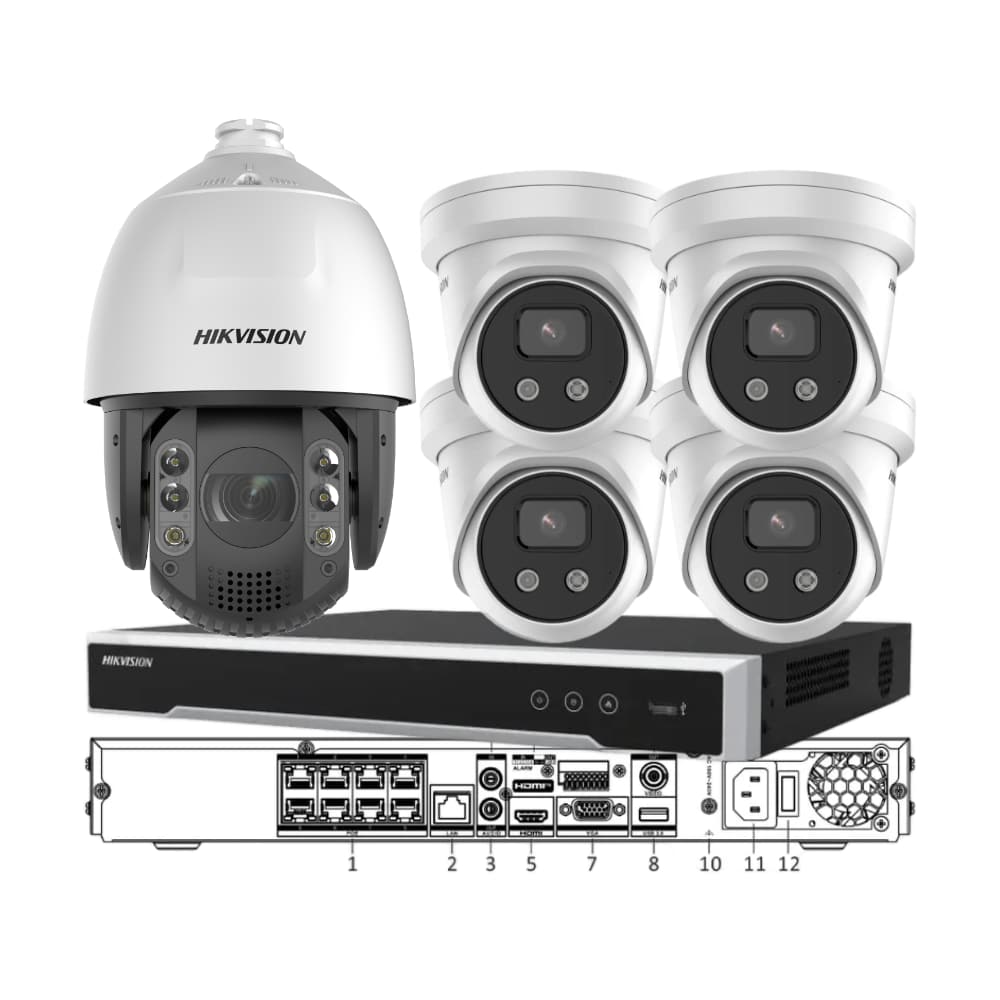

What's Included
1 × PTZ Camera DS-2DE7A425IW-AEB — 4MP Pro Series AcuSense PTZ speed dome, 25× optical zoom (4.8–120 mm), 360° endless pan, DarkFighter low-light, IR up to 200 m, AcuSense human/vehicle classification & auto-tracking, IP66 + IK10.
4 × Fixed Cameras DS-2CD2386G2-IU — 8MP 4K AcuSense IR turret, 2.8 mm F1.6 lens, 111° HFOV, 120 dB WDR, 30 m Smart IR, built-in mic, IP67.
1 × Recorder DS-7608NI-M2/8P — 8-channel 8K M-Series NVR with 8 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
Storage No HDD included by default — add a surveillance-grade drive to suit your retention. Dual SATA bays support up to 32 TB total. Add a surveillance HDD at checkout.
Power The four turrets run on standard PoE (802.3af) straight from the NVR's built-in PoE ports. The PTZ draws more power and is best run on a Hi-PoE / 802.3at source or its own 12 VDC power supply — the 8-port NVR's shared PoE budget may not reliably power a PTZ alongside four 8MP turrets. Use a Hikvision PoE injector for PTZ or a separate PSU for the PTZ. See Installation Notes below.
Cabling Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting Turret brackets and templates included. The PTZ suits a wall, pole or parapet mount (sold separately) for an elevated, unobstructed view across the site.
Warranty 3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Yards & storage compounds
PTZ auto-tracks anyone moving through the yard while turrets guard the gates and roller doors.
Car parks & forecourts
Track vehicles across the lot with 25× zoom for plates, with fixed turrets on the entry and exit lanes.
Acreage & rural property
One elevated PTZ sweeps the paddocks and driveway; turrets cover the house, sheds and gate.
Building & construction sites
Auto-track movement around plant and materials after hours; turrets watch the site entry and compound.
Industrial & logistics
Cover loading docks, hardstand and laydown areas with active tracking plus fixed detail on the docks.
Large retail & dealerships
Track customers and vehicles across an outdoor display lot, with turrets on the showroom and entrances.
PTZ Camera — DS-2DE7A425IW-AEB
Camera Type 4MP Pro Series AcuSense PTZ Network Speed Dome · DarkFighter
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 4MP · 2560 × 1440
Optical Zoom 25× (4.8–120 mm) · 16× digital
Min. Illumination Colour 0.005 lux · B/W 0.001 lux · 0 lux with IR
Night Vision IR up to 200 m · DarkFighter low-light
Pan / Tilt Pan 360° endless · Tilt −15° to +90° · auto-tracking
Smart AI AcuSense human/vehicle classification & face capture · audio-visual alarm
Power 12 VDC or PoE (IEEE 802.3af/at) — Hi-PoE / 802.3at or separate PSU recommended
Protection IP66 · IK10
Fixed Camera — DS-2CD2386G2-IU
Camera Type 8MP 4K AcuSense IR Fixed Turret · Pro Series G2
Image Sensor 1/2.5" Progressive Scan CMOS · DarkFighter Lite
Max. Resolution 8MP · 3840 × 2160 (4K UHD)
Min. Illumination Colour 0.005 lux @ F1.6 · 0 lux with IR
Lens 2.8 mm fixed · F1.6 · 111° HFOV
Supplement Light Smart IR · 850 nm · up to 30 m
WDR / AI 120 dB True WDR · AcuSense human & vehicle
Audio / Storage Built-in mic · microSD up to 256 GB
Power / Protection 12 VDC / PoE (802.3af) · IP67
Recorder Specifications — DS-7608NI-M2/8P
Channels 8 IP channels · up to 32 MP input
Incoming Bandwidth 80 Mbps
PoE 8 × PoE ports (IEEE 802.3 af/at)
Storage 2 × SATA (up to 16 TB per bay, 32 TB total) · no HDD by default
Video Output 1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression H.265+ / H.265 / H.264+ / H.264
Remote / App Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
  • ›PTZ power: the PTZ pan/tilt motors and 200 m IR draw far more than a fixed turret. Run the PTZ on a Hi-PoE / 802.3at injector (e.g. the Hikvision PoE injector for PTZ) or its own 12 VDC power supply — the 8-port NVR's shared PoE budget may not reliably power a PTZ plus four 8MP turrets. Always confirm the PTZ's power class against its datasheet.
  • ›PTZ placement: mount the PTZ high and central with a clear, unobstructed view so auto-tracking can follow targets across the whole site; place the four turrets on gates, entries and choke points.
  • ›Cabling: run solid-copper Cat6 from each camera back to the NVR (or PTZ injector) for stable power and video over long distances.
  • ›Weatherproofing: seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air, even at IP66/IP67.

Setup & Demo Videos — Hikvision

AcuSense — human & vehicle detection
PTZ auto-tracking — follow people & vehicles

Downloads & Resources

DS-2DE7A425IW-AEB Datasheet DS-2CD2386G2-IU Datasheet DS-7608NI-M2/8P Datasheet Hikvision Camera Quick Start Guide
How does PTZ auto-tracking work?
When AcuSense detects a person or vehicle, the PTZ automatically pans, tilts and zooms to follow it across the scene — giving you wide-area awareness plus detailed close-ups from a single camera, without anyone driving the joystick.
Does the PTZ run on the NVR's PoE ports?
It can support PoE, but a PTZ draws much more power than a fixed turret. We recommend running the PTZ on a Hi-PoE / 802.3at injector or its own 12 VDC supply so the NVR's shared PoE budget comfortably powers the four 8MP turrets. Always confirm against the PTZ datasheet.
What do the four fixed turrets do?
The DS-2CD2386G2-IU 8MP 4K turrets cover your fixed detail points — gates, doors, entries and choke points — 24/7, so those critical areas are always recorded even while the PTZ is tracking elsewhere.
Is a hard drive included?
No HDD is fitted by default so you can size storage to your retention needs. The NVR has two SATA bays (up to 32 TB total) — add a surveillance-grade drive at checkout.
Can I add more cameras later?
Yes — the 8-channel NVR has spare channels and PoE ports, so you can add more Hikvision cameras as the site grows.
Is this kit NDAA compliant?
No. Hikvision is not NDAA Section 889 compliant. If you need NDAA-compliant cameras for US federal or critical-infrastructure projects, contact our team about alternative brands.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support

Hikvision 5-Camera PTZ Auto-Tracking CCTV Kit — 1 PTZ + 4 AcuSense Turrets + 8CH NVR

Product form

SKU: CG-DS-PTZ4A8R

Hikvision · 1 PTZ Auto-Tracking + 4 × 8MP AcuSense Turrets · 8CH 8K PoE NVR 5-Camera Hikvision PTZ Kit... Read more

$3,500.00  $3,299.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Dispatch today? Order within: Jun 22, 2026 14:00:00 +1000
    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support

    Description

    Hikvision · 1 PTZ Auto-Tracking + 4 × 8MP AcuSense Turrets · 8CH 8K PoE NVR 5-Camera Hikvision PTZ Kit

    Hikvision 5-Camera PTZ Auto-Tracking CCTV Kit — 1 PTZ + 4 × 8MP AcuSense Turrets with 8-Channel 8K NVR

    The Hikvision PTZ Auto-Tracking Kit is built for large open areas where one fixed camera can never see everything. A DS-2DE7A425IW-AEB 4MP AcuSense PTZ with 25× optical zoom sits at the centre — it auto-tracks moving people and vehicles across the whole scene, zooming in to capture detail as a target moves. Around it, four DS-2CD2386G2-IU 8MP 4K AcuSense turrets lock down the entries, gates and fixed detail points so nothing slips past while the PTZ is tracking elsewhere. Everything records to a DS-7608NI-M2/8P 8-channel 8K NVR with Hik-Connect remote access. Ideal for yards, car parks, acreage, building sites and other wide open coverage.

    Cameras
    1 PTZ + 4 × 8MP
    PTZ Zoom
    25× Optical · 200m IR
    Auto-Tracking
    Follows People & Vehicles
    Recorder
    8CH 8K NVR · 8 PoE
    Smart AI
    AcuSense Human/Vehicle
    Storage
    Dual SATA · Add HDD

    PTZ Auto-Tracking

    The DS-2DE7A425IW-AEB locks onto a moving person or vehicle and pans, tilts and zooms to follow it across the whole scene — turning one camera into active wide-area coverage with detailed close-ups as the target moves.

    Fixed Detail Where It Matters

    Four 8MP 4K AcuSense turrets cover the gates, entries and choke points 24/7 so the critical spots are always recorded — even while the PTZ is tracking something at the far end of the site.

    25× Zoom + 200 m Night Vision

    The PTZ reaches across large yards and car parks with 25× optical zoom and DarkFighter low-light, and an IR range up to 200 m for clear images across big open areas after dark.

    AcuSense on Every Camera

    On-camera deep learning classifies events as human or vehicle and filters out foliage, rain and headlight false alarms — fewer nuisance alerts across all five cameras.

    What's Included
    1 × PTZ Camera DS-2DE7A425IW-AEB — 4MP Pro Series AcuSense PTZ speed dome, 25× optical zoom (4.8–120 mm), 360° endless pan, DarkFighter low-light, IR up to 200 m, AcuSense human/vehicle classification & auto-tracking, IP66 + IK10.
    4 × Fixed Cameras DS-2CD2386G2-IU — 8MP 4K AcuSense IR turret, 2.8 mm F1.6 lens, 111° HFOV, 120 dB WDR, 30 m Smart IR, built-in mic, IP67.
    1 × Recorder DS-7608NI-M2/8P — 8-channel 8K M-Series NVR with 8 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
    Storage No HDD included by default — add a surveillance-grade drive to suit your retention. Dual SATA bays support up to 32 TB total. Add a surveillance HDD at checkout.
    Power The four turrets run on standard PoE (802.3af) straight from the NVR's built-in PoE ports. The PTZ draws more power and is best run on a Hi-PoE / 802.3at source or its own 12 VDC power supply — the 8-port NVR's shared PoE budget may not reliably power a PTZ alongside four 8MP turrets. Use a Hikvision PoE injector for PTZ or a separate PSU for the PTZ. See Installation Notes below.
    Cabling Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
    Mounting Turret brackets and templates included. The PTZ suits a wall, pole or parapet mount (sold separately) for an elevated, unobstructed view across the site.
    Warranty 3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
    Best For
    Yards & storage compounds
    PTZ auto-tracks anyone moving through the yard while turrets guard the gates and roller doors.
    Car parks & forecourts
    Track vehicles across the lot with 25× zoom for plates, with fixed turrets on the entry and exit lanes.
    Acreage & rural property
    One elevated PTZ sweeps the paddocks and driveway; turrets cover the house, sheds and gate.
    Building & construction sites
    Auto-track movement around plant and materials after hours; turrets watch the site entry and compound.
    Industrial & logistics
    Cover loading docks, hardstand and laydown areas with active tracking plus fixed detail on the docks.
    Large retail & dealerships
    Track customers and vehicles across an outdoor display lot, with turrets on the showroom and entrances.
    PTZ Camera — DS-2DE7A425IW-AEB
    Camera Type 4MP Pro Series AcuSense PTZ Network Speed Dome · DarkFighter
    Image Sensor 1/2.8" Progressive Scan CMOS
    Max. Resolution 4MP · 2560 × 1440
    Optical Zoom 25× (4.8–120 mm) · 16× digital
    Min. Illumination Colour 0.005 lux · B/W 0.001 lux · 0 lux with IR
    Night Vision IR up to 200 m · DarkFighter low-light
    Pan / Tilt Pan 360° endless · Tilt −15° to +90° · auto-tracking
    Smart AI AcuSense human/vehicle classification & face capture · audio-visual alarm
    Power 12 VDC or PoE (IEEE 802.3af/at) — Hi-PoE / 802.3at or separate PSU recommended
    Protection IP66 · IK10
    Fixed Camera — DS-2CD2386G2-IU
    Camera Type 8MP 4K AcuSense IR Fixed Turret · Pro Series G2
    Image Sensor 1/2.5" Progressive Scan CMOS · DarkFighter Lite
    Max. Resolution 8MP · 3840 × 2160 (4K UHD)
    Min. Illumination Colour 0.005 lux @ F1.6 · 0 lux with IR
    Lens 2.8 mm fixed · F1.6 · 111° HFOV
    Supplement Light Smart IR · 850 nm · up to 30 m
    WDR / AI 120 dB True WDR · AcuSense human & vehicle
    Audio / Storage Built-in mic · microSD up to 256 GB
    Power / Protection 12 VDC / PoE (802.3af) · IP67
    Recorder Specifications — DS-7608NI-M2/8P
    Channels 8 IP channels · up to 32 MP input
    Incoming Bandwidth 80 Mbps
    PoE 8 × PoE ports (IEEE 802.3 af/at)
    Storage 2 × SATA (up to 16 TB per bay, 32 TB total) · no HDD by default
    Video Output 1 × HDMI (up to 8K) + 1 × VGA · simultaneous
    AI Functions AcuSense human/vehicle · perimeter · facial (with compatible cameras)
    Compression H.265+ / H.265 / H.264+ / H.264
    Remote / App Hik-Connect (iOS & Android) · P2P · ONVIF
    Installation Notes
    • ›PTZ power: the PTZ pan/tilt motors and 200 m IR draw far more than a fixed turret. Run the PTZ on a Hi-PoE / 802.3at injector (e.g. the Hikvision PoE injector for PTZ) or its own 12 VDC power supply — the 8-port NVR's shared PoE budget may not reliably power a PTZ plus four 8MP turrets. Always confirm the PTZ's power class against its datasheet.
    • ›PTZ placement: mount the PTZ high and central with a clear, unobstructed view so auto-tracking can follow targets across the whole site; place the four turrets on gates, entries and choke points.
    • ›Cabling: run solid-copper Cat6 from each camera back to the NVR (or PTZ injector) for stable power and video over long distances.
    • ›Weatherproofing: seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air, even at IP66/IP67.

    Setup & Demo Videos — Hikvision

    AcuSense — human & vehicle detection
    PTZ auto-tracking — follow people & vehicles

    Downloads & Resources

    DS-2DE7A425IW-AEB Datasheet DS-2CD2386G2-IU Datasheet DS-7608NI-M2/8P Datasheet Hikvision Camera Quick Start Guide
    How does PTZ auto-tracking work?
    When AcuSense detects a person or vehicle, the PTZ automatically pans, tilts and zooms to follow it across the scene — giving you wide-area awareness plus detailed close-ups from a single camera, without anyone driving the joystick.
    Does the PTZ run on the NVR's PoE ports?
    It can support PoE, but a PTZ draws much more power than a fixed turret. We recommend running the PTZ on a Hi-PoE / 802.3at injector or its own 12 VDC supply so the NVR's shared PoE budget comfortably powers the four 8MP turrets. Always confirm against the PTZ datasheet.
    What do the four fixed turrets do?
    The DS-2CD2386G2-IU 8MP 4K turrets cover your fixed detail points — gates, doors, entries and choke points — 24/7, so those critical areas are always recorded even while the PTZ is tracking elsewhere.
    Is a hard drive included?
    No HDD is fitted by default so you can size storage to your retention needs. The NVR has two SATA bays (up to 32 TB total) — add a surveillance-grade drive at checkout.
    Can I add more cameras later?
    Yes — the 8-channel NVR has spare channels and PoE ports, so you can add more Hikvision cameras as the site grows.
    Is this kit NDAA compliant?
    No. Hikvision is not NDAA Section 889 compliant. If you need NDAA-compliant cameras for US federal or critical-infrastructure projects, contact our team about alternative brands.
