Hikvision · 2MP · WiFi Villa Station
Four-Household Aluminium Entry, Surface-Mounted

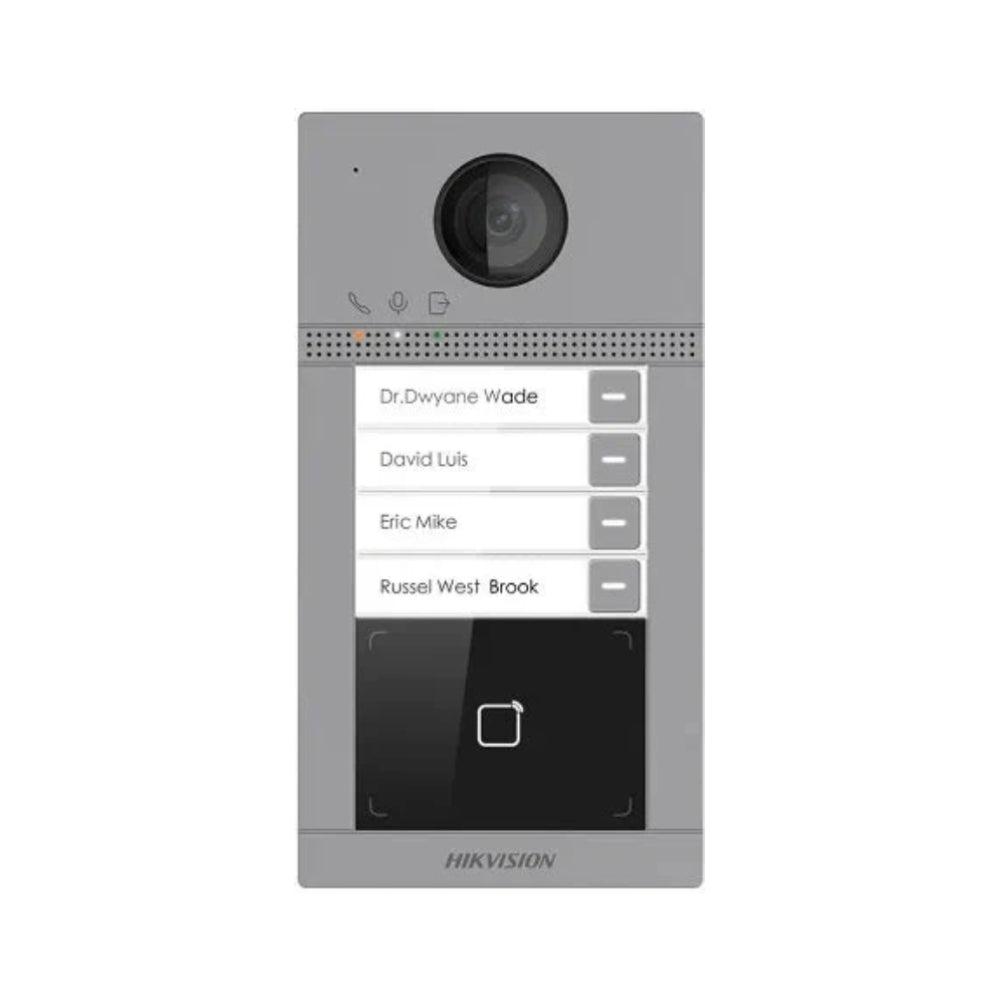

The Hikvision DS-KV8413-WME1/Surface is a four-button aluminium villa door station built for entrances shared by up to four households. A 2MP HD camera with IR supplement captures every caller clearly, while the surface-mount aluminium alloy body installs cleanly on the wall.
Four nametag call buttons route visitors to the right residence, with 4-channel indoor station access control and an internal Mifare card reader for keyless entry. Built-in WiFi means no extra wiring is required, while standard PoE/12VDC is also supported. Noise suppression and echo cancellation keep two-way talk clear, and three integrated indicators show status at a glance.
What's Included
DS-KV8413-WME1 Door Station
Four-button aluminium villa door station with 2MP IR camera and Mifare reader.
Surface Mount Box
Surface-mount housing for straightforward wall installation.
Wiring Terminals
WiFi / PoE / 12VDC and lock-control connections for door release.
Why Choose DS-KV8413-WME1
Four-Household Calling
Four nametag buttons with 4-channel indoor station access control.
Keyless Mifare Entry
Internal Mifare card reader lets residents tap in without keys.
No-Wiring WiFi
Built-in WiFi means no network cabling is required; PoE/12VDC also supported.
Clear Two-Way Audio
Noise suppression and echo cancellation keep conversations crisp.
Recommended For
Multi-Dwelling Entries
Four-button calling for up to four households at one entrance.
Premium Entrances
Surface aluminium finish suits high-end shared front doors.
Keyless Households
Mifare reader gives residents card-based access.
Technical Specifications
| Model |
DS-KV8413-WME1/Surface |
| Type |
Aluminium Villa Door Station (Surface Mount) |
| Camera |
2MP HD with IR supplement |
| Call Buttons |
4 nametag buttons |
| Access Control |
4-channel indoor station access control |
| Card Reader |
Internal Mifare |
| Connectivity |
WiFi (no wiring required) + standard PoE / 12VDC |
| Indicators |
3 integrated indicators |
| Audio |
Noise suppression & echo cancellation |
| Material |
Aluminium alloy |
| Configuration |
Web configuration |
| Protection |
IP65 / IK08 |
How many call buttons does it have?
Four nametag buttons, suited to up to four households sharing one entrance.
Is this a surface-mount unit?
Yes — it is the surface-mount version for straightforward wall installation.
Does it support card access?
Yes, it has an internal Mifare card reader for keyless entry.
Does it need network cabling?
No — built-in WiFi means no wiring is required, though PoE/12VDC is also supported.
How many indoor stations can it serve?
It supports 4-channel indoor station access control.
What camera does it use?
A 2MP HD camera with IR supplement for clear low-light images.
Is it weatherproof?
Yes, it is rated IP65 against dust and rain and IK08 for impact.
Is the audio clear?
Yes, noise suppression and echo cancellation deliver clean two-way talk.
What is it made of?
A durable aluminium alloy body with three integrated status indicators.
Order the DS-KV8413-WME1/Surface today from CCTV Guru — genuine Australian stock, backed by our 3-Year AU Warranty, fast AU-wide shipping and local tech support.
