Hikvision · Gen 2 Modular · IP65

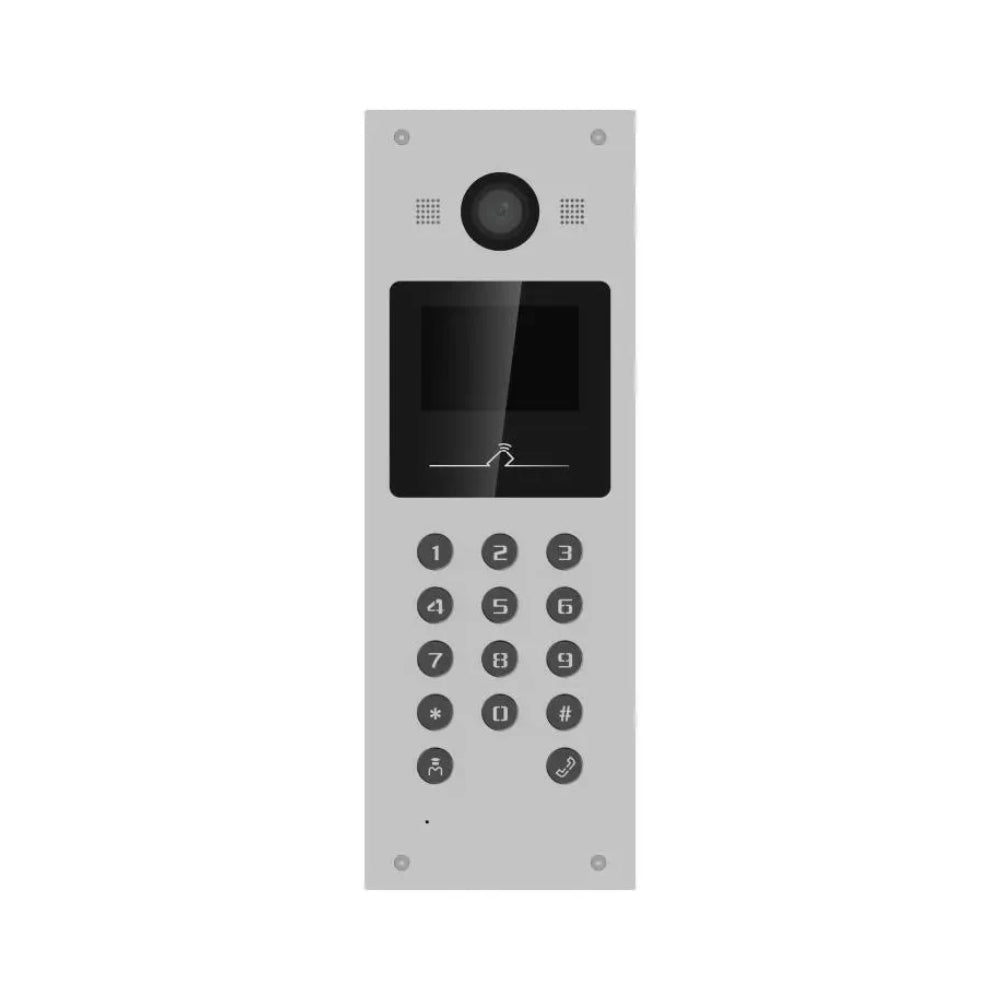

Hikvision DS-KD3003-E6 — Modular IP Video Door Station
The DS-KD3003-E6 is a Gen 2 modular IP video door station with a 3.5" colour LCD (480×320) and a 2MP HD colour camera for clear visitor identification. A built-in M1 (Mifare) card reading module lets residents unlock with a tap, while PIN entry provides a keyless backup.
Designed for apartments and multi-tenant entrances, it offers RJ45, RS-485, alarm input, relay and Wiegand interfaces plus web-based remote configuration. An IP65 rating keeps it reliable at exposed doorways and gates.
What's Included
DS-KD3003-E6 Door Station
Modular outdoor station with 3.5" LCD and 2MP camera.
Mounting Hardware
Fixings for surface mounting at the door or gate.
Wiring Accessories
Connector kit for RJ45, RS-485, alarm and Wiegand wiring.
Flush Bracket (Optional)
Compatible DS-KAB13-D flush bracket may be required for recessed installs — order separately if needed.
Why Choose DS-KD3003-E6
Tap-to-Unlock
Built-in M1 (Mifare) reader for fast, keyless card access.
Clear Visitor Video
2MP HD colour camera with a 3.5" colour LCD preview.
Flexible Wiring
RJ45, RS-485, Wiegand, alarm input and relay outputs on board.
Weatherproof Build
IP65 rating for reliable operation at exposed entrances.
Recommended For
Apartments
Modular Gen 2 station for multi-tenant building entrances.
Small Businesses
Card and PIN access control for shops and offices.
Residential Gates
IP65 door station for front doors and side gates.
Remote-Managed Sites
Web configuration simplifies setup and ongoing changes.
Technical Specifications
| Model |
DS-KD3003-E6 |
| Display |
3.5" colour LCD, 480×320 |
| Camera |
2MP HD colour |
| Card Reader |
Built-in M1 (Mifare) |
| Unlock Methods |
Card, PIN code |
| Interfaces |
RJ45, RS-485, alarm input, relay, Wiegand |
| Configuration |
Web-based remote configuration |
| Protection |
IP65 |
| Compatible Bracket |
DS-KAB13-D flush bracket (optional) |
Downloads & Resources
What screen does the DS-KD3003-E6 have?
A 3.5" colour LCD at 480×320 resolution.
What camera does it use?
A 2MP HD colour camera for clear visitor identification.
How do residents unlock?
Via M1 (Mifare) cards or a PIN code.
Is it weatherproof?
Yes — it carries an IP65 rating for exposed entrances.
What interfaces are available?
RJ45, RS-485, alarm input, relay and Wiegand.
Can it be configured remotely?
Yes — it supports web-based remote configuration.
Do I need a flush bracket?
For recessed installs, the compatible DS-KAB13-D bracket may be required and is ordered separately.
Is this a Gen 2 station?
Yes — it is part of Hikvision's Gen 2 modular door station range.
Where is it best used?
Apartments, small businesses and residential gates.
