Hikvision Gen2 · Stainless Steel · Two-Module Surface Mount
Premium Stainless-Steel Housing for a Two-Module Hikvision Door Station

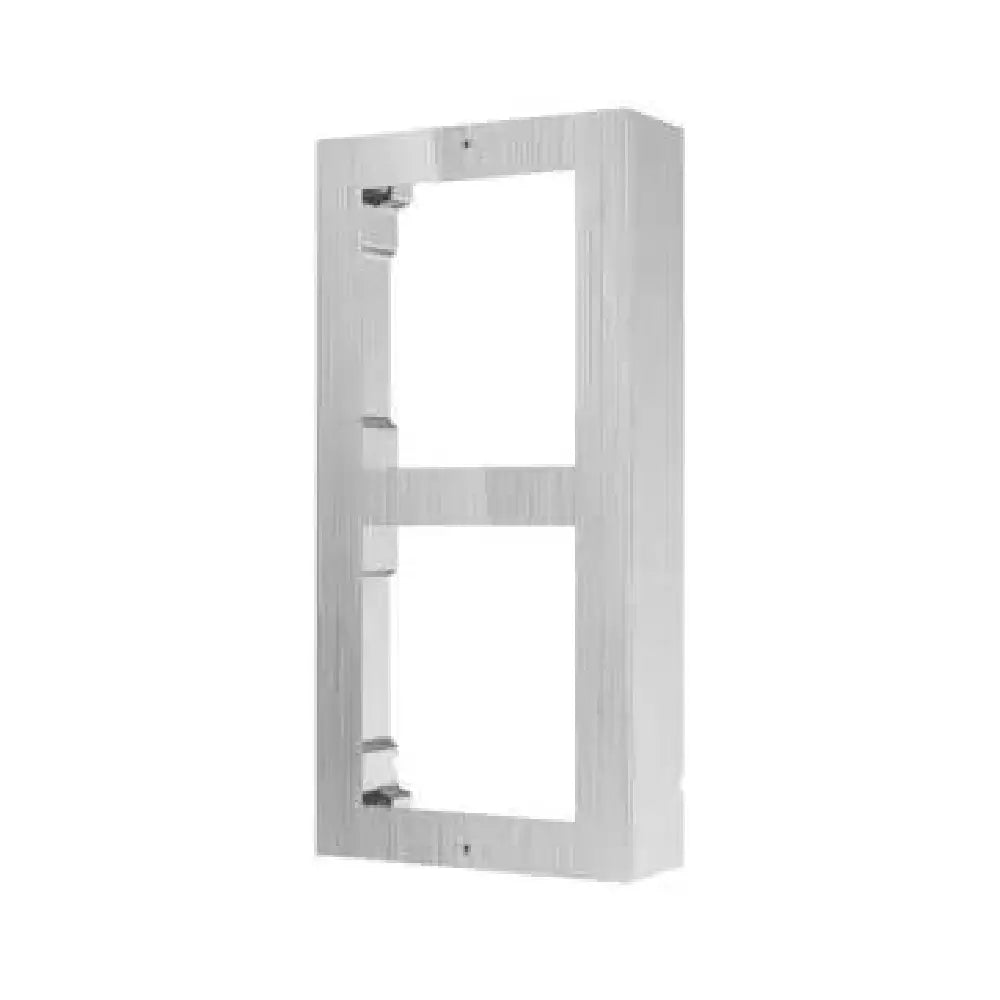

The Hikvision DS-KD-ACW2/S is a stainless-steel two-module surface-mount enclosure for compatible Hikvision Gen2 modular video intercom door stations. It creates a clean, durable installation where a recessed wall cavity is unavailable or where a premium stainless finish is preferred.
The kit includes the two-module installation frame, stainless-steel front cover, button cover and required mounting accessories. Pair it with a compatible main door-station module and one function module to build a tailored entry panel for residential, commercial or multi-tenant sites.
Installation
Surface mount
Why Choose the DS-KD-ACW2/S?
Premium Stainless FinishThe stainless-steel cover gives compatible Gen2 modules a professional, coordinated appearance and improved resistance to exposed conditions.
Flexible Two-Module DesignCombine a compatible main video door station with a keypad, card reader, display or nametag module to suit the entrance.
No Deep Wall RecessSurface mounting suits solid walls, retrofit projects and locations where cutting a flush-mount cavity is impractical.
Complete Mounting PackageSupplied with the two-module frame, stainless front panel, button cover and mounting accessories needed for enclosure assembly.
Product Specifications
| Official model |
DS-KD-ACW2/S |
| Product type |
Two-module surface mounting box |
| Cover material |
Stainless steel |
| Installation frame |
Aviation aluminium |
| Mounting method |
Surface mount |
| Module capacity |
2 × compatible Hikvision Gen2 modular door-station modules |
| Package contents |
Two-module frame, front panel, button cover and mounting accessories |
| Modules included |
No — door-station and function modules are sold separately |
Build a Stainless Two-Module Entry Panel
For the most consistent finish, start with the DS-KD8003-IME1/S stainless main door station. The DS-KD8003-IME1/NS no-button stainless station is useful when the second module will provide the visitor calling or access function.
DS-KD-DIS DisplayAdd a 3.5-inch directory display for visitor guidance and contact selection.
Choose the Right Two-Module Housing
| Model |
Installation |
Best For |
| DS-KD-ACW2/S |
Stainless-steel surface mount |
Premium exposed, retrofit and coastal-style installations |
| DS-KD-ACW2 |
Standard surface mount |
Cost-effective general installations |
| DS-KD-ACF2/S |
Stainless-steel flush mount |
Recessed installations with a low-profile finish |
Installation Planning
- Confirm that both selected modules belong to the compatible Hikvision Gen2 modular system.
- Plan network, two-wire, PoE and lock-control cabling before fixing the enclosure.
- Add the DS-KABD8003-RS2 rain shield where additional overhead weather coverage is required.
- Use suitable wall fixings and seal cable entries for the installation environment.
- Professional installation and system commissioning are recommended.
Frequently Asked Questions
How many modules does it hold?The DS-KD-ACW2/S provides two positions for compatible Hikvision Gen2 modular door-station modules.
Are the intercom modules included?No. This is the mounting enclosure only. The main video door station and chosen function module are sold separately.
Which main station best matches the finish?The DS-KD8003-IME1/S stainless main station provides the closest coordinated appearance.
Can it be flush mounted?No. Choose the DS-KD-ACF2/S for a recessed stainless-steel two-module installation.
Is this the same as the DS-KD-ACW2?No. Both hold two modules and surface mount, but the DS-KD-ACW2/S uses a stainless-steel cover for a premium finish.
Is a rain shield available?Yes. The active DS-KABD8003-RS2 provides additional coverage for a two-module surface-mount assembly.
