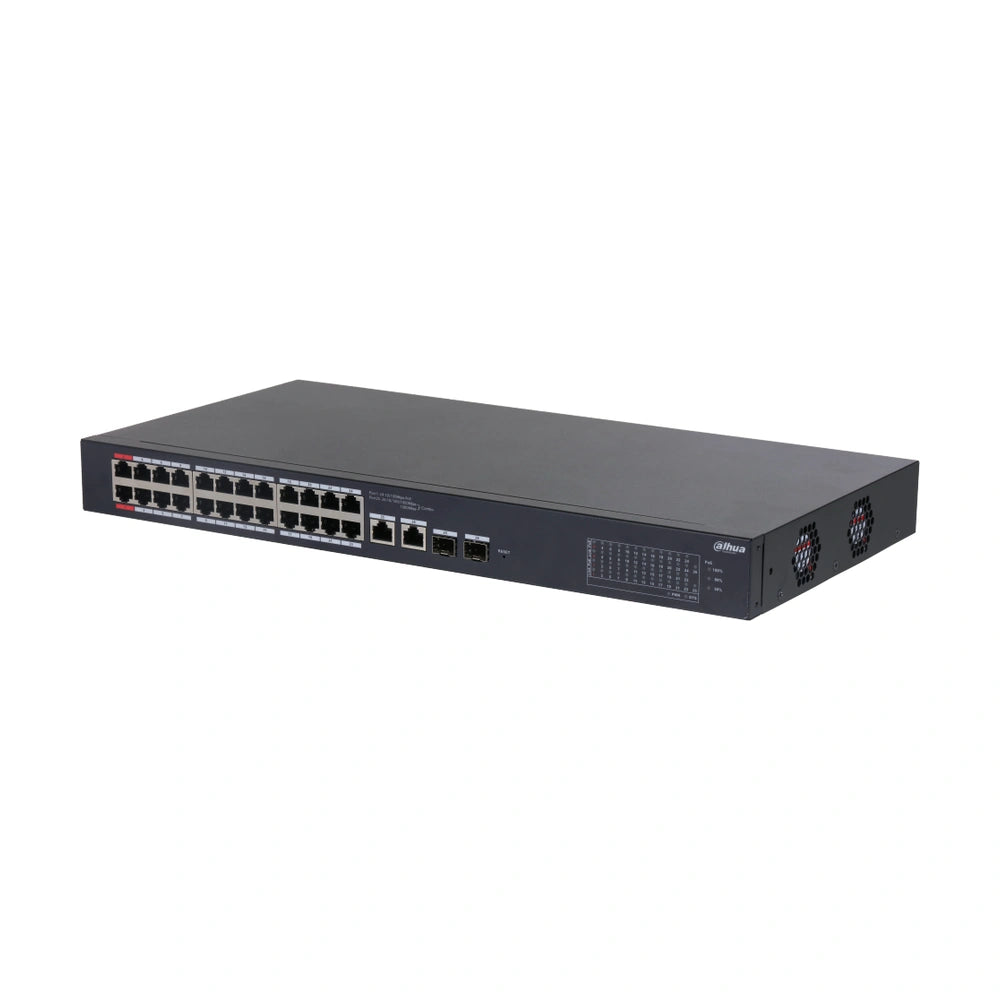

24 PoE PORTS · 240W · CLOUD MANAGEDDahua DH-CS4226-24ET-240-V2 24-Port PoE Cloud Managed Switch — 240W
Power and connect a multi-camera IP surveillance system with the DH-CS4226-24ET-240-V2. It provides 24 PoE camera ports and a shared 240W power budget, plus two Gigabit combo uplinks for the network or recorder. DoLynk Care and web management give installers visibility of the network and tools for maintenance.
Key Features
24 camera connections
Each PoE camera port runs at 10/100Mbps. Two Gigabit combo uplinks handle connections towards the wider network.
Shared 240W PoE budget
Ports 1–2 support up to 90W each; ports 3–24 support up to 30W each. All powered devices share the 240W total.
Managed maintenance
DoLynk Care, web management, port VLAN and LLDP help organise and manage compatible network installations.
PoE watchdog
Automatic monitoring can restart an unresponsive powered device. Long-range mode can extend suitable links, with reduced data speed.
Technical Specifications
| Model |
DH-CS4226-24ET-240-V2 |
| PoE ports |
24 × 10/100Mbps RJ45 |
| Uplink ports |
2 × Gigabit combo uplinks; each uses either its RJ45 connection or its SFP slot |
| PoE standards |
IEEE 802.3af/at/bt and Hi-PoE; port capabilities vary |
| PoE budget |
240W shared total |
| Per-port maximum |
Ports 1–2: 90W; ports 3–24: 30W, within the shared budget |
| Switching capacity / forwarding |
8.8Gbps / 6.55Mpps |
| MAC table / buffer |
8K addresses / 4Mbit |
| Jumbo frames |
15K bytes |
| Management |
DoLynk Care; web interface; Layer 2 functions; LLDP; PoE watchdog |
| VLAN |
Port-based VLAN; up to 32 VLANs |
| Long-range mode |
Up to 250m at 10Mbps under specified cable and power conditions |
| Power input |
100–240V AC, 47–63Hz; built-in power supply |
| Consumption |
Idle ≤8.5W; full-load consumption 265W |
| Operating temperature |
−10°C to +55°C |
| Construction / mounting |
Metal; desktop or rack mounting |
| Dimensions / weight |
440 × 220 × 44mm; 2.47kg |
Setup and Compatibility
Add up every camera’s maximum power consumption, including IR, warm lights, heaters and PTZ movement, and leave capacity for expansion. The 240W rating is a shared limit, not 240W per port. Each combo uplink is one logical connection: its copper port and SFP slot cannot be used as two independent uplinks. Long-range mode reduces the selected link to 10Mbps and is not a guarantee for every cable installation.
Choosing Accessories
Need a larger power budget? Compare the DH-CS4226-24ET-375-V2 375W switch. Add 8ware Cat6/Cat6A patch leads for the required connections. SFP modules and rack installation hardware should be selected for your network. The optional UPS must be sized for the switch and its full connected PoE load; a monitor connects to a recorder or computer, not directly to this switch.
Downloads
Installation and operation manuals are shared Dahua guides. Available menus and functions depend on the exact model and firmware.
Frequently Asked Questions
Are all 24 camera ports Gigabit?
No. The 24 PoE ports are 10/100Mbps. The two combo uplinks are Gigabit.
Can I power 24 cameras at 30W each?
No. The total PoE load must remain within 240W, even though individual ports have higher limits.
Does it record CCTV footage?
No. It connects and powers devices; recording requires a compatible NVR, server or camera storage.
