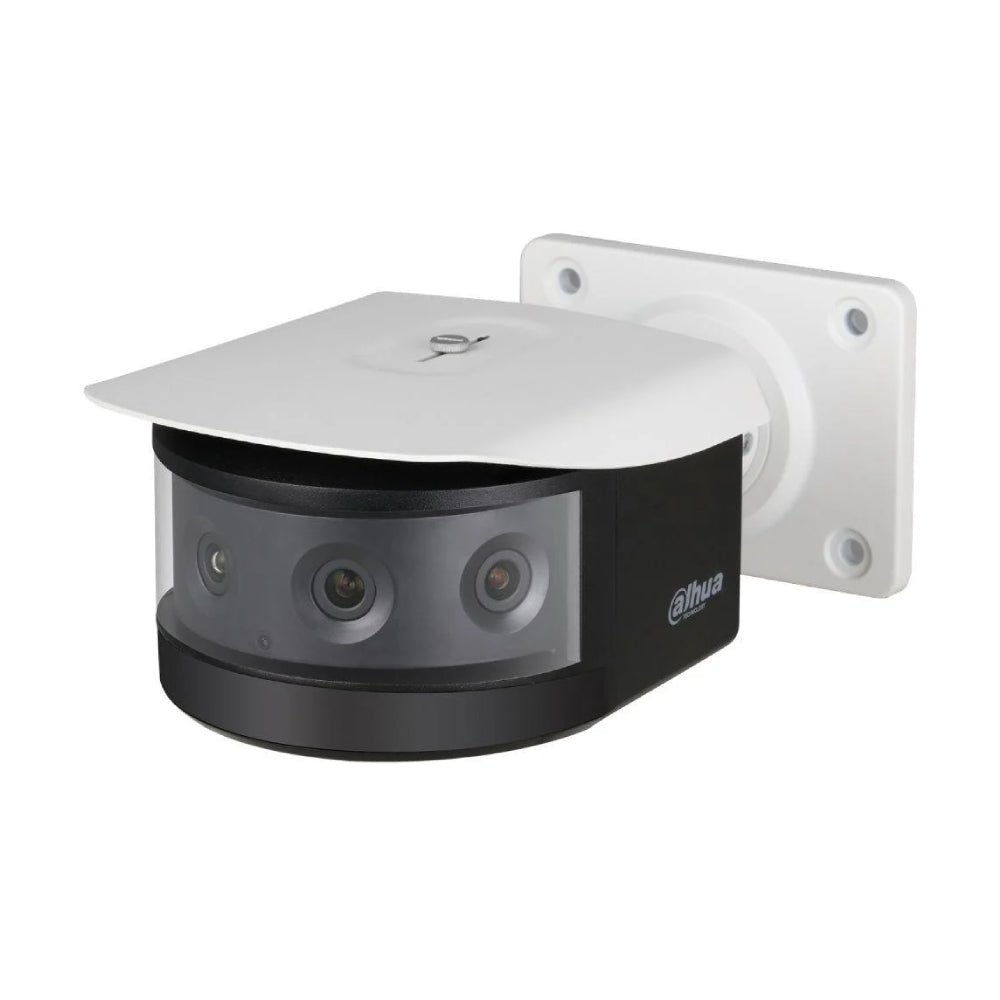

WizMind 8 · 4 × 2 MP · 180° Panoramic · IK10 VandalDahua DH-IPC-PFW8802P-H-A180-E4-AC24V — 4 × 2 MP Multi-Sensor 180° Panoramic IR Bullet WizMind Network Camera (8802 Series)
The Dahua DH-IPC-PFW8802P-H-A180-E4-AC24V is a flagship WizMind 8 multi-sensor panoramic bullet — four 1/2.8" 2 MP CMOS sensors spliced into a seamless 180° horizontal field of view, delivering 8 MP of total panoramic detail across the full hemisphere. Each sensor pairs Starlight low-light technology with deep-learning analytics (face detection, perimeter protection, people counting, heat mapping); IR illumination reaches 35 m at the wide; the housing is IP67 sealed, IK10 vandal-rated metal casing with TVS 6000 V lightning protection. Power is 24 VAC or PoE+ (IEEE 802.3at) at ≤ 25.5 W. Operating range −40 °C to +60 °C makes it Alpine and Pilbara ready. Built for Australian large-format coverage where one camera replaces three or four conventional bullets — carparks, school grounds, freight yards, transit corridors, building façades, depot perimeters and stadium frontages. Backed by a 5-year Australian warranty through CCTV Guru as authorised Dahua AU reseller. SKU 8802 series.
Why Choose the Dahua PFW8802P-H-A180-E4-AC24V WizMind Panoramic Bullet
True 180° Splice — Four Sensors, One Frame
Four 2 MP CMOS sensors are spliced in-camera into a continuous 180° horizontal panoramic image — no fisheye distortion, no de-warping, no operator post-processing. The single mount replaces three or four conventional bullets on a long fence-line or building façade.
WizMind 8 Edge AI Suite
Face detection, perimeter protection, people counting, heat mapping and stereo analysis run on the dedicated WizMind AI chip. Filters out animals, branches and shadows; only the right type of target raises alerts. The premium-tier Dahua AI platform.
IK10 Vandal & 6000 V Surge
Metal casing with IK10 vandal rating + TVS 6000 V lightning, surge and voltage-transient protection. Built for exposed Australian outdoor mounts — coastal carparks, schools, transport hubs, council reserves and high-vandalism positions.
Built for Harsh Climates
−40 °C to +60 °C operating range covers Alpine NSW, Tasmania, the Pilbara, the Top End and every site in between. Built-in heater keeps the optics clear in cold conditions; metal housing dissipates summer heat.
Long-Reach IR Illumination
Built-in IR array delivers up to 35 m of even night-time illumination across the entire 180° panoramic field — the most useful IR-distance specification for multi-sensor cameras, where the wide angle requires consistent coverage rather than spot illumination.
Flexible Power — 24 VAC or PoE+
Runs on either 24 V AC mains (long cable runs, perimeter pole installs) or 802.3at PoE+ for standard rack-mounted NVR feeds. Maximum 25.5 W under full load — comfortably within standard PoE+ switch budgets.
Important Install Note — PoE+ or 24 VAC Required
This camera requires 802.3at PoE+ (Class 4) or 24 V AC supply — standard 802.3af will not run it. Multi-sensor processing draws up to 25.5 W under full load. Plan PoE switch budget accordingly, or use a local 24 VAC supply for perimeter pole installs. Mounting requires a heavy-duty wall or pole bracket to support the 4.5 kg housing — see compatible accessories below.
AI & Smart Detection Capabilities
Face Detection & Attribute Extraction
Each of the four sensors runs face detection with attribute extraction (age, gender, expression). Captures forensic-grade snapshots from busy 180° scenes. Subject to local privacy law for analytics use.
Perimeter Protection (IVS)
Tripwire, intrusion, abandoned/missing object, loitering, fast-moving, parking detection and people-gathering events — all with human and vehicle classification. Each sensor's IVS rules run independently for fine-grained zone control.
People Counting & Heat Mapping
Business intelligence built into the camera — track footfall, dwell time and movement patterns across the 180° field. Useful for retail, transport and educational facilities (where local privacy law permits).
SMD Plus & Motion Filtering
Smart Motion Detection on top of standard motion. Animal, foliage, weather and lighting changes are filtered out at the edge — only people and vehicles raise alarms in DMSS.
Abnormality Detection
SD card status, network disconnection, IP conflict, video tampering, audio detection and voltage detection — push to DMSS for any abnormal device state. Essential for unattended remote installs.
ONVIF Profile S, G, T Compatible
Records to any ONVIF-compatible third-party NVR. Note: WizMind AI events and perimeter protection only push end-to-end on a genuine Dahua AI NVR — pair with NVR608 series for full feature support.
Technical Specifications
Multi-Sensor Camera System
| Model |
DH-IPC-PFW8802P-H-A180-E4-AC24V |
| Form Factor |
Multi-sensor panoramic bullet (PFW chassis) |
| Sensors |
4 × 1/2.8" CMOS Starlight |
| Resolution per Sensor |
2 MP (1920 × 1080) |
| Total Resolution |
8 MP across 180° splice |
| Field of View |
H: 180° · V: 67° (splice across all 4 sensors) |
| Frame Rate |
Up to 25/30 fps per sensor |
| WDR |
120 dB per sensor |
| Day / Night |
Auto (ICR) / Colour / B&W |
| IR Illumination |
Up to 35 m built-in array |
Intelligence & Video
| AI Engine |
WizMind 8 Series (dedicated AI chip) |
| IVS Library |
Tripwire · intrusion · abandoned/missing object · loitering · fast-moving · parking detection · people gathering |
| Face Detection |
Per sensor — with attribute extraction (age, gender, expression) |
| People Counting |
Yes (panoramic analytics) |
| Heat Map |
Yes |
| SMD Plus |
Yes |
| Video Compression |
H.265 · H.264 · Smart H.265+ · Smart H.264+ · MJPEG |
| Stream Capability |
3 streams per sensor |
| Resolutions |
2 MP · 1080p · 1.3 MP · 720p · D1 · VGA · CIF per sensor |
Power, Environment & Build
| Power Supply |
24 VAC / PoE+ (IEEE 802.3at Class 4) |
| Power Consumption |
Max 25.5 W under full load |
| Operating Temperature |
−40 °C to +60 °C |
| Operating Humidity |
≤ 95% RH (non-condensing) |
| Protection |
IP67 · IK10 vandal · TVS 6000 V lightning · surge protection · voltage transient protection |
| Casing |
Metal |
| Product Dimensions |
298.3 mm × 172.5 mm × 120.5 mm |
| Net Weight |
~4.5 kg |
| Network |
RJ-45 (10/100/1000 Base-T) · ONVIF Profile S, G, T · CGI · SDK |
| Storage |
Micro SD up to 256 GB · FTP · SFTP · NAS |
| Mobile Client |
DMSS (iOS / Android) |
| Certifications |
CE-LVD (EN62368-1) · CE-EMC (2014/30/EU) · RCM (AU) |
| Australian Warranty |
5 Years (via CCTV Guru — WizMind tier) |
How It Compares — PFW8802P (Bullet) vs PDBW8802P (Dome)
The natural sibling is the Dahua DH-IPC-PDBW8802P-H-A180-E4-AC24V — the dome version of this same camera with the same 4 × 2 MP multi-sensor panoramic system. Choose the bullet form factor for visible deterrence and adjustable mounting angle; choose the dome for discreet ceiling/soffit installs and IK10 vandal-resistant aesthetics.
| Feature |
PFW8802P (this — bullet) |
PDBW8802P (sibling — dome) |
| Form Factor |
Bullet — visible deterrence |
Dome — discreet ceiling/soffit |
| Sensors |
4 × 2 MP |
4 × 2 MP |
| Total Resolution |
8 MP across 180° |
8 MP across 180° |
| FOV |
180° H splice |
180° H splice |
| IR Distance |
Up to 35 m |
Up to 30 m |
| WizMind AI |
Yes — full suite |
Yes — full suite |
| IK10 Vandal |
Yes |
Yes |
| Power |
24 VAC / PoE+ 25.5 W |
24 VAC / PoE+ 25.5 W |
| Best For |
Long fence-lines, building façades, carpark frontages, large open courtyards |
Building lobbies, undercover canopies, transport platforms, retail interiors |
Recommended NVR Pairings
Multi-sensor cameras present as four IP streams — pair with a Dahua AI NVR with channel headroom and WizMind decoding support.
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 PoE+ ports · 2 HDD bays · 384 Mbps incoming. Runs the PFW8802P plus 12 additional fixed cameras around the site.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays · dual GbE NICs · 1.5U. Enterprise pairing for sites running multiple PFW8802 units alongside fixed cameras.
View Dahua NVR5432-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE ports · 2 HDD bays · 4K HDMI. Value-pick build with full ONVIF compatibility.
View Dahua NVR4216-16P-AI →
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 PoE+ ports · 2 HDD bays. Sized for a single PFW8802 install plus 4 additional fixed cameras — ideal for small commercial sites.
View Dahua NVR5208-8P-AI →
Frequently Asked Questions
What does "multi-sensor panoramic" mean?
The camera contains four independent 2 MP sensors arranged to capture a continuous 180° horizontal field of view. The sensors are spliced in-camera into a seamless panoramic stream — no fisheye distortion, no client-side de-warping. Result: one camera replaces three or four conventional bullets.
How many NVR channels does it use?
Four. Each sensor presents as a separate IP video stream, so the camera consumes four channels on the NVR. Plan NVR sizing accordingly — a single 8802 plus 12 fixed cameras fills 16 channels.
Does it require PoE+ or will standard PoE work?
PoE+ (IEEE 802.3at Class 4) is required, or a local 24 V AC supply. Standard 802.3af will not run the camera under full multi-sensor load — the camera draws up to 25.5 W.
How is the warranty 5 years rather than 3?
WizMind series products carry a 5-year Australian warranty through CCTV Guru — reflecting their premium project-grade build. Lower-tier WizSense cameras carry 3-year warranty.
What IR distance does it provide?
Up to 35 m built-in IR illumination across the entire 180° panoramic field. Even illumination is the design priority — not spot range.
Does it have a microphone or audio?
This SKU does not include a built-in microphone. For audio applications, see the audio-enabled variants. RCA audio input/output ports are typically available on these multi-sensor bodies for external mics and speakers.
Does it work with third-party NVRs?
Yes — ONVIF Profile S, G and T are supported. Each sensor records as a separate IP stream. Note: WizMind AI events only push end-to-end on a genuine Dahua AI NVR.
What temperature range is it rated for?
−40 °C to +60 °C. Built-in heater pre-warms the optics in cold conditions. Suitable for Alpine, mountain, desert, coastal and tropical Australian deployments.
Can I view it on my phone?
Yes — Dahua's free DMSS app on iOS and Android. Each of the four sensors is viewable as a separate stream within the app. Add via QR code on the housing.
