Description

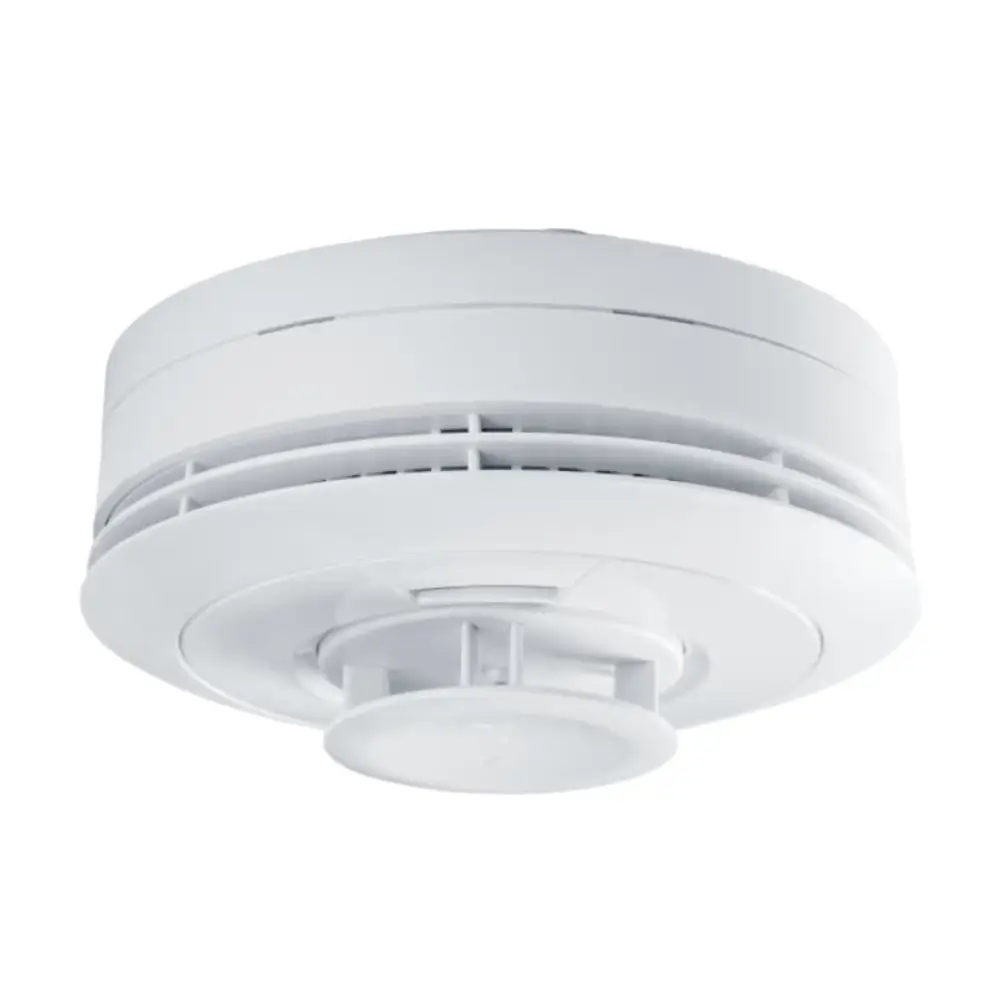

Bosch RFSM2-A Wireless Smoke Detector, Photoelectric, LED Indicator, 433.42 MHz 115diax59h (Mm) (Includes Mounting Screws & Wall Anchors)
- Reliable photoelectric sensor technology
- Fixed temperature and rate-of-rise heat sensor
- Built-in sounder and LED indicator for immediate notification
- Supervision alerts for sensor health, low battery, and tamper conditions
- Low current draw for up to 10 years battery life
- Product Code: BOSRFSM2-A
- Product No.: F.01U.359.387
Specifications
| Battery type |
Panasonic 3V CR123A (2x) |
| Typical battery life (years) |
up to 10 |
| Frequency (MHz) |
433.42 |
| Dimensions (Ø x D) |
115 mm x 59 mm (4.5 in x 2.3 in) |
| Weight |
205 g (0.45 lb) |
| Minimum operating temperature* (°C / °F) |
4.4 °C (+40 °F) |
| Maximum operating temperature* (°C / °F) |
+55 °C (+131 °F) |
| Minimum storage temperature* (°C / °F) |
-10 °C (+14 °F) |
| Maximum storage temperature* (°C / °F) |
+40 °C (+104 °F) |
| Operating and storage relative humidity* (%) |
0 - 93 % (non-condensing) |
| Minimum alarm sound |
85dBA at 3 m (10 feet) |
| Fixed (°C / °F) |
+57 °C +/- 2 °C (+135 °F +/- 4 °F) |
| Rate-of-rise (°C / °F) |
8.3 °C > +40 °C (15 °F > +104 °F) |
Parts Included
| Quantity |
Component |
| 1 |
detector with installed radio module and batteries |
| 2 |
mounting screws |
| 2 |
wall anchors |
Downloads
Datasheet
Installation Manual
Quick installation guide ([RFSM2-A])
User Manual
UL (UL 268 – Smoke detectors for fire alarm signaling systems)
RCM
