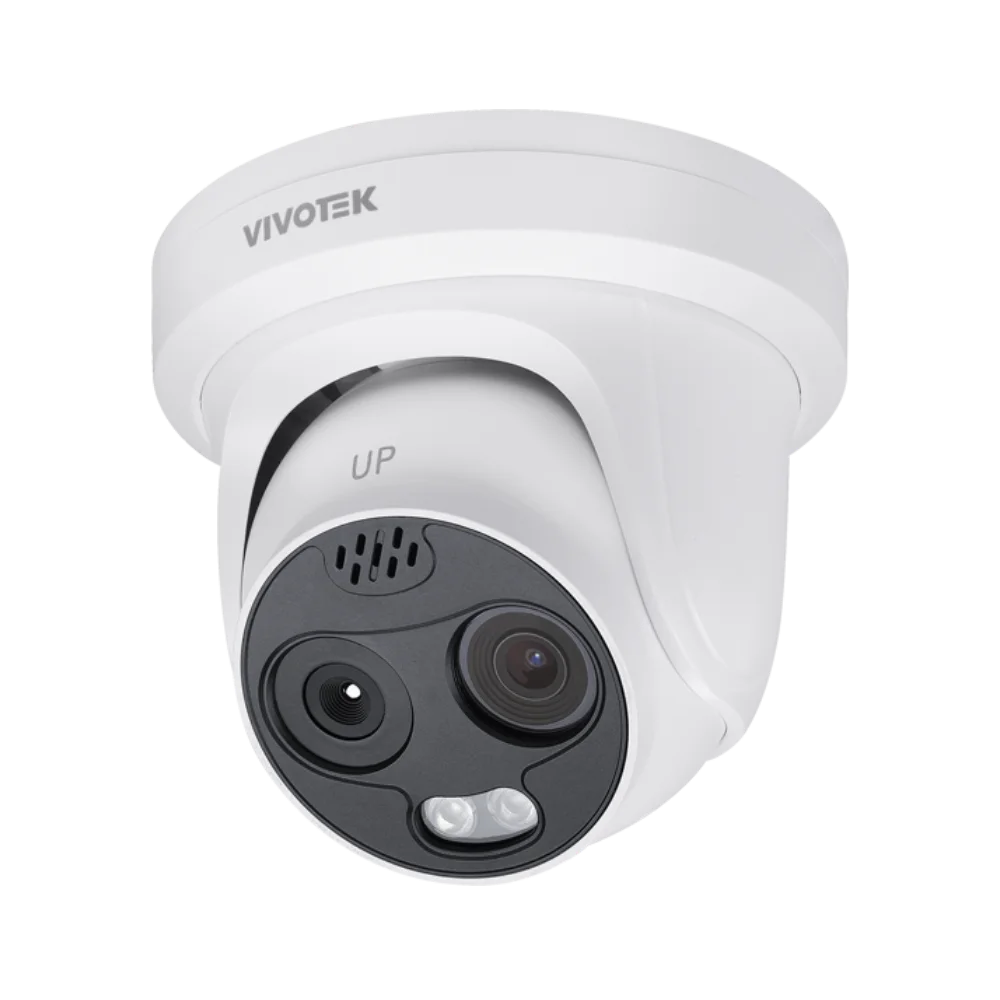

VIVOTEK TT9333-E Bi-Spectrum Thermal Turret Camera — 256×192 Thermal + 4MP Visible, Temperature Detection & AI Analytics

Description

Bi-Spectrum Thermal Turret · 256×192 + 4MP · Temperature & Fire Detection VIVOTEK Thermal Turret

VIVOTEK TT9333-E Thermal Turret Camera — Australian Stock & 5-Year Warranty

The VIVOTEK TT9333-E is a compact outdoor bi-spectrum thermal turret camera that fuses a 256 × 192 thermal sensor with a 4MP full-colour visible camera in a single IP66 housing. Because it detects heat rather than reflected light, it sees people, vehicles and hot-spots in total darkness, glare, smoke, dust and light fog — the moments ordinary cameras miss. On-board temperature measurement adds early-warning alarms for overheating machinery and fire, while deep-learning VCA analytics classify humans vs. vehicles to slash false alarms. Choose the wide 3.5 mm lens for area coverage or the 7 mm lens for long-range detection out to nearly a kilometre.

Why the TT9333-E

Sees in Complete Darkness

The uncooled VOx microbolometer detects thermal radiation (8–14 µm), so there's no reliance on IR light or ambient illumination. Reliable 24/7 detection through glare, shadow, smoke and light fog.

Temperature Measurement & Alarms

Measures −20 °C to 150 °C with ±2 % accuracy using point, line and area rules. Trigger threshold, temperature-difference and rate-of-rise alarms for fire prevention and equipment monitoring.

AI Human / Vehicle Classification

Deep-learning VCA — intrusion, single & double line crossing, loitering, wrong-way and enter/leave — classifies objects as human or vehicle to filter out animals, weather and foliage, cutting false alerts.

Bi-Spectrum Fusion

Thermal for detection, 4MP colour for identification — streamed together so operators confirm what triggered an alarm without switching cameras. Early fire, flame and smoking detection included.

Two Lens Options, One Product

3.5 mm delivers a wide 48° thermal field for yards, forecourts and compounds. 7 mm narrows to 24° for perimeters and long approaches — vehicle detection to ~894 m. Pick your lens from the dropdown.

Compact & Built for Australia

A discreet IP66 turret rated −40 °C to +60 °C with a built-in mic and speaker for two-way audio. Runs on a single PoE cable (or 12 VDC / 24 VAC) at just 10 W, with 1-in/1-out alarm I/O and RS-485.

Lens Configuration — 3.5 mm vs 7 mm
Model TT9333-E (3.5 mm) TT9333-E (7 mm)
Thermal Lens / Aperture 3.5 mm · F1.0 7 mm · F1.0
Thermal Field of View 48° (H) × 36° (V) 24° (H) × 18° (V)
Visible Lens / Aperture 4 mm · F1.6 8 mm · F2.0
Visible Field of View 92° (H) × 46° (V) 40° (H) × 20° (V)
Human Detection Range Wide-area coverage Up to ~291 m
Vehicle Detection Range Wide-area coverage Up to ~894 m
Best For Yards, forecourts, compounds, open sites Perimeters, fence lines, long approaches
Shared Technical Specifications
Thermal Resolution 256 × 192 (upscaled to 704 × 576) @ 25 fps
Thermal Sensitivity (NETD) < 50 mK @ F1.0
Spectral Range 8 – 14 µm (uncooled VOx microbolometer)
Visible Sensor 4MP · 1/2.7" CMOS · 2560 × 1440 @ 25 fps
Temperature Measurement −20 °C to 150 °C · ±2 % accuracy
Temperature Rules Point, line & area · threshold / difference / rise alarms
Video Analytics (VCA) Intrusion, single & double line crossing, loitering, wrong-way, enter/leave · human/vehicle classification · fire, flame & smoking detection
Video Compression H.265 / H.264 / MJPEG · dual streams per sensor
ONVIF Profile G, S & T
Alarm I/O 1 × Digital In · 1 × Digital Out · 1 × RS-485
Audio Built-in microphone & speaker · audio in / out · G.711, PCM
Edge Storage microSD / SDHC / SDXC up to 256 GB
Power PoE (IEEE 802.3af) · 12 VDC · 24 VAC — 10 W
Operating Temperature −40 °C to +60 °C · up to 90 % humidity
Ingress Protection IP66 weatherproof
Dimensions Ø140 × 117.8 mm
Weight 1,040 g
Warranty 5-Year Manufacturer Warranty (Australia)

Downloads

TT9333-E (3.5 mm) Datasheet TT9333-E (7 mm) Datasheet VIVOTEK Thermal Turret Quick Start Guide VIVOTEK Thermal Turret User Manual VIVOTEK Thermal Turret Dimension Drawing
What's the difference between the 3.5 mm and 7 mm lens?
The 3.5 mm gives a wide 48° thermal view for covering open areas at shorter range. The 7 mm narrows to 24° for long-range detection down perimeters and approaches — vehicle detection reaches roughly 894 m. Both share the same 256 × 192 thermal core and 4MP colour camera.
How is the turret different from the TB9333-E bullet?
Identical thermal and analytics performance in a smaller, lower-profile turret housing (Ø140 mm, ~1 kg) with a built-in microphone and lower 10 W power draw — ideal where a discreet dome-style camera suits the site better than a bullet.
Can it really see in complete darkness?
Yes. Thermal imaging detects heat, not reflected light, so it works in 0-lux darkness with no IR illuminator — and continues to see through glare, shadow, smoke, dust and light fog where standard cameras struggle.
How accurate is the temperature measurement?
It measures −20 °C to 150 °C with ±2 % accuracy and lets you set point, line and area rules with threshold, difference and rate-of-rise alarms — ideal for early fire warning and monitoring electrical panels or machinery.
How is it powered and what recorder do I need?
Power it over a single PoE (802.3af) cable, or via 12 VDC / 24 VAC. It streams H.265 with ONVIF Profile S/G/T, so it works with VIVOTEK NVRs and most ONVIF-compatible recorders and VMS platforms.
Is it suitable for outdoor Australian sites?
Absolutely. The IP66 housing is rated −40 °C to +60 °C and up to 90 % humidity, backed by a 5-year manufacturer warranty and local Australian support and stock.
5-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
