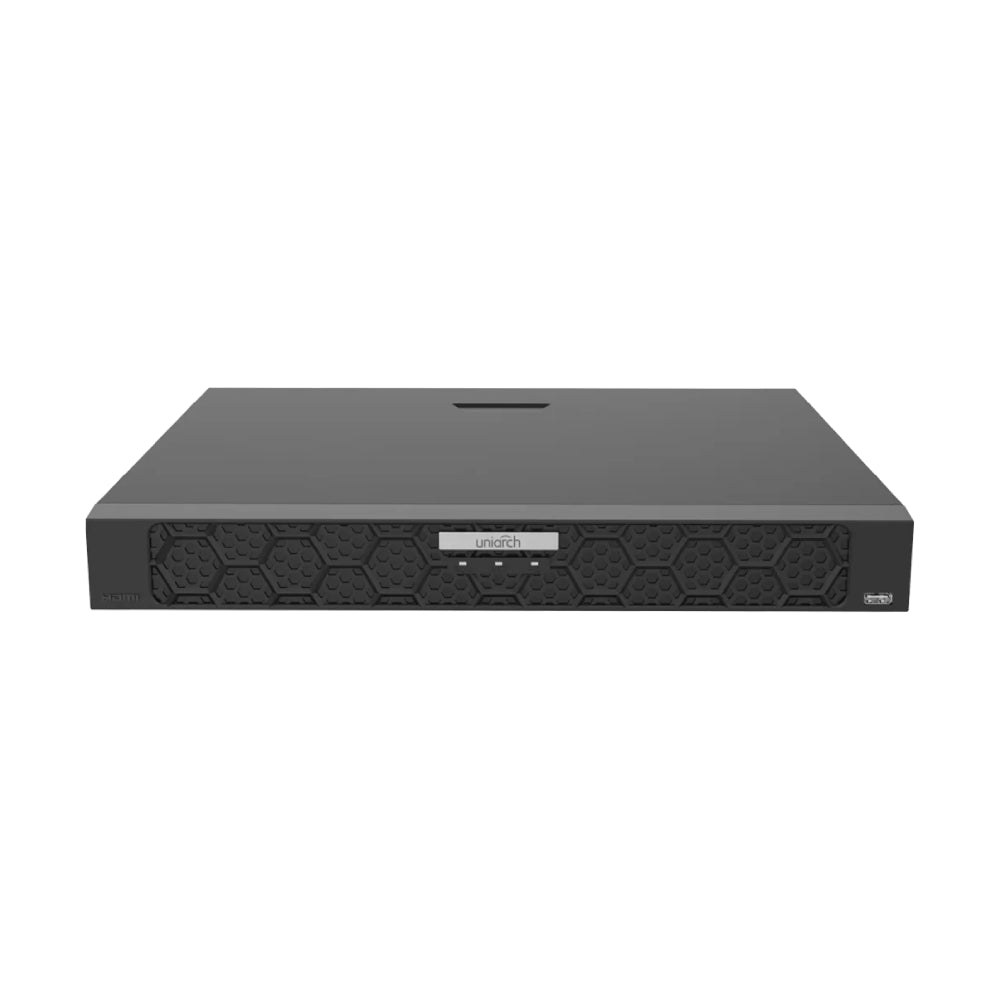

Uniarch NVR-216B-P16 16-Channel 16-PoE 4K Ultra HD Network Video Recorder

Description

Uniarch NVR SERIES

Enterprise-Grade 16-Channel Plug & Play 4K PoE Video Recorder

The Uniarch NVR-216B-P16 is a high-capacity 16-channel Network Video Recorder engineered for large-scale commercial, warehouse, retail, and multi-building security infrastructure. Featuring 16 integrated Power over Ethernet (PoE) ports, this recorder delivers both power and high-speed data transmission over a single network cable per camera, completely eliminating the need for external power supplies or central PoE switches. Powered by an robust 160 Mbps incoming throughput and support for up to 4K / 8MP video resolution decoding, the NVR-216B-P16 delivers continuous, broadcast-quality video recording across high-density surveillance networks.

Video Decoding
Up to 4K / 8MP UHD
PoE Connectivity
16 Independent Ports
Storage Capacity
2 SATA (Up to 20TB Total)
Bandwidth I/O
160 Mbps / 64 Mbps

Dual SATA Storage & Smart VCA Analytics

Built with dual SATA HDD interfaces supporting up to 10TB per disk (20TB total retention capacity), the Uniarch NVR-216B-P16 utilizes proprietary Ultra 265 smart compression to slash bandwidth consumption and hard drive storage requirements by up to 75%. The system seamlessly interfaces with smart Uniarch and third-party ONVIF cameras to support edge Video Content Analytics (VCA), including Intrusion Detection, Cross-Line Detection, and Motion Alarms. Simultaneous HDMI (up to 4K) and VGA output channels ensure flexible local display and control panel setups.

16-Port Integrated PoE Switch

Features 16 independent PoE ports supporting up to 30W per port (240W max total budget), delivering effortless plug-and-play setup for all connected IP cameras.

Dual Hard Drive Storage (20TB Capacity)

Equipped with 2 SATA drive bays accepting up to 10TB each, providing expanded long-term retention required for high-channel commercial security deployments.

Technical Specification Matrix
Camera Model NVR-216B-P16
IP Video Input 16 Channels
Incoming / Outgoing Bandwidth 160 Mbps / 64 Mbps
Display Output HDMI: Up to 4K (3840x2160)/30Hz; VGA: Up to 1080p (1920x1080)/60Hz
Video Compression Format Ultra 265, H.265, H.264
Recording Resolution 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, CIF
SATA Interface & Capacity 2 SATA Interfaces (Up to 10TB per HDD, 20TB Total)
PoE Ports & Power Budget 16 Independent 100Mbps PoE Ports (IEEE 802.3af/at), 240W Max Budget
How many cameras can I power directly through this NVR?

The Uniarch NVR-216B-P16 has 16 built-in PoE ports capable of powering and transmitting data to 16 individual IP cameras with up to 240W total PoE budget.

What is the total hard drive storage capacity supported?

This unit features 2 SATA drive bays, each supporting up to 10TB surveillance hard drives for a total capacity of 20TB.

Does this recorder support 4K resolution displays?

Yes. The HDMI output supports up to 4K Ultra HD resolution (3840x2160 @ 30Hz) for ultra-clear live viewing and playback on 4K monitors or TVs.

Can I view all 16 cameras simultaneously during playback?

Yes. The NVR supports 16-channel synchronous playback as well as multi-screen live view split options (1, 4, 6, 8, 9, 16).

Technical Datasheet
Official Uniarch Stock
Commercial Warranty
Aust-Wide Delivery

Uniarch NVR-216B-P16 16-Channel 16-PoE 4K Ultra HD Network Video Recorder

Product form

SKU: NVR-216B-P16

$469.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
