Uniarch NVR SERIES
Professional 8-Channel Plug & Play 4K PoE Video Recorder

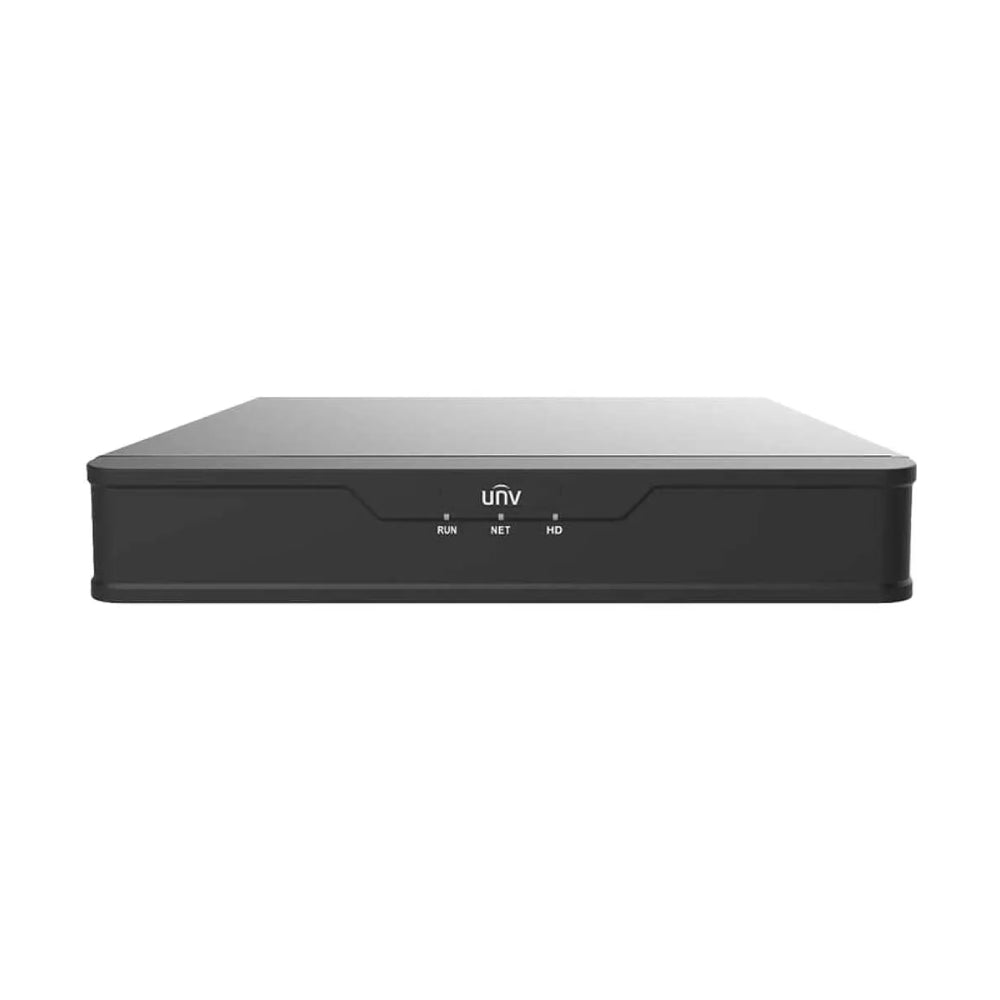

The Uniarch NVR-108B-P8 is an advanced, high-performance 8-channel Network Video Recorder purpose-built for medium-density commercial, retail, and residential security installations. Equipped with 8 integrated Power over Ethernet (PoE) ports, this unit supplies both electricity and video transmission directly over a single Ethernet cable per IP camera, significantly streamlining system deployment. With an expanded 80 Mbps incoming bandwidth capacity and support for up to 16MP ultra-high-resolution decoding, the NVR-108B-P8 ensures continuous, crystal-clear 24/7 video monitoring across your entire facility.
Video Decoding
Up to 4K / 16MP UHD
PoE Connectivity
8 Independent Ports
Storage Capacity
1 SATA (Up to 16TB)
Bandwidth I/O
80 Mbps / 64 Mbps
Smart Event Integration & Efficient Compression
Engineered with Uniarch's Ultra 265 compression technology, the Uniarch NVR-108B-P8 slashes hard drive storage usage and network bandwidth demands by up to 75% compared to standard H.264 formats. The recorder supports ONVIF (Profile S/G/T) and RTSP protocols for comprehensive interoperability. Additionally, when connected to compatible smart IP cameras, it harnesses edge intelligence functions including Smart Motion Detection, Intrusion Detection, Line Crossing, and Cross-Line Analytics to deliver real-time, actionable alerts.
8-Port Integrated PoE Switch
Built-in 8-port PoE module simplifies network infrastructure by transmitting power and high-definition video over a single network cable with up to 75W total PoE budget.
ANR Technology Storage Resilience
Automatic Network Redundancy (ANR) technology automatically saves video data to the camera's local SD card if the network drops and restores missing recordings back to the NVR once restored.
Technical Specification Matrix
| Camera Model |
NVR-108B-P8 |
| IP Video Input |
8 Channels |
| Incoming / Outgoing Bandwidth |
80 Mbps / 64 Mbps |
| Display Output |
HDMI: Up to 4K (3840x2160)/30Hz; VGA: Up to 1080p (1920x1080)/60Hz |
| Video Compression Format |
Ultra 265, H.265, H.264 |
| Recording Resolution |
16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p |
| SATA Interface |
1 SATA Interface (Up to 16TB capacity per HDD) |
| PoE Ports & Budget |
8 Independent 100Mbps PoE Ports (IEEE 802.3af/at), 75W Max Budget |
How many cameras can I power directly from this NVR?
The Uniarch NVR-108B-P8 includes 8 independent built-in PoE ports, capable of supplying power and network to up to 8 IP cameras with a combined power budget of 75W.
What is the maximum hard drive capacity supported?
This NVR features 1 SATA interface supporting surveillance hard drives up to 16TB in size for long-term video retention.
Can I view live video outputs on a 4K TV or monitor?
Yes. The rear HDMI port supports crisp 4K Ultra HD video output (3840x2160 @ 30Hz) as well as standard VGA display connection.
Does this recorder support mobile app access?
Yes. You can access live views, playback recordings, and receive instant motion push notifications remotely via the Uniarch mobile app and desktop PC client.
