Ubiquiti UniFi Accessories · NDAA & TAA COMPLIANT
Streamline Fiber Deployments with Universal Transceiver Control

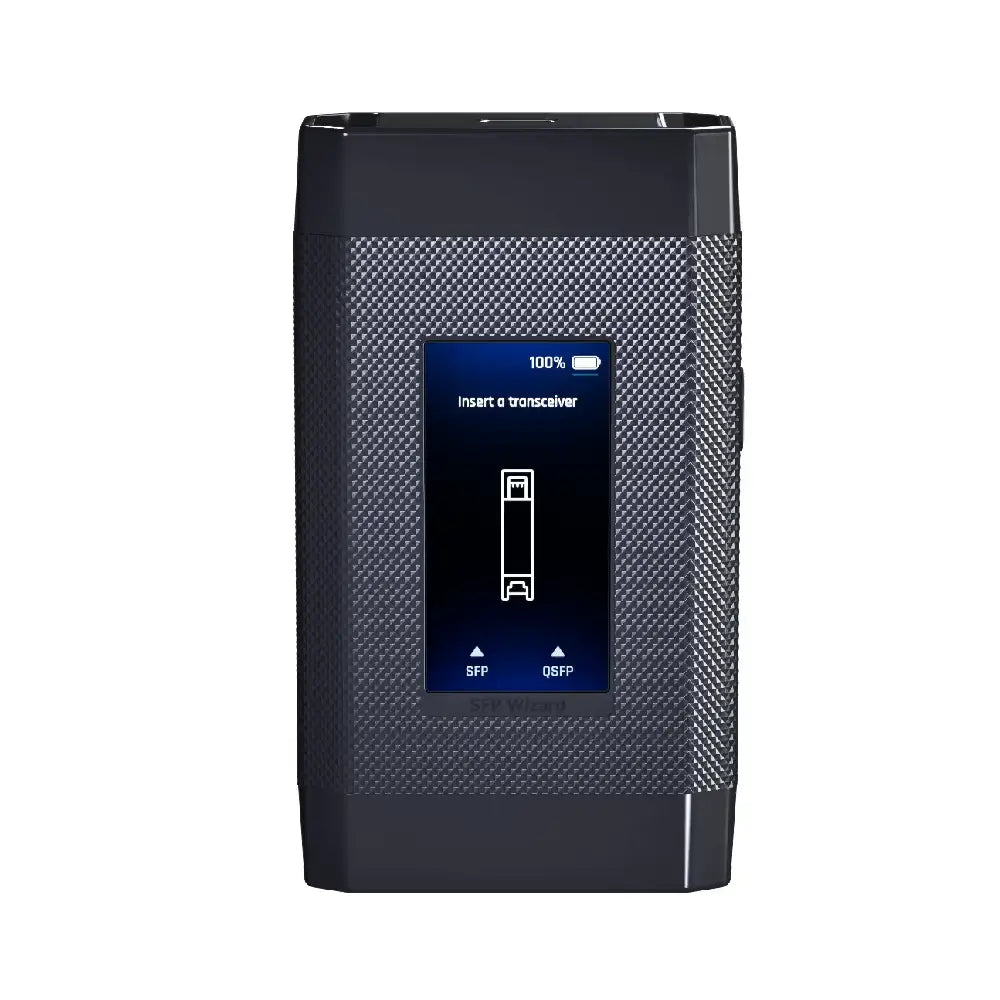

Engineered for professional network installers and enterprise data centers, the Ubiquiti UACC-SFP-Wizard is a cutting-edge, handheld optical module programming and diagnostics tool. Designed to remove vendor bottlenecks on-site, it allows technicians to instantly copy profiles, test health parameters, and unlock universal transceiver compatibility across dense switching environments without altering switch-side configurations.
Form Factors
SFP / QSFP Series
Display Interface
1.9" Touchscreen
Connectivity
BLE Wireless Sync
Power Source
Rechargeable Li-ion
Advanced Field Diagnostics & Wireless Mobile Integration
Equipped with native Bluetooth Low Energy (BLE) pairing, the SFP Wizard links seamlessly with the UniFi mobile app for frictionless over-the-air (OTA) updates and profile recoveries. Operators can leverage real-time Digital Diagnostics Monitoring (DDM) to track live metrics including optical transmit/receive power, laser bias current, and internal module temperature. For further specifications or to integrate this tool into your enterprise workflow, check out the Ubiquiti UACC-SFP-Wizard model details.
Instant Profile Cloning & Recovery
Eliminate compatibility roadblocks instantly by copying third-party optical profiles and writing them directly onto Ubiquiti transceivers. Factory defaults can also be cleanly restored via app controls.
Rugged Portability & Extended Runtime

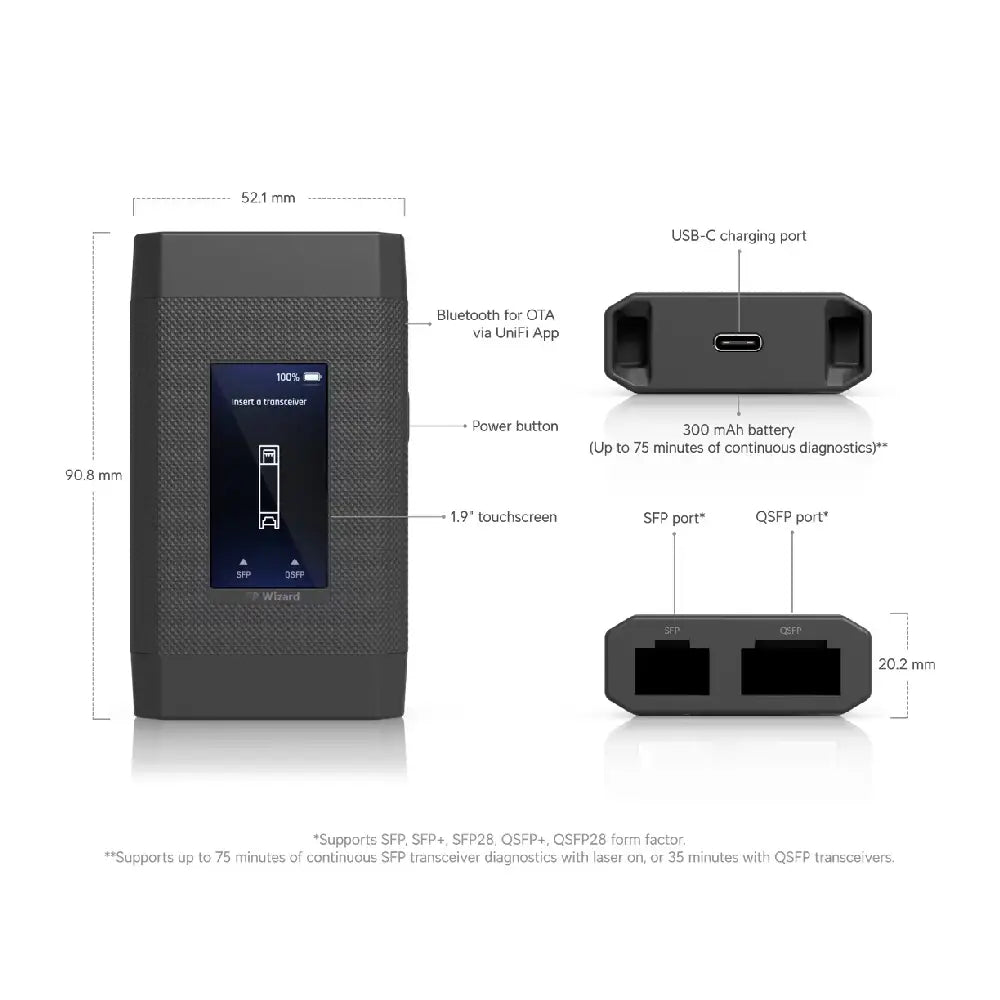

Built with a durable polycarbonate enclosure weighing just 84g. The internal 300mAh lithium-ion battery supports up to 75 minutes of continuous SFP diagnostics or 35 minutes for QSFP modules.
Technical Specification Matrix
| Model |
UACC-SFP-Wizard |
| Supported Form Factors |
SFP, SFP+, SFP28, QSFP+, QSFP28 |
| Networking Interface |
BLE (Bluetooth Low Energy) |
| Display Type |
1.9" Touchscreen LCM |
| Battery Specifications |
Rechargeable Li-ion, 3.7V DC, 300mAh |
| Dimensions & Weight |
90.8 x 52.1 x 20.2 mm • 84 g (3 oz) |
| Enclosure Material |
Polycarbonate |
| Compliance Certifications |
NDAA Compliant, FCC, IC, CE |
Which optical module form factors are supported by the SFP Wizard?
The unit natively supports standard SFP, SFP+, SFP28, QSFP+, and QSFP28 form factors. Note that UISP Fiber/GPON modules and UniFi SFP+ to RJ45 adapters are excluded.
How long does the battery last during active field diagnostics?
The internal 300mAh rechargeable battery delivers up to 75 minutes of continuous operational runtime for SFP transceivers with laser active, or up to 35 minutes for high-density QSFP modules.
Is a computer required to operate the device on-site?
No computer is necessary. The integrated 1.9-inch touchscreen display allows technicians to manage diagnostics, view live DDM statistics, and handle basic configurations entirely standalone.
Does this hardware comply with government regulatory requirements?
Yes, the Ubiquiti UACC-SFP-Wizard is fully NDAA compliant alongside holding FCC, IC, and CE certifications, making it suitable for secure enterprise and government deployments.
