Ubiquiti UniFi · Ethernet Surge Protection

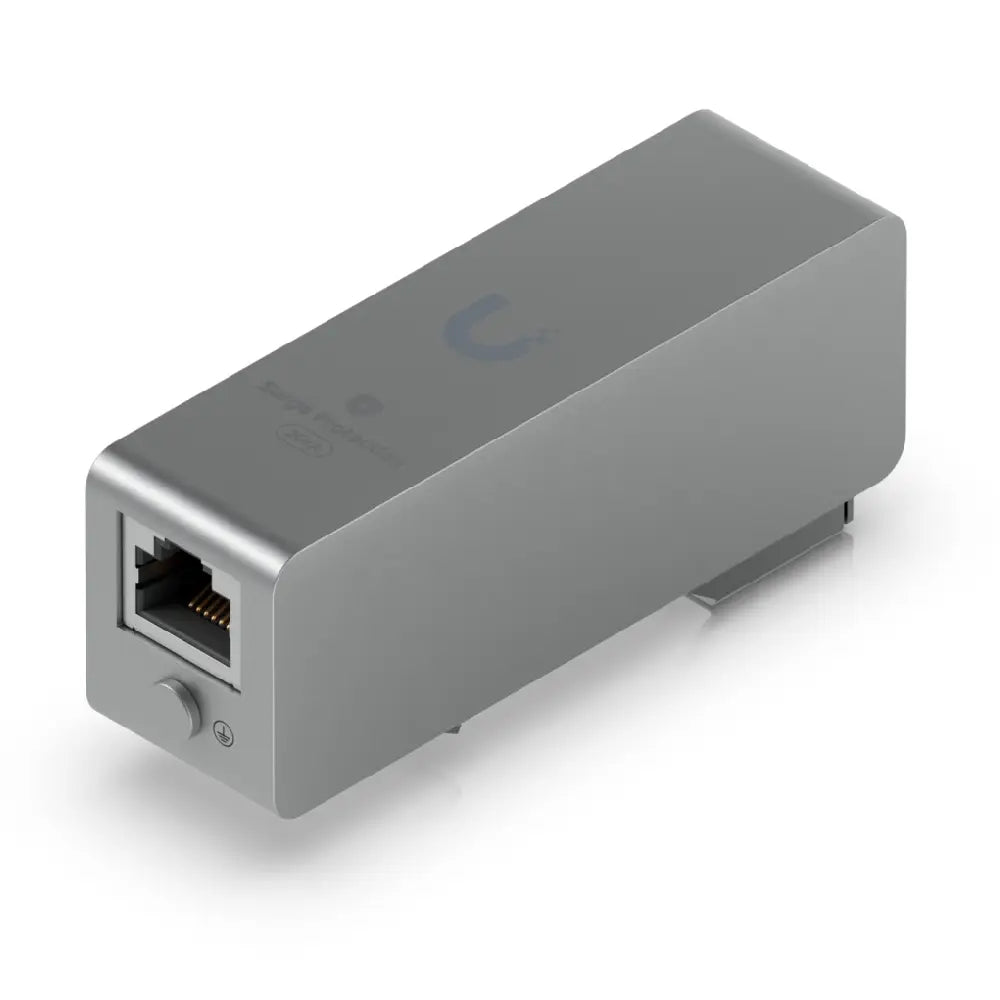

Safeguard High-Speed Infrastructure with the Ubiquiti UACC-ETH-SP-DIN
Engineered for high-density enterprise environments and critical mission networks, the Ubiquiti UACC-ETH-SP-DIN delivers robust bidirectional surge protection for data links up to 10 Gbps. By mitigating destructive electrostatic discharge (ESD) and electromagnetic pulse (EMP) events before they reach sensitive switches, gateways, and access points, this compact device prevents catastrophic hardware failures and network downtime in demanding commercial deployments.
Data Rate Spec
Up to 10 Gbps
Surge Capacity
20 kA Discharge
Power Delivery
PoE++ Compatible
Housing & Mount
DIN Rail / Wall Ready
The unit features advanced bidirectional gas discharge tubes and high-speed transient voltage suppression circuitry designed to react swiftly to voltage spikes, clamping surges safely away from active hardware ports. Fully compliant with modern high-power cabling standards, the module handles PoE++ transmissions effortlessly without introducing signal degradation, latency, or packet loss across extended enterprise topologies.
Robust Bidirectional Shielding
Safeguards network nodes against dual-direction electrical anomalies and electrostatic discharges stemming from outdoor cable runs or heavy industrial machinery interference.
Flexible Structured Cabling Layout
Built with a space-saving footprint optimized for standard DIN rail enclosures or direct wall anchoring inside telecommunications closets and distribution hubs.
Technical Specification Matrix
| Model |
UACC-ETH-SP-DIN |
| Networking Interface |
(2) RJ45 Female Connectors |
| Data Line Protection |
Up to 10 Gbps |
| Max. Discharge Current |
20 kA |
| DC Spark-Over Voltage |
90V @ 100V/s |
| Enclosure Material |
Polycarbonate, SGCC Steel |
| Operating Temperature |
-40 to +80°C (-40 to 176°F) |
| Dimensions |
89 x 25.5 x 37.4 mm |
Does this surge protector support Power over Ethernet (PoE)?
Yes, the UACC-ETH-SP-DIN fully supports PoE, PoE+, and PoE++ power delivery standards, allowing uninterrupted power transmission to connected IP cameras, switches, and wireless access points.
Is the unit rated for outdoor installation?
No, this model is designed for indoor installation or deployment inside weather-sealed outdoor enclosures, structured cabling cabinets, and DIN rail equipment boxes.
How should the surge protector be grounded?
The unit features dedicated grounding points which must be connected to a certified building earth or rack grounding busbar using heavy-gauge copper grounding wire for optimal protection efficiency.
Does it cause any degradation on 10G networks?
No, with an ultra-low maximum capacitance of 1.0 pF at 1 MHz, signal integrity is completely preserved up to full 10 Gbps throughput limits.
