Ubiquiti UniFi · NDAA COMPLIANT
Enterprise-Grade Audio Performance Meets Advanced Network Control
The Ubiquiti UPL-AMP is a high-fidelity Class-D multi-zone audio amplifier engineered for seamless integration into modern commercial environments, luxury residences, and multi-room AV deployments. Delivering crystal-clear sound projection with robust power output and flexible network connectivity, this unit provides system integrators with a versatile, high-density audio solution managed effortlessly through the UniFi Play ecosystem.
Power Output
130W / Ch (8 Ω)
Audio Channels
2.1 Stereo / Mono
Connectivity
Wi-Fi 5 & Dual GbE
Surround Format
Dolby Atmos eARC
Immersive Spatial Sound and Centralized Ecosystem Control
Equipped with advanced processing capabilities, the UPL-AMP supports immersive spatial audio formats including Dolby Atmos and Dolby TrueHD via a dedicated HDMI eARC interface. Whether coordinating multi-room audio tracking for up to 32 linked units via the UniFi Play application or streaming directly through Apple AirPlay 2 and Spotify Connect, administrators maintain precise, low-latency control over every acoustic zone.
High-Efficiency Class-D Architecture
Pumps out a powerful 130W per channel at 8 ohms (and up to 260W at 4 ohms) while maintaining exceptionally low total harmonic distortion (< 0.05% THD+N), ensuring clean, uncolored audio reproduction even under heavy continuous loads.
Interactive Touchscreen Control

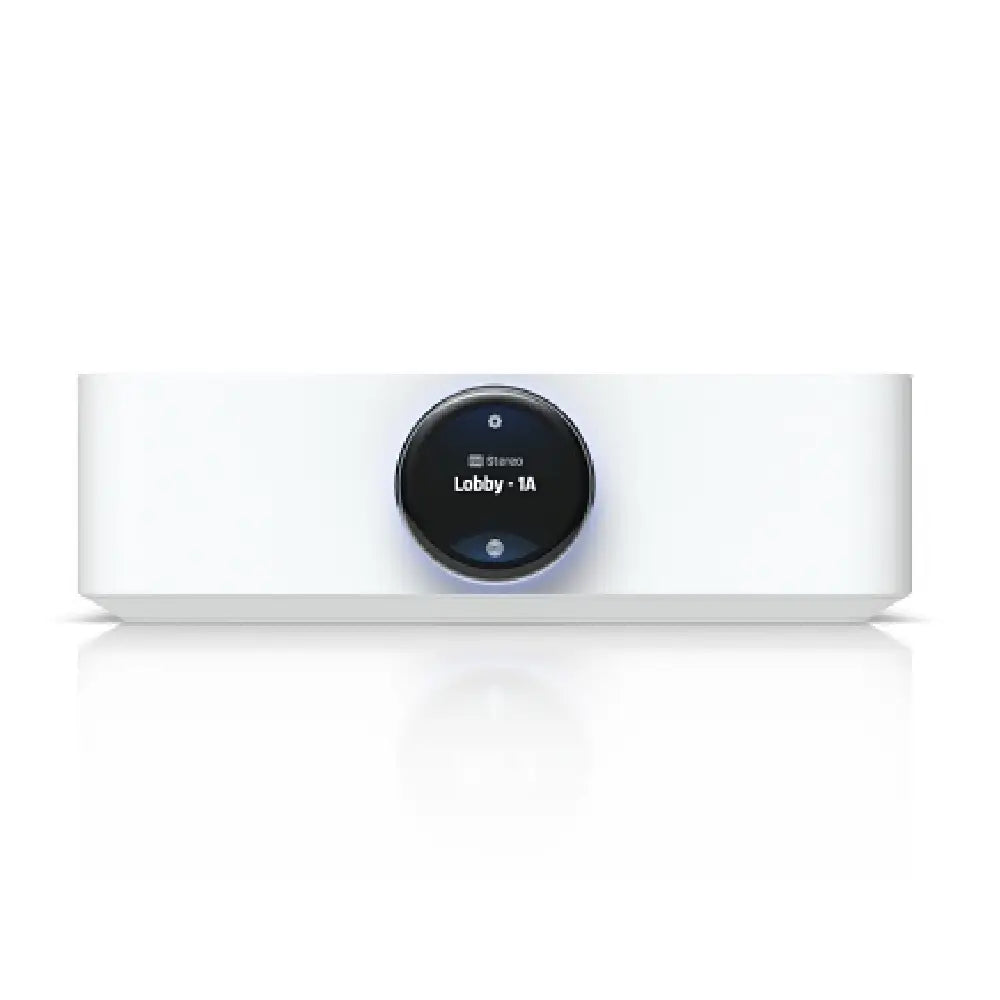

Features a built-in 1.43-inch rotary knob combined with a responsive touch display, allowing immediate local adjustments for source selection, volume balancing, and status monitoring right from the device chassis.
Technical Specification Matrix
| Model |
UPL-AMP |
| Per Channel Power |
130W (8 Ω) / 260W (4 Ω) |
| Amplifier Class |
Class-D |
| Audio Inputs |
(1) HDMI eARC, (2) RCA Analog L/R |
| Audio Outputs |
(2) Speaker Terminals with Banana Plugs, (1) RCA Subwoofer |
| Networking Interface |
(2) GbE RJ45 Ports, Wi-Fi 5 (802.11a/b/g/n/ac) |
| Streaming Protocols |
Apple AirPlay 2, Spotify Connect, Soundtrack Your Brand |
| Compliance |
NDAA Compliant |
How many amplifiers can be linked together in a multi-zone layout?
You can seamlessly group and synchronize up to 32 individual PowerAmps across different areas using the UniFi Play mobile platform.
Does the UPL-AMP support external subwoofers?
Yes, the unit features a dedicated RCA analog subwoofer output to easily integrate low-frequency extension channels into your audio setup.
What wireless streaming protocols are natively supported?
The amplifier natively supports Apple AirPlay 2 and Spotify Connect for reliable, low-latency device casting.
Is this hardware deployment NDAA compliant?
Yes, the Ubiquiti UPL-AMP model is fully NDAA compliant, satisfying strict regulatory standards for commercial and government installations.
