Description

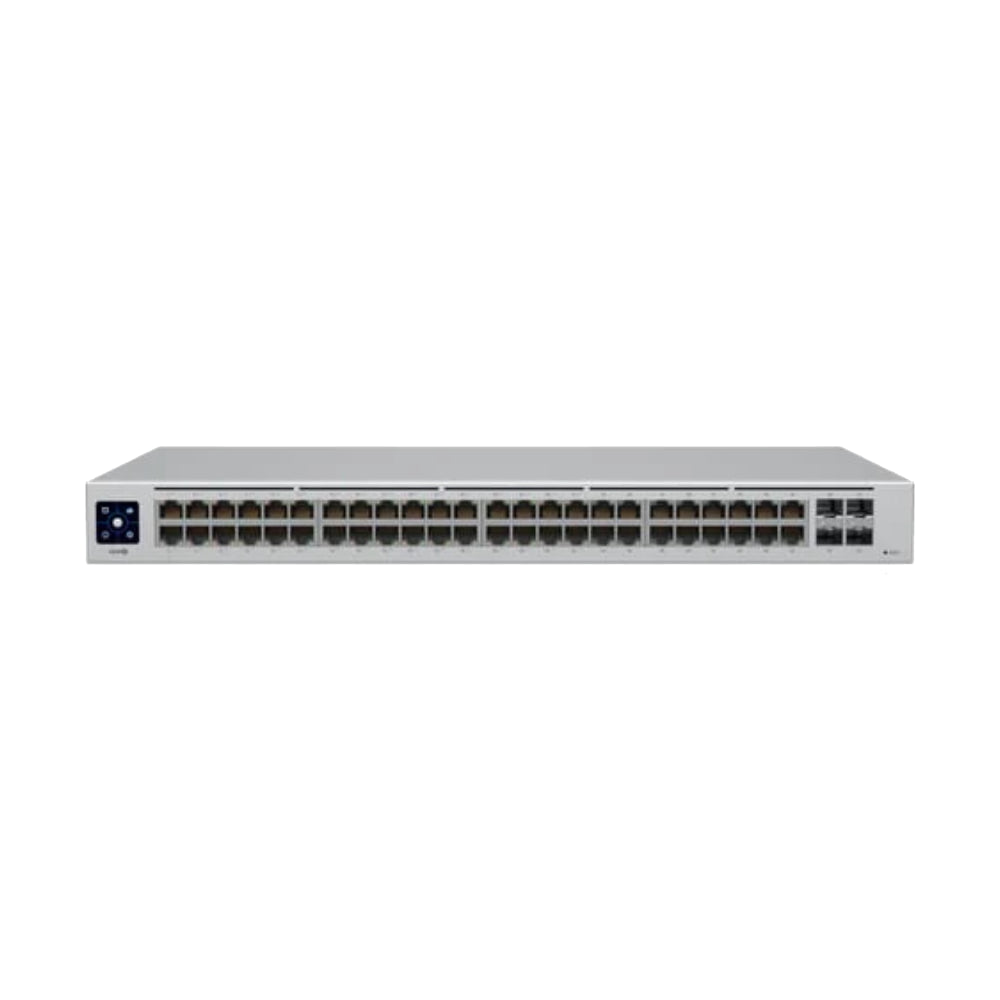

Ubiquiti UniFi 48 port Managed Gigabit Layer2 & Layer3 switch - 48x Gigabit Ethernet Ports w/ 32x 802.3at POE+, 4x SFP Port Touch Display 210W
The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3" touch LCM to provide status
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.
Features:
- (32) GbE, PoE+ RJ45 ports
- (16) GbE RJ45 ports
- (4) 1G SFP ports
- 195W total PoE availability
- 1.3" LCM color touchscreen with AR switch management
- Managed with the UniFi Network application: Version 7.2.94
Management
- (48) 10/100/1000 RJ45 Ports
- (4) 1G SFP Ethernet Ports
- Ethernet In-Band
- Power Method 100-240VAC, 50/60 Hz, Universal Input
- Power Supply AC/DC, Internal, 240W
- Supported Voltage Range 100 to 240VAC
- Max. Power Consumption (Excluding PoE Output) 45W
- LEDs
- RJ45 Data Ports
- SFP Data Ports
- PoE; Speed/Link/Activity
- Link/Activity
- ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
- Shock and Vibration ETSI300-019-1.4 Standard
- Operating Temperature -5 to 40° C (23 to 104° F)
- Operating Humidity 10 to 90% Noncondensing
- Certifications CE, FCC, IC
- POE
- PoE Interfaces
- Ports 1-32
- POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
- Max. PoE Wattage per Port by PSE
- 802.3at
- 32W
- Voltage Range 802.3af Mode 44-57V
- Voltage Range 802.3at Mode 50-57V
