UFiber Series · NDAA COMPLIANT
Symmetrical 10G Fiber Infrastructure for Next-Gen Optical Networks

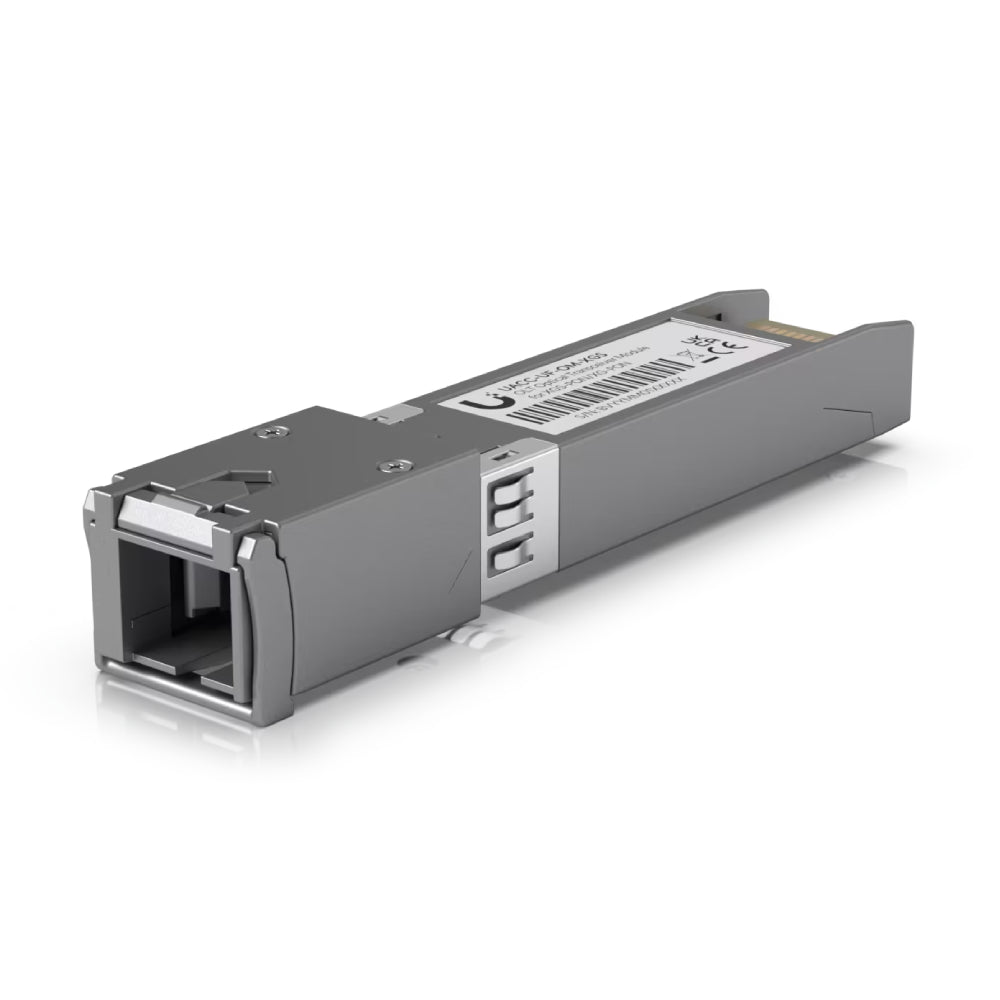

The Ubiquiti UACC-UF-OM-XGS is an NDAA compliant, high-performance XGS-PON OLT optical transceiver module designed to deliver symmetrical 10 Gbps upstream and downstream broadband access over single-mode fiber infrastructure. Purpose-built for service providers, ISPs, and enterprise PON deployments, this N1/N2 class SFP+ transceiver connects directly into compatible UFiber OLT platforms, supporting high-density optical distribution networks up to 20 kilometers.
Throughput Speed
10G / 10G Symmetrical
Fiber Reach
Up to 20 km (SMF)
Connector Type
Simplex SC/UPC
TX/RX Wavelength
1577nm / 1270nm
Enterprise-Grade Density & High Split-Ratio Capacity
Operating on standardized 1577 nm downstream and 1270 nm upstream optical wavelengths, the UACC-UF-OM-XGS allows operators to drive massive subscriber density per port while maintaining ultra-low latency and jitter. Hot-swappable installation guarantees seamless module replacement or expansion without needing to interrupt active chassis power or adjacent PON ports.
Symmetrical 10 Gbps Bandwidth
Delivers true 10 Gbps downstream and 10 Gbps upstream throughput to feed high-demand business clients, multi-family units, and remote POP sites.
Single-Mode Fiber Efficiency
Utilizes a single strand of single-mode optical fiber via a SC/UPC connector, maximizing cable duct utilization and minimizing fiber installation costs.
Technical Specification Matrix
| Model SKU |
UACC-UF-OM-XGS |
| NDAA Compliance |
Confirmed Compliant (Yes) |
| Form Factor |
SFP+ (XGS-PON OLT Transceiver) |
| Optical Interface |
Simplex SC/UPC |
| Supported Data Rate |
10 Gbps Symmetrical (Downstream / Upstream) |
| Transmitter Wavelength |
1577 nm (Downstream) |
| Receiver Wavelength |
1270 nm (Upstream) |
| Fiber Media Type |
Single-Mode Fiber (SMF, 9/125 µm) |
| Max Link Distance |
Up to 20 km (12.4 miles) |
| Hot-Swappable |
Yes |
Is the Ubiquiti UACC-UF-OM-XGS NDAA compliant?
Yes, the UACC-UF-OM-XGS transceiver module is officially certified as NDAA compliant, ensuring full eligibility for government, municipal, and enterprise deployments.

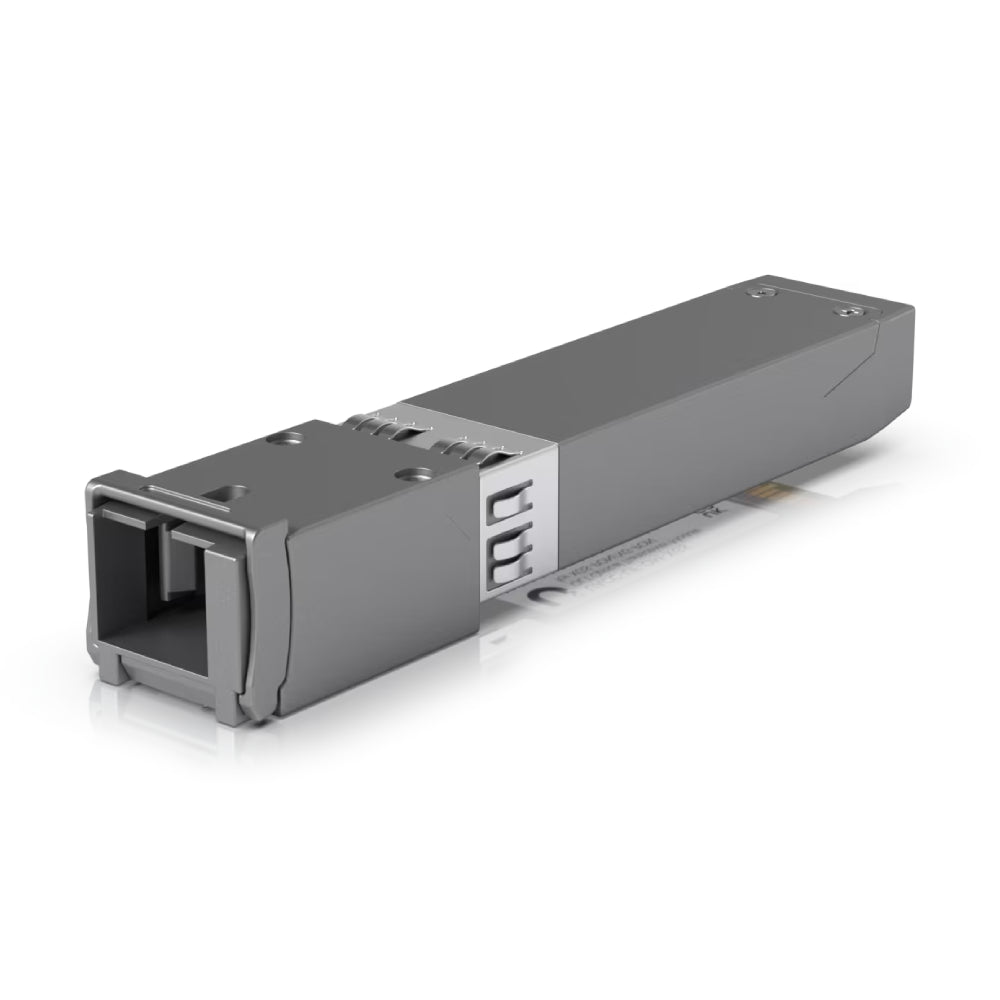

What fiber optic connector does this module use?
The UACC-UF-OM-XGS features a single Simplex SC/UPC optical port for connection to single-mode fiber patch cables and optical splitters.
Can I use this module for standard 2.5G GPON ONUs?
This module operates on XGS-PON wavelengths (1577nm TX / 1270nm RX). To connect both standard GPON and XGS-PON clients over the same fiber line, combine this module's signal using a WDM Coexistence Filter (such as the UACC-UF-WDM-XGS).
What maximum distance can this module achieve?
The UACC-UF-OM-XGS supports a maximum link distance of up to 20 kilometers (12.4 miles) over standard single-mode optical fiber.
