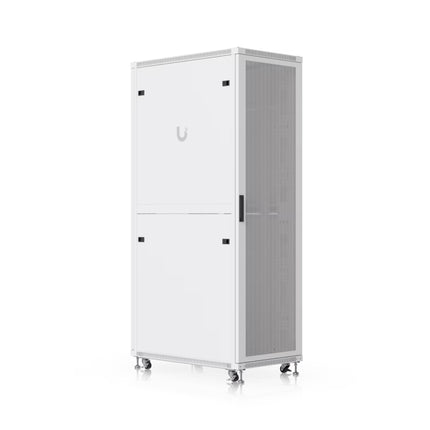

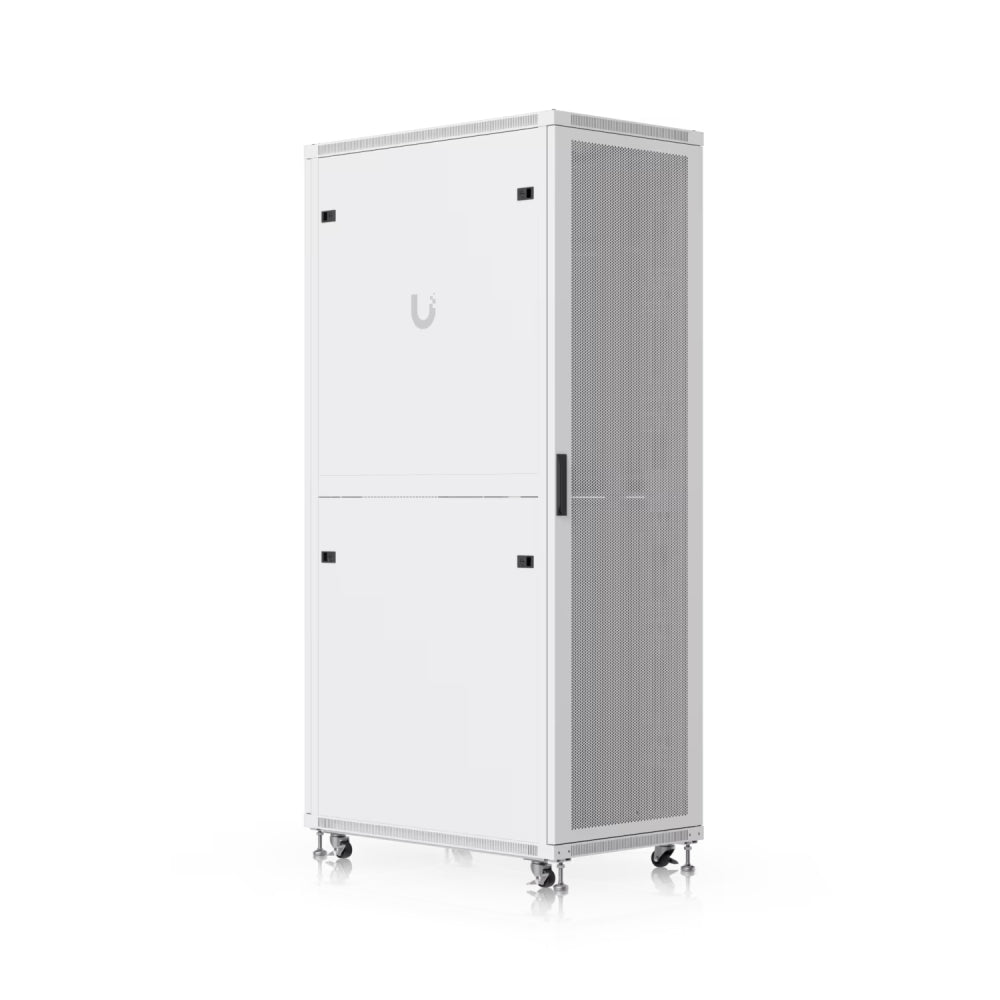

Ubiquiti UACC-Rack-42U-1000-P 42U Server Rack Enclosure Cabinet

Description

Ubiquiti Rack Systems

Enterprise 42U 1000mm Full-Height Server & Network Rack Enclosure

The UACC-Rack-42U-1000-P is a high-density, full-height 42U equipment cabinet designed for enterprise data centers, core server rooms, and large-scale commercial UniFi network deployments. Featuring an expanded 1000mm mounting depth and fully perforated high-airflow front and rear doors, this heavy-duty steel enclosure provides the physical capacity, structural strength, and passive thermal control required for deep server chassis, high-port-density switches, and power backup systems.

Rack Capacity
42U Full-Height Standard 19"
Enclosure Depth
1000 mm Server Depth
Ventilation Style
Perforated Mesh Airflow
Cable Architecture
Top/Bottom & Side Channels

Maximum Thermal Airflow Efficiency & Structural Capacity

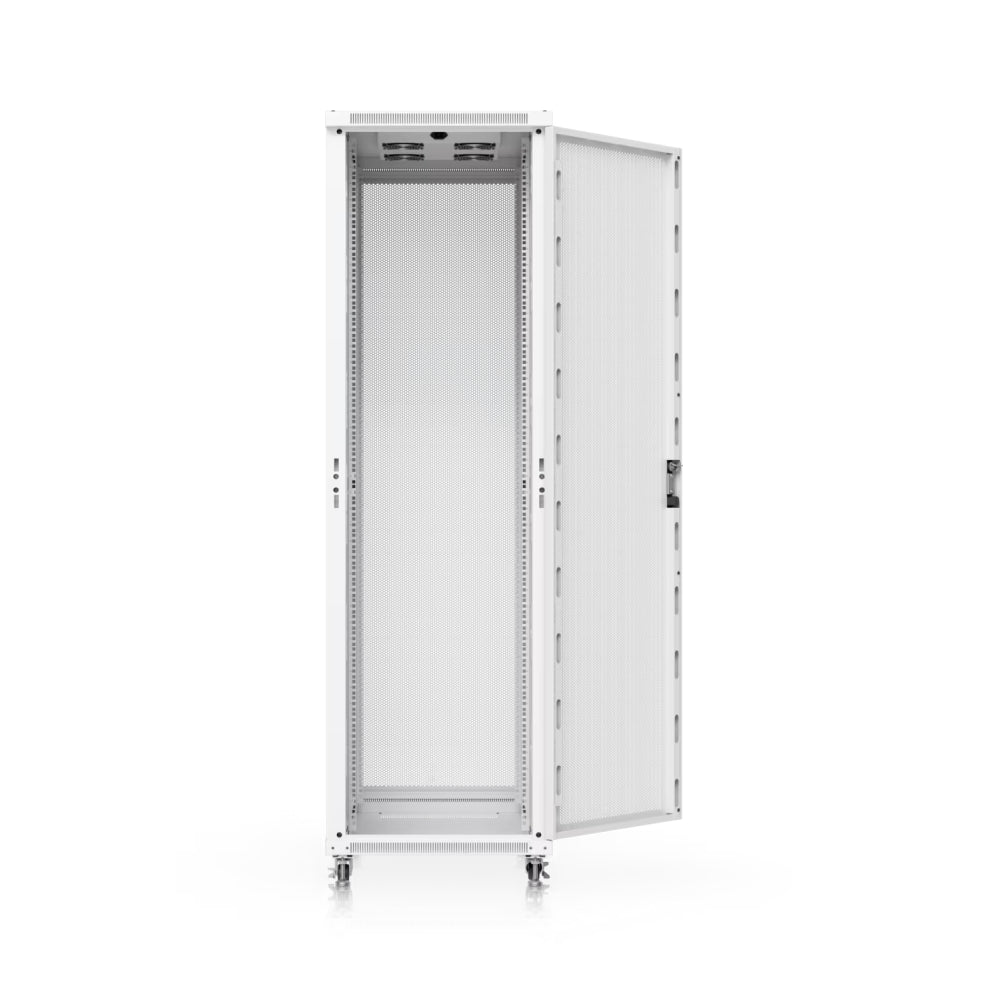

Engineered for high-wattage computing environments, the UACC-Rack-42U-1000-P utilizes micro-perforated front and rear doors to maximize front-to-back cool air intake and hot exhaust dissipation. Adjustable internal depth-mounting rails, quick-release side panels, and integrated vertical cable channels simplify high-density cabling and power distribution unit (PDU) installation across the full vertical span of the cabinet.

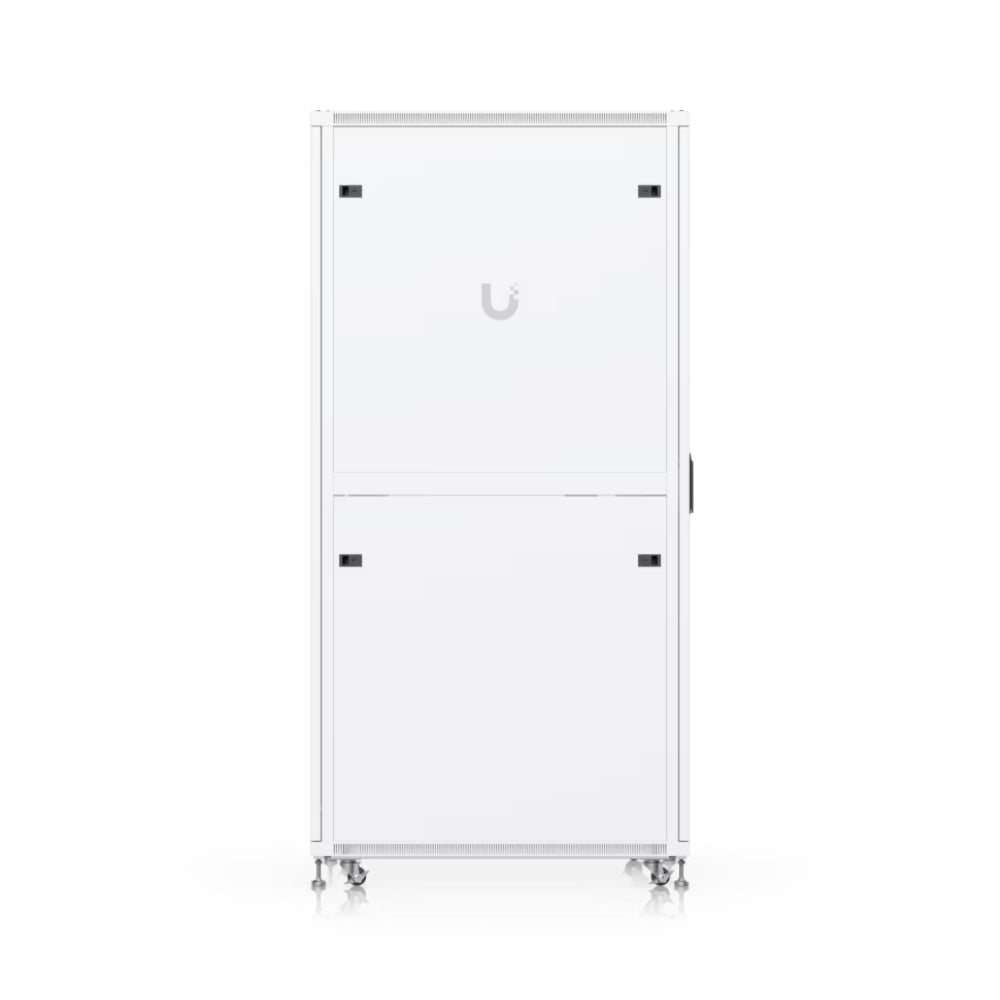

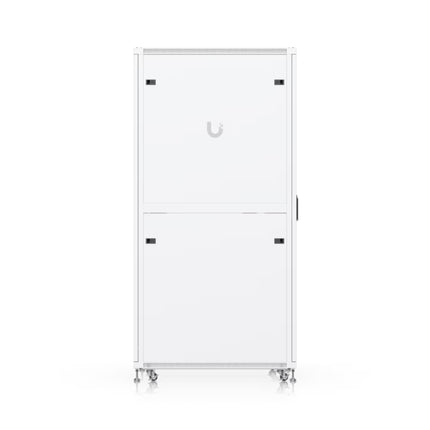

Optimized Front-to-Back Airflow Performance

Precision perforated metal doors offer a high open-surface ratio, ensuring consistent passive cooling and hot-aisle/cold-aisle thermal regulation for power-intensive enterprise servers and PoE switches.

Expanded 1000mm Deep Structural Steel Frame

Heavy-duty cold-rolled steel construction with a 1000mm chassis depth effortlessly accommodates long-depth enterprise rack servers, dual PDUs, and organized patch cable management routing.

Technical Specification Matrix
Rack Model SKU UACC-Rack-42U-1000-P
Rack Height Units 42U Full Height
Equipment Width Standard 19-inch EIA-310 Compliant
Overall Enclosure Depth 1000 mm
Door Configuration Perforated High-Airflow Mesh Front and Rear Doors
Cabinet Housing Material Heavy-Gauge Cold-Rolled Powder-Coated Steel

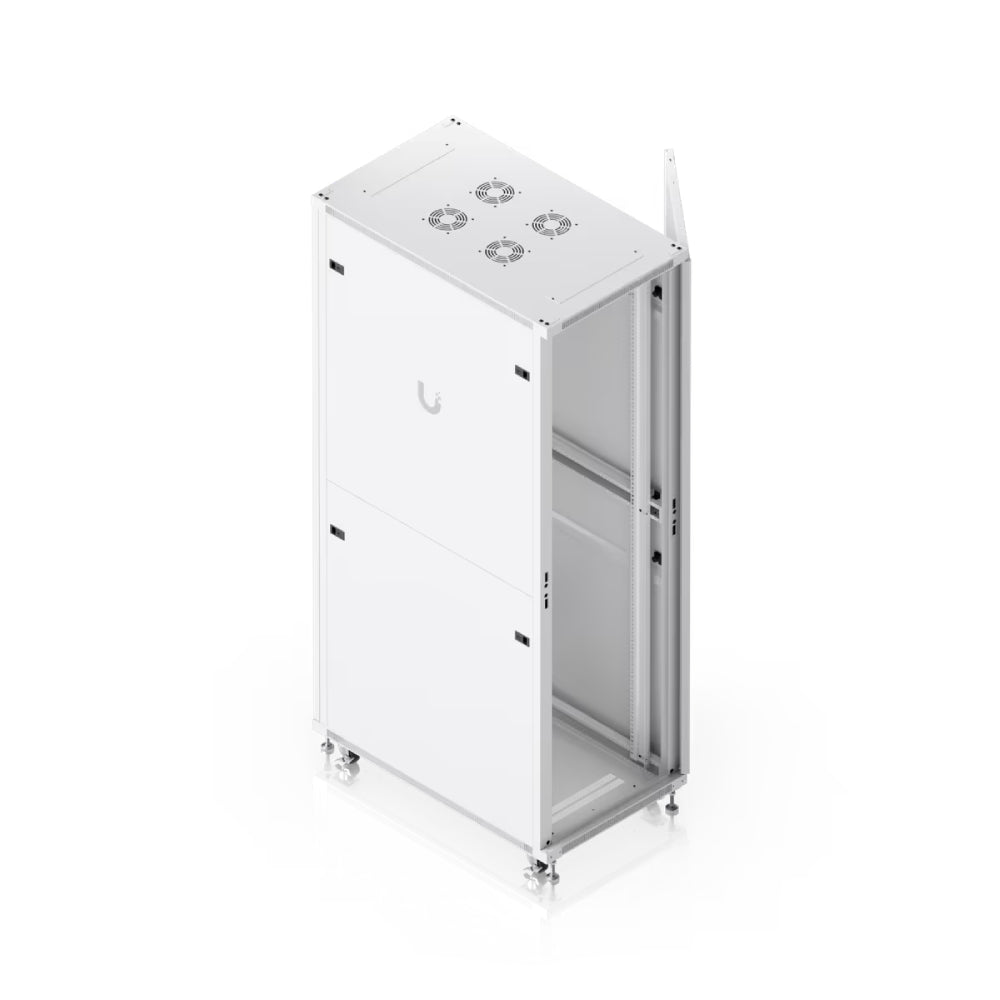

Side Access Panels Removable Side Panels with Quick-Release Latches and Locks
Mobility / Support Integrated Leveling Feet and Heavy-Duty Castors
What equipment is compatible with the 1000mm depth rating?

The 1000mm depth accommodates full-length deep enterprise rack servers, large SAN storage arrays, high-power UPS battery backups, and standard 19-inch UniFi switches with cable management space.

Why choose the perforated door variant (-P)?

The perforated mesh doors provide optimal continuous airflow from front to rear, preventing thermal hot spots in high-density rack deployments with high heat output.

Does the rack come with castors and leveling feet?

Yes, the cabinet includes heavy-duty floor castors for mobility into server rooms and adjustable leveling feet to anchor and balance the rack securely in place.

Are the doors and side panels lockable?

Yes, both the front/rear perforated doors and the removable side access panels feature security key locks to protect equipment from unauthorized access.
