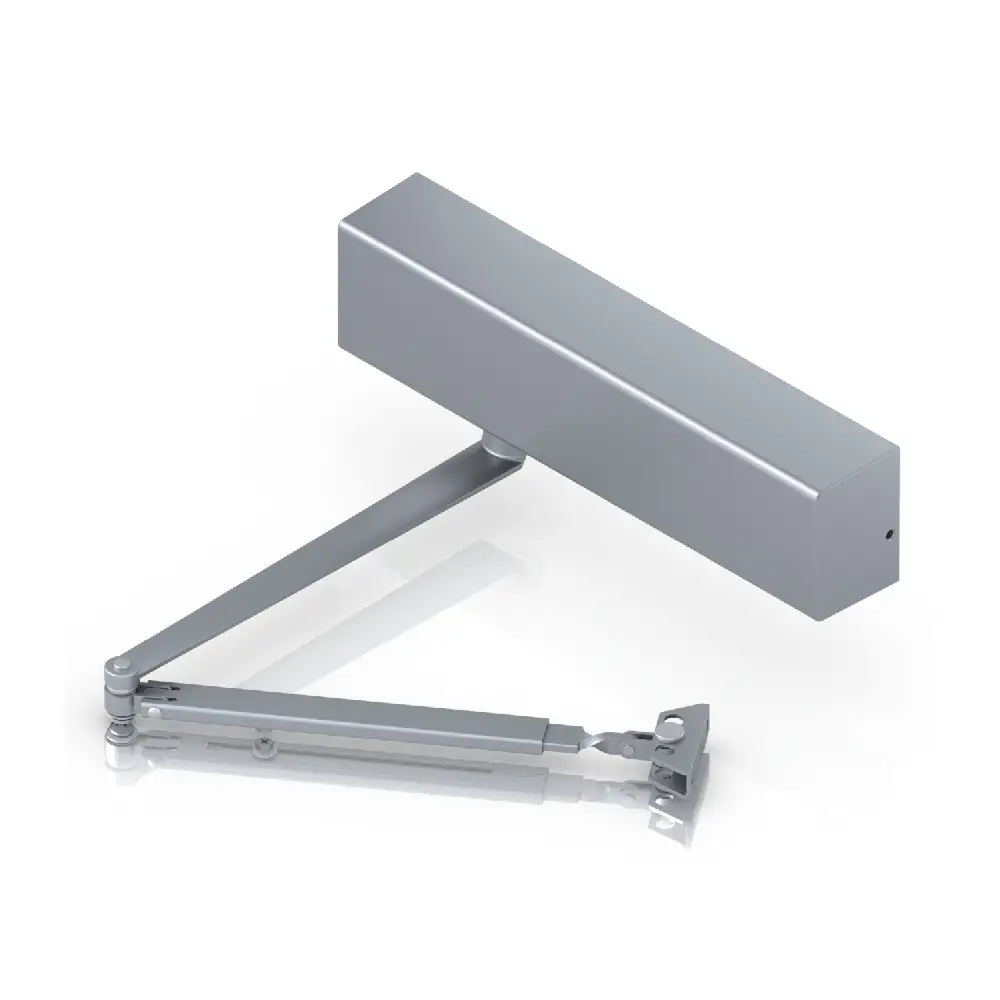

Ubiquiti UACC-DoorCloser Mechanical Access Control Solution
Engineered for mission-critical commercial environments, the Ubiquiti UACC-DoorCloser delivers predictable, power-independent door closure designed to integrate perfectly with high-density enterprise access control ecosystems.
Power Size
Adjustable Size 1–6
Opening Angle
Max 180° Sweep
Build Rating
ANSI/BHMA Grade 1
Compliance
UL 228 & UL 10C
Advanced Hydraulic Damping and Versatile Mounting Infrastructure
Seamlessly pair your deployment workflow with our Ubiquiti UACC-DoorCloser unit, offering non-handed installation for both left- and right-handed swing configurations. Featuring dedicated adjustment channels for closing speed, latching velocity, and hydraulic back-check control, this device protects costly frames from structural impact damage under high-traffic conditions.
Power-Independent Security
Operates strictly via heavy-duty mechanical spring tension, ensuring reliable door closure during complete power outages or system downtime without relying on auxiliary electronic control lines.
Multi-Configuration Setup
Supports standard pull-side door mounts, push-side top jamb placements, and parallel arm bracket installations to accommodate specialized structural constraints across institutional buildings.
Technical Specification Matrix
| Model |
UACC-DoorCloser |
| Dimensions (Lock Body) |
328 x 88.6 x 53.5 mm (12.9 x 3.5 x 2.1") |
| Weight |
3.3 kg (7.3 lb) |
| Enclosure Material |
Aluminum alloy, carbon steel, hot-rolled steel; ABS deco cover |
| Max. Door Opening Angle |
180° |
| Power Size Range |
Size 1–6 (Adjustable) |
| Certifications |
UL 228, UL 10C, ANSI/BHMA A156.4 Grade 1, ANSI A117.1 ADA |
| Application Mounts |
Standard Pull, Top Jamb Push, Parallel Arm Bracket (Size 1-5) |
Is the UACC-DoorCloser compatible with electronic access control setups?
Yes. While operationally mechanical to ensure failsafe closing reliability, it functions alongside electric strikes, magnetic locks, and smart access hubs to finalize the security perimeter cycle.
Can the opening force and closing velocity be fine-tuned?
Absolutely. The unit features built-in valves for independent adjustment of closing speed, latching acceleration, and back-check resistance to match specific environmental wind pressures or heavy traffic demands.
Does this model meet ADA compliance guidelines?
Yes, it complies fully with ANSI A117.1 accessibility criteria, enabling smooth manual egress force thresholds required for public and commercial buildings.

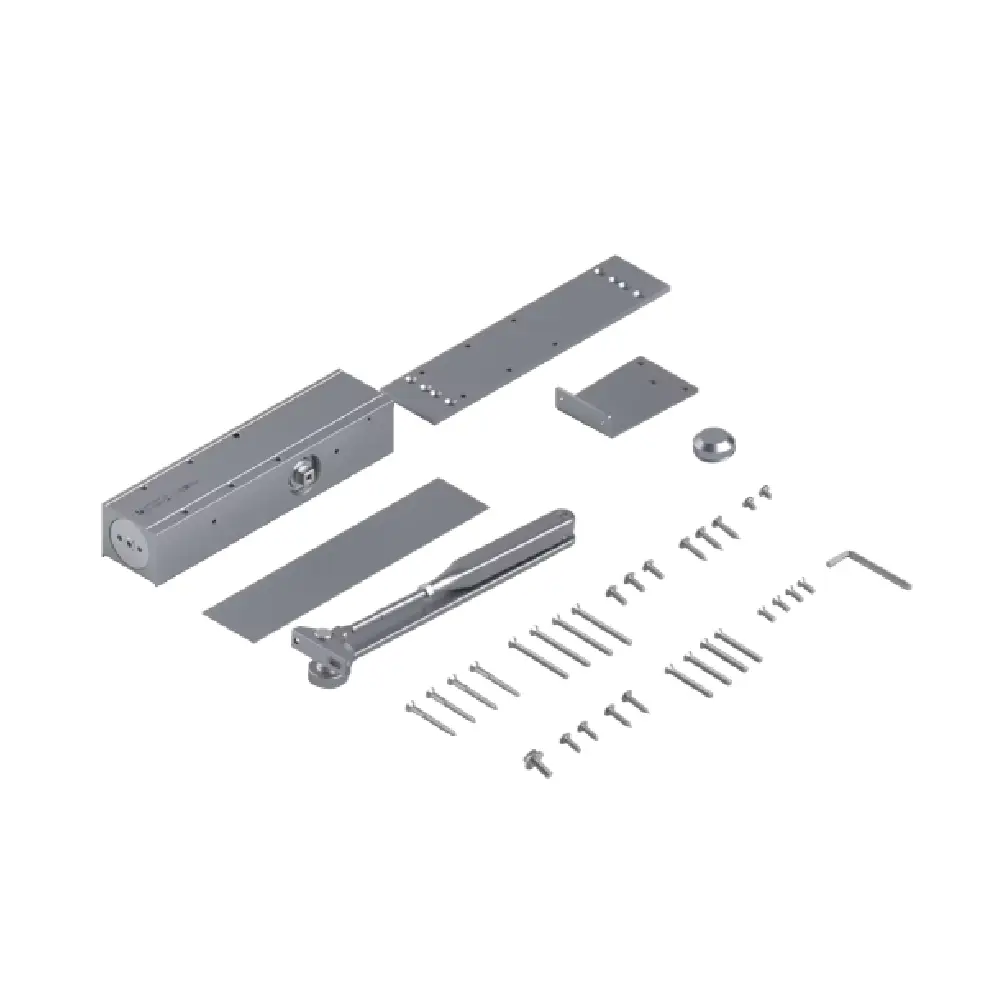

What mounting hardware configurations are supported out of the box?
It supports standard pull-side door mounts, push-side top jamb installations, and parallel arm bracket configurations using the included structural hardware kit.
