Ubiquiti UniFi Access · NDAA & TAA COMPLIANT
Next-Generation Entry Control with the Ubiquiti UA-G3-W Access Reader

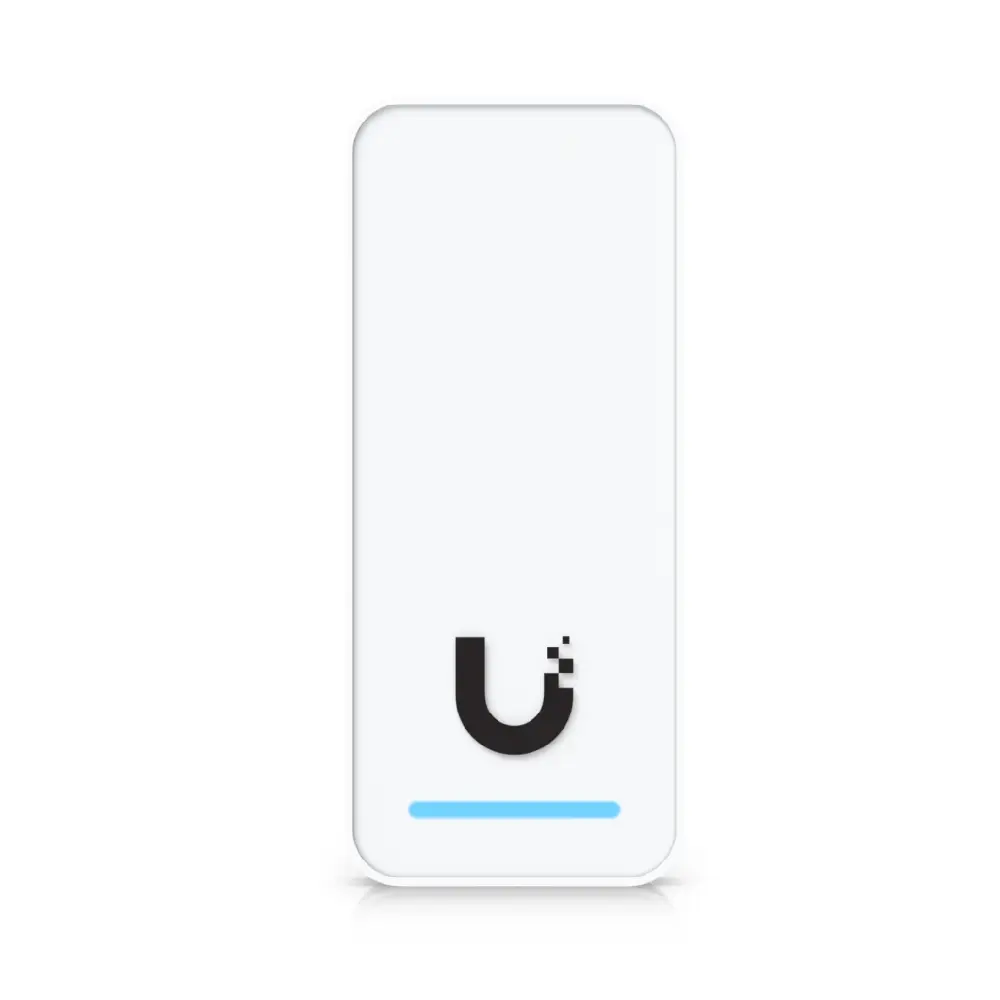

Engineered for high-density modern facilities and enterprise-grade security deployments, the Ubiquiti UA-G3-W combines minimalist aesthetics with robust access credentials. Delivering seamless authentication via NFC cards, Apple/Google Wallet Touch Pass, and the UniFi Identity mobile app, this compact white reader ensures swift, secure, and reliable visitor flow for corporate offices, multi-tenant buildings, and secure campus environments.
Authentication
NFC, Mobile & Touch Pass
Interface
10/100 MbE RJ45 Port
Connectivity
BLE 4.1 & 13.56 MHz NFC
Protection Rating
IP55 Weatherproof
The UA-G3-W deepens security capabilities through encrypted BLE and multi-frequency NFC card support (including MIFARE, DESFire, and FeliCa ID). Integrated directly into the UniFi Access software platform, administrators benefit from intuitive event logging, real-time access monitoring, and remote user credential management. Hand-wave request-to-exit proximity sensing offers touchless, hygienic egress options for high-traffic entry points.
Touch Pass & Mobile Wallet Convenience
Empower users to bypass physical cards entirely by leveraging Apple Wallet or Google Wallet credentials alongside the UniFi Identity mobile app, streamlining secure access while cutting administrative card-replacement costs.
Rugged Outdoor Construction
Built with a durable polycarbonate and glass enclosure backed by an aluminum alloy mounting plate, the unit is rated IP55 for reliable performance across harsh external weather conditions ranging from -30 to 45 degrees Celsius.
Technical Specification Matrix
| Model |
UA-G3-W |
| Dimensions |
93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") |
| Weight |
82 g (2.9 oz) |
| Networking Interface |
(1) 10/100 MbE RJ45 Port |
| Power Method / Consumption |
PoE (Max. 5W) |
| Enclosure Material |
Polycarbonate, glass front with aluminum mount |
| Weatherproofing Rating |
IP55 |
| Operating Temperature |
-30 to 45°C (-22 to 113°F) |
| Regulatory Compliance |
NDAA Compliant, UL 294, CE, FCC, IC |
What credentials are supported by the UA-G3-W?
The reader supports NFC-compatible cards and keyfobs (13.56 MHz, including MIFARE and DESFire), Apple/Google Wallet credentials via Touch Pass, and mobile unlocking through the UniFi Identity app.
Is the Ubiquiti UA-G3-W rated for outdoor deployment?
Yes, the device features an IP55 weather-resistant rating and operates seamlessly in extreme outdoor temperatures ranging from -30 to 45°C.
How does the reader connect to the network and power source?

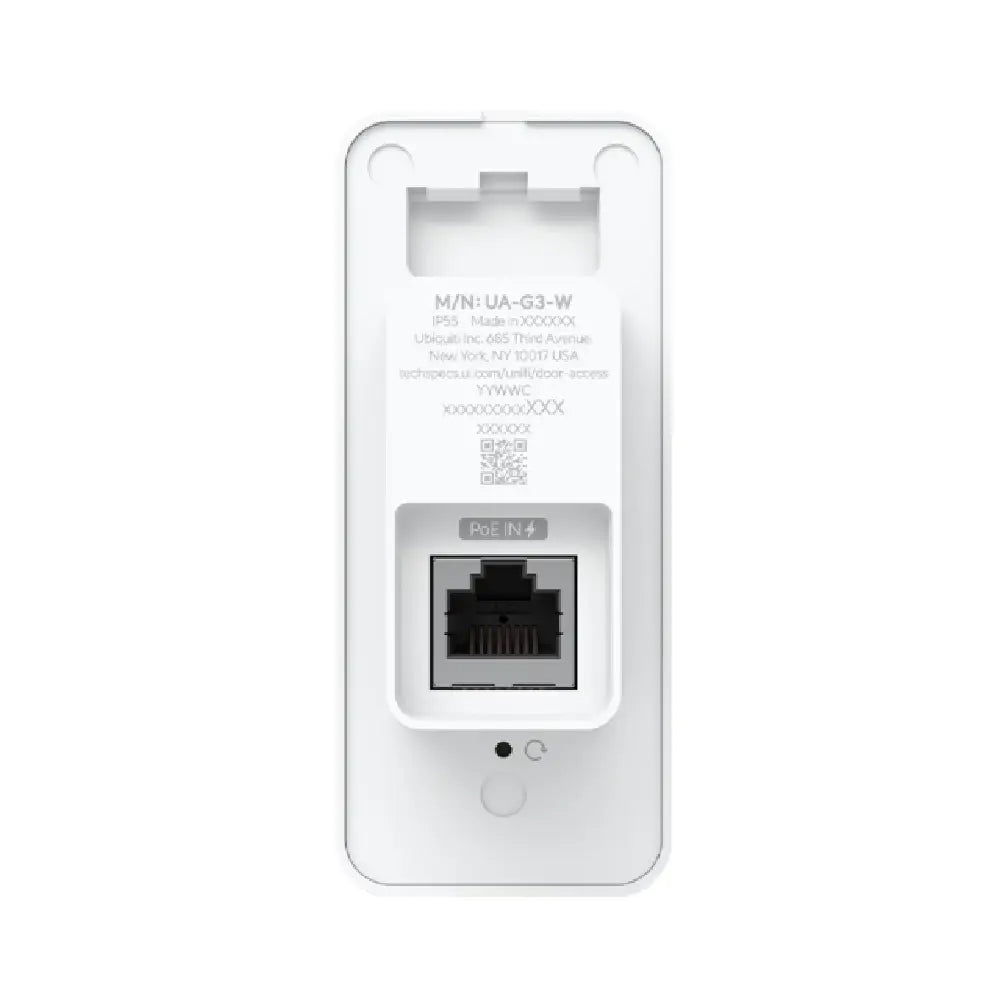

The UA-G3-W connects and powers via a standard Power over Ethernet (PoE) connection through a 10/100 MbE RJ45 port linked to a UniFi Access Hub.
Does the unit comply with commercial security regulations?
Yes, the UA-G3-W is fully NDAA compliant and meets UL 294 standards for line security, endurance, and destructive attack resistance.
