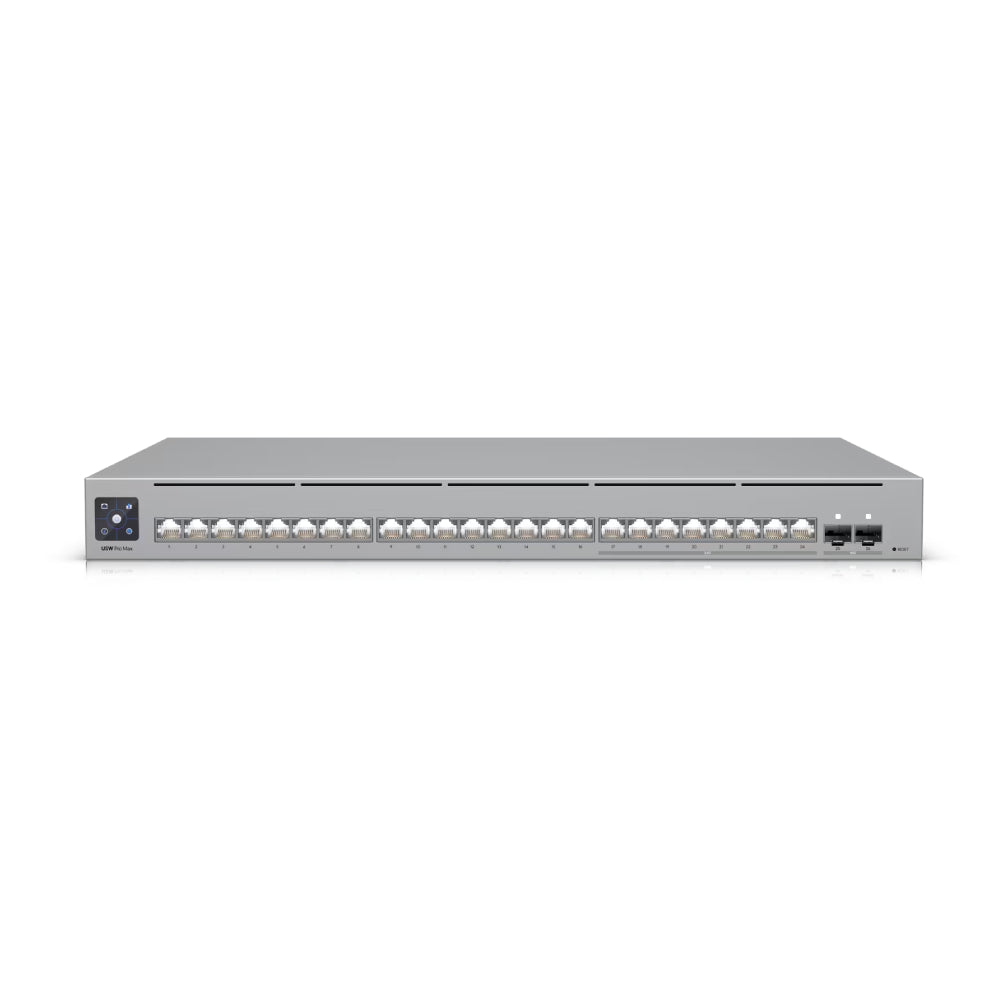

Ubiquiti Pro Max 24, 24-port, Layer 3 Etherlighting Switch, 2.5 GbE, 16 GbE RJ45 Ports, 16 GbE RJ45 2 10G SFP+, Throughput 56 Gbps

Description

Ubiquiti Pro Max 24, 24-port, Layer 3 Etherlighting Switch, 2.5 GbE, 16 GbE RJ45 Ports, 16 GbE RJ45 2 10G SFP+, Throughput 56 Gbps, USW-Pro-Max-24

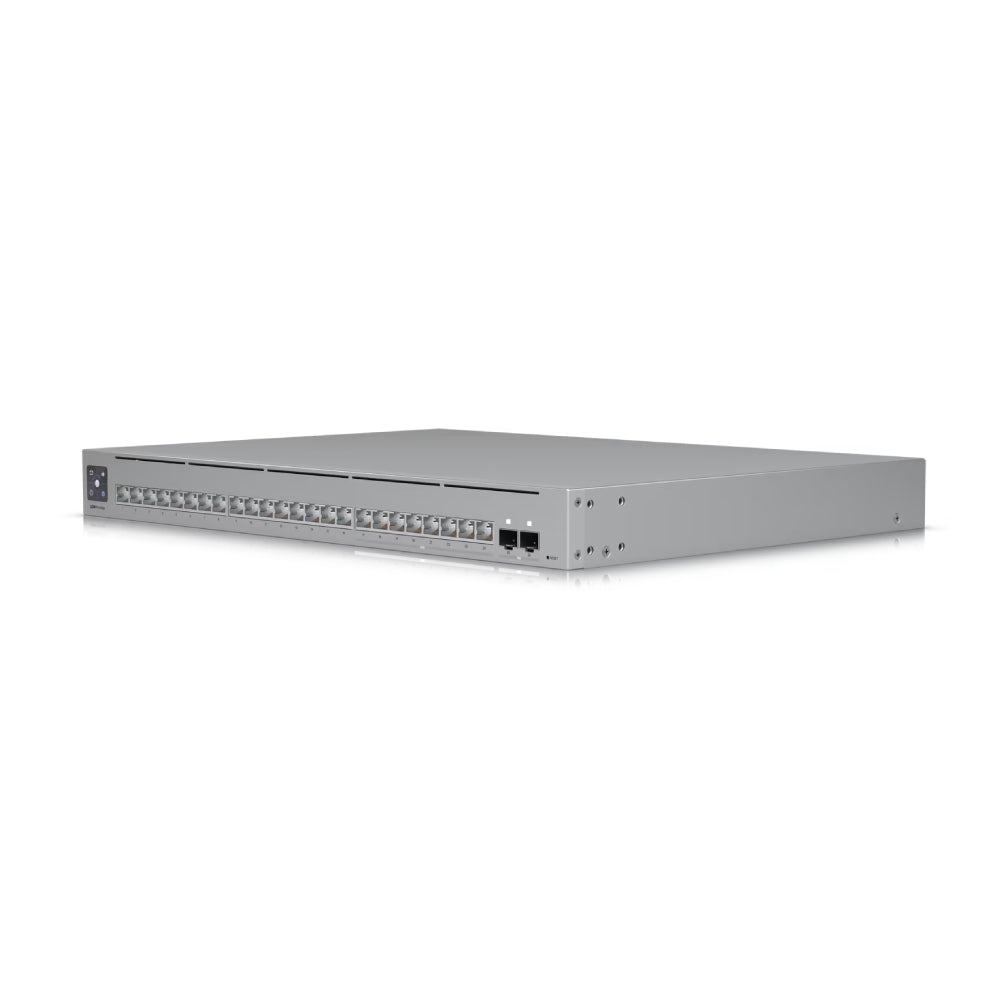

A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
 (8) 2.5 GbE RJ45 ports
 (16) GbE RJ45 ports
 (2) 10G SFP+ ports
 DC power backup ready
 Managed with UniFi Network 8.0.24 and later
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.

Technical Specifications

Mechanical
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight Without mounting brackets: 4.2 kg (9.3 lb)
With mounting brackets: 4.3 kg (9.5 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
Total non-blocking throughput 56 Gbps
Switching capacity 112 Gbps

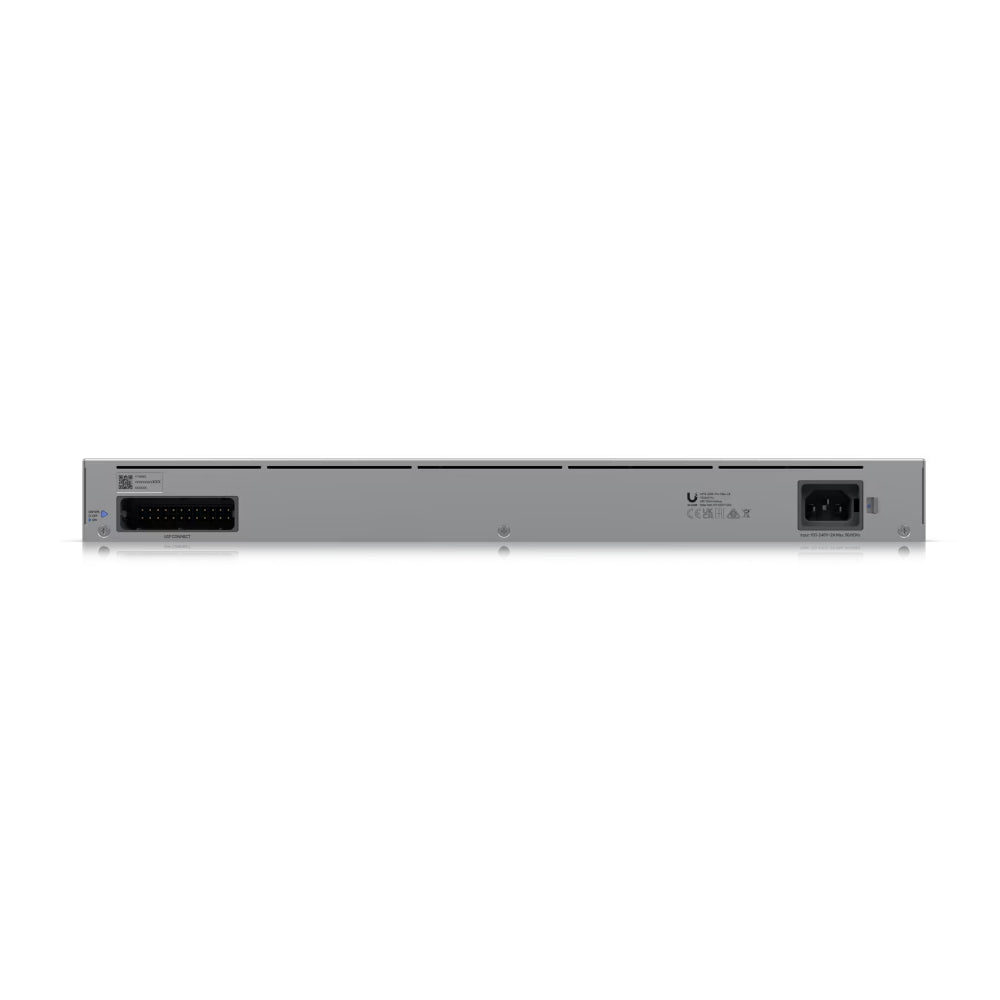

Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply AC/DC, internal, 50W
Supported voltage range 100—240V AC
Max. power consumption 50W
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Etherlighting™
Ethernet Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network
LEDs
System Status
RPS Status
Application Requirements
UniFi Network Version 8.0.24 and later

Downloads

USW-Pro-Max-24 Installation Guide

Ubiquiti Pro Max 24, 24-port, Layer 3 Etherlighting Switch, 2.5 GbE, 16 GbE RJ45 Ports, 16 GbE RJ45 2 10G SFP+, Throughput 56 Gbps

Product form

SKU: USW-Pro-Max-24

$1,017.18 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Dispatch Monday–Friday Weekend orders are processed on the next business day.
    • Warranty: 12 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
