UFiber Series · NDAA COMPLIANT
Seamless XGS-PON & GPON Fiber Coexistence Solutions

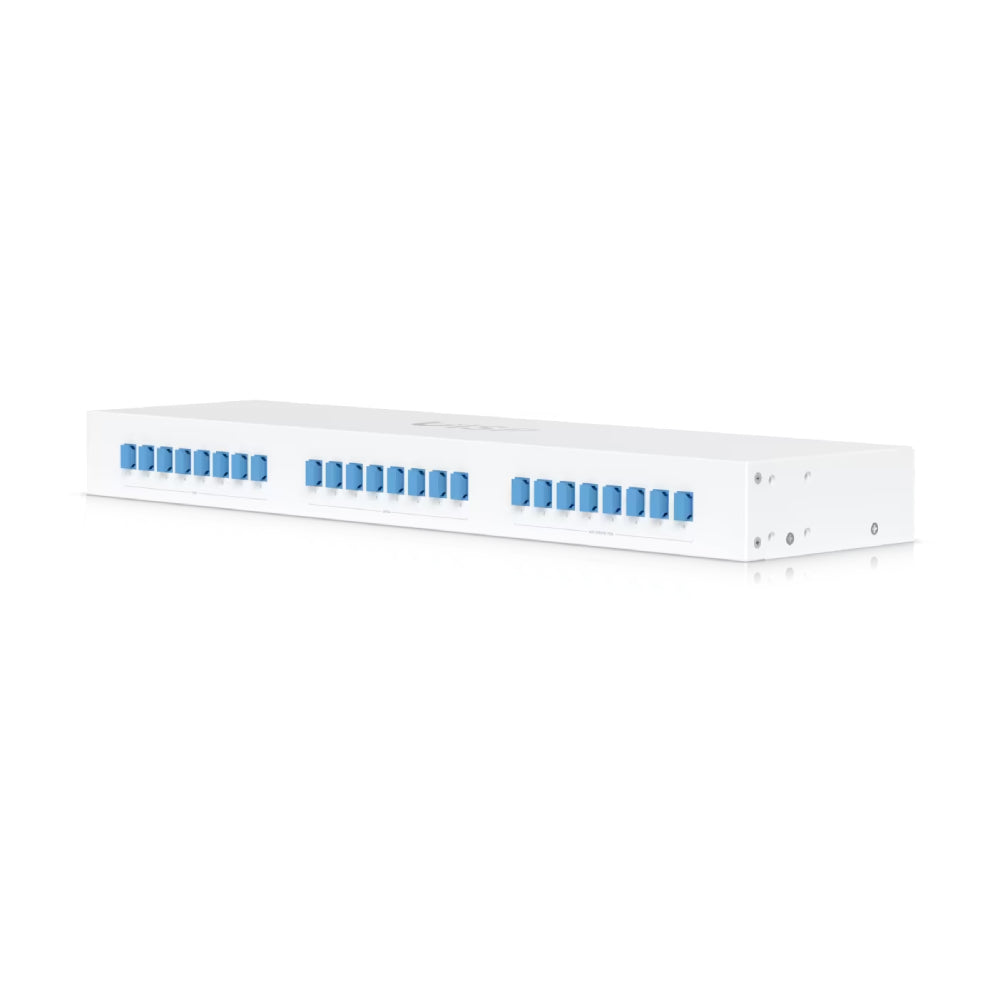

The Ubiquiti UACC-UF-WDM-XGS is an NDAA compliant, passive optical WDM (Wavelength Division Multiplexing) filter designed to enable simultaneous transmission of GPON and 10G XGS-PON services over a single shared Fiber-to-the-Home (FTTH) distribution network. By multiplexing distinct upstream and downstream optical wavelengths onto a single fiber strand, operators can upgrade existing legacy GPON infrastructure to high-speed symmetrical 10G XGS-PON services without replacing deployed fiber cables or interrupting active subscribers.
PON Technologies
GPON & XGS-PON
Operation Mode
Passive Optical WDM
Insertion Loss
Ultra-Low Signal Loss
Power Usage
0W (Zero Power)
Cost-Effective Network Migration Without Fiber Overhaul
Engineered with high isolation and minimal insertion loss, the UACC-UF-WDM-XGS allows service providers to combine GPON OLT wavelengths (1490nm TX / 1310nm RX) and XGS-PON OLT wavelengths (1577nm TX / 1270nm RX) smoothly onto a common feeder fiber. Because the device is 100% passive, it requires no electrical power, ensuring maximum uptime, maintenance-free operation, and effortless deployment in indoor or outdoor optical distribution enclosures.
Zero-Downtime Migration
Overlay next-generation 10 Gbps XGS-PON capacity directly over active GPON subscriber lines without taking current users offline or altering passive splitters.
High Channel Isolation
Precision thin-film filter technology blocks cross-talk between overlapping GPON and XGS-PON optical bands to ensure high link stability and low error rates.
Technical Specification Matrix
| Model SKU |
UACC-UF-WDM-XGS |
| NDAA Compliance |
Confirmed Compliant (Yes) |
| Device Type |
Passive Wavelength Division Multiplexer (WDM) Filter |
| Supported Standards |
GPON (ITU-T G.984) & XGS-PON (ITU-T G.9807.1) / NGPON2 Coexistence |
| GPON Wavelength Passband |
1260–1330 nm (Upstream) / 1480–1500 nm (Downstream) |
| XGS-PON Wavelength Passband |
1260–1280 nm (Upstream) / 1575–1580 nm (Downstream) |

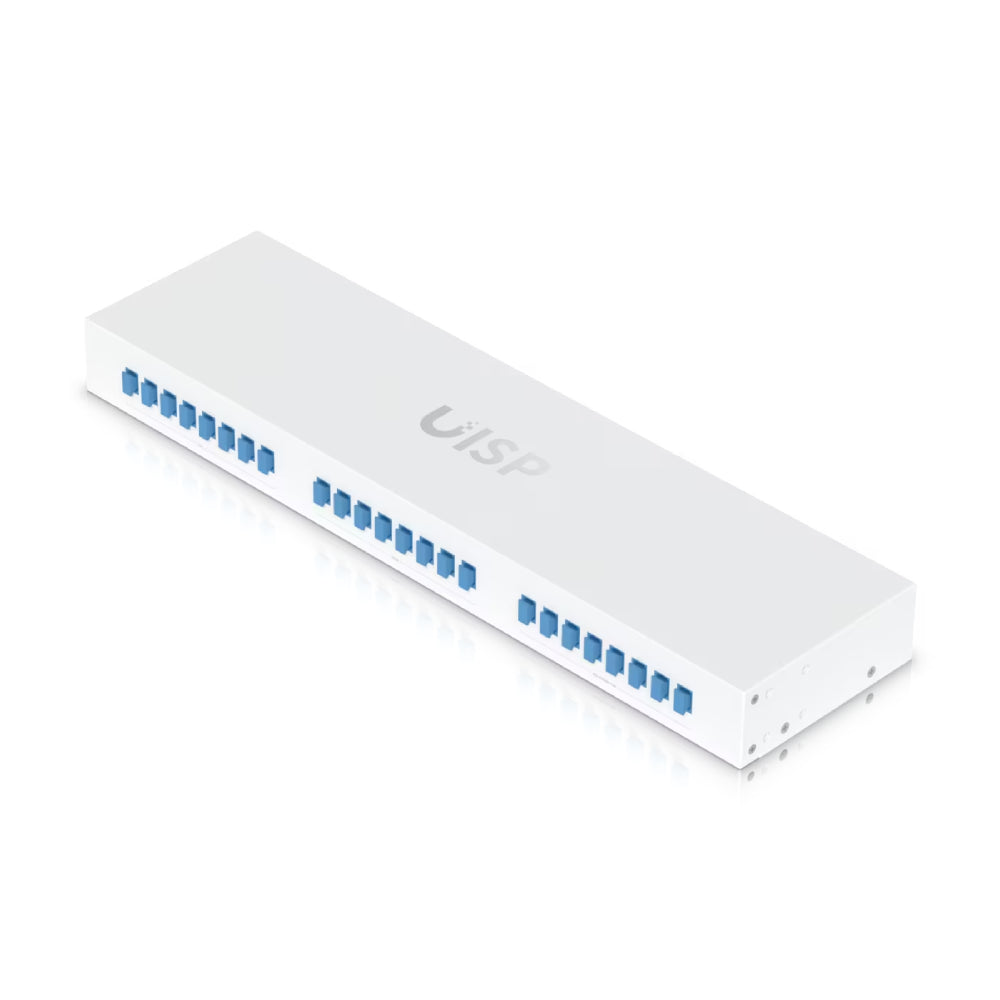

| Connector Options |
Standard Optical Fiber Connectors (SC/UPC or SC/APC options) |
| Power Requirement |
None (100% Passive Optical Device) |
| Operating Temperature |
-40 to 85° C (-40 to 185° F) |
Is the Ubiquiti UACC-UF-WDM-XGS NDAA compliant?
Yes, the UACC-UF-WDM-XGS optical filter is officially NDAA compliant, rendering it approved for government, defense, and regulated ISP infrastructure deployments.
Why do I need a WDM coexistence filter?
A coexistence WDM filter allows GPON (2.5G/1.25G) and XGS-PON (10G/10G) equipment to share the exact same physical fiber strand without interference by combining their separate optical wavelengths.
Does this device require external power?
No. The UACC-UF-WDM-XGS is a purely passive optical component and requires no electrical power supply or battery backup.
Does this filter add significant optical signal loss?
The unit is designed with minimal insertion loss (typically <1.0 dB to 1.5 dB), ensuring your optical power budget remains within safe operational limits for extended distance links.
