Ubiquiti UniFi Accessories · Commercial Grade

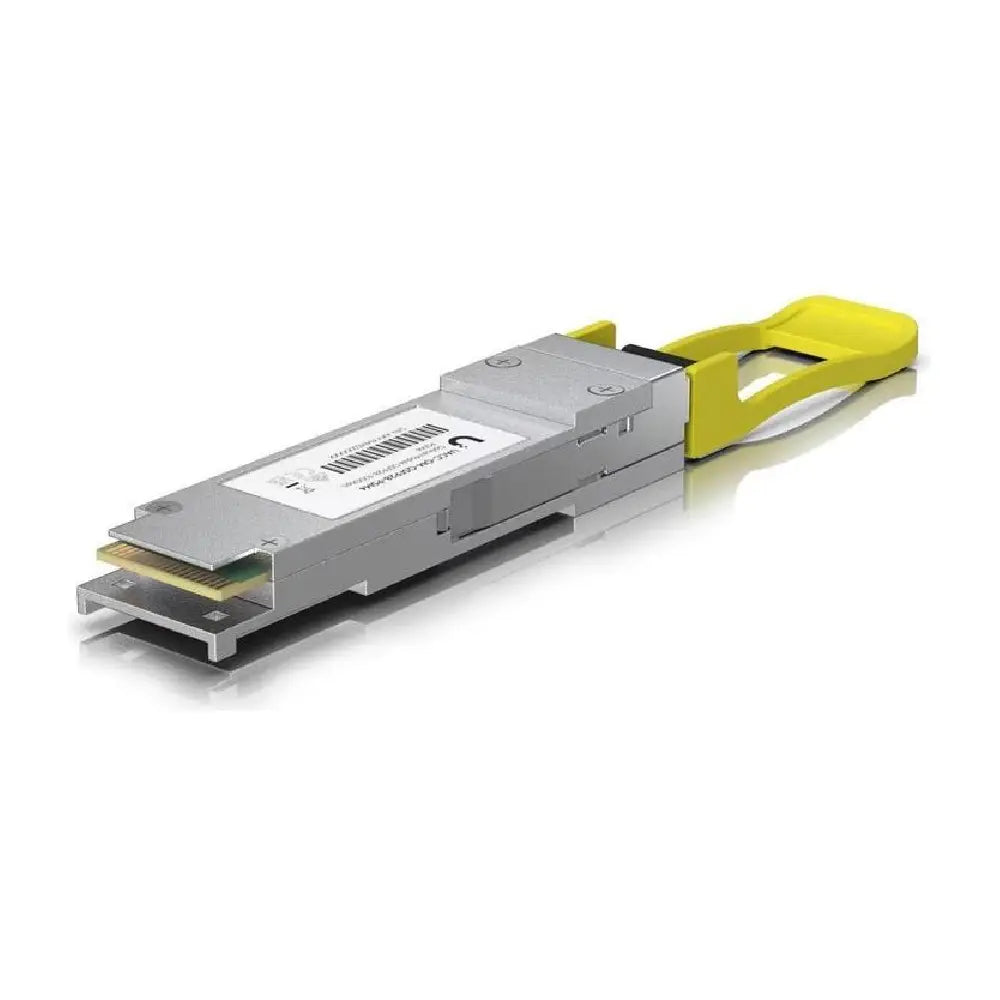

High-Performance Backbone Connectivity with the UACC-OM-QSFP28-PSM4 Module
Engineered for high-density enterprise networks, data centers, and core aggregation switches, the Ubiquiti UACC-OM-QSFP28-PSM4 delivers blazing-fast 100 Gbps connectivity across demanding campus infrastructures. Designed seamlessly to integrate with modern UniFi high-capacity hardware, this optical transceiver guarantees exceptional throughput, minimal latency, and ultimate reliability for mission-critical IT environments.
Max Distance
Up to 2 km (OS2)
Form Factor
QSFP28 Transceiver
Connector Type
MPO-12 Type B APC
Advanced Optical Architecture and Protocol Flexibility
The UACC-OM-QSFP28-PSM4 features dual compatibility parameters supporting both QSFP28 and QSFP+ interfaces, delivering dynamic scaling potential. Operating at a precise 1310 nm wavelength configuration, it utilizes an MPO-12 Type B APC connector setup designed to extract maximum performance from single-mode fiber architectures. Administrators managing high-capacity core switches can scale effortlessly while maintaining pristine signal integrity over long transmission channels.
Extended Reach & Low Power Profile
Achieve up to 2 km of continuous high-speed transmission utilizing OS2 single-mode fiber infrastructure, while maintaining an energy-efficient maximum power consumption rating of just 3.5W for optimal thermal control within dense switch racks.
Enterprise Infrastructure Compatibility
Built specifically to slot directly into flagship UniFi Enterprise Campus Aggregation and core switches featuring 100G QSFP28 uplink slots, assuring seamless plug-and-play recognition and robust uptime.
Technical Specification Matrix
| Model |
UACC-OM-QSFP28-PSM4 |
| Form Factor |
QSFP28 |
| Maximum Data Rate |
100 Gbps |
| Supported Media |
Single-Mode Fiber (OS2 recommended for 2 km) |
| Fiber Optic Connector |
MPO-12 Type B APC |
| TX / RX Wavelength |
1310 nm |
| Max Power Consumption |
3.5W |
| Operating Temperature |
0 to 70° C (32 to 158° F) |
What type of fiber cable is required for maximum distance?
To reach the maximum supported distance of 2 km, OS2 single-mode fiber is required. If using older OS1 single-mode fiber, the maximum transmission range is limited to 500 meters.
Is the fiber patch cable included with this module?
No, fiber optic patch cables and MPO-12 APC leads are sold separately. Ensure you select compatible Type B APC infrastructure components.
Are these transceivers compatible with older QSFP+ ports?
Yes, the module features backward compatibility design parameters allowing integration with select QSFP+ interfaces on supported UniFi hardware.
What safety precautions should be followed during installation?
This is a Class 1 Laser Product (IEC/EN 60825-1:2014). Never look directly into the open ends of fiber optic cables or active transceiver ports while powered on.
Commercial Hardware Warranty
