Description
Centralised 8-Channel Recording for TP-Link VIGI and ONVIF IP Camera Systems

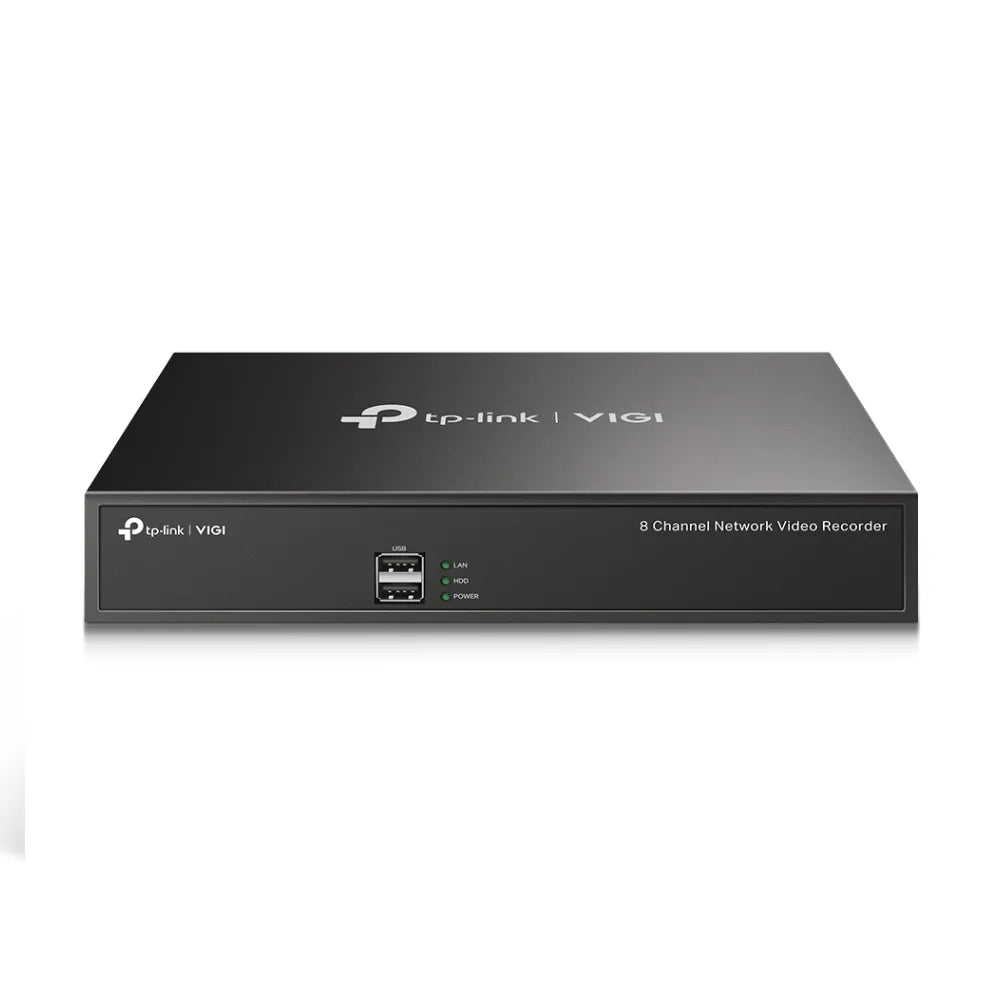

The TP-Link VIGI NVR1008H is a compact 8-channel network video recorder designed for small to medium IP security installations. Supporting 24/7 continuous recording at up to 5MP resolution with H.265+ compression, it stores up to 10TB of footage on a single SATA hard drive (not included) — keeping months of video accessible locally. Remote monitoring is available via the free VIGI app, and ONVIF compatibility ensures it works with cameras from TP-Link VIGI and other major brands.
Key Features
-
8-Channel Live View — monitor up to 8 IP cameras simultaneously at up to 5MP resolution
-
24/7 Continuous Recording — automatically records and overwrites footage to ensure uninterrupted coverage
-
Up to 10TB Storage — single SATA HDD bay supports drives up to 10TB (HDD not included)
-
4-Channel Simultaneous Playback — review footage from up to 4 cameras at the same time with variable playback speed
-
H.265+ Compression — reduces file sizes by up to 50% compared to H.264, extending storage duration without sacrificing quality
-
ONVIF Compatible — works with TP-Link VIGI cameras and third-party ONVIF-compliant IP cameras
-
Remote Monitoring via VIGI App — view live footage, review recordings, and receive alerts from anywhere on iOS or Android
-
Two-Way Audio — voice intercom support for compatible cameras with built-in microphone and speaker
-
80Mbps Video Access Bandwidth — supports up to eight 4MP cameras simultaneously based on TP-Link lab testing
Typical Use Cases
- Small business CCTV systems with up to 8 IP cameras
- Retail, warehouse, or office security recording with local and remote access
- Home security installations requiring 24/7 continuous recording
- Upgrading from DVR/analogue systems to IP camera recording
- VIGI ecosystem deployments combining NVR, cameras, and PoE switches
Technical Specifications
| Specification |
Detail |
| Model |
VIGI NVR1008H |
| Channels |
8 |
| Max Live View Resolution |
Up to 5MP (1-channel) |
| Simultaneous Playback |
4 channels |
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| HDD Bays |
1× SATA (up to 10TB, HDD not included) |
| Video Access Bandwidth |
80Mbps |
| Network Interface |
1× 10/100/1000Mbps RJ45 |

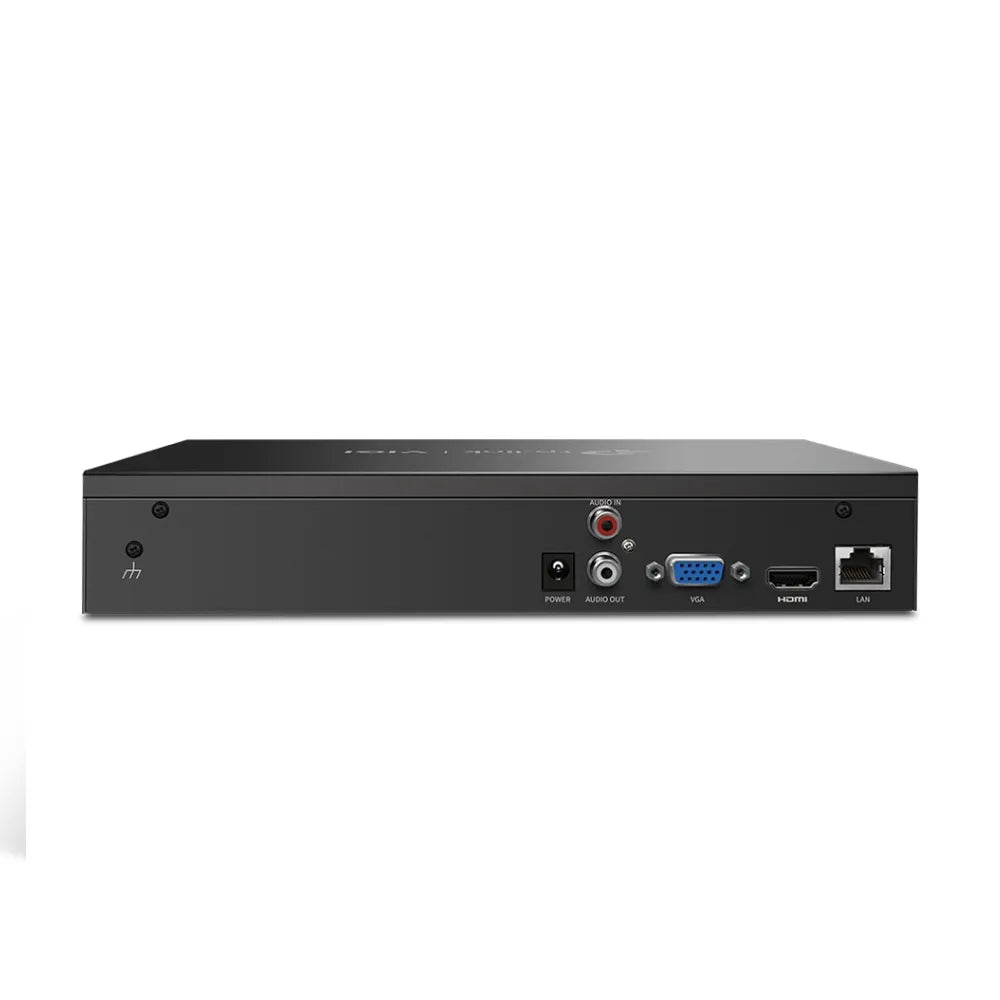

| Video Output |
1× HDMI, 1× VGA |
| USB Ports |
2× USB 2.0 |
| Audio |
Two-way audio (via compatible cameras) |
| Compatibility |
TP-Link VIGI cameras, ONVIF-compliant IP cameras |
| Remote Access |
VIGI App (iOS and Android) |
| Recording Modes |
Continuous, Motion Detection, Schedule |
| Certifications |
CE, FCC, RoHS |
| Warranty |
3 Years |
Frequently Asked Questions
- Does the NVR1008H come with a hard drive?
- No. The VIGI NVR1008H does not include a hard drive. You will need to install a compatible 3.5-inch SATA HDD (up to 10TB) before the unit can record footage. We recommend using a surveillance-grade HDD such as a Western Digital Purple or Seagate SkyHawk for 24/7 operation.
- How many cameras can I connect?
- The NVR1008H supports up to 8 IP cameras. Based on TP-Link lab testing, it can handle up to eight 4MP cameras simultaneously within its 80Mbps video access bandwidth.
- Does it work with non-TP-Link cameras?
- Yes. The NVR1008H is ONVIF-compliant, meaning it is compatible with IP cameras from other brands that support the ONVIF protocol. For full feature integration including smart detection and the VIGI app, TP-Link VIGI cameras are recommended.
- How long will footage be stored?
- Storage duration depends on the number of cameras, resolution, and recording mode. Based on TP-Link testing with a 3MP VIGI camera and a 10TB HDD, approximately 720 days of footage can be stored. Higher resolution cameras or continuous recording will reduce this figure.
- Can I access footage remotely?
- Yes. The free VIGI app (iOS and Android) allows you to view live footage, play back recordings, and receive motion detection alerts from anywhere with an internet connection.
