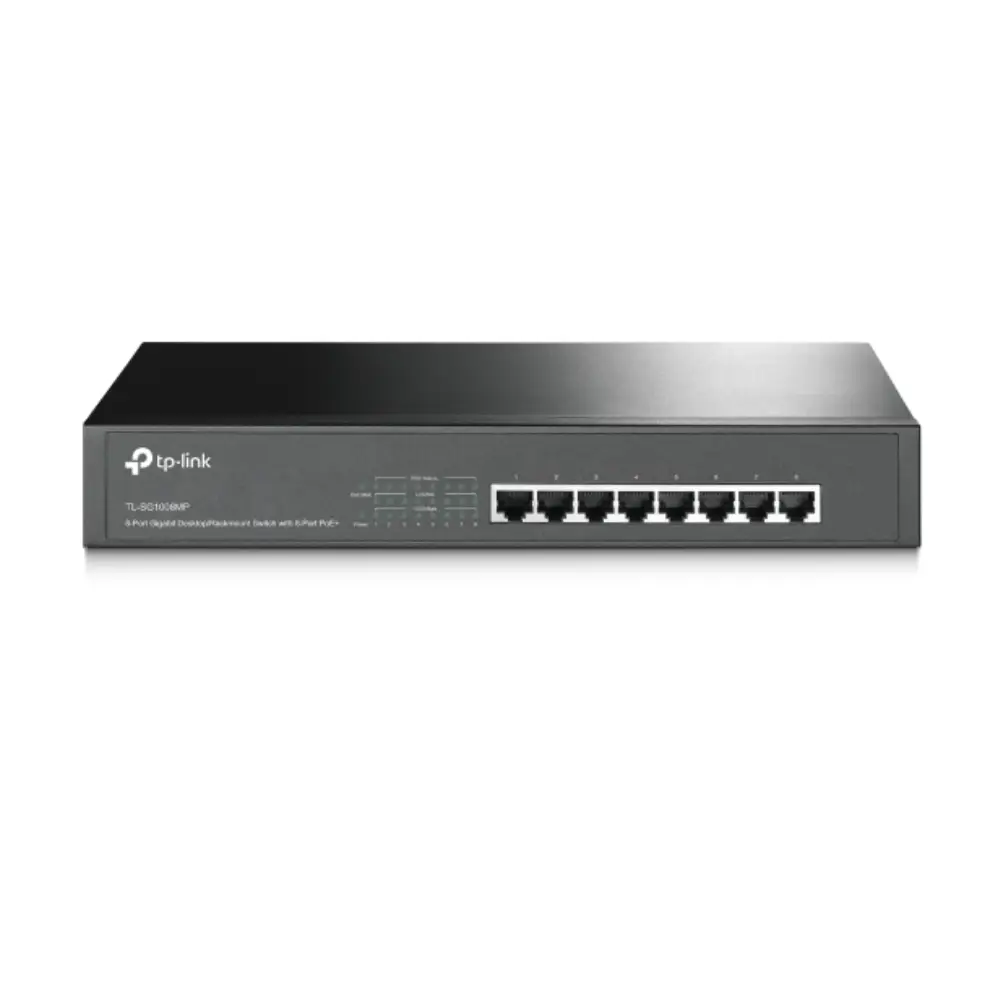

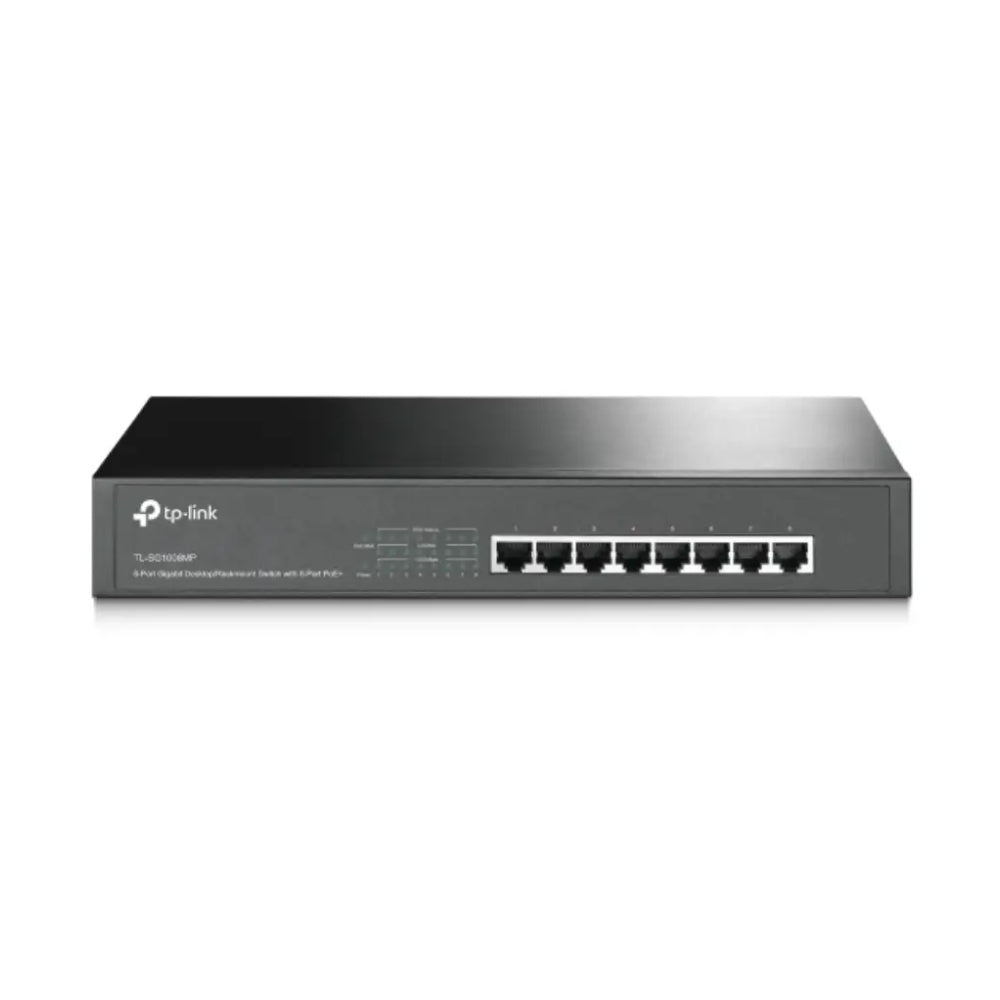

TP-Link TL-SG1008MP — 8-Port Gigabit PoE+ Switch
The TP-Link TL-SG1008MP is a reliable, plug-and-play 8-port Gigabit PoE+ switch designed for professional security installations, small business networks, and home office setups. With a 126W total PoE budget and support for up to 30W per port, it powers IP cameras, access points, VoIP phones, and access control devices over a single Ethernet cable — no separate power adapters required.
Key Features
- 8 × 10/100/1000Mbps RJ45 ports, all PoE+ enabled
- IEEE 802.3at/af compliant — compatible with a wide range of PoE devices
- 126W total PoE power budget with up to 30W per port
- 16Gbps backplane bandwidth for smooth, uninterrupted data transfer
- Energy-efficient design reduces power consumption by up to 75%
- Store-and-forward switching with auto MDI/MDIX and auto-negotiation
- Desktop and rack-mountable — includes rackmount kit
- Plug-and-play setup — no configuration or software required
Typical Use Cases
-
CCTV & IP Camera Systems: Power and connect up to 8 PoE IP cameras from a single switch
-
Access Control: Drive electromagnetic locks, card readers, and intercoms via PoE
-
Wireless Networks: Power multiple Wi-Fi access points without running separate power cables
-
Small Business & Office Networks: Reliable Gigabit connectivity for workstations, VoIP phones, and peripherals
-
Home Networks: Expand your home network with fast, efficient switching
Technical Specifications
| Specification |
Detail |
| Ports |
8 × 10/100/1000Mbps RJ45 (all PoE+) |
| PoE Standard |
IEEE 802.3at / 802.3af |
| Total PoE Budget |
126W |
| Max PoE per Port |
30W |
| Backplane Bandwidth |
16Gbps |
| MAC Address Table |
4K |
| Buffer Size |
1.5Mbits |
| Transfer Method |
Store-and-Forward |

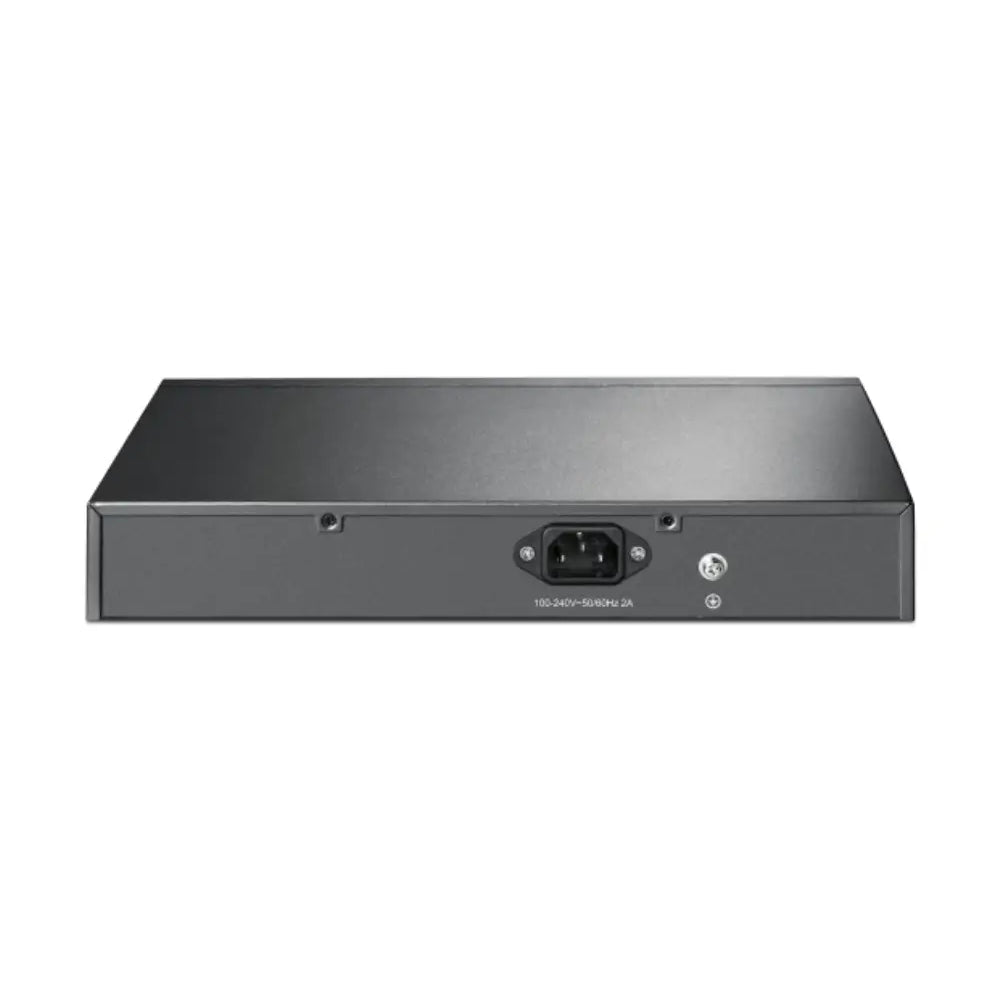

| Power Supply |
100–240VAC, 50/60Hz |
| Max Power Consumption |
140.67W (with 126W PD connected) |
| Dimensions (W × D × H) |
294 × 180 × 44mm |
| Mounting |
Desktop / Rack-mountable (1U) |
| Fan |
1 × internal fan |
| Certifications |
FCC, CE, RoHS |
| Network Media |
Cat 3/4/5 (10BASE-T), Cat 5/5e (100BASE-TX), Cat 5/5e/6+ (1000BASE-T), max 100m |
| In the Box |
TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet |
Frequently Asked Questions
Is the TL-SG1008MP managed or unmanaged?
The TL-SG1008MP is an unmanaged switch. It requires no configuration — simply plug in your devices and it works straight away. There is no web interface, VLAN support, or QoS settings.
Can I use non-PoE devices on this switch?
Yes. All 8 ports support standard Gigabit Ethernet. Non-PoE devices such as computers, NVRs, and NAS units will connect and operate normally — the switch will not supply power to devices that don't request it.
How many IP cameras can this switch power?
With a 126W total PoE budget, the number of cameras depends on each camera's power draw. For example, 8 cameras drawing 15W each would use 120W — well within budget. Higher-draw cameras (e.g. PTZ at 25–30W) may reduce the total count.
Is this switch rack-mountable?
Yes. The TL-SG1008MP includes a rackmount kit and fits a standard 1U rack enclosure. It can also be used as a desktop unit with the included rubber feet.
What is the difference between the TL-SG1008MP and the TL-SG1008PE?
The TL-SG1008MP is the updated replacement model for the TL-SG1008PE. Both offer 8-port Gigabit PoE+, but the TL-SG1008MP features an improved design and is the currently supported model from TP-Link.
Does this switch ship Australia-wide?
Yes. CCTV Guru ships the TL-SG1008MP to all states and territories across Australia from local stock.
