IDIS NETWORK ACCESSORIES · NDAA & TAA COMPLIANT
High-Density Optical Networking Infrastructure

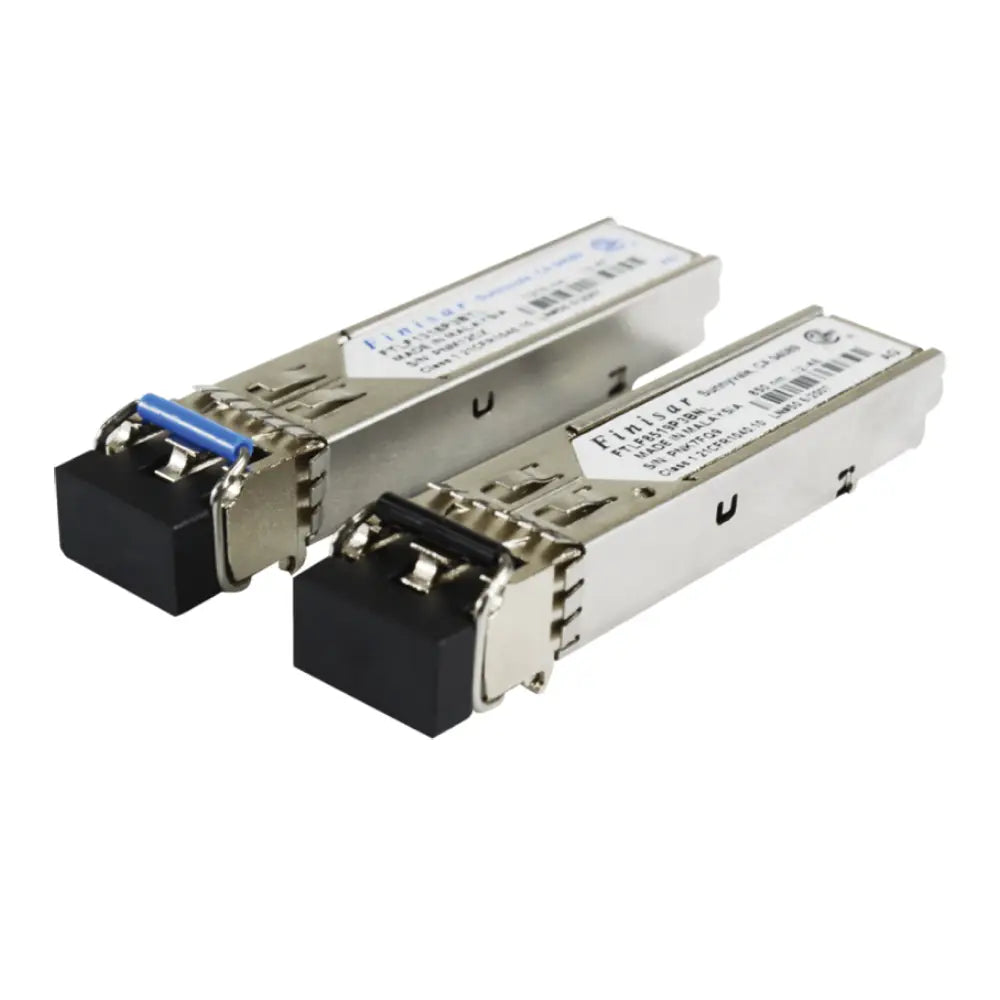

The IDIS FTLF8519P3BNL is a premium commercial-grade SFP (Small Form-factor Pluggable) transceiver engineered to provide ultra-reliable, high-speed fiber connectivity for enterprise-grade network architectures. Explicitly optimized for high-density surveillance backbones, enterprise core switches, and media converters, this module guarantees structural network integrity where packet dropping or latency spikes are not an option. Designed to operate across demanding commercial and critical infrastructure environments, it provides an uncompromising foundation for multi-site network aggregation.
Data Rate
Up to 2.125 Gb/s
Hot-Pluggable
SFP Footprint
Seamless Integration & Zero-Disruption Reliability
Engineered for mission-critical deployments, this SFP transceiver features a fully hot-swappable footprint, allowing system administrators to upscale bandwidth or replace modules on live production links without triggering global system reboots or network downtime. The device delivers robust multi-rate processing capabilities, supporting bi-directional throughput variations across 1.062Gb/s, 1.25Gb/s, and 2.125Gb/s profiles. For native ecosystem performance, this transceiver is built for flawless baseline compatibility with the IDIS DH Series and DA-MC1101 media conversion frameworks, solidifying long-distance signal processing paths without signal degradation.
Oxide VCSEL Laser Core
Utilizes an integrated 850nm Oxide VCSEL laser transmitter to deliver strict compliance over short-to-mid range fiber runs. This technology maximizes output power efficiency down to standard -9 dBm parameters, maintaining superior optical wave clarity even during continuous multi-gigabit workloads.
Extended Temperature Endurance
Unlike standard consumer-grade network modules, this transceiver handles a hardened operating environment ranging from 0°C up to 85°C. This wide operational margin preserves core reliability within unconditioned IT server closets, physical security hubs, or high-density rack housings.
Technical Specification Matrix
| Camera Model |
FTLF8519P3BNL |
| Data Rate Capacity |
1.062Gb/s, 1.25Gb/s, 2.125Gb/s Bi-directional |
| Optical Center Wavelength |
830nm to 860nm (850nm Nominal) |
| Output Potential Power |
-9 to -2.5 dBm |
| Average RX Sensitivity |
-17 dBm max @ 2.125Gb/s |
| Fiber Media Length Limit |
Up to 500m on 50/125μm MMF / 300m on 62.5/125μm MMF |
| Physical Dimensions (W x H x D) |
13.7mm x 12.4mm x 56.6mm (0.5" x 0.5" x 2.2") |
| Hardware Weight |
17.5g (0.04 lb) |
| Regulatory Approvals |
FCC, CE, KC, NDAA & TAA Compliant |
Is this transceiver compatible with standard non-IDIS hardware?
Yes. The module conforms to standard hot-pluggable SFP multi-source agreements (MSA). However, it is explicitly validated and optimized for seamless, fine-tuned integration with the IDIS DH Series and DA-MC1101 media converters.
What type of fiber optic cabling does this unit require?
This transceiver is designed explicitly for Multimode Fiber (MMF). It can drive signals up to 500 meters using standard 50/125μm MMF lines, or up to 300 meters on older 62.5/125μm MMF trunks.
Can I plug this module into a live network switch port?
Absolutely. It features a hot-pluggable SFP footprint, meaning it can be plugged into or pulled from an active, powered networking port without disrupting the continuous operation of surrounding hardware links.
Does this model fulfill federal compliance protocols?
Yes, this IDIS networking hardware component is thoroughly certified and matches all strict requirements for NDAA and TAA compliance, making it eligible for federal, government, or institutional military procurement paths.
