IDIS DP-HE1201 4K UHD HDMI/VGA Video Encoder

Description

IDIS VIDEO ENCODER · NDAA & TAA COMPLIANT

Enterprise-Grade 4K Signal Digitization & Legacy System Integration

The IDIS DP-HE1201 is a highly advanced 4K Ultra HD video encoder engineered to bridge the gap between legacy analog, computational, or broadcast visual signals and modern network-based IP surveillance architectures. Designed specifically for critical commercial infrastructure, command control centers, and high-density monitoring environments, this powerhouse device seamlessly ingests raw HDMI and VGA sources and encodes them into ultra-efficient IP streams. Whether digitizing legacy PC workstations, medical equipment displays, or proprietary server layouts, it ensures your operations are broadcast over the secure network with absolute clarity and zero signal degradation.

Resolution
4K UHD (3840x2160)
Optics / Input
Dual HDMI & VGA
Streaming
Quadruple Stream
Protection
Enterprise KVM / Security

Advanced Network Performance & Remote KVM Interactivity

Beyond baseline encoding, the IDIS DP-HE1201 unlocks true centralized system interactively. Outfitted with a specialized USB Type-B interface, this device provides complete remote mouse and keyboard control (KVM) over the network, allowing security professionals and IT operators to not only monitor distant computer screens but directly manipulate them in real-time. By leveraging H.265 Intelligent Codec and Quadruple Streaming technologies, the encoder drops bandwidth consumption up to 50% compared to traditional H.264 configurations while reliably streaming crystal clear 30ips fluid motion to NVR platforms or third-party VMS networks utilizing native ONVIF protocols.

Interactive KVM USB Remote Management

The integrated USB Type-B control channel empowers security operators with native remote keyboard and mouse access. This converts a static video stream into an active remote intervention tool, allowing operators to fix software hitches, view logs, or control legacy machines thousands of miles away securely.

H.265 Intelligent Codec Compression Matrix

By blending industry-standard H.265 encoding with IDIS's proprietary algorithmic optimizations, network infrastructure requirements are completely optimized. Experience pristine 4K video feeds with diminished data bitrates, preserving critical storage arrays without losing key structural frames.

Technical Specification Matrix
Camera Model DP-HE1201

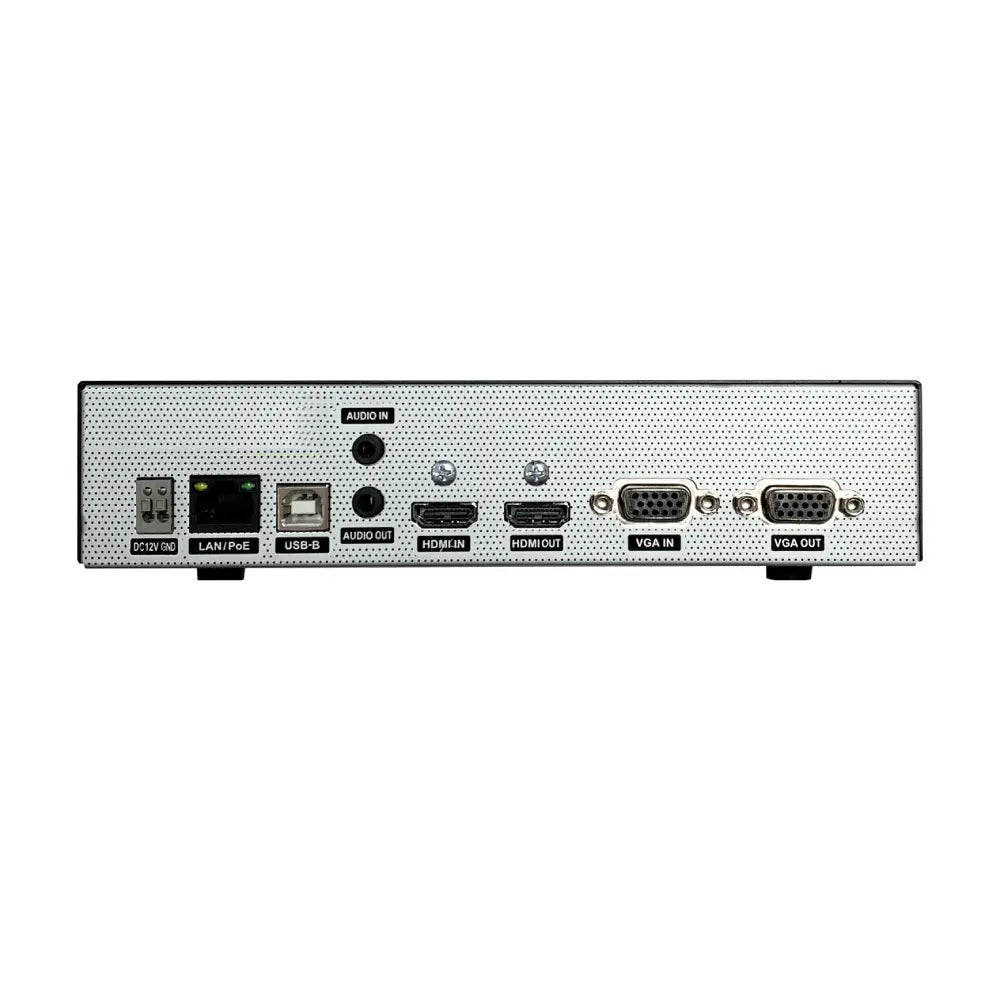

Video Inputs 1 x HDMI, 1 x VGA
Max. Resolution 3840 x 2160 (4K UHD) @ 30ips
Video Compression H.265, H.264 (MP), M-JPEG / Intelligent Codec
Multi-video Streaming Quadruple Streaming
Network Protocol Support DirectIP 2.0, ONVIF Profile S
Serial / Interactive Interface 1 x USB Type-B (Remote Mouse & Keyboard Control)
Audio Connections 1 x Line-In (3.5mm), 1 x Line-Out (3.5mm)
Power Input & Draw 12VDC (0.95A) or PoE IEEE 802.3af Class 3 (Max. 11.4W)
Dimensions (W x H x D) 200mm x 44mm x 152.3mm (7.9" x 1.7" x 6.0")
Can the DP-HE1201 encode both HDMI and VGA inputs simultaneously?

The device features both physical interfaces for comprehensive compatibility. It operates as a selectable single-channel encoder that processes the designated target input source with high efficiency, while offering input loop bypass configurations for real-time local tracking monitor displays.

What exactly does the USB connection do?

The USB Type-B interface works as a hardware-level KVM passthrough channel. By linking this to your target PC or server system, video monitoring personnel can use their own network workstation software interface to safely run keystrokes and pointer adjustments over the target node.

Does this encoder work fine with third-party network recorders?

Yes. While native operations thrive on the IDIS DirectIP ecosystem, it supports open standard ONVIF protocol stacks, allowing easy discovery and integration into third-party network recorders or hybrid enterprise management software systems.

Is this hardware safe for installation in strict Government locations?

Absolutely. The IDIS DP-HE1201 is verified as both NDAA (National Defense Authorization Act) and TAA compliant. It completely fulfills global procurement demands requiring zero components or chipsets sourced from blacklisted or restricted security vendors.

Technical Datasheet Quick Start Guide
Operation Manual Installation Manual
Official IDIS Stock
NDAA & TAA Certified
Aust-Wide Delivery

IDIS DP-HE1201 4K UHD HDMI/VGA Video Encoder

Product form

SKU: DP-HE1201

IDIS VIDEO ENCODER · NDAA & TAA COMPLIANT Enterprise-Grade 4K Signal Digitization & Legacy System Integration The IDIS DP-HE1201 is... Read more

$899.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
