IDIS DIRECTIP · NDAA & TAA COMPLIANT
Enterprise-Grade Power and Automation for Large-Scale Network Video Recording

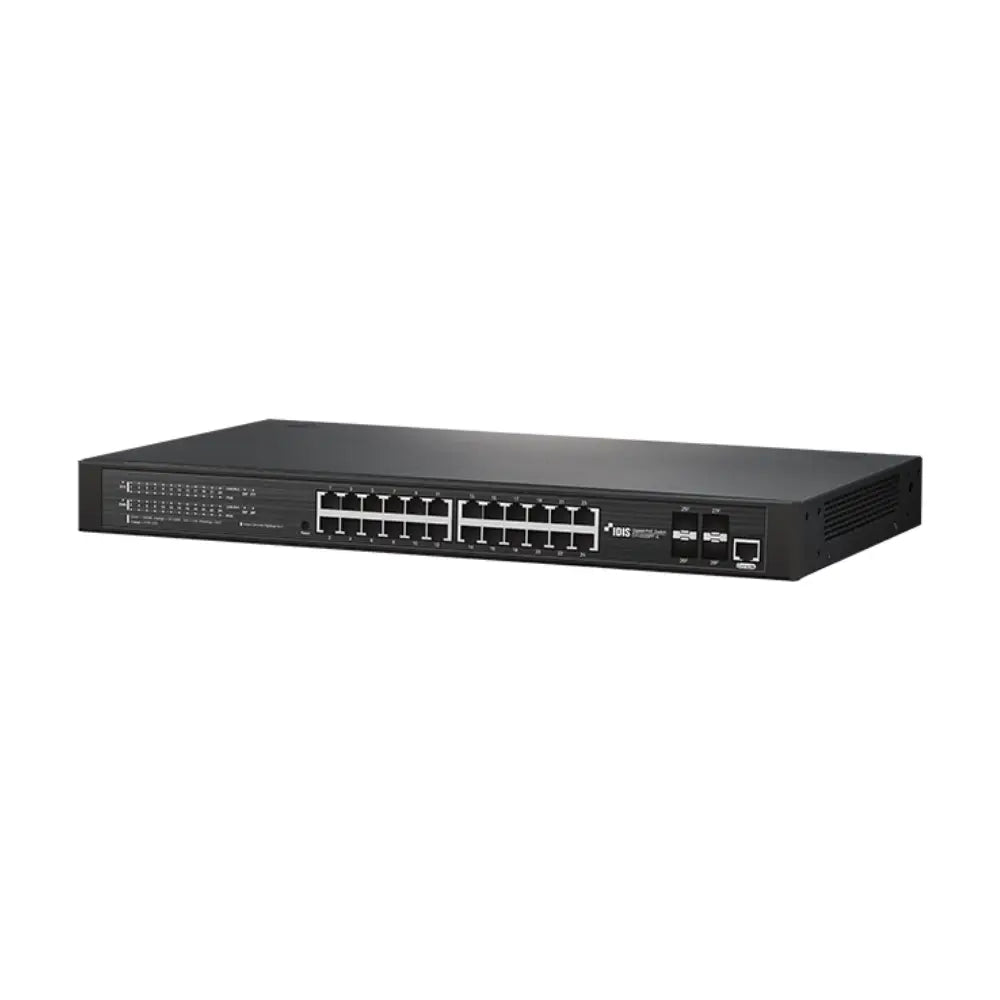

The IDIS DH-2328PF-A is a robust DirectIP 28-port Gigabit network switch specifically built to meet the data density demands of comprehensive commercial enterprise surveillance frameworks. Engineered for seamless plug-and-play setup within the IDIS ecosystem, this switch streamlines layout deployment by removing manual routing configuration, making it the perfect foundation for critical video environments like logistics hubs, multi-site retail, corporate campuses, and government facilities.
Density & Ports
24 GbE + 4 SFP
PoE Power Budget
370W High Budget
Switching Capacity
56 Gbps Line-Rate
Compliance
NDAA & TAA Approved
Advanced DirectIP Infrastructure with High-Bandwidth Uplinks

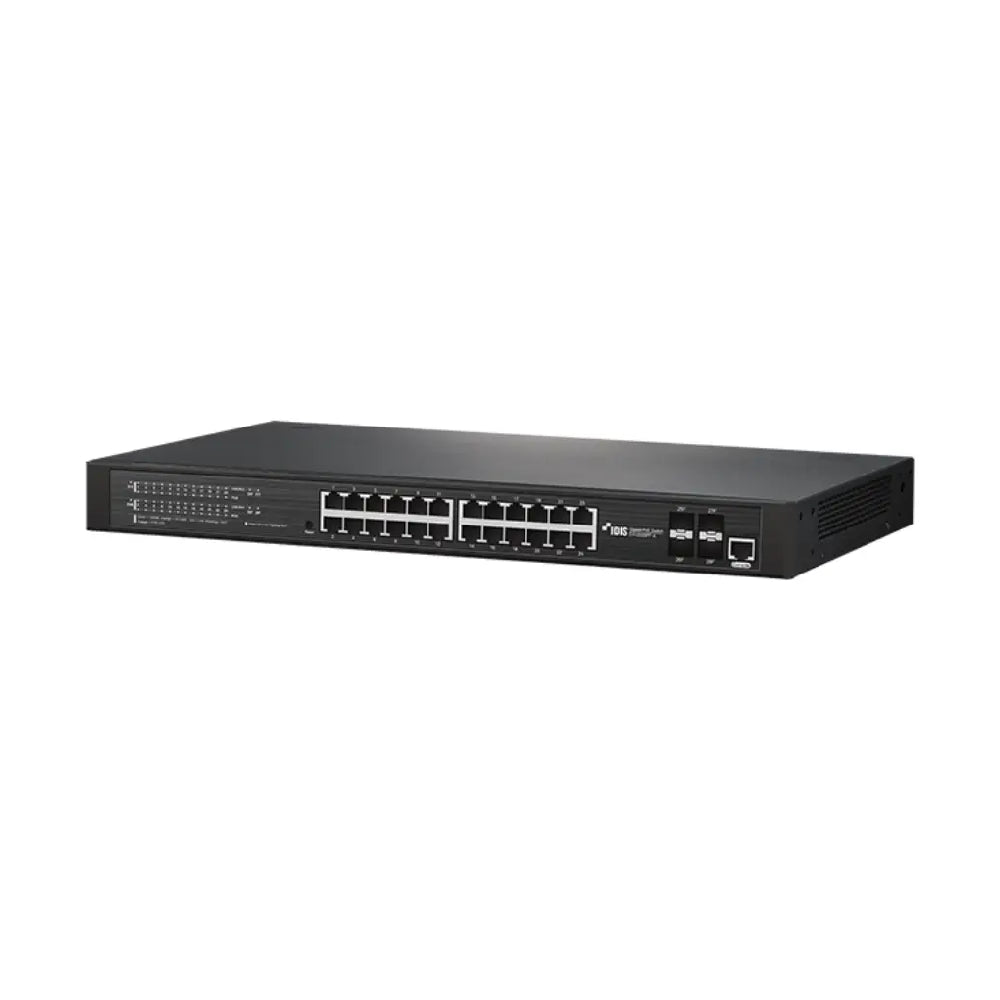

Engineered for mission-critical video applications, the IDIS DH-2328PF-A features 24 Gigabit RJ45 service ports along with 4 dedicated SFP slots (1000BASE-X) for long-distance optical uplinks. Built-in PoE management controls individual network configurations down to the device level, maximizing runtime efficiency. This switch ensures fluid video streams across high-density channels, preventing pixel drop or frame loss while providing native data optimization and advanced cyber-defense barriers when combined with DirectIP NVR platforms.
Massive 370W PoE Allocation
Delivers a high-capacity power allocation of up to 370 Watts across its service ports. Supports full IEEE 802.3at (PoE+) capabilities to comfortably run up to 12 intensive peripheral units like high-draw multi-sensor PTZ domes, or up to 24 standard IEEE 802.3af cameras simultaneously without risking system instabilities.
Zero-Configuration Architecture
Purpose-built for seamless integration with DirectIP NVR models. This eliminates complex IP routing layout matrices, manual port assignments, or complicated command-line setups. Simply hook up your camera equipment and watch the network rapidly discover and structure endpoints into an isolated, protected layout.
Technical Specification Matrix
| Camera Model |
DH-2328PF-A |
| Service Ports |
24 x RJ45 Connectors (10/100/1000BASE-T) |
| Uplink Ports |
4 x SFP Slots (1000BASE-X) |
| Supported Standards |
IEEE 802.3af / IEEE 802.3at |
| Total PoE Budget |
370W Max Output |
| Switching Capacity |
56 Gbps Backplane Performance |
| Power Supply Input |
100-240V~, 50/60Hz, 4.2A - 1.7A Internal PSU |
| Maximum Power Draw |
430W Total System Consumption |
| Regulatory Approvals |
FCC, CE, NRTL, KC Certified |
| Physical Dimensions |
440mm x 44mm x 208mm (19" Rackmount 1U form-factor) |
| System Net Weight |
2.97 kg (6.54 lbs) |
How does the plug-and-play feature work with standard NVR platforms?
The DH-2328PF-A utilizes a custom automation framework developed for DirectIP. When links connect directly to an IDIS network recorder, all structural mapping, IP dynamic allocations, and streaming paths resolve inside an automated closed loop, avoiding manual configuration steps completely.
Can I run multi-sensor or long-range PTZ cameras on this switch?
Yes. This hardware meets both IEEE 802.3af and high-power 802.3at requirements. You can deploy up to 12 high-draw PTZ units or multi-lens setups simultaneously at full 30W capacity per port, provided your power totals don't exceed the robust 370W continuous threshold.
What advantages do the 4 SFP uplink ports offer?
SFP fiber-optic bays bypass standard copper constraints (100m). They allow high-speed data delivery over kilometers to a centralized server vault or data core, keeping high-density enterprise camera streams free from latency or electrical interference.
Is this model fully certified for deployment in secure government facilities?
Yes. This system is completely NDAA and TAA compliant. It meets strict federal procurement guidelines and can be safely installed in highly regulated critical infrastructure, defense environments, and public sector operations.
