IDIS B4501 SERIES · NDAA & TAA COMPLIANT
Enterprise-Grade 5MP Precision for Critical Optical Surveillance

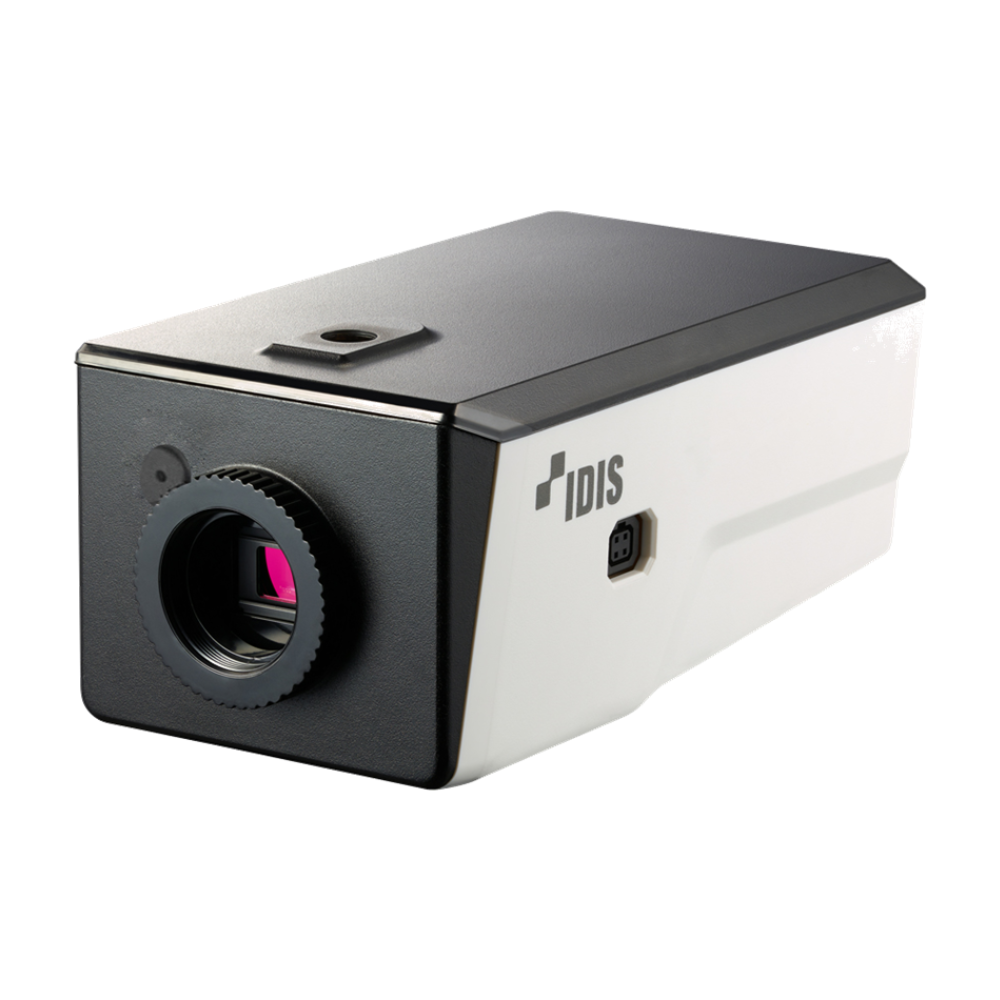

The IDIS DC-B4501X-A represents the pinnacle of specialized, high-density optical surveillance, delivering detailed 5MP ultra-high-resolution imaging for demanding commercial footprints. Purpose-built for critical infrastructure, financial institutions, and expansive industrial facilities, this professional network box camera gives system integrators full structural flexibility over lens selection and focal adjustment. Engineered without blacklisted chipsets, it guarantees absolute compliance with federal cyber-security frameworks while maximizing forensic image clarity in high-traffic environments.
Resolution
5MP High-Density
Low Light
True Day / Night
Dynamic Range
120dB True WDR
Intelligent Processing, Custom Adaptability, & Network Efficiency
Engineered for complex illumination topologies, this system integrates an advanced 120dB True Wide Dynamic Range (WDR) processing core that stabilizes images across severe backlighting and stark structural shadows. It relies on a high-efficiency H.265 Intelligent Codec streaming matrix to reduce bitrates dramatically, allowing security teams to retain evidentiary-grade footage longer while cutting data allocation down by up to 90%. To build out a secure enterprise-wide edge architecture, combine this high-precision hardware unit with complementary appliances across our certified IDIS security lineup.
Modular C/CS Mount Versatility
Unlike standard fixed-lens form factors, this professional box camera offers complete freedom to deploy wide-angle, telephoto, or specialized varifocal lenses. This makes it an invaluable asset for long-distance corridor monitoring, license plate identification entryways, and facial identification lanes where precise focal lengths are mandatory.
DirectIP Zero-Configuration Framework
Integrating into complex commercial networks is streamlined through the IDIS proprietary DirectIP framework. This automated structure manages IP pairing, eliminates manual port forwarding, and shields the physical hardware endpoints behind automated cyber-security rules, cutting multi-camera setup times down to mere minutes.
Technical Specification Matrix
| Camera Model |
DC-B4501X-A |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Max. Resolution |
2592 x 1944 (5MP @ 30ips) |
| Lens Compatibility |
C / CS Mount (Lens Not Included) |
| Minimum Illumination |
Color: 0.1 Lux @ F1.2 / B&W: 0.01 Lux @ F1.2 |
| Wide Dynamic Range |
120dB True WDR |
| Video Compression |
H.265, H.264 (Main Profile), M-JPEG |
| Edge Local Storage |
MicroSD / SDHC / SDXC Slot (Smart Failover Supported) |
| Power Input |
PoE IEEE 802.3af (Class 3), 12V DC |
Does the IDIS DC-B4501X-A include a lens in the standard packaging?
No. This model is a professional, modular box camera engineered with a universal C/CS mount. The optic lens is sold separately, giving system operators the ability to choose precise focal metrics tailored specifically to their deployment site needs.
Is this model fully compliant with federal cyber-security guidelines?
Yes. The camera is fully NDAA and TAA certified. It contains no components or internal processing silicon manufactured by blacklisted entities, satisfying strict requirements for government installations and regulated commercial structures.
How does Smart Failover technology protect my security recordings?
If a network dropout or switch malfunction breaks telemetry to the central NVR, the camera immediately triggers local recording onto an onboard MicroSD card. Once connection is restored, the buffered video syncs seamlessly back to the main server database.
Can I use this camera in outdoor environments?
The camera body itself is rated for indoor use. However, it can easily be configured for outdoor use by placing it inside standard weatherproof or heated heater-blower environmental camera enclosures.
