IDIS ACCESSORIES · NDAA & TAA COMPLIANT
Architectural Integration for Premium Commercial Environments

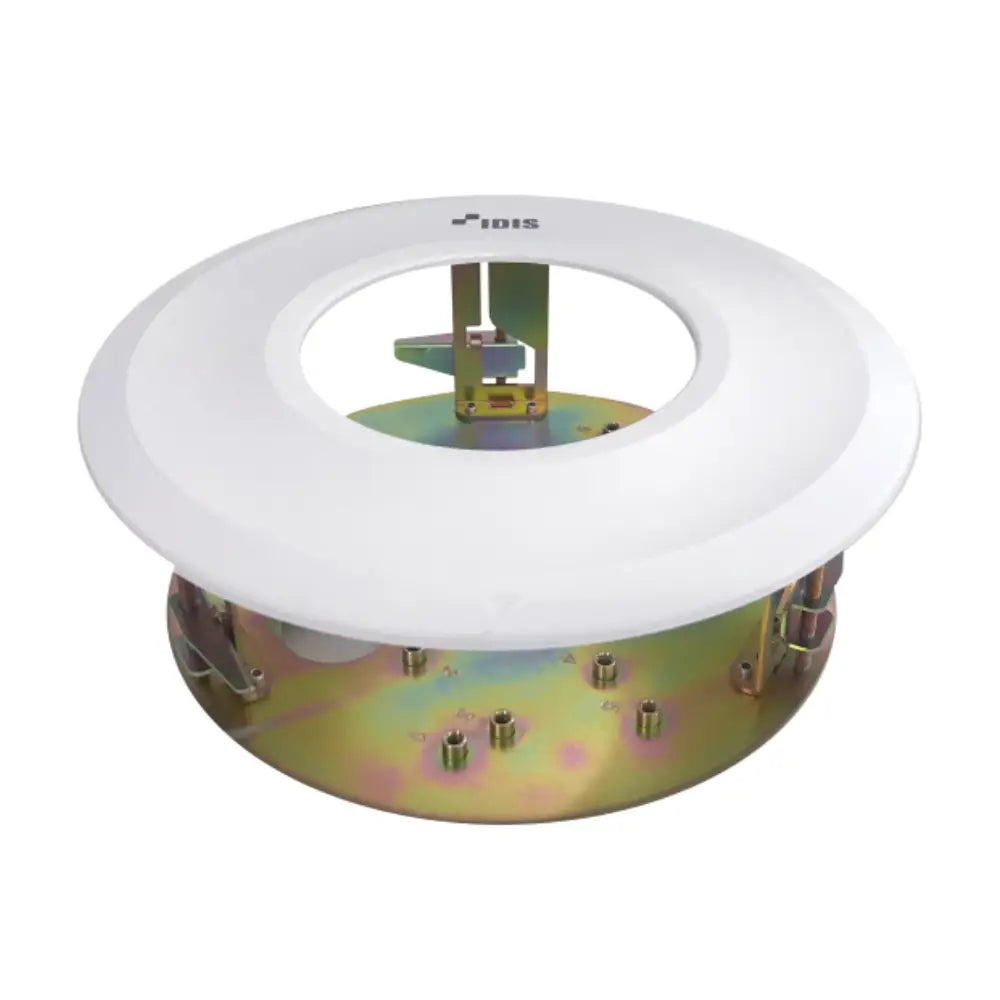

The IDIS DA-FM1500 is an enterprise-grade ceiling flush mount designed to transform standard surface dome cameras into sleek, ultra-low-profile security solutions. Engineered for premium retail spaces, high-end corporate lobbies, banks, and modern commercial interiors, this flush mount ensures your high-density surveillance infrastructure blends seamlessly with sophisticated architectural designs without sacrificing optical coverage or structural integrity.
Application
Ceiling Flush Mount
Form Factor
Ø210.2mm Outer Rim
Material
Premium EGI & Plastic
Compliance
NDAA & TAA Certified
Advanced Cable Management and Low-Profile Deployment
Achieve a highly professional, uncluttered look with advanced integrated cable routing pathways. The IDIS DA-FM1500 Flush Mount hides complex wiring grids behind the ceiling plane, providing superior protection against physical tampering and environmental debris. By leaving only the essential dome optical assembly exposed, this bracket reduces visual disruption and prevents vandals from grasping or re-directing the hardware, establishing a secure baseline for your network security platform.
Heavy-Duty Construction
Manufactured using high-strength Electro-Galvanized Iron (EGI) and premium structural plastic composite polymers, this housing delivers long-term resistance against warping and sagging. The composition offers physical rigidity while remaining lightweight at just 0.65 kg, keeping aggregate ceiling stresses well within safe commercial building regulations.
Discreet, Clean Aesthetics
Finished in a resilient architectural off-white coating, the exposed face seamlessly matches industry-standard commercial acoustic ceiling tiles and drywall treatments. It lowers the physical footprint of supported dome cameras by sinking the chassis base deep into the interstitial ceiling space, creating a flush, tamper-resistant viewport.
Technical Specification Matrix
Camera Model
DA-FM1500
Material Structure
Electro-Galvanized Iron (EGI) & Structural Polymer Plastic
Color / Finish
Architectural Off-White
Max. Exposed Dimension
Ø210.2mm x 78.1mm (H) (Ø8.27" x 3.07")
Installation Cut-out Dimension
Ø191.0mm x 63.9mm (H) (Ø7.52" x 2.52")
Total Weight
0.65 kg (1.44 lbs)
Application Environment
Indoor Drywall & Suspended Acoustic Ceilings
Broad Compatibility Matrix
DC-D4236X(-A), DC-D4236RX(-A), DC-D4536RX, DC-D4236WRX, DC-D4236HRX, DC-D4536HRX, DC-D4831HRX, TC-D5531RX, TC-D5531RXP, TC-D5532RX, TC-D5531WRX, TC-D5531WRXP, TC-D5532WRX, TC-D4222RX, TC-D4221RXP, TC-D4222WRX, TC-D4221WRXP
Is the IDIS DA-FM1500 bracket completely NDAA compliant?
Yes, the IDIS DA-FM1500 is fully NDAA and TAA compliant. It contains no prohibited telecommunications or restricted chipsets, making it fully approved for high-security United States government facilities, defense deployments, and enterprise commercial builds.
What tools or cutout sizes are required for ceiling installation?
The installation requires a standard circular ceiling cutout with a diameter of 191mm (7.52"). The bracket assembly sits deep within an interstitial space clearance depth of at least 64mm, leaving an elegant, minimalist 78.1mm exposed rim once locked.
Can this mount be used in outdoor soffits or exposed weather damp zones?
The DA-FM1500 is specifically engineered for internal commercial environments. For external soffits, high-moisture parking garages, or weather-exposed ceilings, please contact our engineering support team to review matching marine-grade or IP-rated weather boxes.
Which specific IDIS camera models are supported by this mounting plate?
It natively fits a vast selection of IDIS fixed dome cameras including the enterprise DC-D4236, DC-D4536, DC-D4831, and TC-D5531 series variants. Please verify your exact model profile against our comprehensive technical specification matrix row before processing.
