Complete CCTV Kit · IDIS Lite Series · NDAA & TAA Compliant

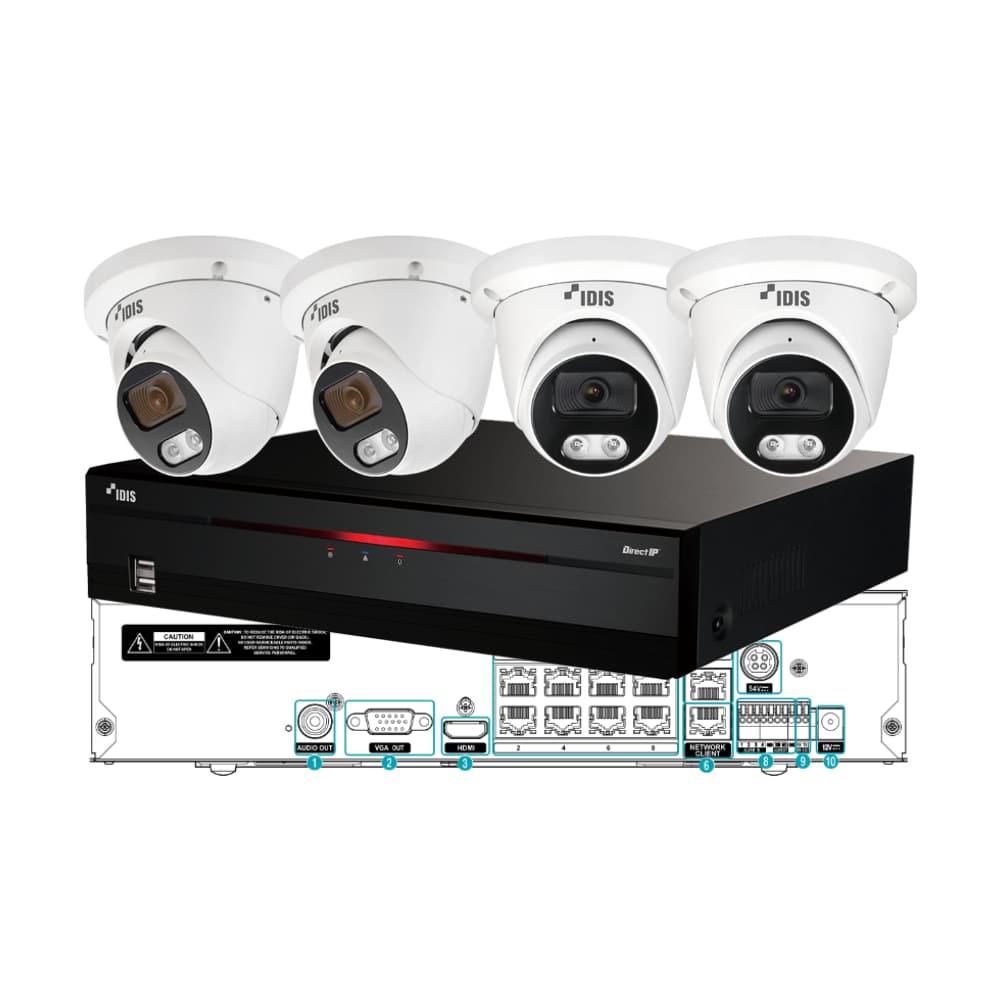

IDIS 4-Camera 5MP CCTV Kit with 16-Channel 4K NVR — Ready-to-Install Bundle
The IDIS 4-Camera CCTV Kit is the complete starter system for Australian homes, small businesses, retail stores, clinics, offices and warehouses — bundling four genuine IDIS DC-D2511WER-V2 5 MP IR turret cameras with the flagship IDIS DR-2516P-A 16-channel DirectIP® 4K NVR. Everything is NDAA & TAA compliant, fully Made in Korea, and backed by the IDIS Ultimate Warranty with local Australian-based technical support.
Plug, register, record. The DR-2516P-A’s built-in 8-port PoE switch powers all four cameras over a single Cat6 cable each — no separate PoE injectors, no port forwarding, no IP addressing. Sub-60-second commissioning with IDIS DirectIP® plug-and-play. And because the NVR has 16 channels and 8 PoE ports, this kit gives you a clean upgrade path: expand to 8 cameras using the built-in PoE ports, or all 16 channels with an external PoE switch (we recommend the IDIS DH-2212PF).
Cameras
4 × 5MP IR Turret
Night Vision
20 m IR · True Day/Night
Compliance
NDAA & TAA · Korean-Made
Setup
DirectIP® Plug & Play
What’s in the Box

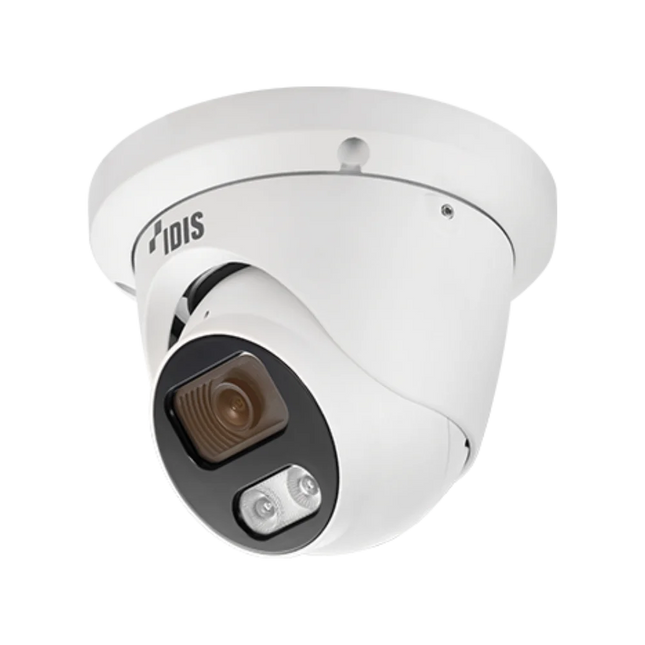

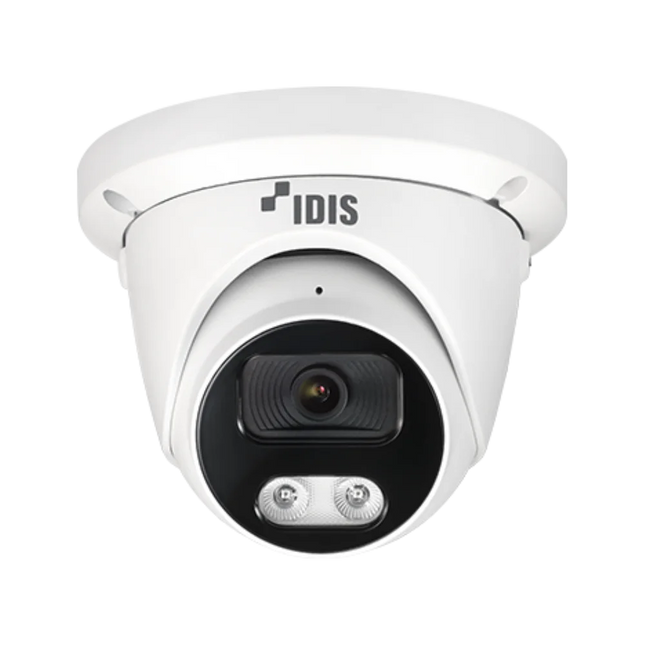

4 × IDIS DC-D2511WER-V25 MP IR Turret Camera · Sony IMX 335 Starvis CMOS · 2.8 mm fixed wide-angle lens · True WDR · 20 m smart IR · IP67 / IK10 vandal-rated · PoE 802.3af · NDAA & TAA compliant. Perfect for entry-ways, corridors, car parks, retail floors and reception areas.
1 × IDIS DR-2516P-A16-Channel DirectIP® 4K UHD NVR · 320 Mbps throughput · H.265 codec · 480 ips @ UHD · Built-in 8-port PoE switch (100 W) · 2 × SATA + 1 × eSATA HDD bays · HDMI 4K + VGA output · IDLA AI & Business Intelligence analytics ready · NDAA & TAA compliant.
Power Supplies & CablesIncludes the AC power adapter for the NVR and mounting hardware for each camera. Cat6 cabling and HDD not included — add an HDD (WD Purple or Seagate SkyHawk recommended) and your preferred Cat6 cable length at checkout.
IDIS Ultimate WarrantyEvery item in the kit ships with full IDIS Ultimate Warranty coverage backed by CCTV Guru’s Australian technical team. No grey-import grey areas, no third-party warranty middlemen.
Why This Bundle Beats Buying Separately
Buying the camera and NVR individually is fine — but you’ll spend more, you’ll spend time matching part numbers and you may inadvertently pair NDAA-compliant cameras with a non-compliant recorder (or vice versa). This bundle removes every guesswork variable: pre-matched IDIS hardware, pre-validated compatibility, pre-discounted price.
Bundle SavingsSave significantly versus buying the four cameras and NVR as individual line items. Exact savings shown in your cart — pricing reflects IDIS distributor bundle programs available only through authorised channels.
Pre-Matched HardwareEvery component is on the validated IDIS DirectIP® compatibility list. No firmware mismatches, no codec quirks, no “third-party ONVIF camera dropped offline” headaches at 2am.
One-Brand WarrantySingle point of warranty contact, single point of technical support. CCTV Guru handles everything from pre-sales spec to post-install troubleshooting through our Australian team.
NDAA Compliance End-to-EndThe full kit — both the cameras and the NVR — is NDAA Section 889 and TAA compliant. Specify it confidently for government, defence, school, council and critical-infrastructure projects.
Scalable to 16 CamerasBuy the 4-camera kit today, expand to 8 cameras using the NVR’s built-in PoE, and grow to a full 16 channels later by adding an IDIS DH-2212PF PoE+ switch and more cameras.
True Plug & PlayIDIS DirectIP® cameras auto-discover and register on the NVR in under 60 seconds — even non-technical site staff can commission them. No IP addressing, no port forwarding.
Recommended For
Small Retail & Convenience StoresCover the entrance, POS counter, back-of-house and stockroom with 4 cameras. Pair with the DR-2516P-A’s text-in POS integration for transaction-tagged footage search.
Medical & Dental ClinicsReception, waiting room, treatment-room corridor and external entry. Privacy-masking and HTTPS access make Australian Privacy Act compliance straightforward.
Schools & Tutoring CentresEntry, hallway, playground edge and car park. NDAA-compliant for state/federal government school procurement requirements.
Small Offices & Co-WorkingLift lobby, main entry, break-out area and back-door. 16-channel NVR gives you room to grow as your tenant footprint expands.
Residential Homes & EstatesFront door, side gate, garage and back yard. IP67 + IK10 housing handles Australian sun, salt, rain and impact.
Warehouses & Self-StorageRoller doors, loading dock, aisle ends and office. 4K recording captures plate and face detail for loss-prevention reviews.
Upgrade Path — Add More Cameras Over Time
This kit is intentionally specified to grow with your site. The DR-2516P-A is a full 16-channel NVR — meaning you can quadruple your camera count without replacing the recorder:
Stage 1 — Today (4 Cameras)4 × DC-D2511WER-V2 on 4 of the NVR’s 8 built-in PoE ports. Covers the highest-priority zones.

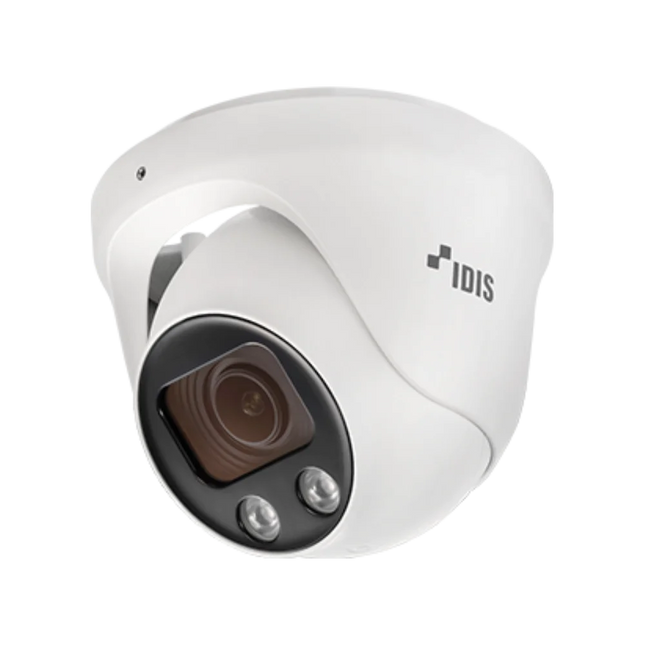

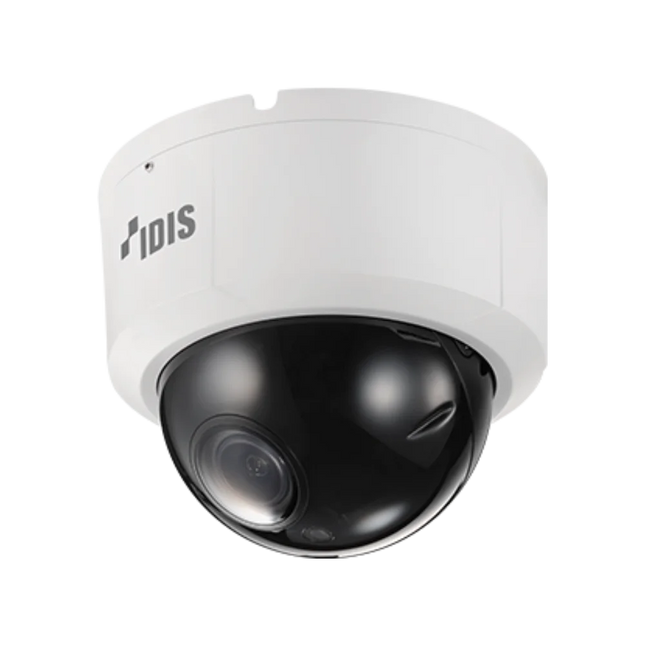

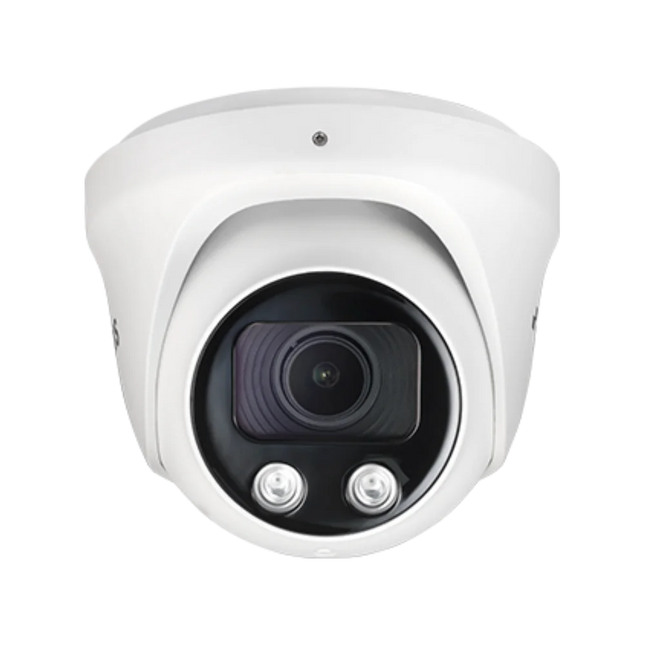

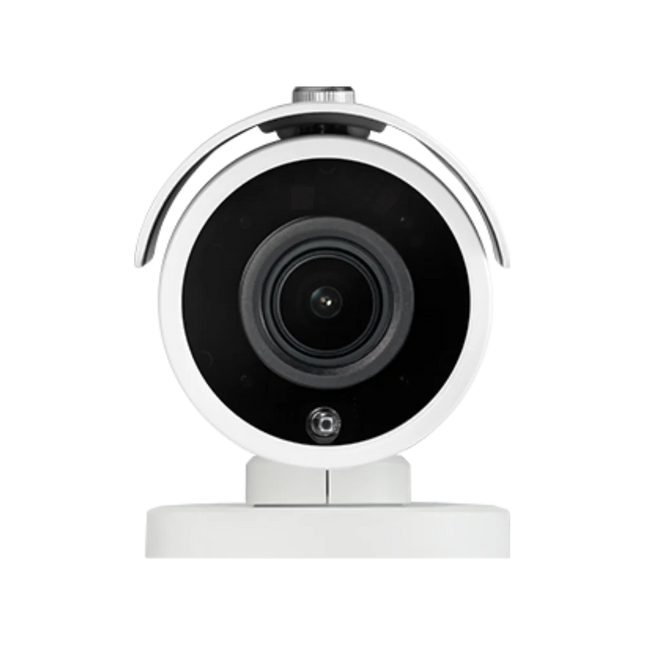

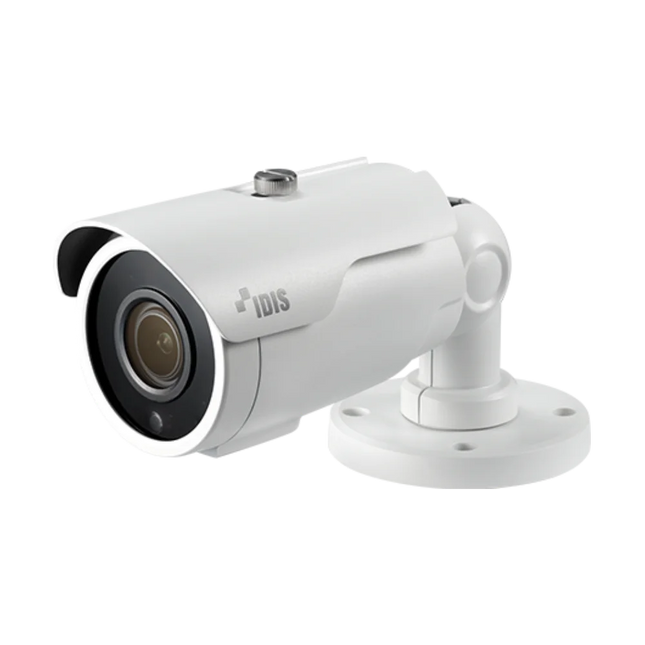

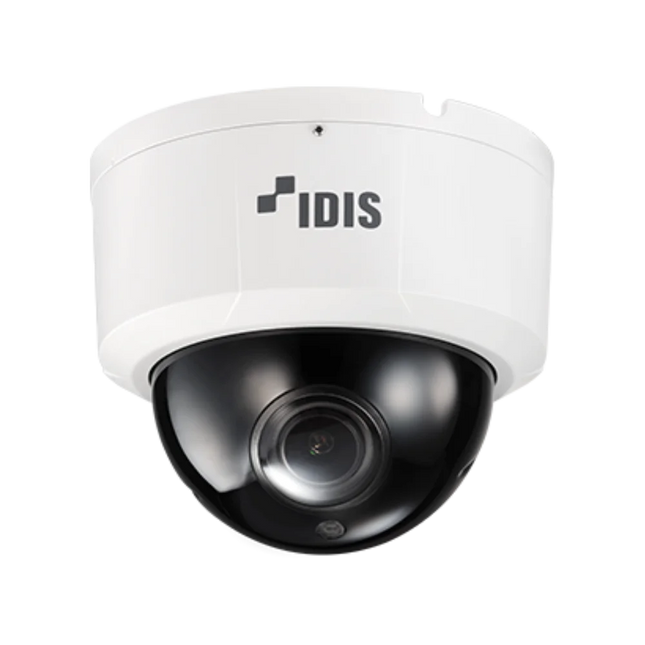

Stage 2 — Expand to 8 CamerasAdd 4 more IDIS cameras (any DirectIP model — DC-D2531WER-V2, DC-D2531WR-V2, DC-T2531WR-V2) to fill the remaining 4 built-in PoE ports. No extra switch needed.
Stage 3 — Full 16 ChannelsAdd an IDIS DH-2212PF 8-port Gigabit PoE+ switch and 8 more cameras. Uplink the switch to the NVR’s Gigabit “Ext” port. Now you’re running a full 16-channel system on a single NDAA-compliant Korean stack.
Optional AccessoriesAdd DA-JB2500 junction boxes for clean external installs, or DA-WM2500 wall mounts for exposed brick / concrete walls. All match the camera body finish.
Technical Specifications
Camera — IDIS DC-D2511WER-V2 · Qty: 4
| Image Sensor |
1/2.8" Sony IMX 335 Starvis CMOS |
| Resolution |
5MP · 2592 × 1944 |
| Lens |
2.8 mm fixed · Horizontal FOV ~107° |
| Frame Rate |
Up to 20 fps @ 5MP · 30 fps @ 4MP / 1080p |
| Night Vision |
Smart IR · Up to 20 m · True Day/Night ICR |
| WDR |
True WDR (120 dB) |
| Compression |
H.265 / H.264 · MJPEG |
| Audio |
Built-in microphone |
| Video Streams |
Triple stream |
| Power |
PoE 802.3af (Class 3) · Max 6.5 W |
| Protection |
IP67 · IK10 vandal-resistant |
| Operating Temp |
−30°C to +55°C |
| Dimensions |
Ø113 × 88 mm |
| Weight |
Approx. 310 g |
| Compliance |
NDAA Section 889 · TAA · CE · FCC · Made in Korea |
| Warranty |
IDIS Ultimate Warranty |
NVR — IDIS DR-2516P-A · Qty: 1
| Channels |
16 channels (DirectIP® + ONVIF) |
| Max Resolution |
4K UHD (3840 × 2160) |
| Recording Speed |
480 ips @ UHD · 960 ips @ 1080p |
| Throughput |
320 Mbps incoming |
| Compression |
H.265 / H.264 · MJPEG |
| Built-in PoE |
8 × PoE ports · 100 W total budget · IEEE 802.3at |
| HDD Bays |
2 × SATA (up to 16 TB each) + 1 × eSATA |
| Video Output |
1 × HDMI (4K) · 1 × VGA · Simultaneous |
| Network |
2 × RJ45 Gigabit (1 × Camera / 1 × Ext) |
| USB |
2 × USB 3.0 · 1 × USB 2.0 |
| AI Analytics |
IDLA AI · Business Intelligence · Face recognition ready |
| Remote Access |
IDIS Mobile app (iOS / Android) · FEN P2P · No port forwarding |
| Power |
100–240 V AC · Max 200 W |
| Operating Temp |
0°C to +40°C |
| Form Factor |
1U rack-mount · 430 × 310 × 55 mm |
| Compliance |
NDAA Section 889 · TAA · CE · FCC · Made in Korea |
| Warranty |
IDIS Ultimate Warranty |
Frequently Asked Questions
Does the kit include an HDD?
No — choose the HDD that suits your retention needs at checkout. Recommended: WD Purple or Seagate SkyHawk surveillance-grade drive. For 4 × 5 MP cameras at 30 days retention, a 4 TB drive is typically sufficient. Contact us for a precise calculation.
Does the kit include Cat6 cabling?
No — every site’s cable runs are different. Add your preferred Cat6 length or have your installer source it locally. We’re happy to recommend an Australian cabling partner.
Is professional installation included?
Not in the kit price — but CCTV Guru can recommend an Australian-licensed installer in your area. DIY-friendly customers can self-install in a few hours thanks to DirectIP® plug-and-play.
Is the bundle NDAA compliant?
Yes — both the cameras and the NVR are fully NDAA Section 889 and TAA compliant, suitable for government tenders.
Can I swap one of the cameras for a different model?
Yes — contact our Australian team before checkout. We can build custom variants of this kit with mixed camera models (e.g., 2 × turret + 2 × motorised varifocal).
Can I add junction boxes?
Yes — add 4 × DA-JB2500 junction boxes at checkout. We strongly recommend them for any external camera install for cleaner finishing and weather sealing.
How long does it take to install?
An experienced installer typically completes a 4-camera site in half a day. DirectIP® registration of all 4 cameras to the NVR takes under 5 minutes total.
Can I view it remotely?
Yes — IDIS Mobile app (iOS/Android) connects via free FEN P2P service. No port forwarding, no DDNS, no static IP required.
What’s the warranty?
Every item in the kit ships with the IDIS Ultimate Warranty, serviced locally by CCTV Guru’s Australian team.
Do you ship Australia-wide?
Yes — fast dispatch to every state and territory from Australian stock.
Order Your IDIS 4-Camera CCTV Kit from CCTV Guru
CCTV Guru is an authorised Australian distributor of IDIS surveillance products. Order the IDIS 4-Camera 5 MP CCTV Kit with 16-Channel 4K NVR today for fast Australia-wide dispatch, expert pre-sales advice on HDD sizing and cabling, project pricing for multi-site rollouts, and full local warranty support. Contact our Australian team to add junction boxes, extra cameras, an HDD or our recommended DH-2212PF PoE expansion switch.
