Hikvision DS-2CD6D42G2-IS Dual-Sensor Dual-Directional 8MP (2x 4MP) PanoVu Network Camera

Description

Hikvision PanoVu Series · Multi-Sensor IP Hikvision 8MP Multi-Sensor

Dual-Directional Multi-Angle Coverage with AcuSense AI & DarkFighter Tech

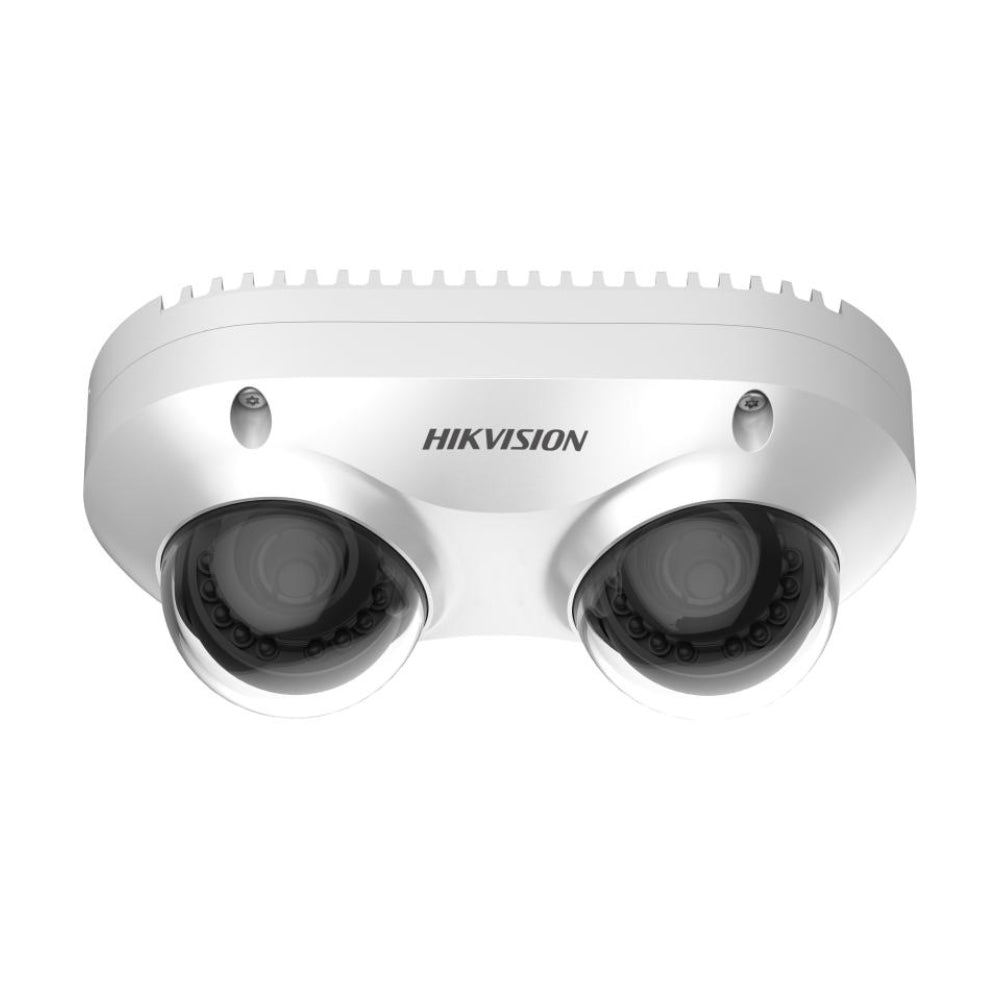

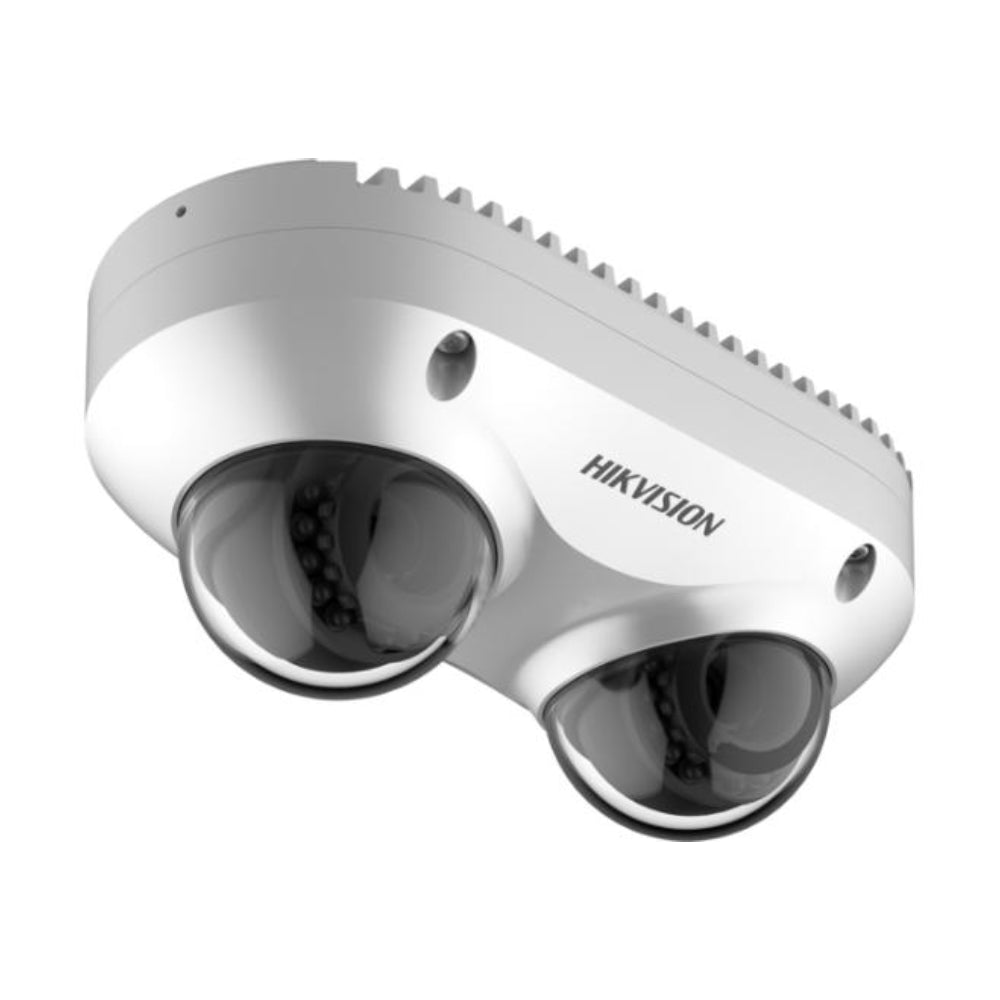

The Hikvision DS-2CD6D42G2-I/S is a high-performance dual-sensor multi-lens PanoVu network camera designed to cover two distinct angles simultaneously using a single IP address and network drop. Equipped with two independently adjustable 4 MP lens modules (offering a total resolution of 8 MP), it is ideal for monitoring hallway intersections, retail aisles, building corners, long perimeters, and parking structures. Powered by Hikvision's AcuSense deep learning analytics and DarkFighter low-light technology, it delivers precise human/vehicle classification and clear imaging in low-light environments while cutting infrastructure installation costs in half.

Resolution / Sensors
8MP Total (2x 4MP @ 30fps)
Optics & Flexibility
Dual 2.8mm or 4mm Lenses
Illumination / AI
30m IR / AcuSense Deep Learning
Protection Rating
IP67 Weather / IK10 Vandal

Flexible Positioning, Audio/Alarm Interfaces & 120 dB True WDR

The Hikvision DS-2CD6D42G2-I/S allows security installers to rotate and adjust each camera track independently along a 3-axis gimbal, making it easy to fine-tune coverage across challenging architectural layouts. Built-in 120 dB True WDR balances high-contrast scene lighting, while integrated Audio and Alarm I/O interfaces ("/S" model) enable seamless integration with external microphones, speakers, and security sensors. With support for micro-SD edge storage up to 256 GB and efficient H.265+ compression, it lowers both bandwidth overhead and storage consumption.

AcuSense Deep Learning Target Analytics

Uses AI algorithms on both channels to distinguish humans and vehicles from non-threatening motion like leaves, animals, or shadows, significantly reducing nuisance false alarms.

Dual-Directional Single Channel Economy

Replaces two separate physical cameras with a single housing, saving money on VMS license costs, network drops, PoE switch ports, and installation labor.

Technical Specification Matrix
Camera Model DS-2CD6D42G2-I/S
Image Sensor 2 × 1/2.7" Progressive Scan CMOS
Max. Resolution 2560 × 1440 per channel (8 MP Total / 2x 4 MP) @ 30 fps
Lens Options Dual 2.8 mm or 4 mm fixed focal length options
Low Light Sensitivity Colour: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR (DarkFighter)
Infrared Illumination Independent IR LEDs up to 30 m for each channel
Wide Dynamic Range 120 dB True WDR
Audio & Alarm Interfaces (/S) 1-ch Audio In / 1-ch Audio Out, 1-ch Alarm In / 1-ch Alarm Out
Local Edge Storage Built-in MicroSD/SDHC/SDXC slot, up to 256 GB
Protection Ratings IP67 Weatherproof / IK10 Vandal-Resistant / PoE+ (802.3at)
What is the benefit of a dual-directional multi-sensor camera?

It allows two completely independent directions (such as down two hallways or both sides of a building corner) to be monitored at the same time using only one network cable, one PoE port, and one mounting bracket.

What does the "/S" suffix indicate on this model?

The "/S" suffix indicates the inclusion of dedicated Audio and Alarm Interface ports (Audio I/O and Alarm I/O) for connecting external mics, speakers, or external sensor triggers.

How do AcuSense AI analytics function on dual sensors?

Both sensor channels run independent AcuSense deep learning algorithms to filter out non-human and non-vehicle movements, ensuring precise intruder detection across both camera views.

Can the two lenses be aimed independently?

Yes, each 4 MP camera head can be manually panned, tilted, and rotated along its internal track to achieve custom viewing angles.

Technical Datasheet
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery

Hikvision DS-2CD6D42G2-IS Dual-Sensor Dual-Directional 8MP (2x 4MP) PanoVu Network Camera

Product form

SKU: DS-2CD6D42G2-IS

$899.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
