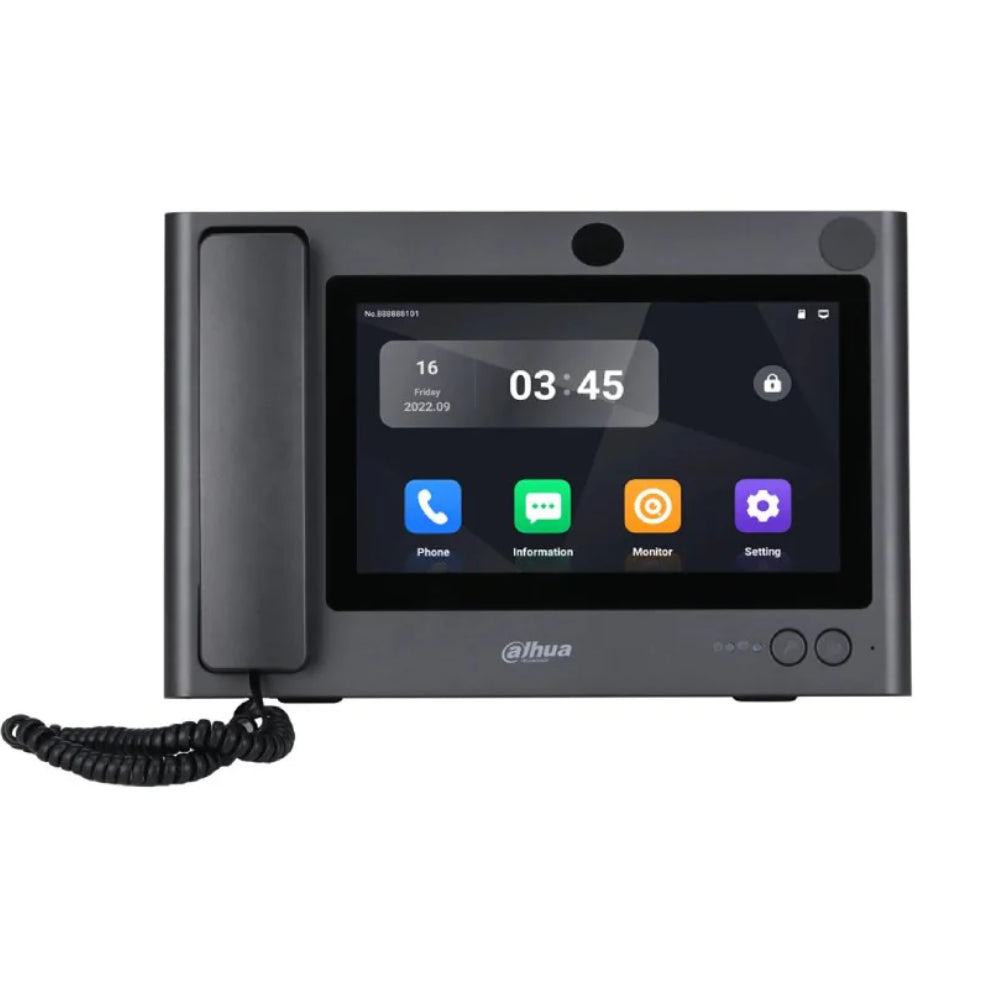

Dahua · DHI-VTS5A40B · 10" Android Master Station · HDMI OutMaster StationDahua DHI-VTS5A40B 10" Android Master Station
The Dahua DHI-VTS5A40B is a 10-inch Android 11 master station built to be the management hub of a building intercom system. A large glass touchscreen, both speakerphone and handset operation, and HDMI output give a concierge or security desk full control over door stations and indoor monitors across a residential or commercial site. With a desk-mount bracket adjustable from 0–45 degrees and micro SD storage up to 512 GB, it is a serious, comfortable control point.
Building management hub
Acts as the central concierge or security-desk station, managing calls and alarms across door stations and indoor monitors throughout the site.
Handset and speakerphone
Take calls hands-free over the speakerphone or pick up the included handset for private conversations with visitors and residents.
HDMI output
Mirror the interface to an external display at up to 1024×600 for a larger-screen monitoring view at the desk.
Comfortable desk mount
The adjustable bracket tilts from 0 to 45 degrees so operators can set an ergonomic viewing angle for long shifts.
Specifications — DHI-VTS5A40B
| Screen |
10" glass touchscreen |
| Resolution |
1024 × 600 |
| Colour |
Titanium Grey |
| Operating System |
Android 11 |
| Audio |
Speakerphone and handset |
| Video Output |
HDMI, up to 1024 × 600 |
| Storage |
Micro SD, max 512 GB |
| Mounting |
Desk mount, bracket adjustable 0–45° |
| Application |
Residential and commercial intercom management |
| Power Supply |
12V DC, 4A |
| Warranty |
3 years · CCTV Guru Australia |
Downloads
What is a master station used for?
A master station is the central control point in a building intercom system. Concierge or security staff use it to answer calls from door stations and manage indoor monitors across the property.
Does it have a handset?
Yes. The VTS5A40B supports both speakerphone and a handset for private conversations.
Can I connect an external display?
Yes. It offers HDMI output at up to 1024×600 resolution.
How much storage does it take?
It accepts a micro SD card up to 512 GB.
