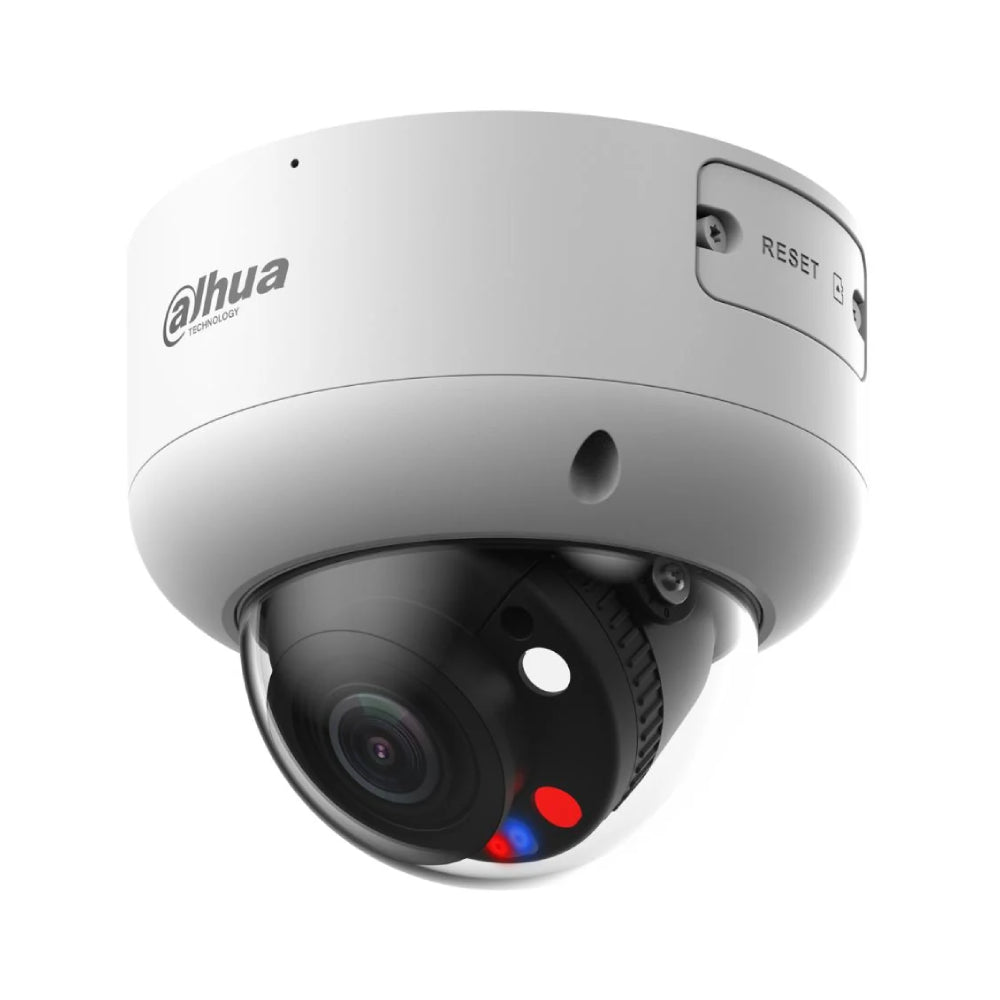

Dahua · IP Security Cameras6MP TiOC Motorised Dual-Light Dome Camera
DH-IPC-HDBW3649R1-ZAS-PV-ANZ-S2 — Combine detailed 6MP recording with active deterrence in one compact dome. The motorised 2.7–13.5 mm lens helps installers match the view to the site, while Smart Dual Light, red/blue warning lights and a speaker provide more options than passive infrared surveillance alone.
Key features
6MP motorised view
Frame an entrance or approach accurately without swapping the lens.
Smart Dual Light
Switch between infrared and warm illumination according to the configured lighting mode.
Active deterrence
Use visible red/blue warnings and a speaker with carefully configured event rules.
Smarter event review
Human/vehicle filtering and supported AcuPick workflows help narrow the footage to review.
Applications & installation
Suited to entrances, shopfronts and controlled access areas where audio and visible warnings are useful. Set detection zones and deterrence schedules during commissioning, then check the actual night image at the intended target distance. AcuPick requires compatible supporting equipment and configuration.
Technical Specifications
| Model |
DH-IPC-HDBW3649R1-ZAS-PV-ANZ-S2 |
| Sensor |
1/2.7-inch CMOS |
| Maximum resolution |
3072 × 2048, 6MP at 25/30 fps |
| Lens |
2.7–13.5 mm motorised, F1.0 |
| Horizontal view |
104° to 33° |
| Illumination |
IR up to 50 m; warm light up to 40 m |
| Wide dynamic range |
120 dB |
| Analytics |
SMD 4.0, AcuPick, human/vehicle tripwire and intrusion |
| Active deterrence |
Red/blue lights and audible warning |
| Audio |
Dual built-in microphones and speaker, two-way audio |
| Edge storage |
microSD up to 512 GB, card optional |
| Power |
12 V DC or IEEE 802.3af PoE |
| Maximum PoE consumption |
10.3 W |
| Protection |
IP67 and IK10 |
| Dimensions and weight |
105 × Ø126 mm, 0.73 kg |
| Warranty |
36 months — subject to warranty terms |
Compatible options & add-ons
Optional items are sold separately. Select the components needed for your installation; mounting parts may need to be used together.
Frequently asked questions
What size microSD card can I use?
The current datasheet specifies up to 512 GB. The optional 128 GB and 256 GB surveillance cards are within that limit; format and test the card in the camera.
Are the 50 m IR and 40 m warm-light figures identification distances?
No. They are illumination ratings. Recognisable detail depends on lens setting, exposure, subject size, motion and the scene.

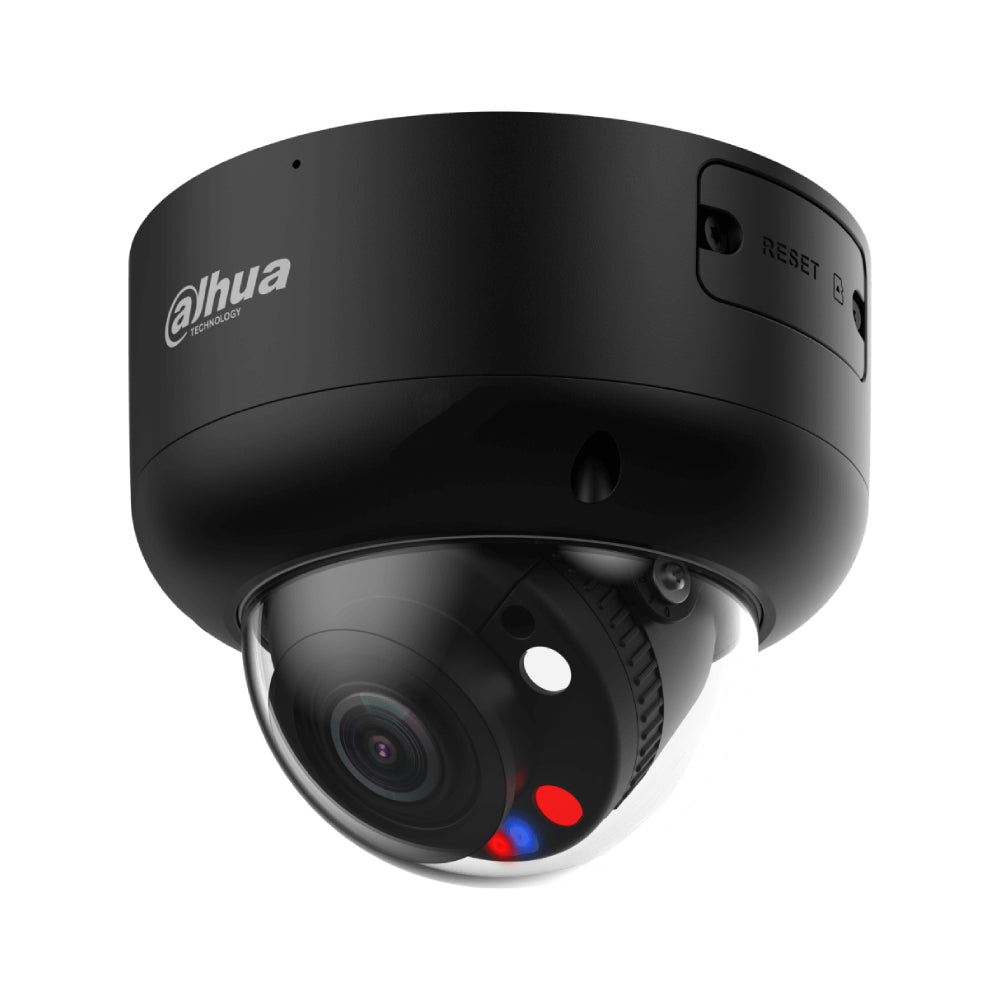

Is black available?
A black model exists, but availability is shown by the colour selector. A sold-out black option cannot be ordered until stock is confirmed.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
