Bosch CM751B — Solution 6000 IP Ethernet Communication Module

Description

Genuine Bosch · Solution 6000 IP Module · Remote AccessBosch CM751B

CM751B Solution 6000 IP Ethernet Module — Australian Stock & 3-Year Warranty

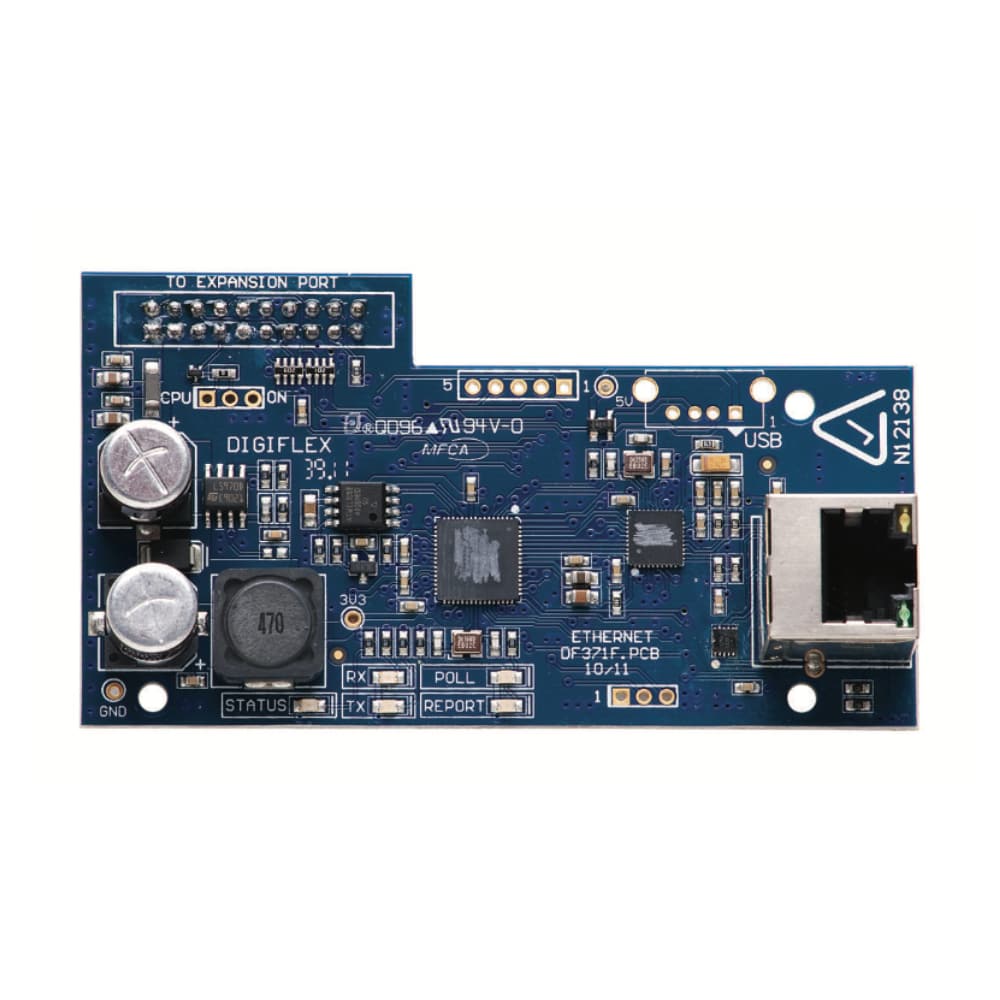

The Bosch CM751B is an IP Ethernet communication module that connects your Solution 6000 control panel to your network for app control, remote programming and secure IP alarm monitoring. It suits both the CC610PB dialler and CC615PB IP panels, replacing costly PSTN line dialling with LAN/WAN communication and 128-bit AES encryption. Installers gain full remote upload/download and the ability to operate outputs and areas over the internet, using Conettix and CSV-IP reporting formats. Backed by our 3-year Australian warranty and local tech support.

Network
10/100 RJ45
Encryption
128-bit AES
Reporting
Conettix / CSV-IP
Power
From panel bus

No Phone Line Costs

Uses your existing IP network instead of PSTN dialling, cutting ongoing communication costs.

Secure Communication

128-bit AES encryption protects alarm transmission and remote access to your Solution 6000.

Remote Programming

Configure, monitor and control the system over LAN, WAN or internet with remote upload/download.

App-Ready Upgrade

Adds mobile app connectivity so you can arm, disarm and check status from your phone.

Technical Specifications
Model / SKU Bosch CM751B
Type IP Ethernet communication module
Network RJ45 Ethernet (10/100 Base-T)
Protocols TCP/IP, UDP, DHCP, SNMP, SMTP
Encryption 128-bit AES
Reporting Formats Conettix IP, CSV-IP
Operating Temp 0°C to 55°C
Power Supplied by panel
Compatible Panels Solution 6000 (CC610PB, CC615PB)
Warranty 3 Years (Australia)

Downloads

CM751B DatasheetBosch IP Module Quick Start GuideBosch IP Module User Manual

Frequently Asked Questions

Which panels is the CM751B for?
It is designed for the Bosch Solution 6000 range, working with both the CC610PB dialler panel and the CC615PB IP panel.
How does it connect to the network?
Via a standard RJ45 Ethernet cable to your router or switch, using either DHCP (dynamic) or a static IP address.
Can I program the panel remotely?
Yes. The CM751B supports remote upload/download and lets you operate outputs and alarm areas over LAN, WAN or the internet.
How is alarm data secured?
Communication is protected with 128-bit AES encryption using Conettix IP or CSV-IP reporting formats.
Does it need its own power supply?
No. The module is powered directly from the Solution 6000 panel, connected to its expansion port.
What's in the box?
The CM751B module PCB. An Ethernet cable and enclosure are supplied separately.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
