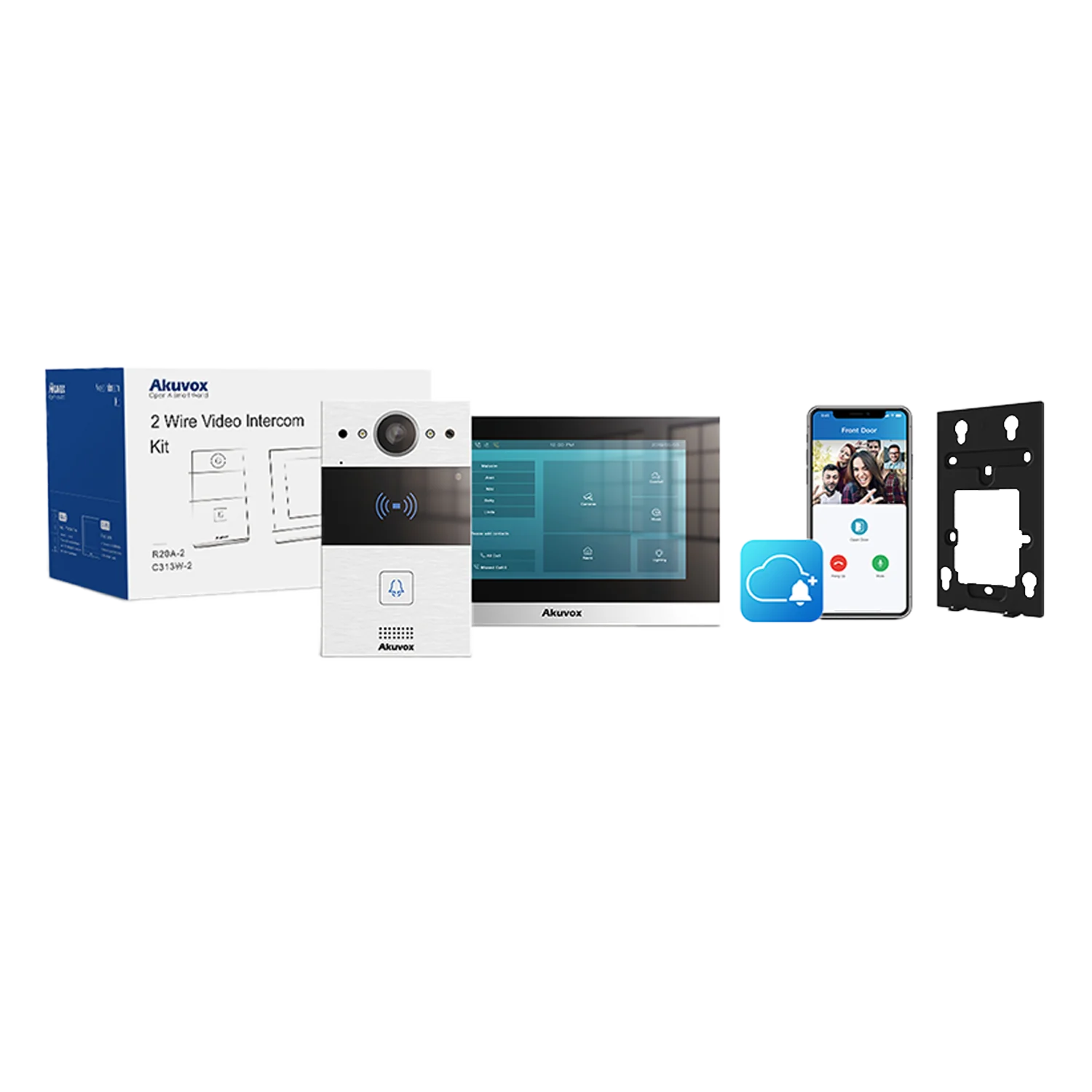

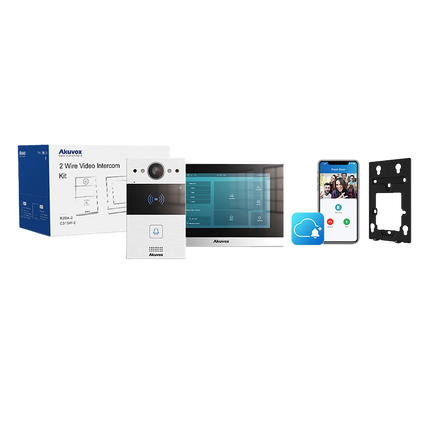

Akuvox 2-Wire Intercom Kit R20A-2/C313W-2
The Akuvox R20A-2/C313W-2 kit combines a dedicated two-wire IP door station and a 7-inch indoor monitor. It is intended for compatible retrofit installations after checking the cable and supplied hardware revision. Confirm the included power supply and SmartPlus service entitlement for the supplied kit before installation.
Wiring: Akuvox 2-Wire IP
R20A-2/C313W-2 uses Akuvox’s dedicated two-wire IP platform. The two conductors carry the platform’s power and network connection; this is not ordinary Ethernet PoE or a four-wire analogue system. Match the exact device revision and approved Akuvox monitor/controller. Published revisions have different supply requirements, so use the rating on the supplied unit and its applicable manual rather than substituting a generic 12 V supply.
Existing cable can be reused only after checking conductor size, cable condition, distance, polarity where applicable and the manufacturer’s wiring diagram. Matching the wire count alone does not establish compatibility. Locks, gate controls and their power requirements must be checked separately.
Features
1 x 2-Wire Villa Door Station R20A-2 & On-wall Bracket
- Check the exact hardware revision for housing and lock-relay specifications before selecting installation accessories.
- Camera: 2M pixels, automatic lighting, Viewing angle: 110(H) / 58(V)
- RF Card Reader 13.56MHZ&125KHZ Card reader
- Check the exact hardware revision for housing and lock-relay specifications before selecting installation accessories.
- Water-proof & Dust-proof: IP65
- Installation: Surface Mount model
- Powered by Akuvox NS-2 or C313W-2
- Two-way audio communication over IP networks with Echo Cancel
- Support connecting with C313W-2 or NS-2 through 2-wire cable
1 x 2-Wire Indoor Monitor C313W-2
- 7'' capacitive touch screen with energy-saving mode
- Reception of an HD picture from the door communicator
- Two-way communication based on SIP v2.0 protocol
- Powered by Akuvox NS-2 or external source
- Supports US or European electrical wall box mounting
- Support connecting with R20A-2 or NS-2 through 2-wire cable
4 Free Smartplus Accounts
- Smart Cloud-based Intercom App
- Remote Live Viewing
- Remote door unlocking
- Receive instant remote calls on the mobile App
- Available on both Android and IOS
Download
Akuvox R20A-2 Datasheet V2.0
Akuvox R20A-2 Quick Guide_TZ-SM-002286_V1.1
Akuvox C313W-2 Datasheet_190917_V2.0
Akuvox C313 Series Indoor Monitor User Manual V3
Akuvox Kit Setup Quick Guide
Technical specifications
| Wiring platform |
Akuvox 2-Wire IP |
| Power requirements |
Matched Akuvox two-wire system or the exact revision-approved supply; verify unit label |
Frequently asked questions
Which wiring system does this product use?R20A-2/C313W-2 uses Akuvox’s dedicated two-wire IP platform. The two conductors carry the platform’s power and network connection; this is not ordinary Ethernet PoE or a four-wire analogue system. Match the exact device revision and approved Akuvox monitor/controller. Published revisions have different supply requirements, so use the rating on the supplied unit and its applicable manual rather than substituting a generic 12 V supply.
Can I reuse my existing intercom cable?Existing cable can be reused only after checking conductor size, cable condition, distance, polarity where applicable and the manufacturer’s wiring diagram. Matching the wire count alone does not establish compatibility. Locks, gate controls and their power requirements must be checked separately.
