8Ware CAT6 Series · High-Speed Copper Network Infrastructure

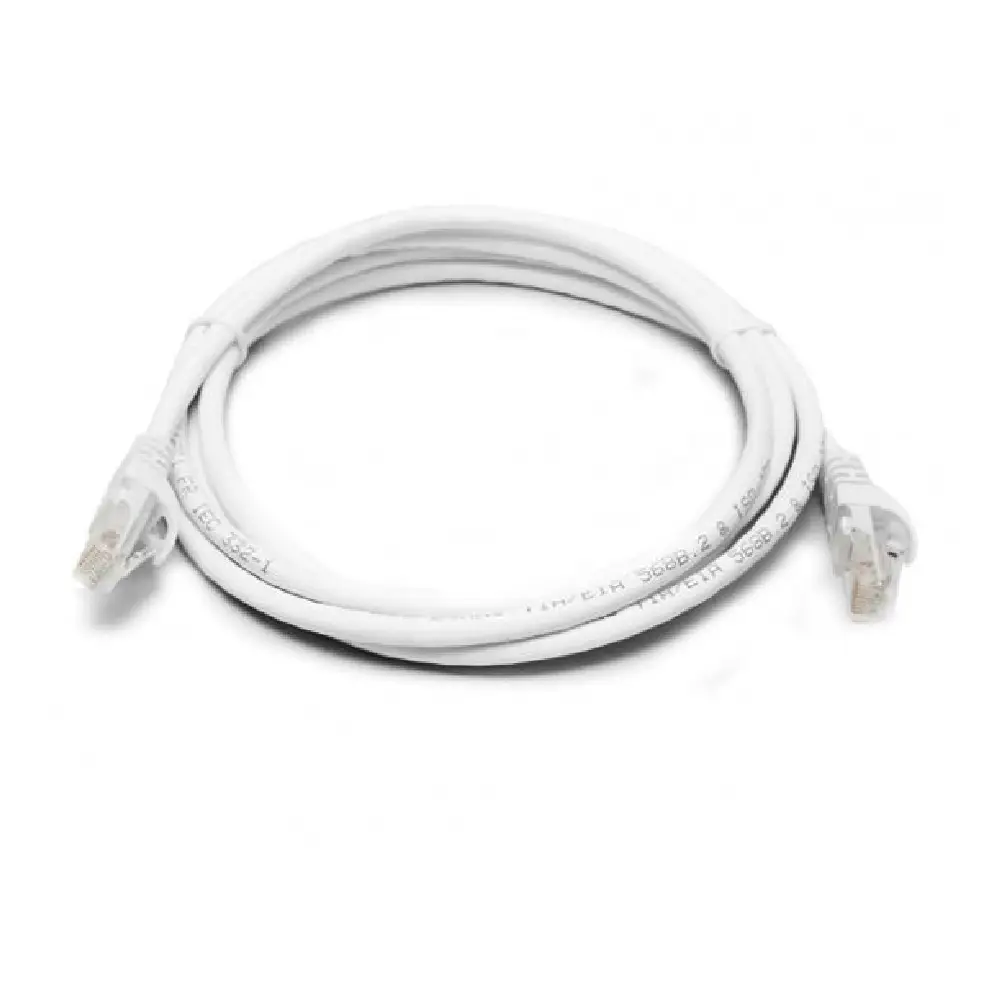

High-Performance Connectivity with the 8Ware 8W-PL6-2WH CAT6 Patch Cord
Engineered for seamless commercial and residential network deployments, the 8Ware 8W-PL6-2WH 2-meter CAT6 white patch cord delivers stable, high-bandwidth data transmission. Designed with robust 26AWG full-copper conductors and snagless RJ45 connectors, it ensures optimal signal integrity and interference reduction for high-density office environments, data centers, and modern smart-home setups.
Bandwidth Spec
CAT6 250MHz / 1Gbps
Cable Length
2 Metres White Cord
Conductor Material
26AWG Full Copper Core
Connector Type
RJ45 Snagless Plug
Advanced Transmission Protocols & Infrastructure Reliability
The 8Ware 8W-PL6-2WH utilizes a full copper core construction, avoiding inferior copper-clad aluminium (CCA) alternatives to comply fully with strict telecommunication standards. Supporting transfer speeds up to 1Gbps, it minimizes packet loss and cross-talk, making it the preferred choice for connecting switches, routers, IP surveillance systems, and high-performance workstations.
Pure Copper Conductor Integrity
Constructed with 26AWG stranded pure copper conductors to ensure maximum electrical conductivity, lower resistance, and absolute compliance with Australian safety regulations.
Snagless Modular Plug Design
Features protective molded boots over the RJ45 connectors that prevent locking clips from snapping off during tight pulls through patch panels or server racks.
Technical Specification Matrix
| Cable Model |
8W-PL6-2WH |
| Cable Type |
CAT6 UTP Unshielded Twisted Pair |
| Cable Length |
2 Metres |
| Conductor Gauge |
26AWG Stranded Copper (CU) |
| Jacket Material |
PVC White Outer Jacket |
| Connector Type |
RJ45 Male to Male (Gold Plated Contacts) |
| Bandwidth Support |
Up to 250 MHz / 1Gbps Ethernet |
| Compliance |
Standards Compliant Full Copper Build |
Does this cable use pure copper or CCA?
The 8W-PL6-2WH is manufactured using a 100% full copper core (CU), ensuring full adherence to safety guidelines and optimal performance compared to cheap CCA alternatives.
Is this patch cord suitable for Gigabit networks?
Yes, it is fully rated for CAT6 specifications supporting 10/100/1000Mbps (1Gbps) network speeds and bandwidth requirements up to 250MHz.
What does the snagless boot protect against?
The molded snagless boot covers the plastic clip on the RJ45 connector, stopping it from catching on adjacent cables or routing equipment during installation and removal.
Can this be used for PoE (Power over Ethernet) applications?
Yes, the pure copper wire gauge safely supports Power over Ethernet protocols for compatible IP cameras, VoIP phones, and wireless access points.
12-Month Commercial Warranty
