VIVOTEK · Wall Mount
VIVOTEK Wall Mount
VIVOTEK AM-218_V02 Wall Mount Bracket — Aluminium Alloy for Dome & Multi-Sensor Cameras
AM-218_V02 Wall Mount Bracket — Australian Stock & 3-Year Warranty

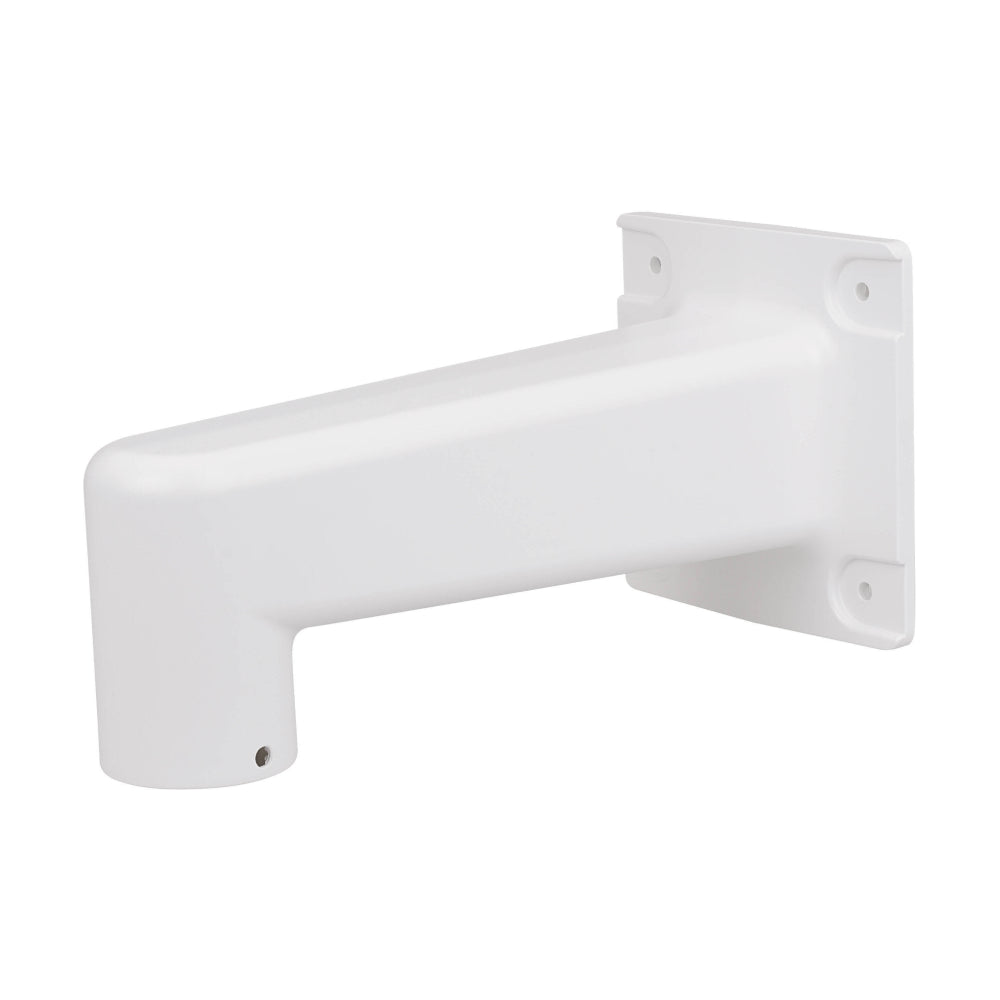

The VIVOTEK AM-218_V02 is a modular wall mount bracket built from durable aluminium alloy in a white finish, designed to carry VIVOTEK dome, fixed-dome and multi-sensor cameras off a wall. Its NPT 1-1/2" pipe thread pairs cleanly with VIVOTEK adapters such as the AM-52E, AM-525 and AM-528, and it works alongside the AM-719 junction box for tidy cable management. Measuring 231 (L) x 117 (W) x 117 (H) mm and weighing 0.7 kg, it stays solid under load while keeping a slim profile, and it can be combined with the AM-312 pole adapter for pole installs. Supplied with Australian stock and backed by our local 3-year warranty.
Technical Specifications
Wall Mount Bracket Specifications
| Type |
Wall Mount Bracket |
| Material |
Aluminium Alloy |
| Colour |
White |
| Pipe Thread |
NPT 1-1/2" |
| Dimensions |
231 (L) x 117 (W) x 117 (H) mm |
| Weight |
0.7 kg |
| Warranty |
3-Year Australian Warranty |
Frequently Asked Questions
What cameras does the AM-218_V02 mount?
It is a modular wall mount for VIVOTEK dome, fixed-dome and multi-sensor cameras, holding them off a wall for the coverage angle you need.
What pipe thread does it use?
It uses an NPT 1-1/2" thread that pairs with VIVOTEK adapters such as the AM-52E, AM-525 and AM-528.
Can it be used on a pole?
Yes. Combine it with the AM-312 pole adapter for pole installs, and pair with the AM-719 junction box for neat cabling.
Is it covered by warranty in Australia?
Yes. It ships from Australian stock and is backed by a 3-Year Australian Warranty with local tech support.
