Description

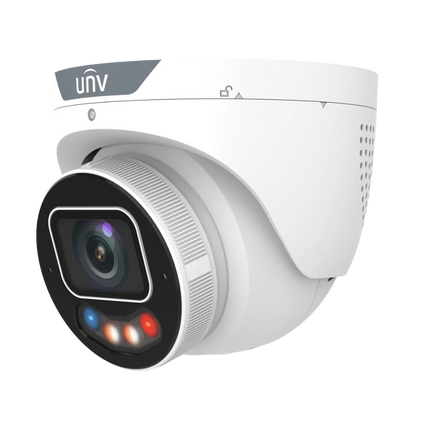

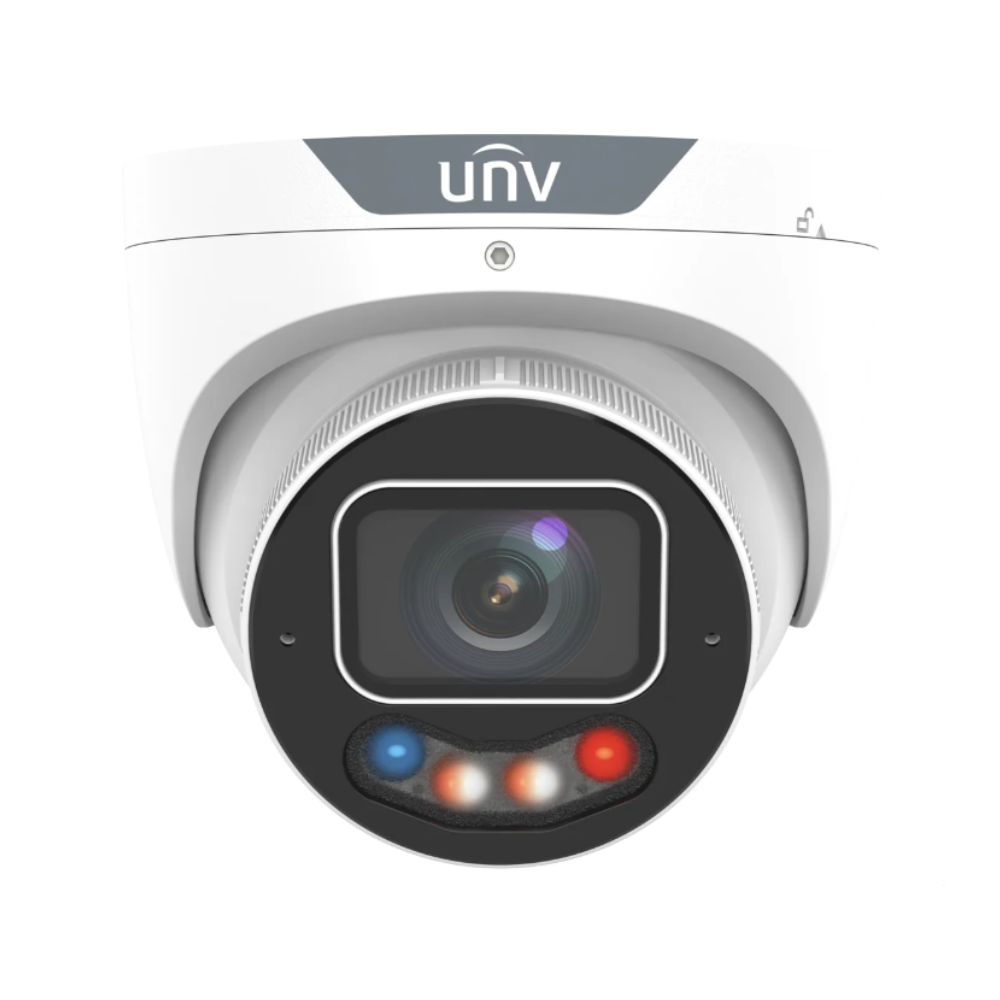

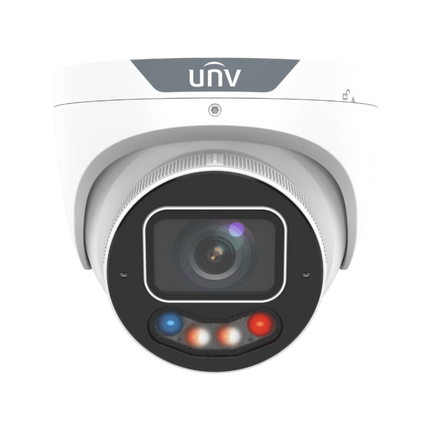

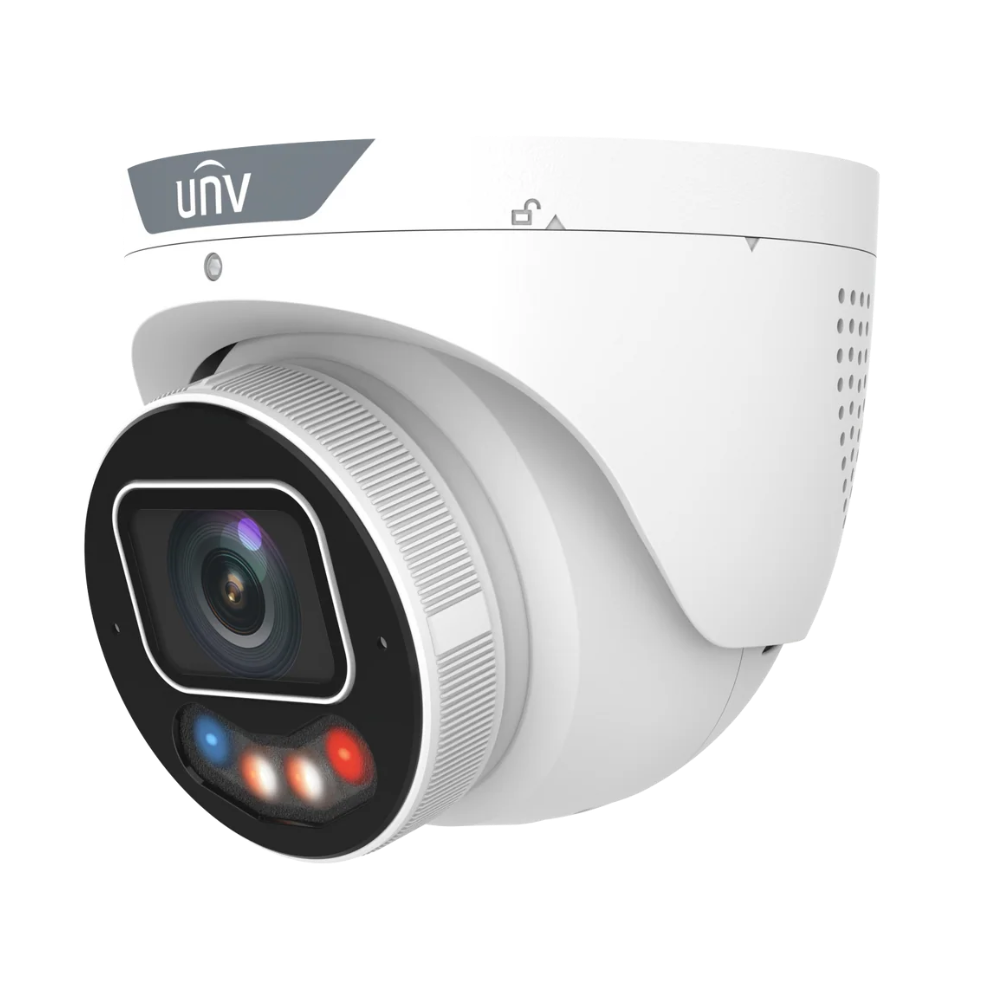

The Uniview UNV IPC3636SE-ADZKMC-WP-I1 is a professional-grade 6MP Tri-Guard turret network cameradesigned for high-risk and high-value surveillance environments. Powered by ColorHunter with Wise-ISP, it delivers 24/7 full-colour imaging, even in ultra-low-light scenes.
This model features a motorised 2.8–12 mm varifocal lens, dual-light illumination (IR + warm light), and advanced AI analytics, including people flow counting, crowd density monitoring, and intelligent perimeter protection with human and vehicle classification.
Key Features
- 6MP (3072 × 2048) resolution at up to 30fps
- 1/1.8” CMOS sensor with F1.2 large-aperture lens
-
ColorHunter + Wise-ISP for 24-hour full-colour images
-
Motorised varifocal lens: 2.8–12 mm
-
Tri-Guard dual-light system (IR + warm white light, up to 30 m)
- 130 dB True WDR for strong backlight scenes
- Intelligent perimeter protection with human / vehicle classification
-
People flow counting & crowd density monitoring
-
Built-in dual microphone and speaker (two-way audio)
- Alarm I/O 1/1, Audio I/O 1/1
- microSD support up to 512 GB
-
IK10 vandal-resistant, IP67, NEMA 4X rated
- Ultra 265 / H.265 / H.264 / MJPEG compression
- ONVIF Profile S / G / T / M support
- NDAA compliant
Technical Specifications
| Model |
IPC3636SE-ADZKMC-WP-I1 |
| Resolution |
6MP (3072 × 2048) |
| Image Sensor |
1/1.8" CMOS |
| Minimum Illumination |
0.0005 Lux (F1.2, AGC ON) |
| Lens |
Motorised varifocal 2.8–12 mm, F1.2 |
| Field of View (H) |
113.5° – 54.6° |
| WDR |
130 dB True WDR |
| Illumination |
Dual-light (IR + Warm Light) |
| Light Distance |
IR: 30 m / Warm Light: 30 m |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| AI Functions |
Perimeter protection, people counting, crowd density |
| Audio |
Built-in mic & speaker, 2-way audio |
| Alarm I/O |
1 In / 1 Out |
| Edge Storage |
microSD up to 512 GB |
| Network |
RJ45 10/100 Mbps Ethernet |
| Power |
DC 12 V ±25% / PoE (802.3af) |
| Power Consumption |
Max. 5 W |
| Protection Rating |
IP67, IK10, NEMA 4X |
| Material |
Metal |
| Operating Temperature |
-40 °C to +60 °C |
| Dimensions |
Ø129 × 110 mm |
| Weight |
0.85 kg |
| Compliance |
NDAA Compliant |
IDEAL APPLICATIONS
- Retail analytics & people counting
- Shopping centres & supermarkets
- Warehouses & logistics hubs
- Schools, campuses & hospitals
- Commercial car parks & perimeters
- NDAA-compliant government projects
