Prime-I Series | 180° OmniView

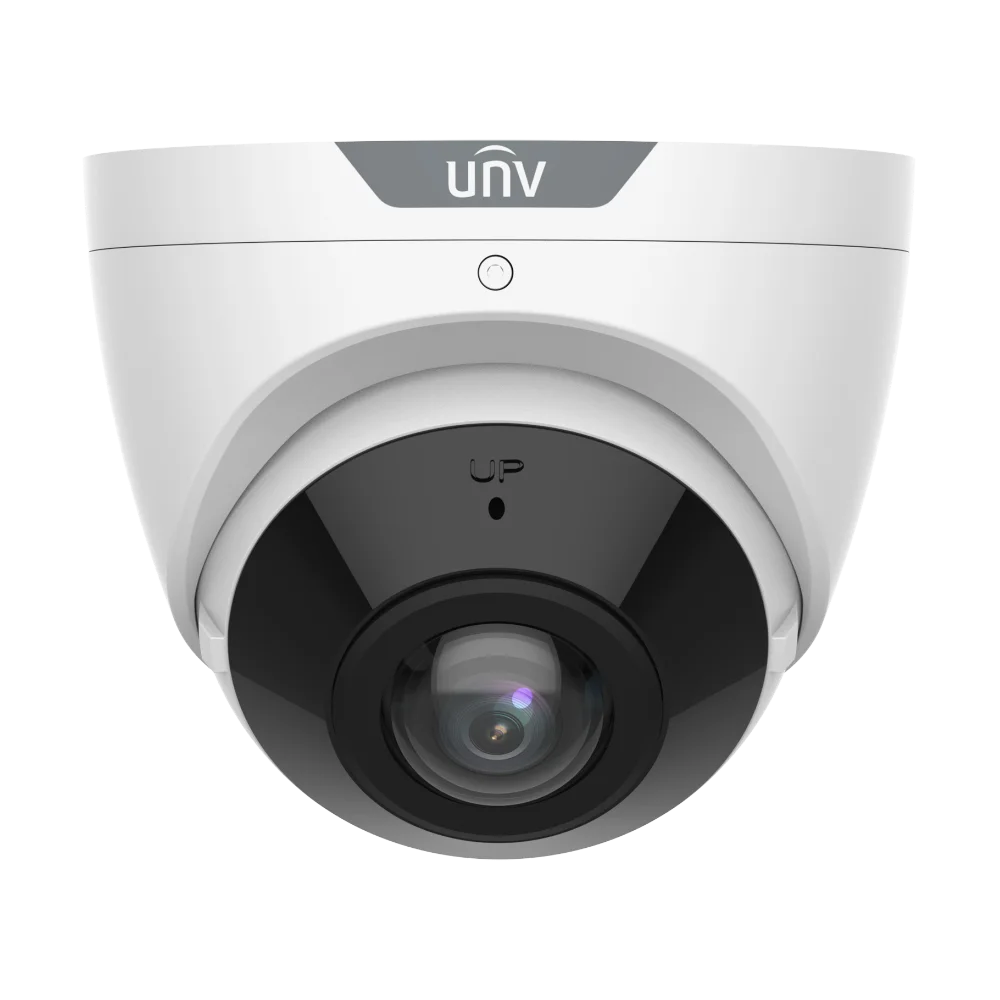

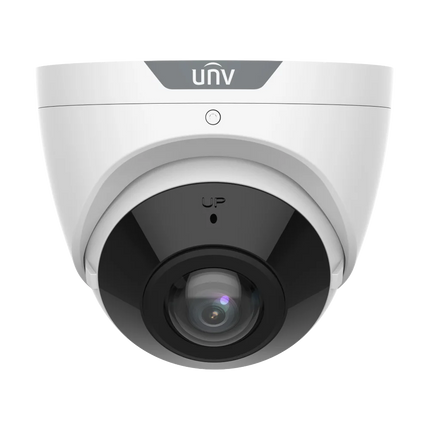

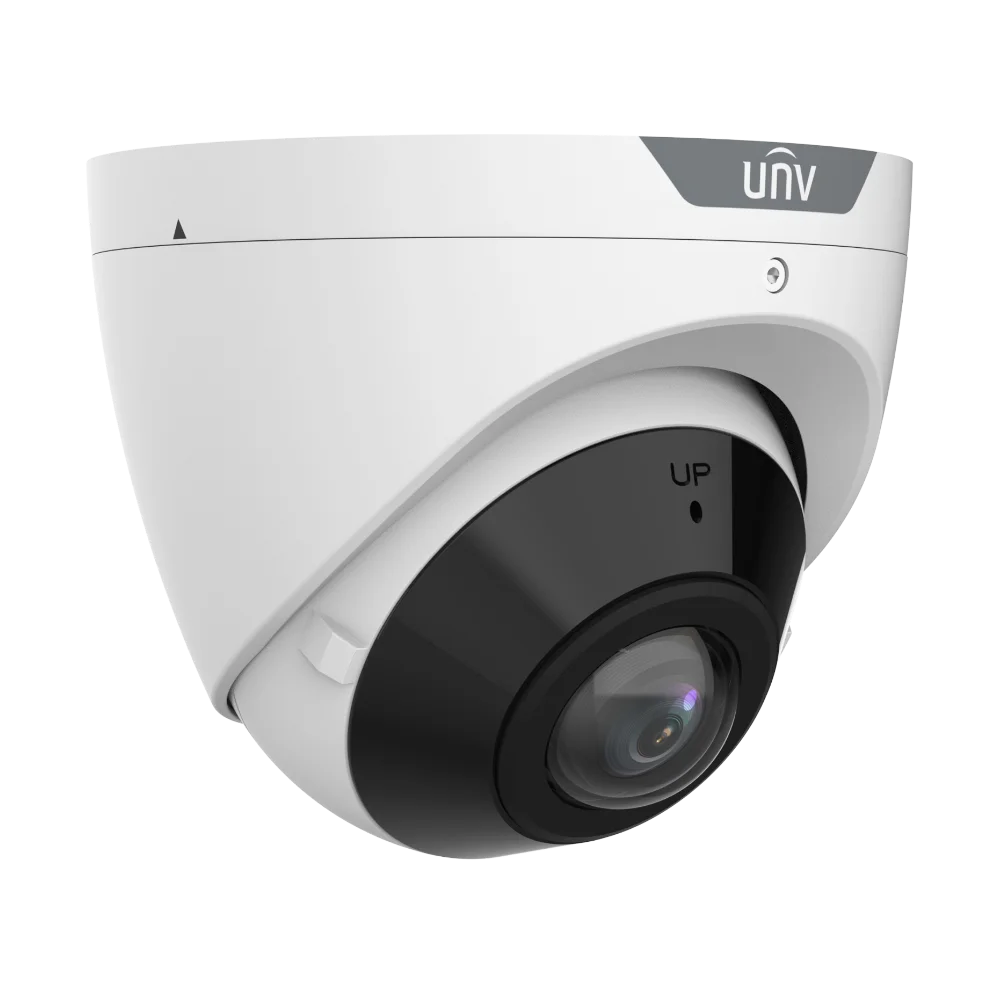

UNV 8MP Intelligent OmniView 180° Fixed IR Dome Camera
The UNV IPC3608SB-ADF16KM-I0 is an ultra-wide surveillance powerhouse that delivers a seamless 180° horizontal field of view. Built with 8MP 4K resolution, it eliminates blind spots by covering massive areas with a single lens. Featuring Smart Intrusion Prevention (SIP) and IK10 vandal resistance, it is the ultimate solution for monitoring car parks, building facades, and wide-open retail spaces.
Field of View
180° Panoramic
DORI Distance Guide
| Performance Detail |
1.68mm Ultra-Wide Lens (180°) |
|
Detect (Identify Movement) |
37.8m (124.0ft) |
|
Observe (Clothing/Type) |
15.1m (49.6ft) |
|
Recognize (Known Face) |
7.6m (24.9ft) |
|
Identify (Proof/Evidence) |
3.8m (12.5ft) |
*Note: 180° lenses prioritize massive area coverage over long-distance identification.
Full Technical Specifications
| Sensor & Resolution |
1/2.7" 8MP CMOS (3840 x 2160) @ 30fps |
| Field of View |
Horizontal: 180° | Vertical: 100° |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Wide Dynamic Range |
120dB True WDR |
| Minimum Illumination |
0.01 Lux (F2.0, AGC ON) | 0 Lux with IR |
| Smart IR Distance |
Up to 20m (66ft) Night Vision |
| Audio Features |
Built-in Microphone for audio recording |
| Intelligent SIP |
Line Crossing, Intrusion (Human & Vehicle Filter) |
| Local Storage |
Micro SD Slot, up to 512 GB |
| Environmental |
IP67 Weatherproof | IK10 Vandal-Resistant |
| Power Options |
DC 12V±25% or PoE (IEEE 802.3af) |
Frequently Asked Questions
Does the 180° view look distorted?
This model uses advanced 1.68mm panoramic optics to provide a natural wide-view. While there is a slight "fisheye" effect at the edges, the dewarping is built-in to ensure a flat, usable 180° perspective for security monitoring.
How many standard cameras does this replace?
Typically, one 180° OmniView camera can replace two standard 90° cameras. This saves you money on cabling, NVR channel licensing, and installation time.
Where is the best place to mount it?
For maximum effect, mount this camera on flat walls or above wide entrances. It is designed to capture everything from far-left to far-right, making it perfect for monitoring the entire front of a building or a wide fence line.
Can I record audio with this camera?
Yes. The IPC3608SB-ADF16KM-I0 features a built-in high-sensitivity microphone, allowing you to capture environmental audio alongside your 4K video footage.
