Description

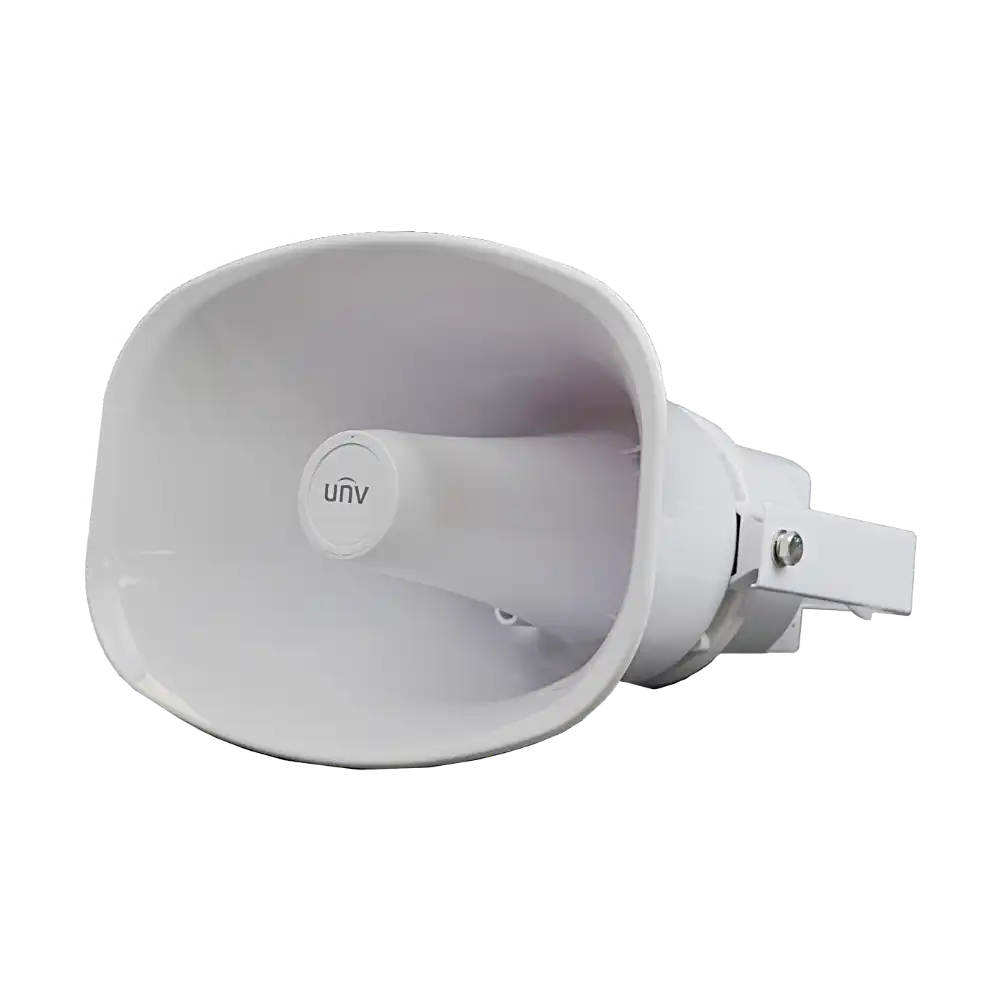

The Uniview UNV IPS302030-S is a 30 W outdoor IP horn speaker designed to complement Uniview UNV CCTV and NVR systems. It delivers high-power audio with up to 130 dBSPL for long-range voice or alarm broadcast, and supports PoE power, two-way audio, and custom audio uploads. Fully network compatible via ONVIF and IP protocols, this horn speaker is ideal for sites requiring clear voice announcements, alarm triggers, and integrated audio control in wide outdoor areas.
Key Features
-
High-power 30 W horn speaker for outdoor voice & alarm audio
-
Max. acoustic pressure ~130 dBSPL delivers clear, long-range sound
-
PoE support (IEEE 802.3at) for simplified network power
-
Two-way audio support with built-in microphone
-
Custom audio uploads supported (MP3 / WAV)
- Compatible with Uniview UNV NVR alarm triggers and audio linkage
-
ONVIF & network protocol compatible (IPv4, HTTP, RTSP, etc.)
-
Weatherproof IP66 protection for outdoor use
Technical Specifications
| Brand / Model (SKU) |
Uniview UNV / IPS302030-S |
| Speaker Type |
Outdoor IP Horn Speaker |
| Rated Power |
30 W |
| Max Acoustic Pressure |
≈130 dBSPL |
| Frequency Response |
300 Hz – 12.5 kHz |
| Impedance |
8 Ω |
| Network Protocols |
IPv4, HTTP, HTTPS, DNS, TCP, UDP, DHCP, ONVIF |
| Audio Features |
Built-in mic, two-way audio, custom audio upload |
| Audio Formats |
MP3, WAV |
| Storage |
Internal 64 MB audio file storage |
| Power Supply |
PoE (IEEE 802.3at), DC 24 V / 12 V DC |
| Protection |
IP66 (weatherproof) |
| Operating Temp |
−30 °C to +55 °C |
