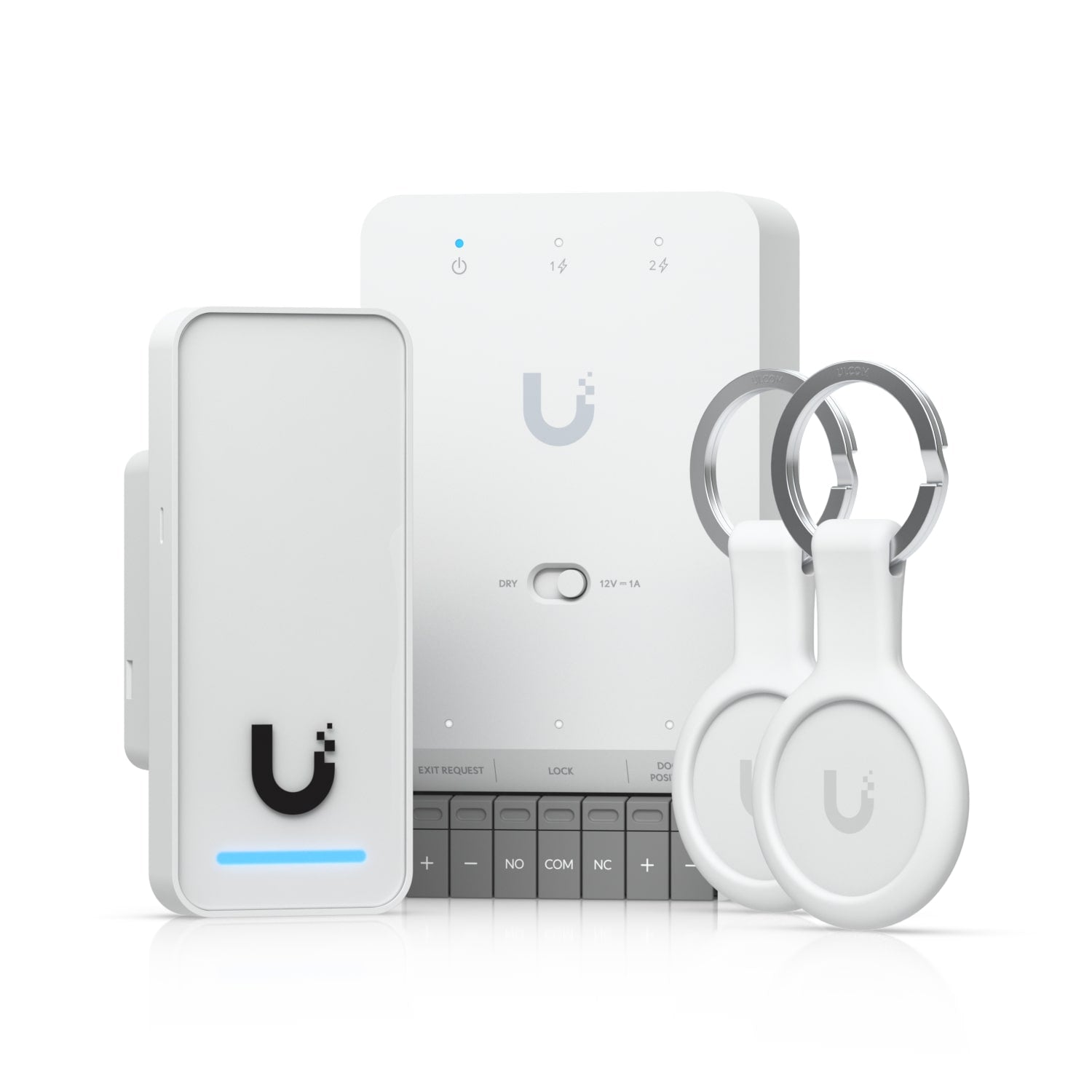

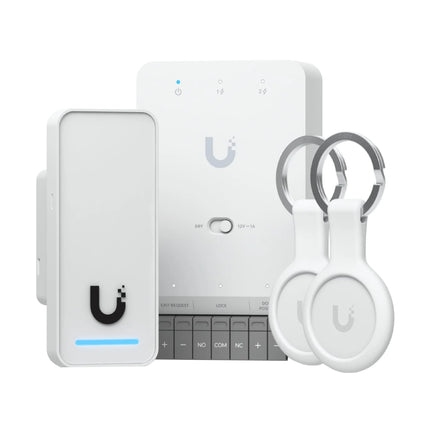

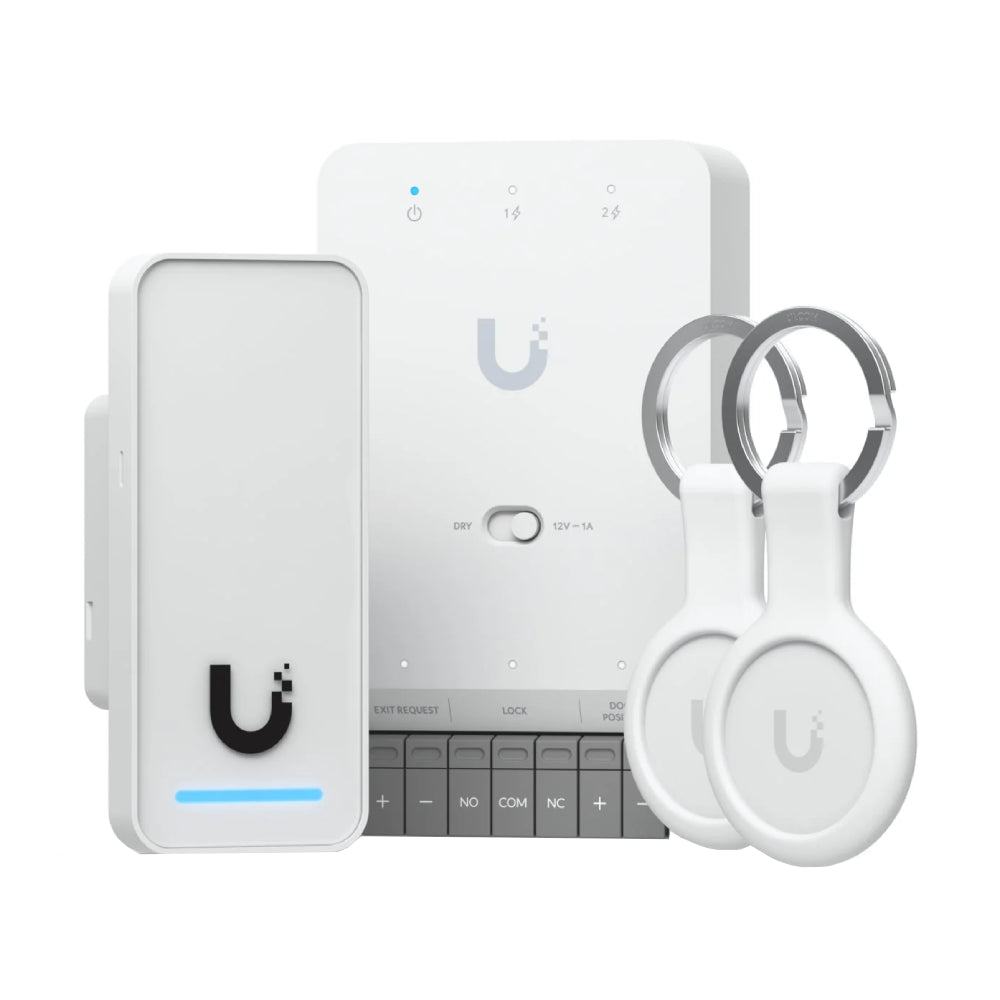

Everything for One Door
The kit ships with a Door Hub Mini controller, a G3 Reader, and two Pocket Keyfobs — a complete single-door solution out of the box. Just add an electric or magnetic lock to suit your door.
Contactless & Mobile Unlock
The G3 Reader supports NFC cards and keyfobs, Bluetooth mobile unlock, and Apple/Google Wallet credentials, plus a handwave request-to-exit gesture — flexible, modern entry for staff, tenants, and visitors.

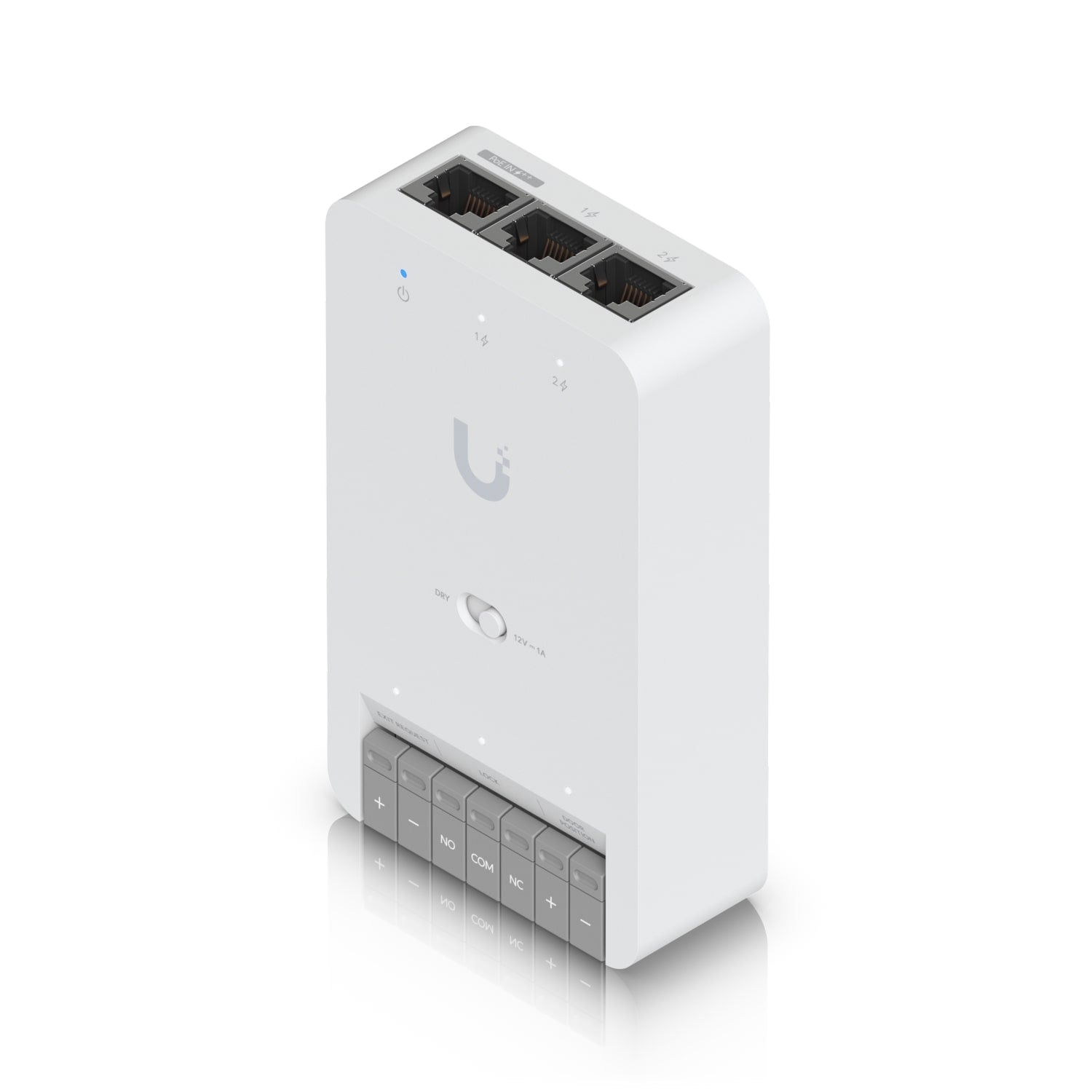

PoE++ Door Hub Mini
The Door Hub Mini draws a single PoE++ input (50V DC, 1A) and provides three GbE RJ45 ports plus two PoE outputs — no separate power supply or electrician required for the controller itself.
Scales to 3,000 Users
A single Door Hub Mini supports up to 3,000 users on one door, with dry and wet output relays and request-to-exit and door-position inputs for full lock integration.
Indoor & Outdoor Ready
The G3 Reader is rated IP55 for indoor and outdoor use across a −30°C to 45°C range, with a polycarbonate-and-glass face and aluminium-alloy mount that suit tough Australian door installations.
UniFi Access — No Subscription
Manage doors, users, and credentials through the UniFi Access app and web portal with no licence or subscription fees. The kit also includes 10 free 1-year Touch Passes to get started.
UL 294 Certified
Both the Door Hub Mini and G3 Reader carry UL 294 and CAN/ULC-60839-11-1 access-control certification, giving you compliance peace of mind for commercial and regulated installs.
NDAA Compliant
Fully NDAA Section 889 compliant for government, defence, and security-sensitive sites where supply-chain integrity is a requirement.

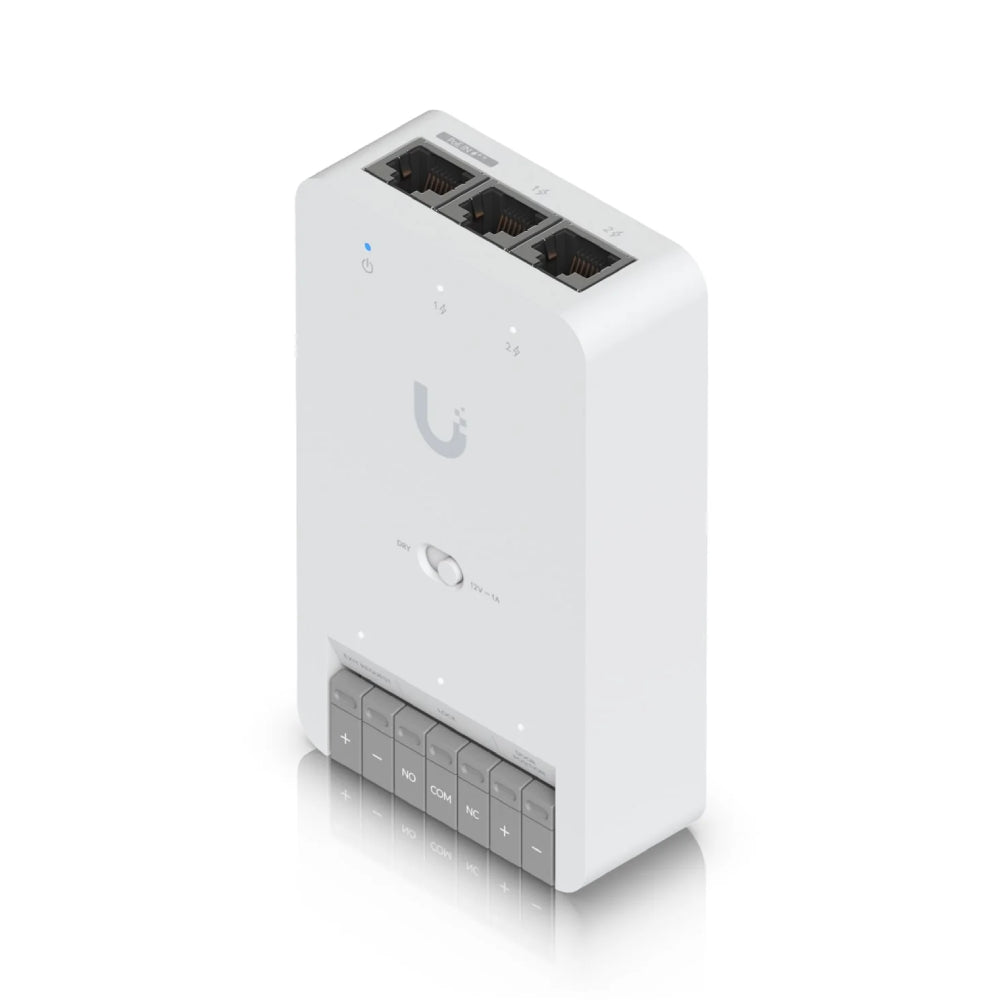

1 × Door Hub Mini
PoE++ powered single-door controller with three GbE ports, DIN-rail mount, and relay outputs for your lock.

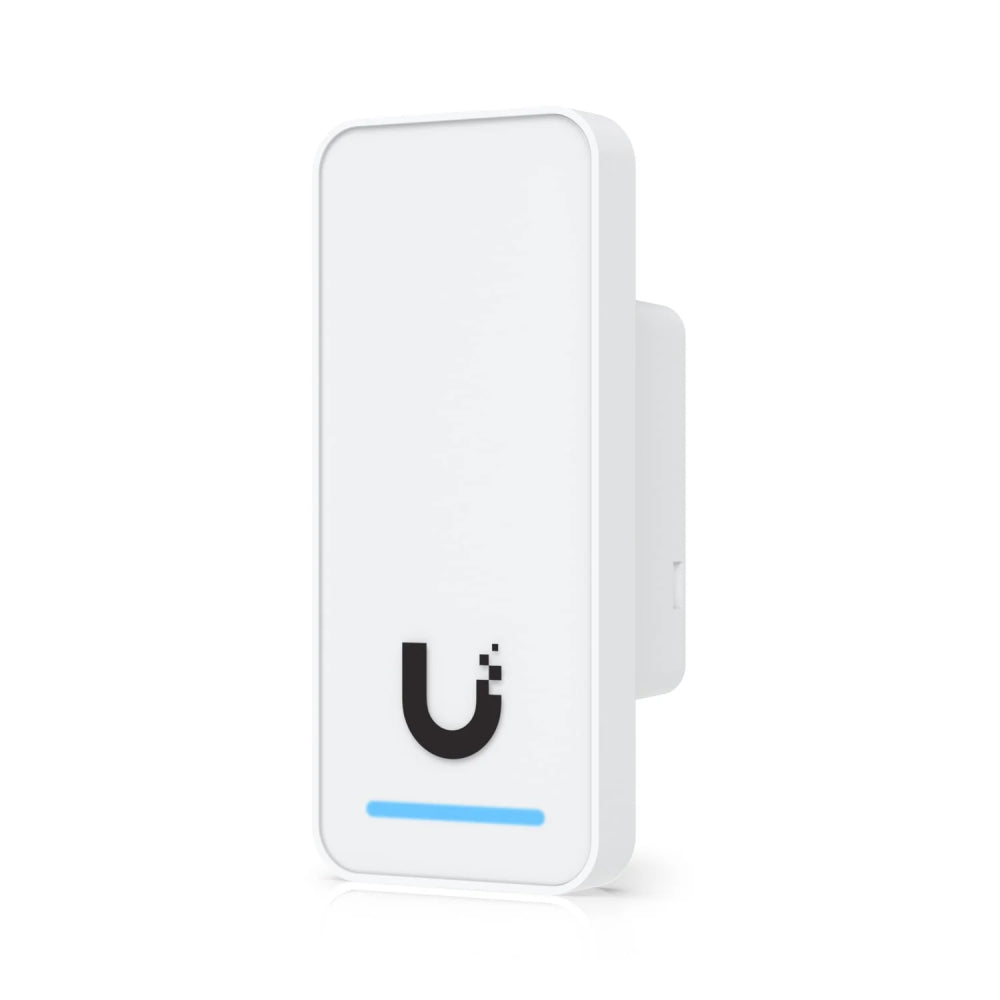

1 × G3 Reader
IP55 NFC + mobile access reader with in-wall gang-box mounting hardware included.

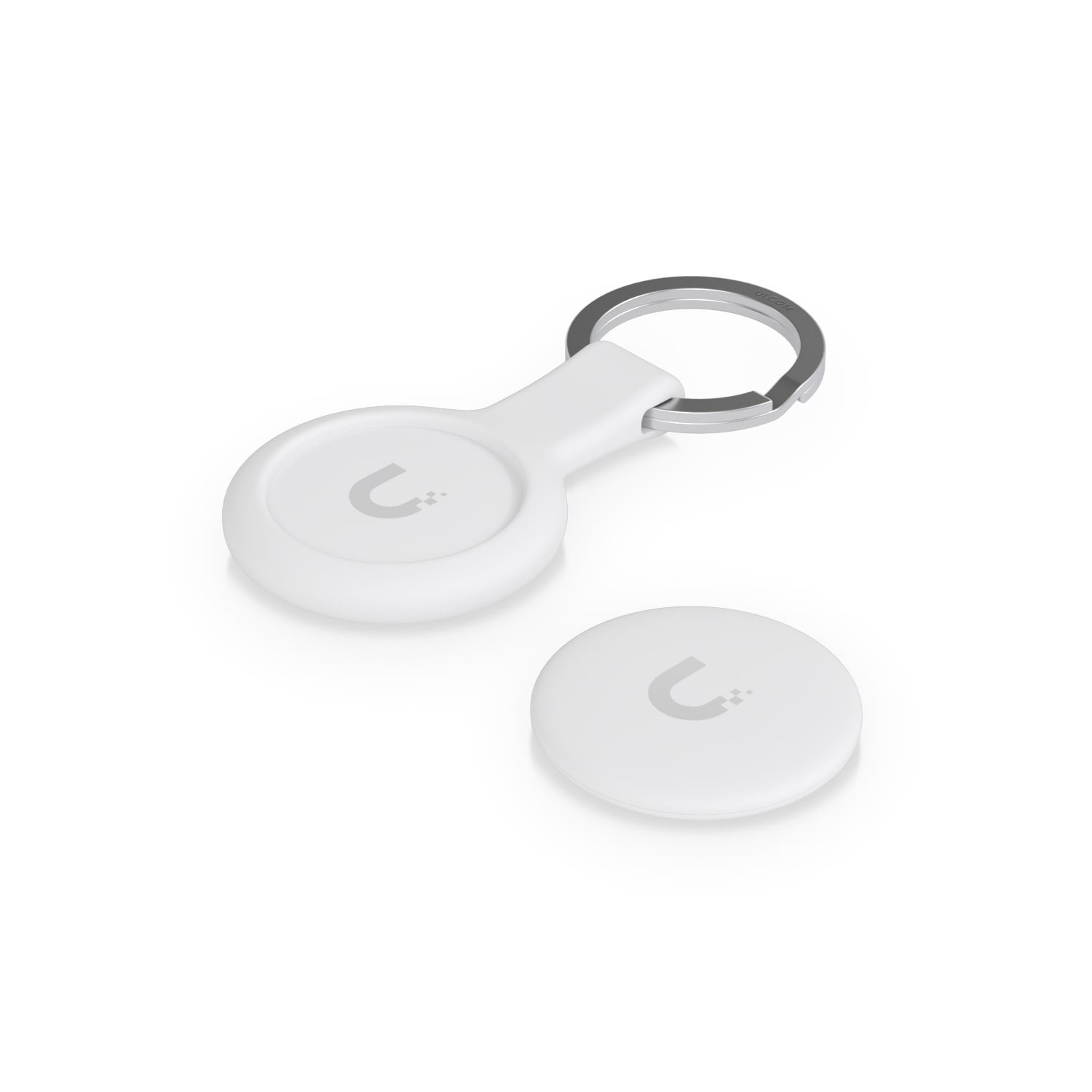

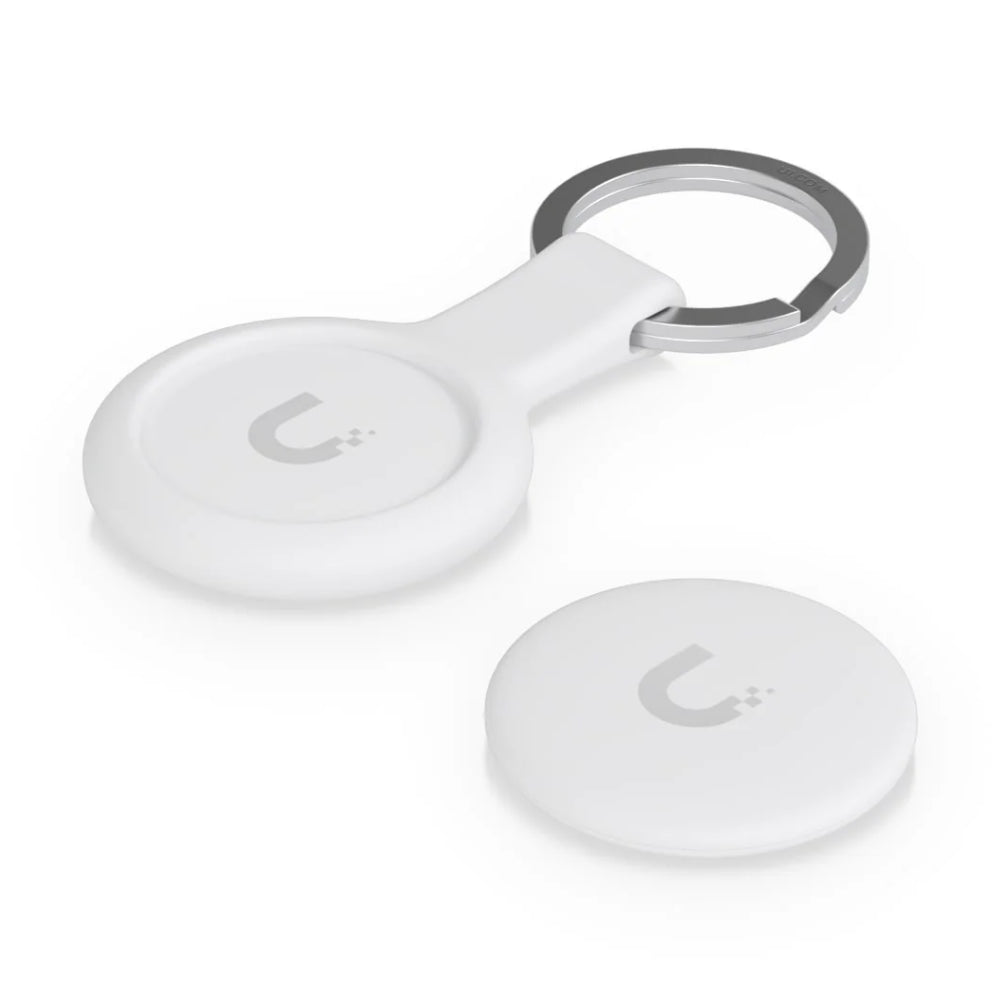

2 × Pocket Keyfobs
MIFARE DESFire EV3 NFC keyfobs to issue to staff, tenants, or visitors.
Not Included
An electric or magnetic door lock, PoE switch/injector, and network cabling are required and sold separately.
What's actually included in the UA-G3-SK kit?
One Door Hub Mini controller, one G3 Reader, two Pocket Keyfobs, and 10 free 1-year Touch Passes. A door lock is sold separately.
Does UniFi Access require a subscription?
No. UniFi Access runs locally through the UniFi Access app and web portal with no licence or subscription fees.
How does the door unlock?
The G3 Reader supports NFC cards and keyfobs, Bluetooth mobile unlock, and Apple/Google Wallet credentials, plus a handwave request-to-exit gesture.
Can it be used outdoors in Australia?
Yes. The G3 Reader is IP55-rated for indoor and outdoor use across a −30°C to 45°C range, suiting Australian door environments.
How many users does it support?
A single Door Hub Mini supports up to 3,000 users on one door, and you can scale by adding more readers and hubs.
Is the kit NDAA compliant?
Yes. Ubiquiti is a US-based manufacturer and the UA-G3-SK is NDAA Section 889 compliant, plus UL 294 certified for access control.
