Ubiquiti Accessories Series
High-Performance UACC-OFC-MA-MPMP-0.5M Fiber Connectivity

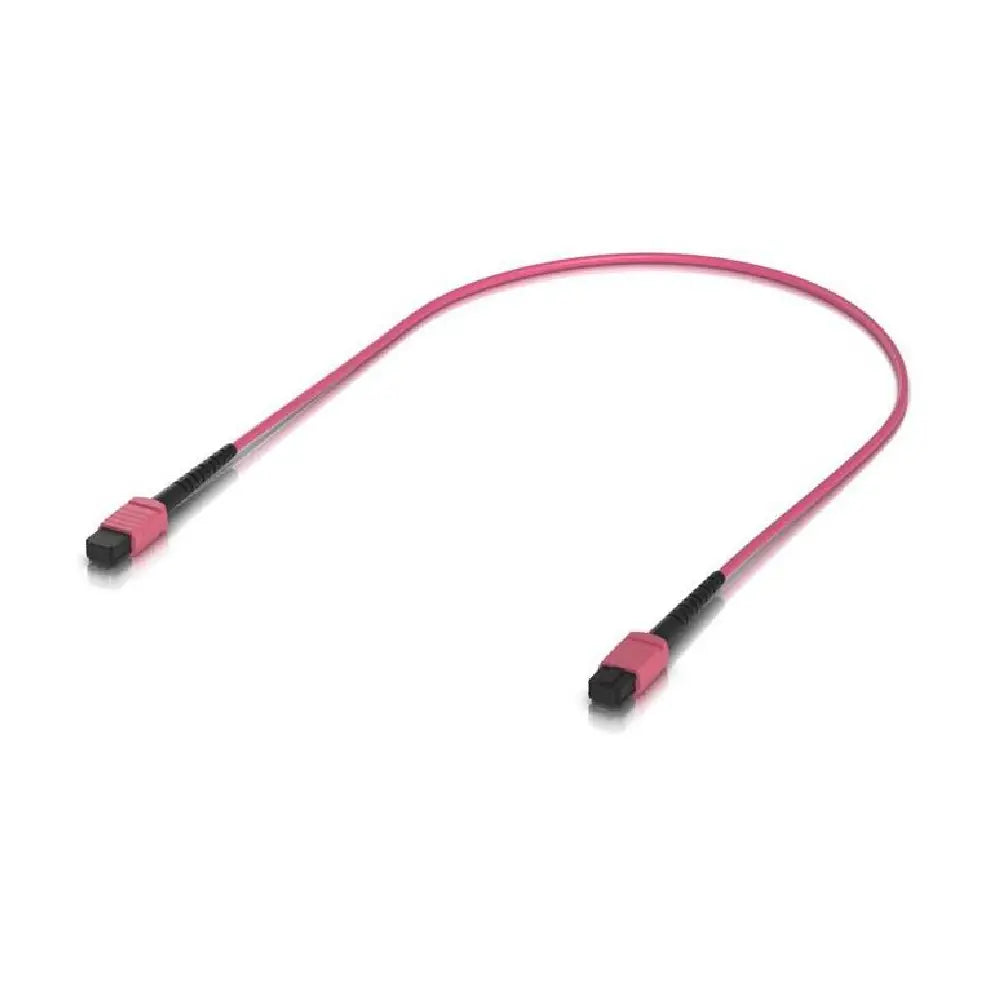

Engineered for high-density data centers and modern enterprise switching environments, the Ubiquiti UACC-OFC-MA-MPMP-0.5M delivers exceptional signal integrity and low insertion loss. This premium 0.5-meter indoor OM4 multi-mode fiber patch cable ensures ultra-fast transmission capacity required for demanding 100G network infrastructures.
Fiber Mode
OM4 Multi-Mode
Connectors
MPO-12 Type B UPC
Bandwidth Speed
100G Application Ready
Jacket Material
LSZH Fire-Resistant
Advanced Optical Architecture & Protocol Support
Designed to seamlessly interface with modern networking hardware, find out more technical deployment specifics directly on the Ubiquiti UACC-OFC-MA-MPMP-0.5M Fiber Cable page. Built using advanced multi-mode OM4 core specifications, it handles 850 nm optimized wavelengths efficiently while ensuring low signal degradation across short-run patch configurations.
Low Smoke Zero Halogen (LSZH) Jacket
Manufactured using premium LSZH materials that suppress toxic and corrosive halogen emissions during combustion, enhancing safety inside restricted server rooms and structured cabling ducts.
Precision MPO-12 Type B Connectors
Factory-polished UPC connectors guarantee high alignment precision and mechanical stability, minimizing insertion loss to 0.6 dB or lower for optimal link budgets.
Technical Specification Matrix
| Model |
UACC-OFC-MA-MPMP-0.5M |
| Fiber Mode |
OM4 Multi-Mode |
| Connector Type |
(2) MPO-12 Type B UPC (Female) |
| Cable Length |
0.5 m (1.6 ft) |
| Jacket Material |
Low Smoke Zero Halogen (LSZH) |
| Supported Wavelength |
850 nm |
| Insertion Loss |
≤ 0.6 dB |
| Return Loss |
≥ 20 dB |
What networking switches are compatible with this cable?
The cable is tailored for high-speed 100G modules and equipment utilizing standard MPO-12 Type B optical transceivers and cassette configurations.
Is the cable rated for plenum or indoor deployment?
Yes, it features an indoor-optimized Low Smoke Zero Halogen (LSZH) jacket that meets stringent safety and environmental requirements for indoor racks.
What does Type B polarity mean for MPO-12?
Type B polarity maps fiber position 1 on one end to position 12 on the other end, commonly required for specific parallel optics transceiver patch setups.
Can this cable sustain tight bending radiuses in server cabinets?
Constructed with a robust 3mm outer jacket diameter, it offers flexible routing properties ideal for dense patch panel organization.
