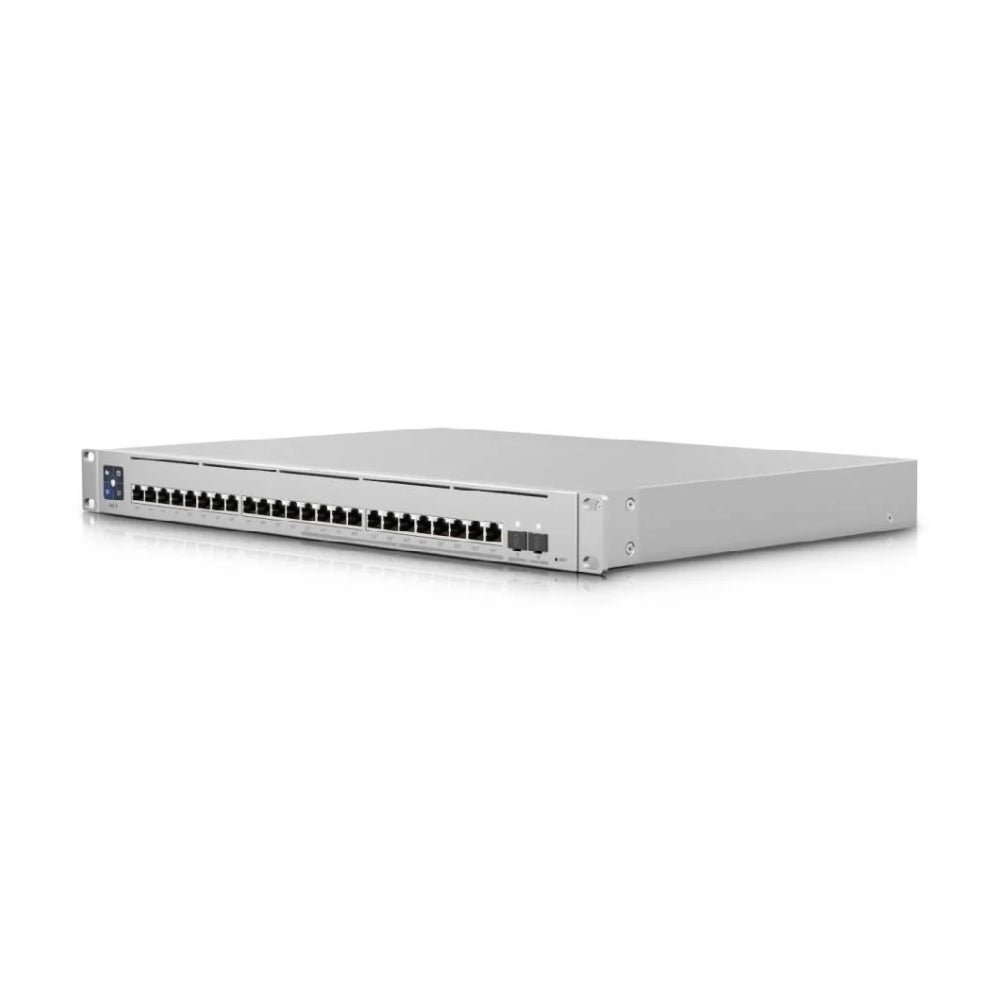

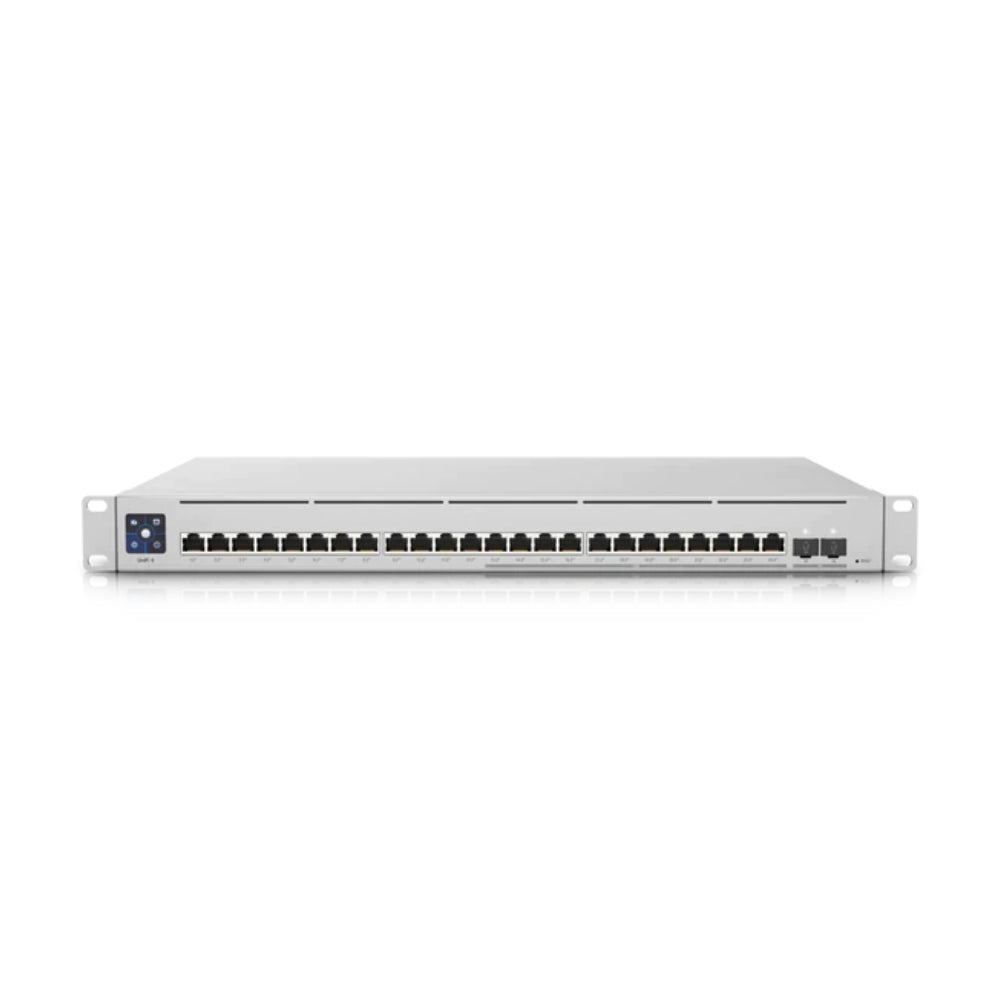

Ubiquiti UniFi Switch Enterprise 24-port PoE+ 12x2.5GbE 12x1GbE Ports, Ideal For Wi-Fi 6 AP, 2x 10g SFP+ Ports, Managed Layer 3 Switch

Description

Managed Layer 3 switch with (12) 2.5G RJ45 ports with PoE+ for WiFi 6 APs, (12) Gigabit RJ45 ports with PoE+, and (2) 10G SFP+ ports for fiber uplinks.

Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your WiFi 6 APs and 10G fiber uplinks to your network. Features include a 1.3" touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System* (USP-RPS) support for intelligent protection from internal PSU interruption or failure.

Features:
  • (12) 2.5G 802.3af/at PoE+ RJ45 ports
  • (12) 1G 802.3af/at PoE+ RJ45 ports
  • (2) 10G SFP+ ports
  • 400W total PoE capacity
  • 1.3" touchscreen with AR switch management
  • UniFi SmartPower RPS DC input
Managed with UniFi Network Application Version: 5.14.12 or higher

Mechanical
  • Dimensions 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
  • Weight Without Mount: 5.11 kg (11.27 lb)
  • With Mount: 5.2 kg (11.46 lb)
  • Enclosure Materials SGCC Steel
  • Mount Material SGCC Steel
  • Hardware
  • Total Non-Blocking Throughput 62 Gbps
  • Switching Capacity 124 Gbps
  • Forwarding Rate 92.25 Mpps
  • Max. Power Consumption 550W
  • Power Method (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
  • (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
  • Power Supply AC/DC, Internal, 550W
  • Management Interface Ethernet In-Band
  • Networking Interfaces (12) 10/100/1000 Mbps RJ45 Ethernet
  • (12) 100/1000/2500 Mbps RJ45 Ethernet
  • SFP+ Interfaces (2) 1/10G SFP+
  • PoE Interfaces (24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
  • Max. PoE+ Wattage per Port by PSE 34.2W
  • Voltage Range 802.3af Mode 44 to 57V
  • Voltage Range 802.3at Mode 50 to 57V
  • Services SMB Layer 3 PoE Gigabit Ethernet Switch
  • ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
  • Operating Temperature -5 to 40° C (23 to 104° F)
  • Operating Humidity 10 - 95% Noncondensing
  • Certifications CE, FCC, IC

Ubiquiti UniFi Switch Enterprise 24-port PoE+ 12x2.5GbE 12x1GbE Ports, Ideal For Wi-Fi 6 AP, 2x 10g SFP+ Ports, Managed Layer 3 Switch

Product form

SKU: USW-Enterprise-24-PoE

Managed Layer 3 switch with (12) 2.5G RJ45 ports with PoE+ for WiFi 6 APs, (12) Gigabit RJ45 ports with... Read more

$1,524.90 $1,488.30 Incl. GST

    • Warranty: 12 months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
      • PayPal
      • Apple Pay
      • Visa
      • Mastercard
      • Zip
      • Klarna
      • Afterpay

      Description

      Managed Layer 3 switch with (12) 2.5G RJ45 ports with PoE+ for WiFi 6 APs, (12) Gigabit RJ45 ports with PoE+, and (2) 10G SFP+ ports for fiber uplinks.

      Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your WiFi 6 APs and 10G fiber uplinks to your network. Features include a 1.3" touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System* (USP-RPS) support for intelligent protection from internal PSU interruption or failure.

      Features:
      • (12) 2.5G 802.3af/at PoE+ RJ45 ports
      • (12) 1G 802.3af/at PoE+ RJ45 ports
      • (2) 10G SFP+ ports
      • 400W total PoE capacity
      • 1.3" touchscreen with AR switch management
      • UniFi SmartPower RPS DC input
      Managed with UniFi Network Application Version: 5.14.12 or higher

      Mechanical
      • Dimensions 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
      • Weight Without Mount: 5.11 kg (11.27 lb)
      • With Mount: 5.2 kg (11.46 lb)
      • Enclosure Materials SGCC Steel
      • Mount Material SGCC Steel
      • Hardware
      • Total Non-Blocking Throughput 62 Gbps
      • Switching Capacity 124 Gbps
      • Forwarding Rate 92.25 Mpps
      • Max. Power Consumption 550W
      • Power Method (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
      • (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
      • Power Supply AC/DC, Internal, 550W
      • Management Interface Ethernet In-Band
      • Networking Interfaces (12) 10/100/1000 Mbps RJ45 Ethernet
      • (12) 100/1000/2500 Mbps RJ45 Ethernet
      • SFP+ Interfaces (2) 1/10G SFP+
      • PoE Interfaces (24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
      • Max. PoE+ Wattage per Port by PSE 34.2W
      • Voltage Range 802.3af Mode 44 to 57V
      • Voltage Range 802.3at Mode 50 to 57V
      • Services SMB Layer 3 PoE Gigabit Ethernet Switch
      • ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
      • Operating Temperature -5 to 40° C (23 to 104° F)
      • Operating Humidity 10 - 95% Noncondensing
      • Certifications CE, FCC, IC
