Professional 10GbE Layer 3 Switch
Ubiquiti UniFi Pro XG 10 PoE
A compact 1U powerhouse delivering ten multi-gigabit PoE+++ ports, dual 10G SFP+ uplinks and advanced Layer 3 control for demanding enterprise, surveillance and professional AV networks.
Copper connectivity
10 × 10 GbE
Total PoE availability
400W PoE+++
Non-blocking throughput
120 Gbps
Network intelligence
Layer 3
Enterprise performance without compromise
Multi-gig connectivity

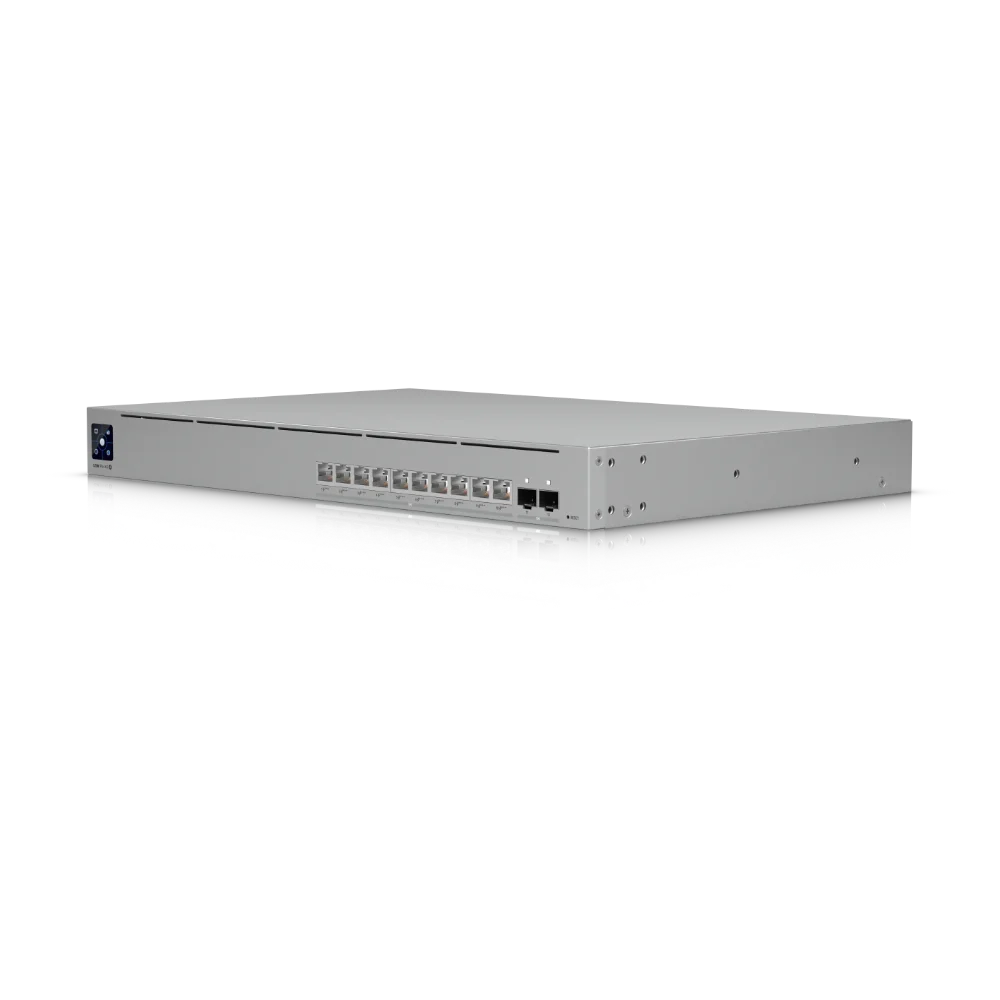

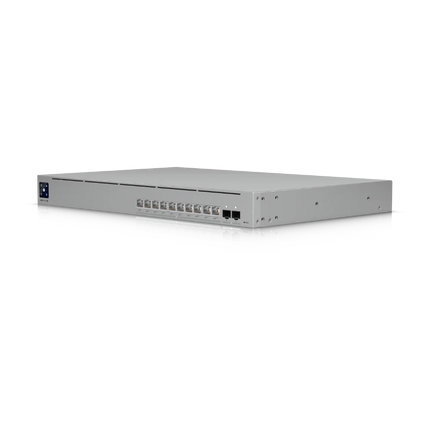

Ten RJ45 ports support 10G, 5G, 2.5G, 1G and 100M connections, backed by two 10G SFP+ uplinks.
High-power PoE+++
Power access points, PTZ cameras, AV endpoints and other demanding devices with up to 90W per copper port.
Advanced traffic control
Layer 3 routing, VLANs, QoS, LACP, IGMP snooping, ACLs and network isolation provide precise control.
Designed for the rack
A robust 1U steel enclosure, DC power backup support, Etherlighting™ and a 1.3-inch touchscreen simplify deployment.
Recommended applications
Enterprise networks
High-speed aggregation for offices, campuses, labs and distributed infrastructure.
IP surveillance
Multi-gig bandwidth and high-power PoE for dense, high-resolution camera deployments.
Professional AV
Profiles for Dante, Q-SYS, NDI, SDVoE, Shure, AES67 and Crestron environments.
WiFi 7 deployments
10GbE access ports supply the bandwidth and power required by next-generation access points.
Technical specifications
Connectivity & performance
| Model |
USW-Pro-XG-10-PoE (400W) |
| RJ45 ports |
10 × 10 GbE, all PoE+++ (10G/5G/2.5G/1G/100M) |
| SFP+ ports |
2 × 10G SFP+ (10G/1G) |
| Switching capacity |
240 Gbps |
| Non-blocking throughput |
120 Gbps |
| Forwarding rate |
179 Mpps |
| Supported VLANs |
1,000 |
| MAC address table |
32,000 entries |
| IPv4 static routes |
256 |
PoE, power & hardware
| Total PoE budget |
400W |
| Maximum PoE per port |
PoE 15.4W; PoE+ 30W; PoE++ 60W; PoE+++ 90W |
| Power supply |
Internal 550W AC/DC |
| Power input |
100–240V AC, 50/60 Hz; USP RPS DC backup input |
| Form factor |
1U rack mount |
| Dimensions |
442.4 × 285 × 44 mm |
| Weight |
4.6 kg without brackets; 4.7 kg with brackets |
| Enclosure |
SGCC steel |
| Display |
1.3-inch touchscreen |
| Operating temperature |
−5 to 40°C |
| Operating humidity |
10–90% non-condensing |
Advanced switching and routing
Layer 3 features
DHCP server and relay, inter-VLAN routing and static routing for local networks.
Layer 2 protection
STP/RSTP, DHCP snooping and guarding, storm control, loop protection and rate limiting.
Access control
802.1X, MAC- and IP-based ACLs, device isolation, port restriction and network isolation.
Optimised media traffic
IGMP snooping, advanced IGMP configuration, jumbo frames, QoS and Pro AV profiles.
Deployment notes
- Requires UniFi Network version 9.1.120 or later.
- SFP modules, patch leads and optional rack accessories may be sold separately.
- Confirm device power requirements before allocating the 400W total PoE budget.
Product resources
NDAA compliant
Professional-grade hardware
Australian specialist support
Specifications are based on manufacturer information and may change without notice.
